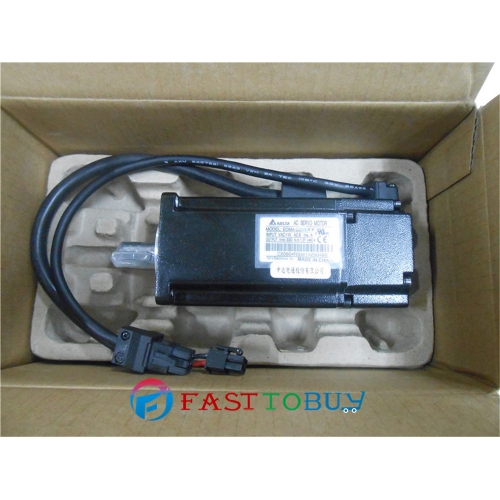

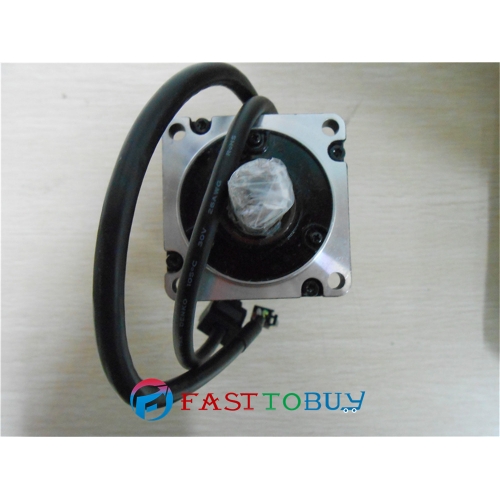

ECMA-CA0604RS Delta AC Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal New

item ID#: ECMA-CA0604RS
Item condition: New and Original
No reviews Write a review
Weight: 3 Kg(s)
10 available/ 0 sold
Start from: 1 Unit(s)
Manufactured by: Delta
Wholesale Price: 296.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

ECMA-CA0604RS Delta AC Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal New


fasttobuy logo(695).jpg

Contact US:

If you have any questions, please don't hesitate to contact us.

Email: service@fasttobuy.com
skype: fasttobuy02
our working time: EST 9:00AM ~ 6:00 PM

All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-send email and we will reply to you as soon as possible.



AC Servo Motor ECMA-CA0604RS available, if need other choices, contact us directly. we can also supply ECMA-CA0604SS.


Motor Specifications

Model

ECMA-CA0604RS

Product Name

Electronic Commutation Motor

Corresponding Servo Motor

ASD-A2-0421-L

ASD-A2-0421-M

ASD-A2-0421-U

ASD-A2-0421-E

Servo Type

AC Servo

Rated Voltage

220V

Encoder Type

Absolute type

Motor Frame Size

60 mm

Type of Shaft Diameter and Oil Seal

Keyway (with fixed screw holes), w/o brake, with oil seal

Standard Shaft Diameter

S=14mm

Rated Power Output

400W

Rated torque (N-m)

1.27

Max. torque (N-m)

3.82

Rated Speed

3000 rpm

Max. speed

5000 rpm

Rated current (A)

2.6

Max. instantaneous current (A)

7.8

Power rating (kW/s)

57.6

Rotor inertia (× 10-4kg.m2)

0.277

Mechanical constant (ms)

0.53

Torque constant-KT (N-m/A)

0.49

Voltage constant-KE (mV/(r/min))

17.4

Armature resistance (Ohm)

1.55

Armature inductance (mH)

6.71

Electric constant (ms)

4.30

Insulation class

Class A (UL), Class B (CE)

Insulation resistance

> 100 M ohm , DC 500 V

Insulation strength

1.8k Vac, 1 sec

Weight (kg) (without brake)

1.6Kg

Radial max. loading (N)

196

Axial max. loading (N)

68

Power rating (kW/s) (with brake)

53.8

Rotor inertia (× 10-4kg.m2) (with brake)

0.30

Mechanical constant (ms) (with brake)

0.57

Vibration grade (μm)

15

Operating temperature

0~40 degree centigrade

Storage temperature

-10~80 degree centigrade

Operating humidity

20~90% RH Non-condensate

Storage humidity

20~90% RH Non-condensate

Vibration capacity

2.5G

IP Rating

IP65

Approvals

CE UL

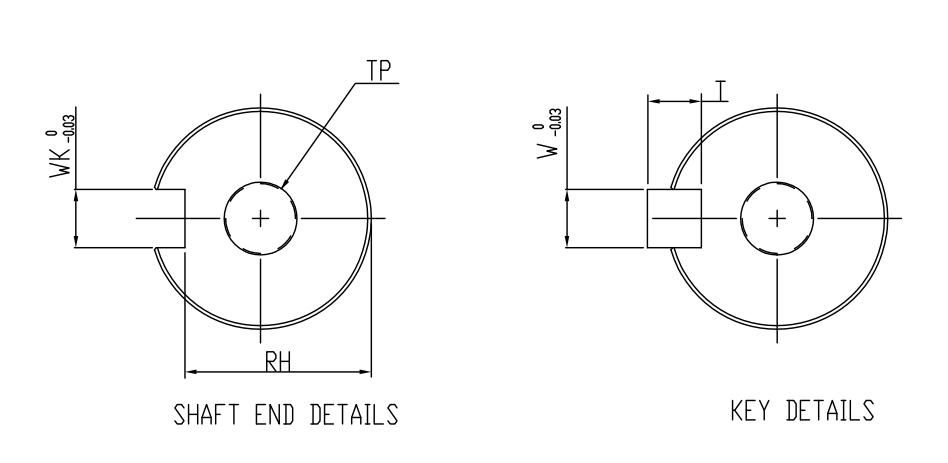

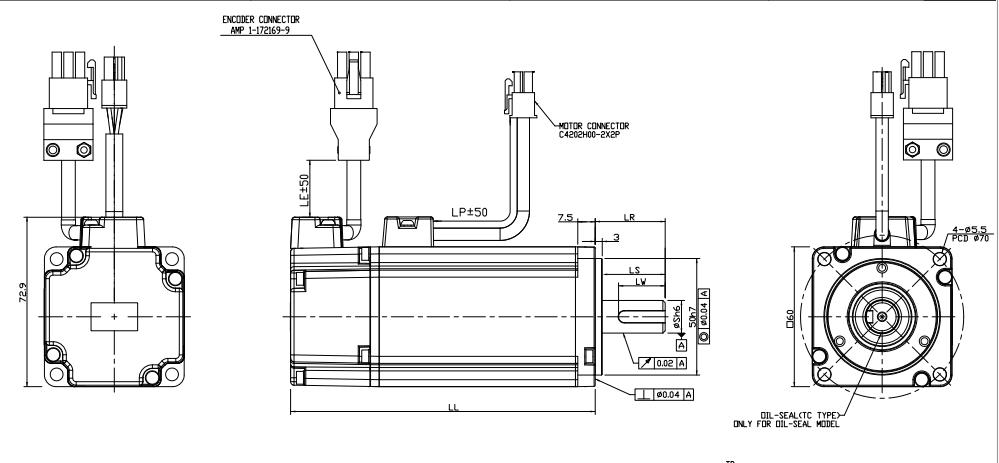

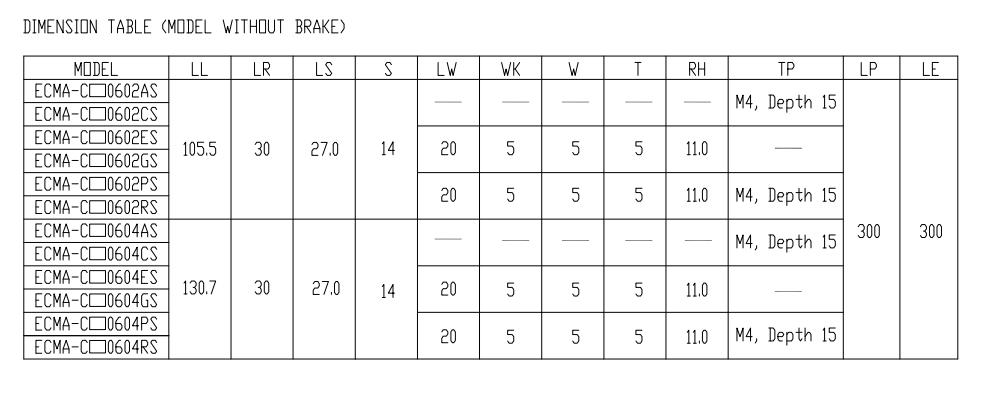

ECMA-CA0604RS External Dimensions (mm)
