220V 1KW Delta AC Servo Motor Drive kits High Speed CNC Control 3.18NM 100mm With Oil Seal For CNC Router

item ID#: ECMA-C21010RS+ASD-B2-1021-B
  • Item condition: New and Original
  • 10 available/ 8 sold
  • Start from: 1 Unit(s)
  • Weight: 6 Kg(s)
  • Manufactured by: Delta
  • DHL Recommended Shipping
  • Stock Lead Time
Delivery:
3-7 Days Details
Payment:
Details
Guarantee:
1Year Quality Assurance Details
Returns:
7 days unconditional return, the buyer bear the return freight Details

Estimate Shipping Costs

Quantity: Unit(s)
US$601.00 + Shipping Cost
    • Description
    • Download
    • Product Reviews
    • Write a Review

    Delta AC Servo Motor Drive kits ECMA-C21010RS+ASD-B2-1021-B 220V 1KW 3.18NM 3000RPM CNC Servo Motor 100mm Oil Seal with 3M cable



    Motor+Drive: ECMA-C21010RS+ASD-B2-1021-B

    Package Content:
    1* 1KW AC servo Motor
    1* 1KW  AC Servo  Drive
    1* 3M Encoder Cable &Power Cable




    1 Motor Specifications


    Model

    ECMA-C21010RS

    Product Name

    Electronic Commutation Motor

    Servo Type

    AC Servo

    Name of the Series

    B2

    Rated Voltage

    220V

    Encoder Type

    Incremental, 17-bit

    Motor Frame Size

    100mm

    Type of Shaft Diameter and Oil Seal

    Keyway(with fixed screw holes)  w/o Brake with Oil Seal

    Shaft Diameter

    S=22mm

    Rated Power Output

    1000W

    Rated torque (N-m)*1

    3.18N.M

    Max. torque (N-m)

    9.54

    Rated Speed

    3000 rpm

    Max. speed

    5000 rpm

    Rated current (A)

    7.30

    Max. current (A)

    21.9

    Power rating (kW/s)(without brake)

    38.1

    Rotor moment of inertia(× 10 -4 kg.m2 )

    2.65

    Mechanical time constant(ms)

    0.74

    Torque constant-KT (N-m/A)

    0.43

    Voltage constant-KE (mV/(r/min))

    16.8

    Armature resistance (Ohm)

    0.20

    Armature inductance (mH)

    1.81

    Electrical time constant (ms)

    9.30

    Insulation class

    Class A (UL), Class B (CE)

    Insulation resistance

    > 100 M  ohm, DC 500 V

    Insulation strength

    AC 1500V, 60 sec

    Weight (kg)  (without brake)

    4.3 Kg

    Max. radial shaft load (N)

    490

    Max. thrust shaft load (N)

    98

    Vibration grade (μm)

    15

    Operating temperature

    0~40  degree centigrade

    Storage temperature

    -10~80  degree centigrade

    Operating humidity

    20% to 90% RH (non-condensing)

    Storage humidity

    20% to 90% RH (non-condensing)

    Vibration capacity

    2.5G

    IP Rating

    IP65

    Approvals

    CE  UL



    2  Drive Specifications


    Model

    ASD-B2-1021-B

    Product Name

    AC SERVO Drive

    Series

    B2

    Model Type

    B

    Power

    Supply

    Phase / Voltage

    Three-phase: 170 ~ 255VAC, 50/60Hz ±5%

    Single-phase: 200 ~ 255VAC, 50/60Hz ±5%

    Continuous Output Current

    7.3 Arms

    Cooling method

    Fan Cooling

    Encoder Resolution /Feedback Resolution

    17-bit (160000 p/rev)

    Main Circuit Control

    SVPWM Control

    Tuning Modes

    Auto/Manual

    Dynamic Brake

    Built-in

    Position

    Control

    Mode

    Max. Input Pulse

    Frequency

    Line driver: Max. 500Kpps (low speed)/Max.4Mpps(high speed) Open collector: Max. 200Kpps

    Pulse Type

    Pulse + Direction, A phase + B phase, CCW pulse + CW pulse

    Command Source

    External pulse train

    Smoothing Strategy

    Low-pass filter

    Electronic Gear

    Electronic gear N/M multiple N: 1 ~ (2 26 -1)/M:1 ~ (2 31 -1)  1/50 < N/M < 25600

    Torque Limit Operation

    Set by parameters

    Feed Forward Compensation

    Set by parameters

    Speed

    Control

    Mode

    Analog

    Input

    Command

    Voltage

    Range

    0 ~ ±10 VDC

    Input

    Resistance

    10 KΩ

    Time

    Constant

    2.2 us

    Speed Control Range*1

    1 : 5000

    Command Source

    External analog signal /Internal parameters

    Smoothing Strategy

    Low-pass and S-curve filter

    Torque Limit Operation

    Set by parameters or via Analog input

    Responsiveness

    Characteristic

    Maximum 550Hz

    Speed Fluctuation Rate *2(at rated speed)

    0.01% or less at load fluctuation 0 to 100%

    0.01% or less at power fluctuation ±10%

    0.01% or less at 0 to 50 degree centigrade ambient temperature fluctuation

    Torque

    Control

    Mode

    Analog

    Command

    Input

    Voltage

    Range

    0 ~ ±10 VDC

    Input

    Resistance

    10 KΩ

    Time

    Constant

    2.2 us

    Command Source

    External analog signal / Internal parameters

    Smoothing Strategy

    Low-pass filter

    Speed Limit Operation

    Parameter Setting or via Analog input

    Analog Monitor Output

    Monitor signal can set by parameters (Output voltage range: ±8 V)

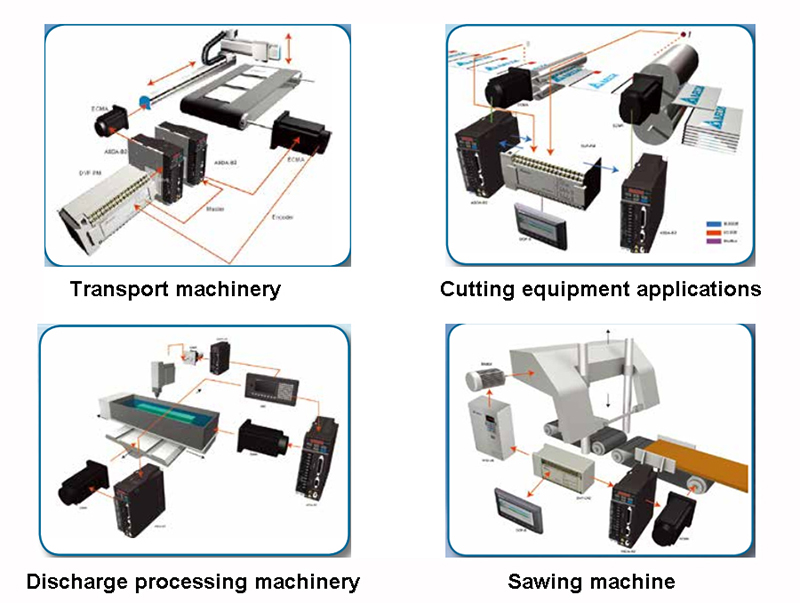

    Scene application
