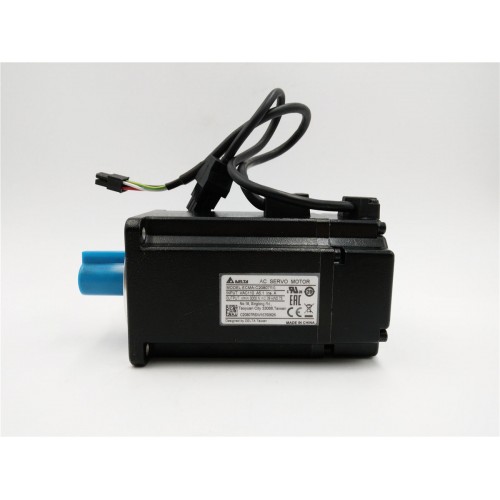

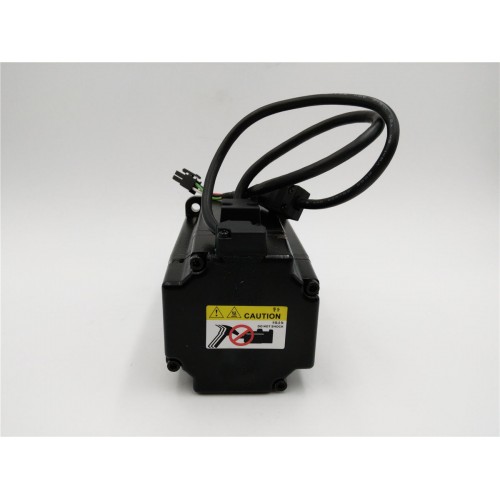

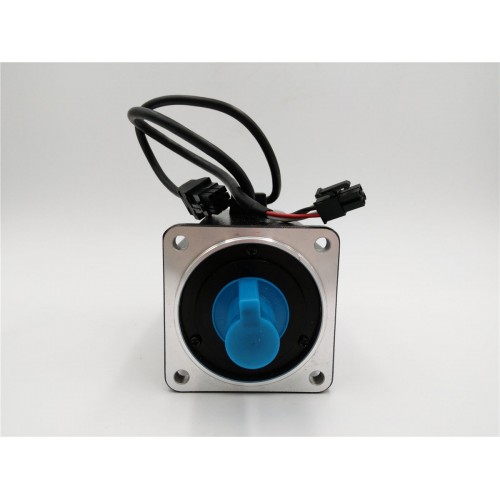

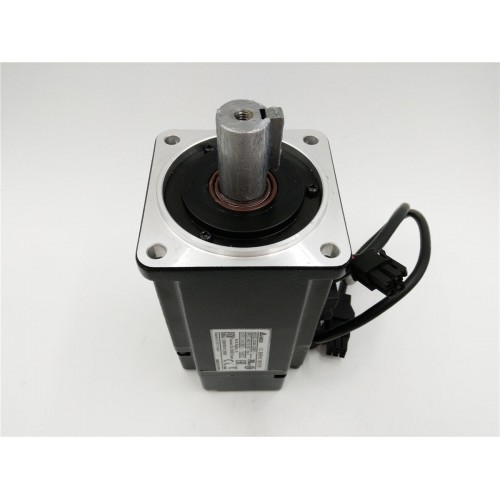

ECMA-C21010RS Delta AC Servo Motor 220V 1KW 3.18NM 3000rpm with Keyway Oil Seal New
.jpg "fasttobuy logo(388).jpg")
If you have any questions, please don't hesitate to contact us.
Email: service@fasttobuy.com
Skype: fasttobuy02
Our working time: EST 9:00AM ~ 6:00 PM
AC Servo Motor ECMA-C21010RS available, if need other choices, contact us directly. we can also supply ECMA-C21010SS.
|
Model |
ECMA-C21010RS |
|
Product Name |
Electronic Commutation Motor |
|
Corresponding Servo Motor |
ASD-B2-1021-B |
|
Servo Type |
AC Servo |
|
Rated Voltage |
220V |
|
Encoder Type |
Incremental, 17-bit |
|
Motor Frame Size |
100mm |
|
Type of Shaft Diameter and Oil Seal |
Keyway(with fixed screw holes) w/o Brake with Oil Seal |
|
Shaft Diameter |
S=22mm |
|
Rated Power Output |
1000W |
|
Rated torque (N-m)*1 |
3.18 |
|
Max. torque (N-m) |
9.54 |
|
Rated Speed |
3000 rpm |
|
Max. speed |
5000 rpm |
|
Rated current (A) |
7.30 |
|
Max. current (A) |
21.9 |
|
Power rating (kW/s)(without brake) |
38.1 |
|
Rotor moment of inertia(× 10 -4 kg.m2 ) |
2.65 |
|
Mechanical time constant(ms) |
0.74 |
|
Torque constant-KT (N-m/A) |
0.43 |
|
Voltage constant-KE (mV/(r/min)) |
16.8 |
|
Armature resistance (Ohm) |
0.20 |
|
Armature inductance (mH) |
1.81 |
|
Electrical time constant (ms) |
9.30 |
|
Insulation class |
Class A (UL), Class B (CE) |
|
Insulation resistance |
> 100 M ohm, DC 500 V |
|
Insulation strength |
AC 1500V, 60 sec |
|
Weight (kg) (without brake) |
4.3 Kg |
|
Max. radial shaft load (N) |
490 |
|
Max. thrust shaft load (N) |
98 |
|
Vibration grade (μm) |
15 |
|
Operating temperature |
0~40 degree centigrade |
|
Storage temperature |
-10~80 degree centigrade |
|
Operating humidity |
20% to 90% RH (non-condensing) |
|
Storage humidity |
20% to 90% RH (non-condensing) |
|
Vibration capacity |
2.5G |
|
IP Rating |
IP65 |
|
Approvals |
CE UL |

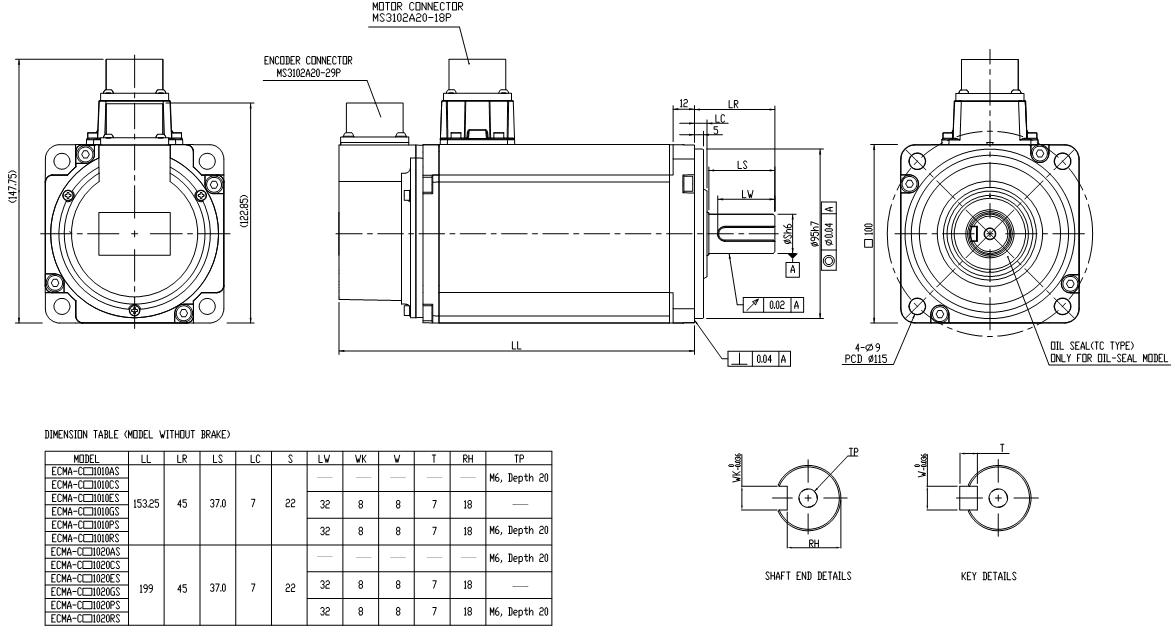

ECMA-C21010RS external dimension
