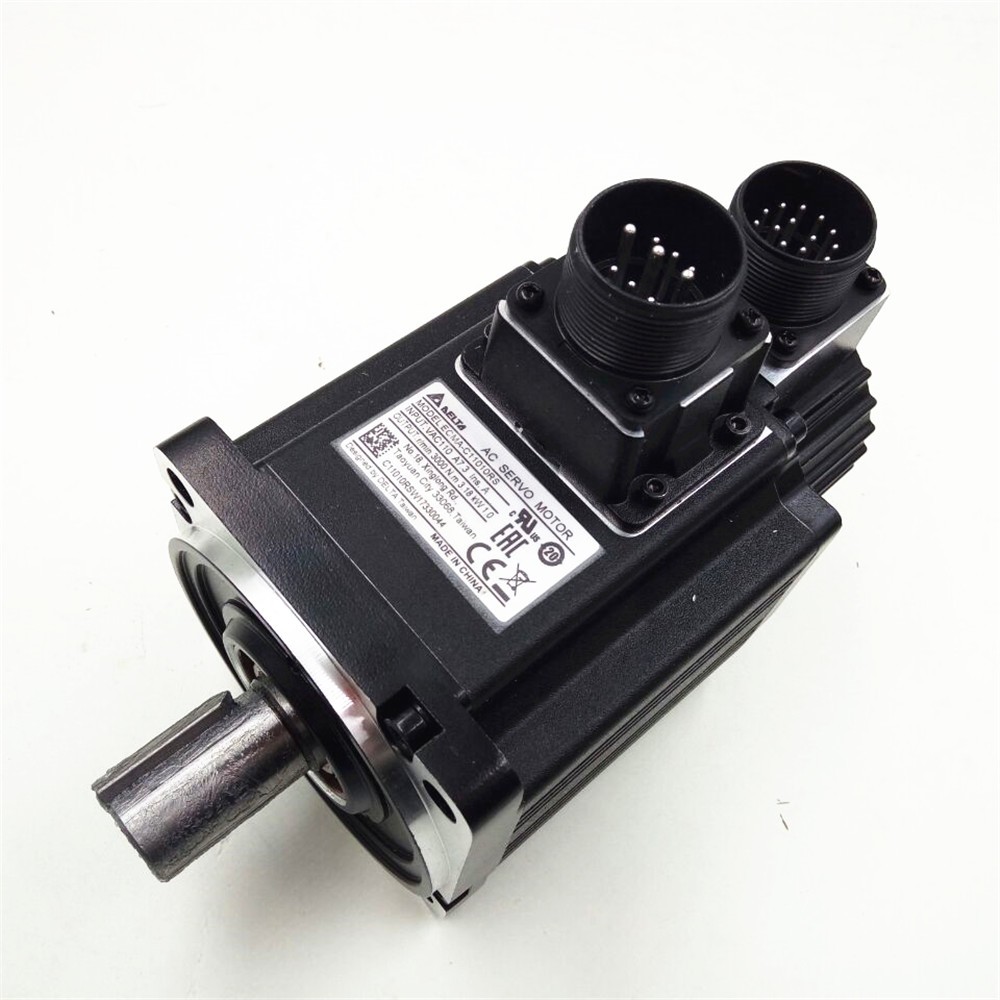

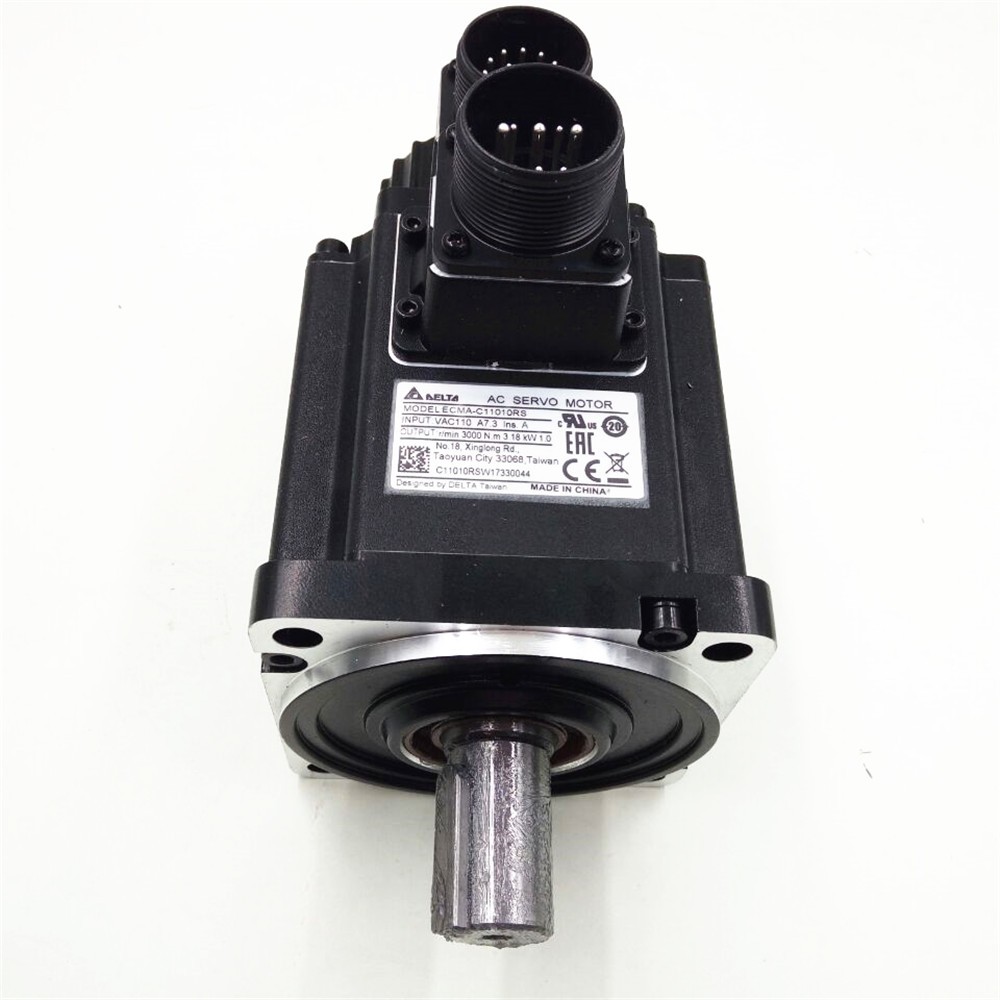

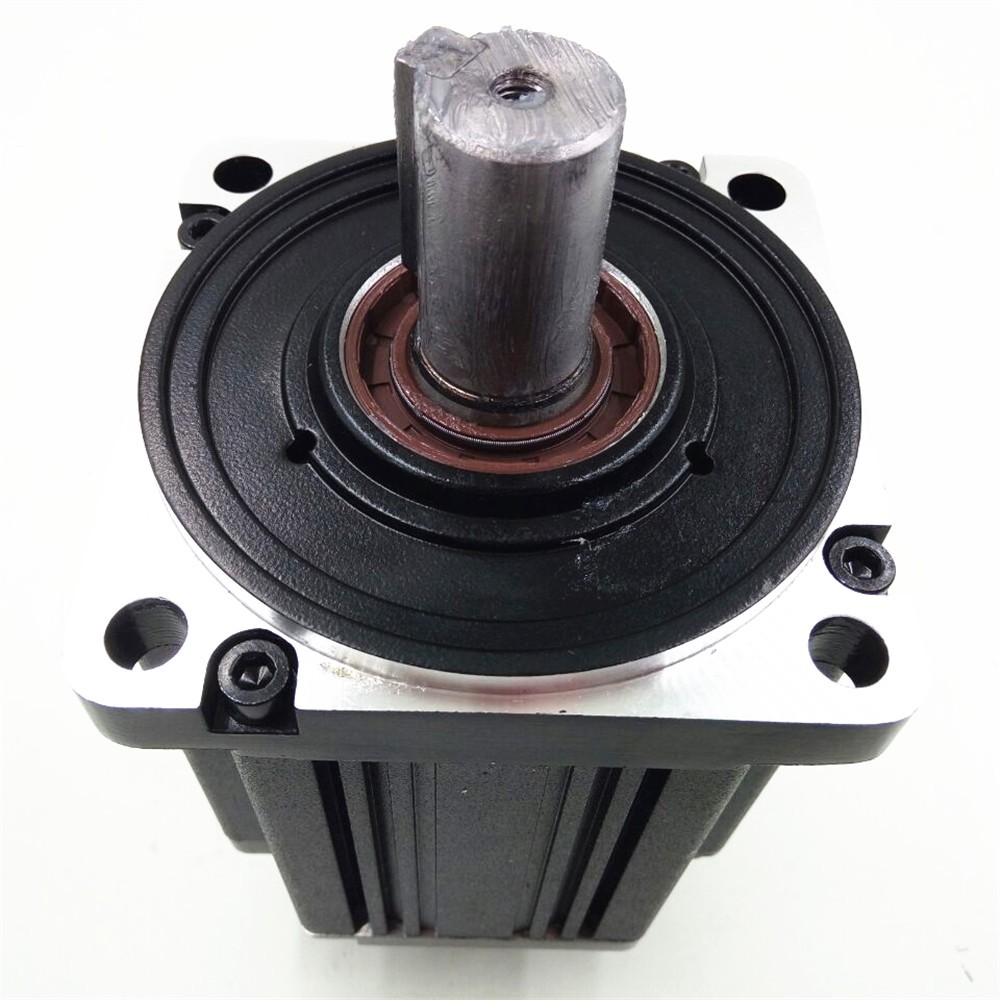

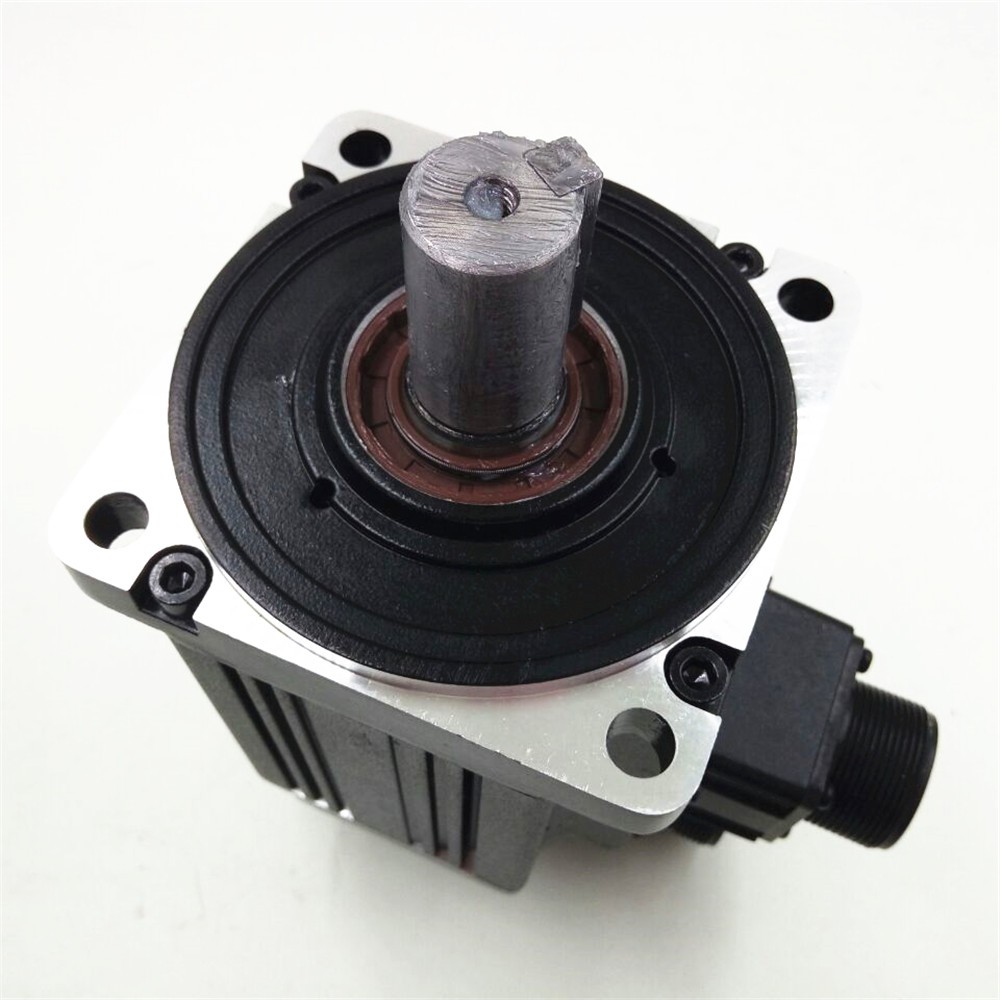

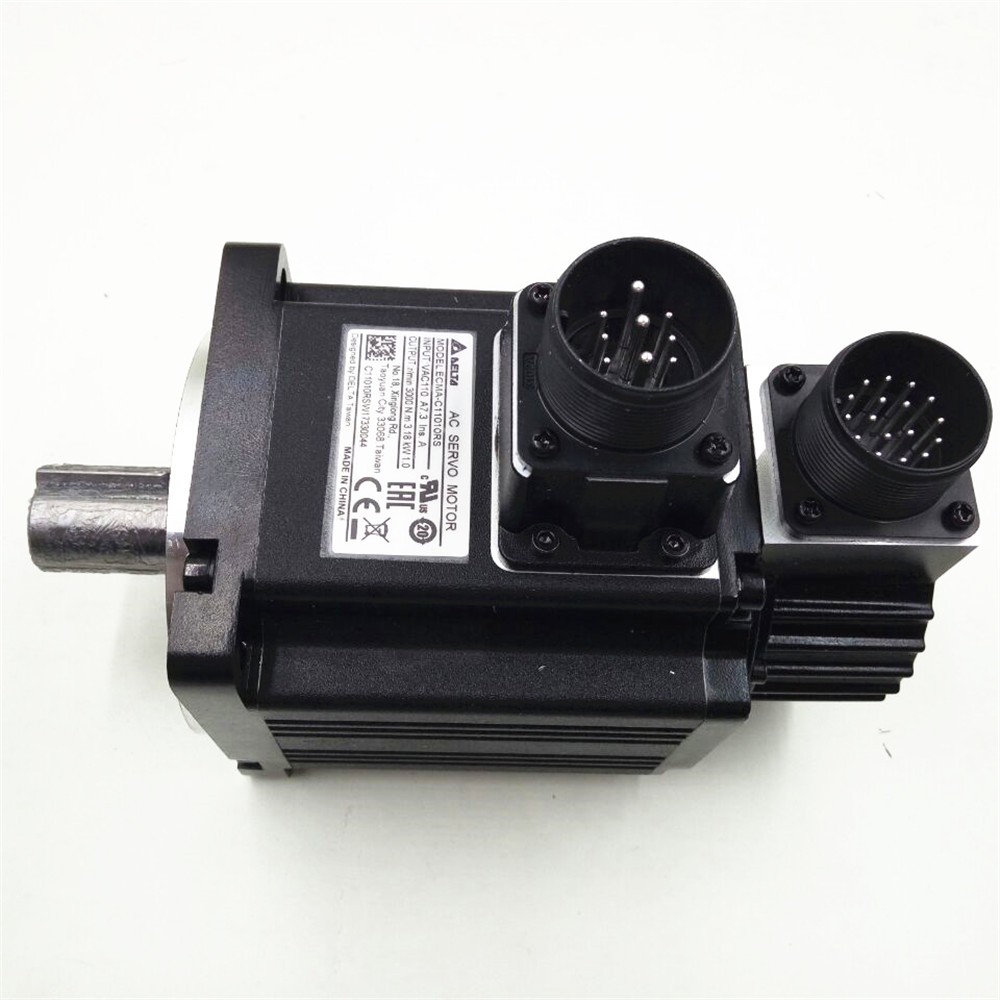

ECMA-C11010RS Delta AC Servo Motor 220V 1kW 3.18NM 3000rpm with Keyway Oil Seal New

item ID#: ECMA-C11010RS
Item condition: New and Original
No reviews Write a review
Weight: 5.5 Kg(s)
3 available/ 7 sold
Start from: 1 Unit(s)
Manufactured by: Delta
Wholesale Price: 284.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

ECMA-C11010RS Delta AC Servo Motor 220V 1kW 3.18NM 3000rpm with Keyway Oil Seal New


fasttobuy logo(226).jpg



Contact information:

Phone: +0086 13724354369  or +0086 755 82546545
email: service@fasttobuy.com   skype: fasttobuy02
our working time: EST 9:00AM ~ 6:00 PM



AC Servo Motor ECMA-C11010RS available, if need other choices, contact us directly. we can also supply  ECMA-C11010SS.



Model

ECMA-C11010RS

Product Name

Electronic Commutation Motor

Corresponding Servo Motor

ASD-A2-1021-L

ASD-A2-1021-M

ASD-A2-1021-U

ASD-B2-1021-B

ASD-A2-1021-E

Servo Type

AC Servo

Rated Voltage

220V

Encoder Type

Incremental type, 20-bit

Motor Frame Size

100mm

Type of Shaft Diameter and Oil Seal

Keyway (with fixed screw holes), w/o brake, with oil seal

Standard Shaft Diameter

S=22mm

Rated Power Output

1.0kw

Rated torque (N-m)

3.18

Max. torque (N-m)

9.54

Rated Speed

3000 rpm

Max. speed

5000 rpm

Rated current (A)

7.30

Max. instantaneous current (A)

21.9

Power rating (kW/s)

38.1

Rotor inertia (× 10-4kg.m2)

2.65

Mechanical constant (ms)

0.74

Torque constant-KT (N-m/A)

0.43

Voltage constant-KE (mV/(r/min))

16.8

Armature resistance (Ohm)

0.20

Armature inductance (mH)

1.81

Electric constant (ms)

9.30

Insulation class

Class A (UL), Class B (CE)

Insulation resistance

> 100 M ohm , DC 500 V

Insulation strength

1.8k Vac, 1 sec

Weight (kg) (without brake)

4.3Kg

Radial max. loading (N)

490

Axial max. loading (N)

98

Power rating (kW/s) (with brake)

30.4

Rotor inertia (× 10-4kg.m2) (with brake)

3.33

Mechanical constant (ms) (with brake)

0.93

Vibration grade (μm)

15

Operating temperature

0~40 degree centigrade

Storage temperature

-10~80 degree centigrade

Operating humidity

20~90% RH Non-condensate

Storage humidity

20~90% RH Non-condensate

Vibration capacity

2.5G

IP Rating

IP65

Approvals

CE UL



Other Delta ECMA-C Hot Sale Items Online:



ECMA-C10401HS

ECMA-C10401HS Delta AC Servo Motor 220V 100W 0.32NM 3000rpm with Keyway Oil Seal brake for A2 Drive

buy now(4).png

ECMA-C10401GS

ECMA-C10401GS Delta AC Servo Motor 220V 100W 0.32NM 3000rpm with Keyway Oil Seal for A2 Drive

buy now(4).png

ECMA-C20401FS

ECMA-C20401FS Delta AC Servo Motor 220V 100W 0.32NM 3000rpm with Keyway brake for B2 Drive

buy now(4).png

ECMA-C10602RS

ECMA-C10602RS Delta AC Servo Motor 220V 200W 0.64NM 3000rpm with Keyway Oil Seal

buy now(4).png

ECMA-C10602SS

ECMA-C10602SS Delta AC Servo Motor 220V 200W 0.64NM 3000rpm with Keyway Oil Seal brake

buy now(4).png

ECMA-C20602RS

ECMA-C20602RS Delta AC Servo Motor 220V 200W 0.64NM 3000rpm with Keyway Oil Seal

buy now(4).png

ECMA-C20602SS

ECMA-C20602SS Delta AC Servo Motor 220V 200W 0.64NM 3000rpm with Keyway Oil Seal brake

buy now(4).png

ECMA-C10604RS

ECMA-C10604RS Delta AC Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal

buy now(4).png

ECMA-C10604SS

ECMA-C10604SS Delta AC Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal brake

buy now(4).png

ECMA-C10804R7

ECMA-C10804R7 Delta Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal Shatf 14mm

buy now(4).png

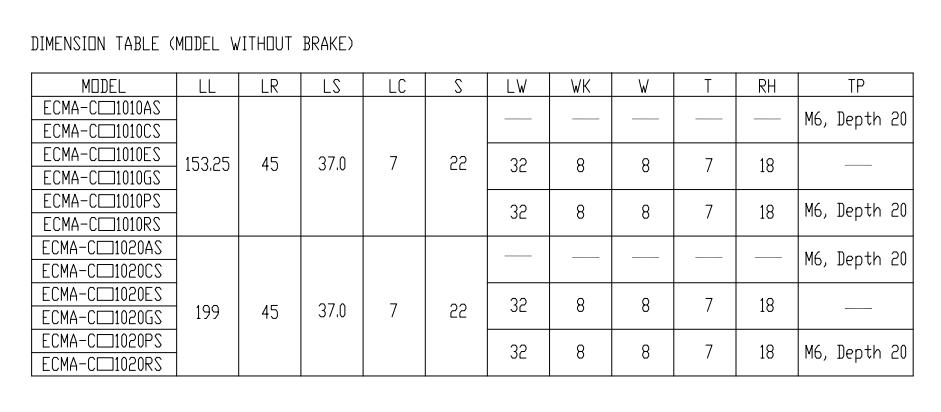

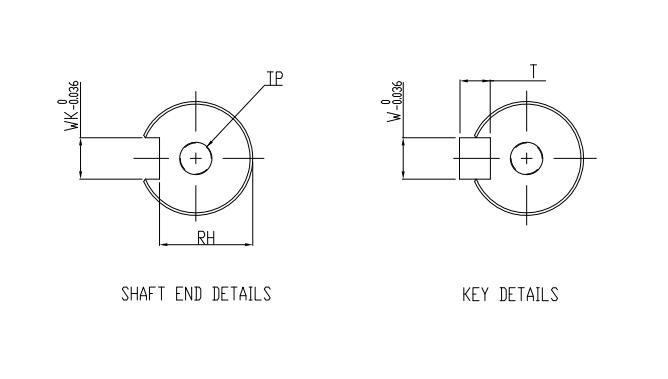

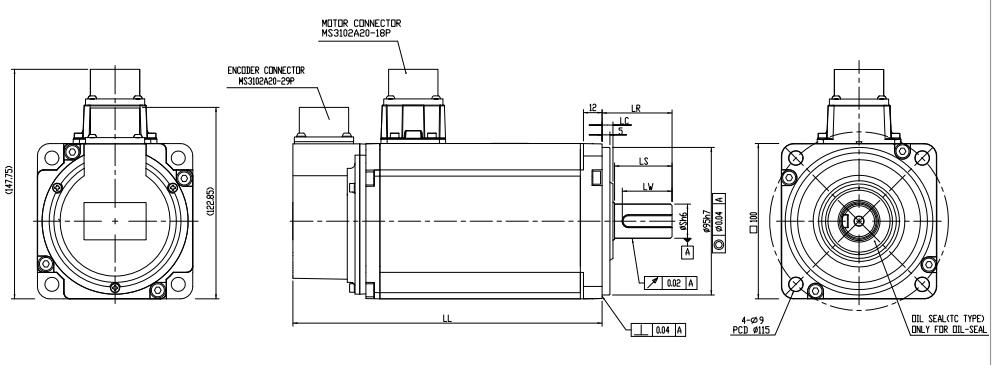

ECMA-C11010RS External Dimensions (mm)
