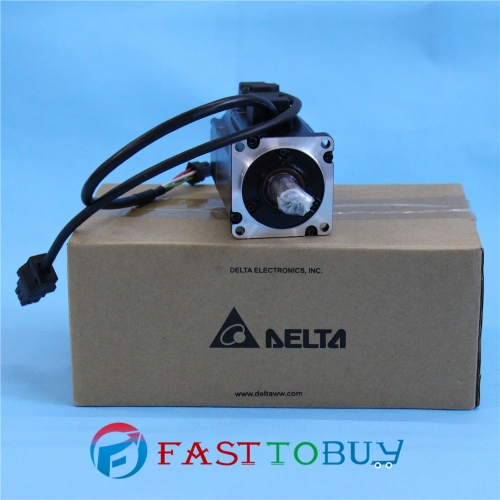

AC Servo Motor ECMA-C10807SS available, if need other choices, contact us directly. we can also supply ECMA-C10807RS, ECMA-C10807SH and ECMA-C10807RH.
Motor Specifications
|
Model |
ECMA-C10807SS |
|
Product Name |
Electronic Commutation Motor |
|
Corresponding Servo Motor |
ASD-A2-0721-L ASD-A2-0721-M ASD-A2-0721-U ASD-A2-0721-E |
|
Servo Type |
AC Servo |
|
Rated Voltage |
220V |
|
Encoder Type |
incremental type, 20-bit |
|
Motor Frame Size |
80 mm |
|
Type of Shaft Diameter and Oil Seal |
Keyway(with fixed screw holes) with Brake with Oil Seal |
|
Standard Shaft Diameter |
S=19mm |
|
Rated Power Output |
750W |
|
Rated torque (N-m)*1 |
2.39 |
|
Max. torque (N-m) |
7.16 |
|
Rated Speed |
3000 rpm |
|
Max. speed |
5000 rpm |
|
Rated current (A) |
5.10 A |
|
Max. instantaneous current (A) |
15.3 A |
|
Power rating (kW/s) |
50.4 |
|
Rotor inertia (× 10-4kg.m2) |
1.13 |
|
Mechanical constant (ms) |
0.63 |
|
Torque constant-KT (N-m/A) |
0.47 |
|
Voltage constant-KE (mV/(r/min)) |
17.2 |
|
Armature resistance (Ohm) |
0.42 |
|
Armature inductance (mH) |
3.53 |
|
Electric constant (ms) |
8.36 |
|
Insulation class |
Class A (UL), Class B (CE) |
|
Insulation resistance |
> 100 M ohm , DC 500 V |
|
Insulation strength |
1.8k Vac, 1 sec |
|
Weight (kg) (with brake) |
3.8 Kg |
|
Radial max. loading (N) |
245 |
|
Axial max. loading (N) |
98 |
|
Power rating (kW/s) (with brake) |
48.4 |
|
Rotor inertia (× 10-4kg.m2) (with brake) |
1.18 |
|
Mechanical constant (ms) (with brake) |
0.65 |
|
Brake holding torque [Nt-m (min)] |
2.5 |
|
Brake power consumption(at 20 °C ) [W] |
8.2 |
|
Brake release time [ms (Max)] |
10 |
|
Brake pull-in time [ms (Max)] |
70 |
|
Vibration grade (μm) |
15 |
|
Operating temperature |
0~40 degree centigrade |
|
Storage temperature |
-10~80 degree centigrade |
|
Operating humidity |
20% to 90% RH (non-condensing) |
|
Storage humidity |
20% to 90% RH (non-condensing) |
|
Vibration capacity |
2.5G |
|
IP Rating |
IP65 |
|
Approvals |
CE UL |
Other Delta ECMA-C Hot Sale Items Online:
|
ECMA-C10401HS |
ECMA-C10401HS Delta AC Servo Motor 220V 100W 0.32NM 3000rpm with Keyway Oil Seal brake for A2 Drive |
|
|
ECMA-C10401GS |
ECMA-C10401GS Delta AC Servo Motor 220V 100W 0.32NM 3000rpm with Keyway Oil Seal for A2 Drive |
|
|
ECMA-C20401FS |
ECMA-C20401FS Delta AC Servo Motor 220V 100W 0.32NM 3000rpm with Keyway brake for B2 Drive |
|
|
ECMA-C10602RS |
ECMA-C10602RS Delta AC Servo Motor 220V 200W 0.64NM 3000rpm with Keyway Oil Seal |
|
|
ECMA-C10602SS |
ECMA-C10602SS Delta AC Servo Motor 220V 200W 0.64NM 3000rpm with Keyway Oil Seal brake |
|
|
ECMA-C20602RS |
ECMA-C20602RS Delta AC Servo Motor 220V 200W 0.64NM 3000rpm with Keyway Oil Seal |
|
|
ECMA-C20602SS |
ECMA-C20602SS Delta AC Servo Motor 220V 200W 0.64NM 3000rpm with Keyway Oil Seal brake |
|
|
ECMA-C10604RS |
ECMA-C10604RS Delta AC Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal |
|
|
ECMA-C10604SS |
ECMA-C10604SS Delta AC Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal brake |
|
|
ECMA-C10804R7 |
ECMA-C10804R7 Delta Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal Shatf 14mm |
|

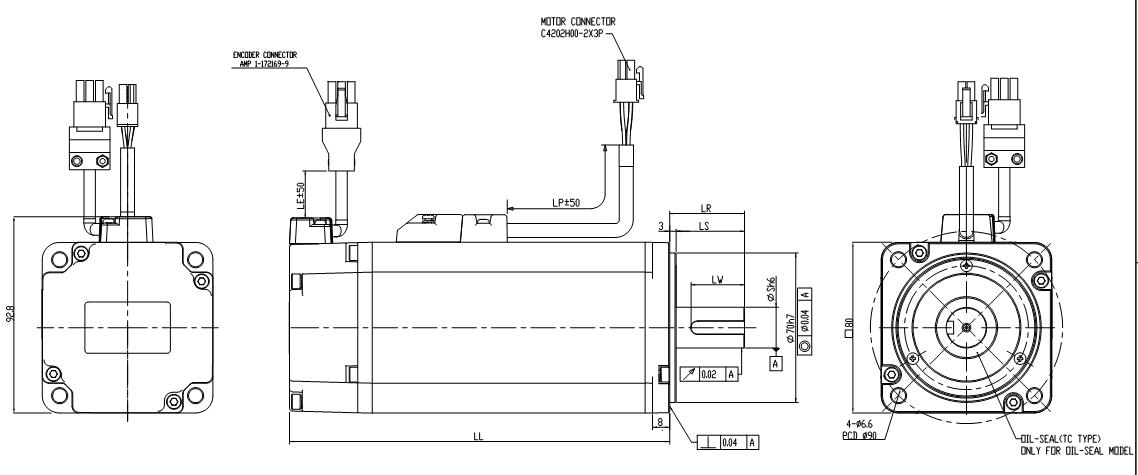

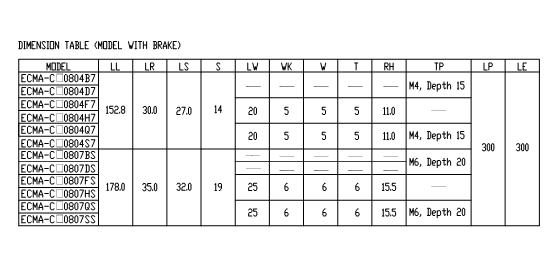

ECMA-C10807SS external dimension
