Ballscrew SFU1605 L500mm C7 BK/BF12 Support 16H Nut Bracker for CNC Router

item ID#: SFU1605-500
Item condition: New and Original
No reviews Write a review
Weight: 3.5 Kg(s)
19 available/ 1 sold
Start from: 1 Unit(s)
Manufactured by: Made in China
Wholesale Price: 56.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

Ballscrew SFU1605 L500mm C7 BK/BF12 Support 16H Nut Bracker Coupling for CNC Router


fasttobuy logo(12).jpg


Tel: 0086-755-82546545
Skype: fasttobuy02


Package Included:

1PCx SFU1605 L500mm ball screw (L500 represents the effective travel)

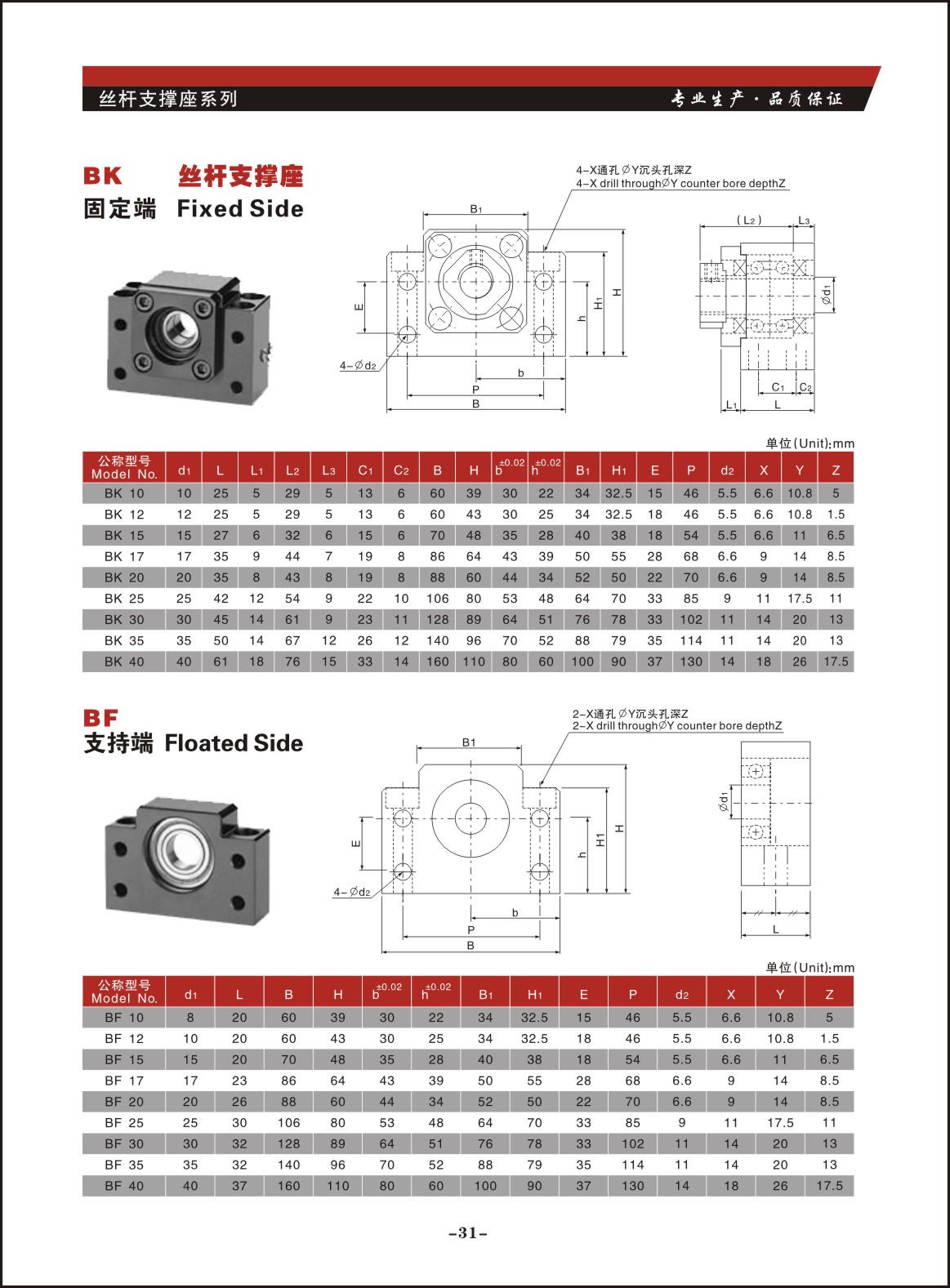

1PCx End Support :BK12 BF12

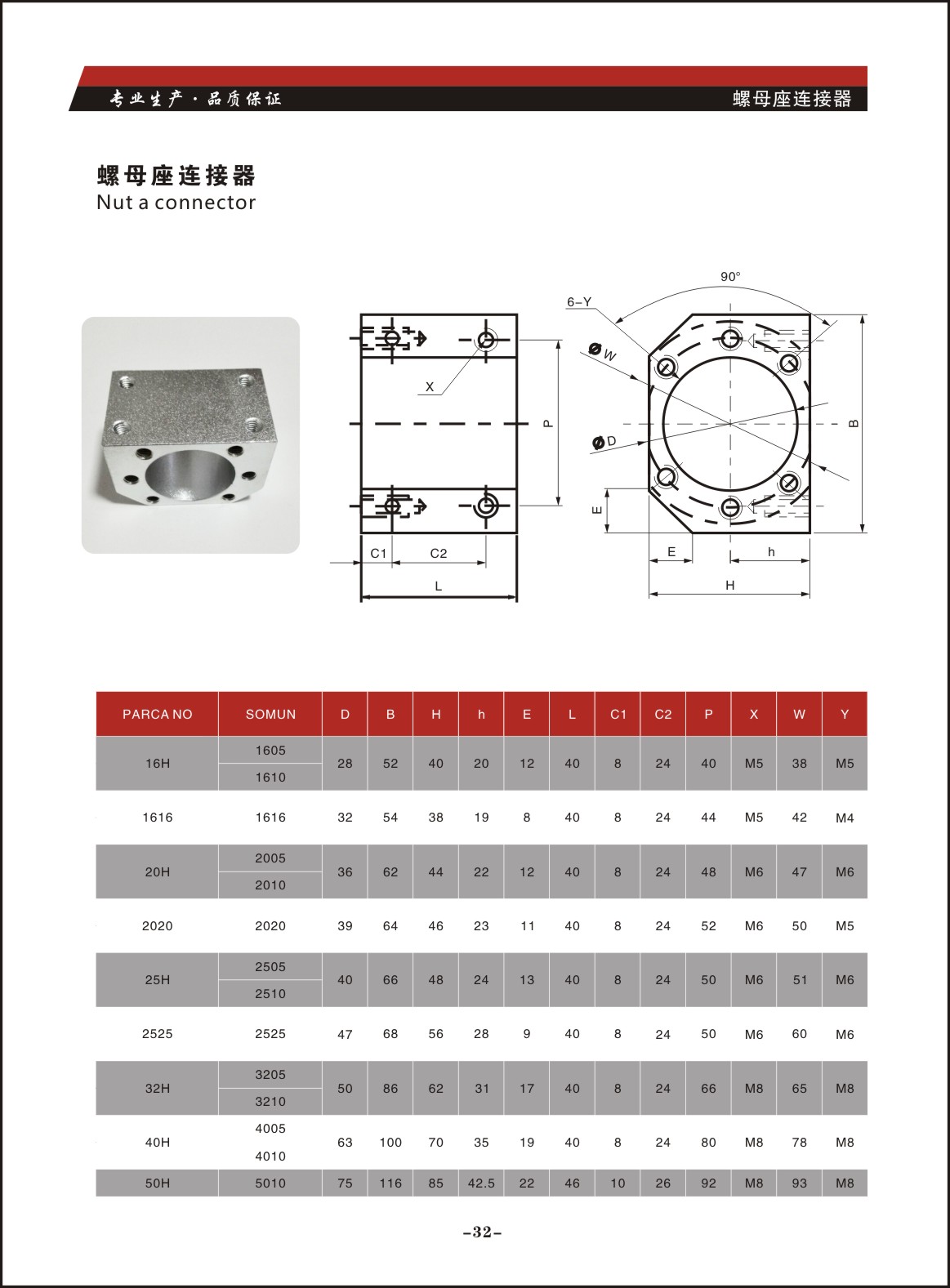

1PCx Ball nut mount bracket housing

Kindly note:

1.Ballscrew length is optional, if any other size needed, please contact us directly, Overall length = length of both ends + nut length + effective stroke。

2.The choice of couplings requires the motor shaft diameter we need。

3.If you need other types of ball screw, please contact us.

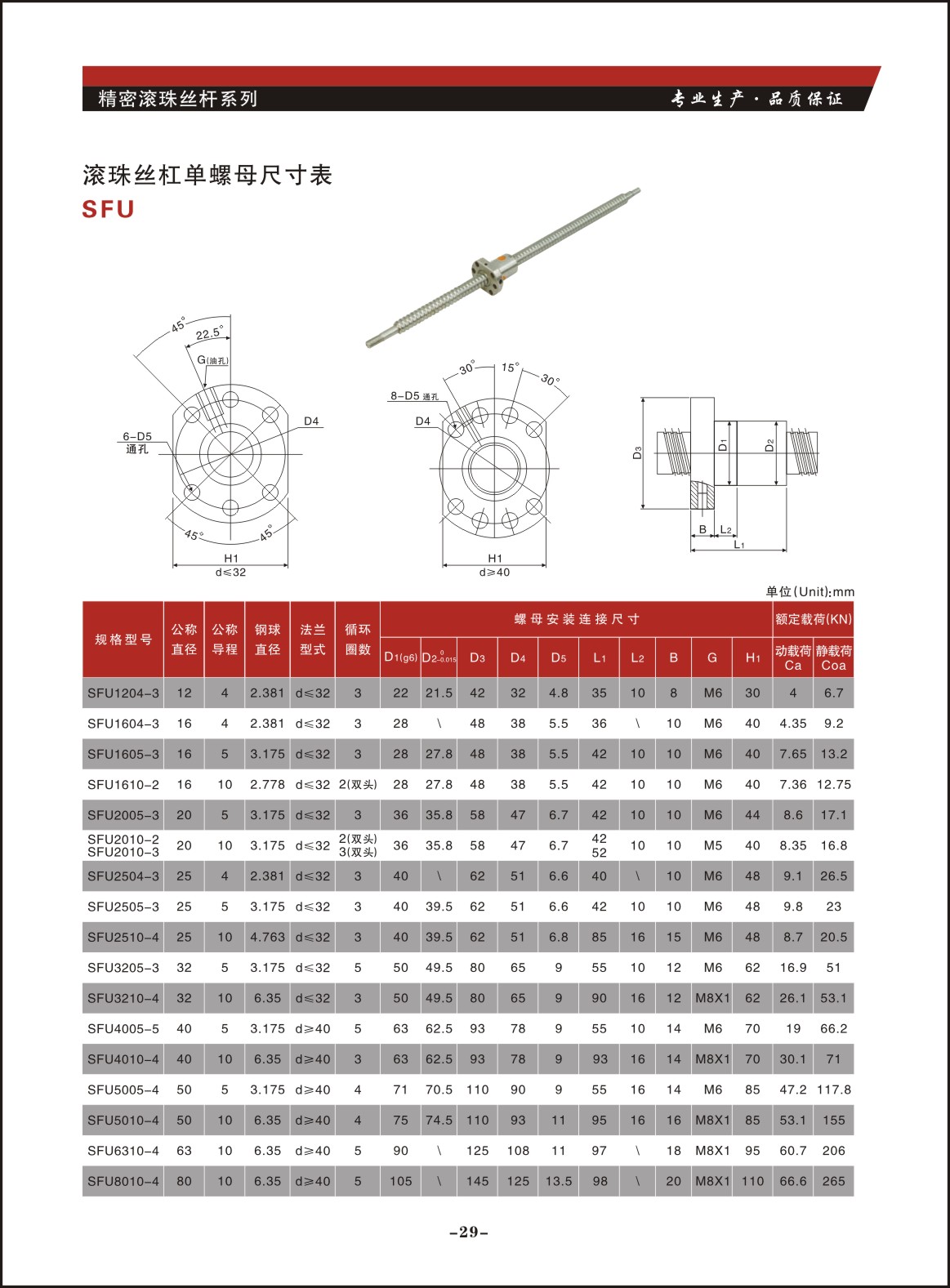

Ballscrew Features :

Model Number : SFU1605
Accuracy class: C7
Screw diameter: 16mm
Screw pitch (lead): 5mm
Screw effective length: 500mm
Nut: single nut SFU1605
Direction of helix: right




Ball screw Applications :

1. ball screw is the rotary motion into linear motion, or linear motion into rotary motion of the desired product .
2. ball screw components by a screw , nut and ball . Its function is to convert rotary motion into linear motion, which is a further extension and development of ball screw , the significance of this development is to become the bearing from sliding action rolling action . Because of the small frictional resistance , the ball screw is widely used in various industrial equipment and precision instruments.
3. Ball screw drive components are most commonly used on machine tools and precision machinery , and its main function is to convert rotary motion into linear motion , or to convert torque into axial forces repeatedly , while both high-precision, reversibility and high efficiency.
