Features:
*Three control methods, seamless switching: position control, speed control, torque control
*Up to 400Hz high speed response, max power 2.3kW
*5 channels digital input, 3 channels digital output
*2 kinds of pulse input,24V OC output
*Two communication ports: RS232, RS485
*Perfect protection, safety and reliable
*Built-in regenerative resistor
Specifications:
|

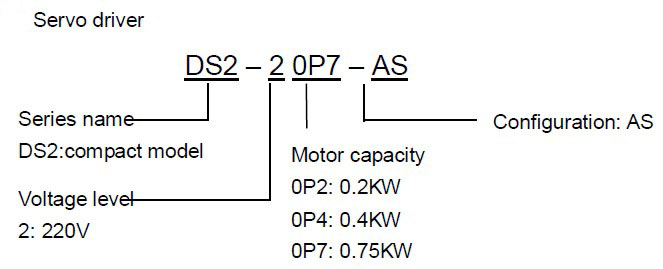

Types |
DS2-22P3-AS |
|
|
Suitable motor |
Type MS- |
motor code 0046 (default setting), 0043 |
|
Radius Speed (rpm) |
rated 1500, max 2000 |
|
|
Suitable encoder |
Incremental encoder, 2500 ppr |
|
|
Suitable motor max capacity [kW] |
2.3 |
|
|
Continuous output current [A rms] |
9.5 |
|
|
Max output current [A rms] |
23.75 |
|
|
Allowable regenerate time [regenerate s/minute] |
2.5 |
|
|
Input power supply |
3-phase AC200~240V, 50/60Hz |
|
|
Control mode |
Three phase full wave rectification IGBT PWM control, sine current drive mode |
|
|
Using condition |
Temperature |
0~+50 °C /-20~+85 °C |
|
Humidity |
Under 90%RH (no condensation) |
|
|
Vibration resistance/impact resistance |
4.9m/s2 / 19.6m/s2 |
|
|
Structure |
Foundation installation |
|
Xinje OP,HMI,PLC widely used on food processing machine, automatic hydraulic machine, packaging machine, sleeve labeling machine, bag making machine, temperature control system, central air conditioning, production control and other industries.
