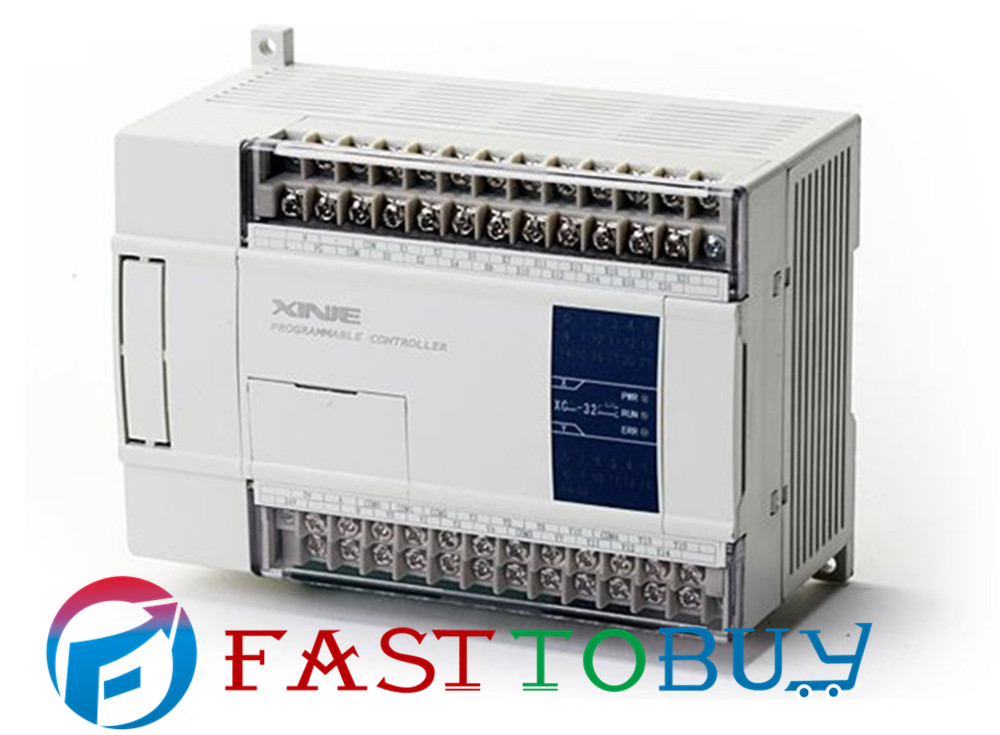

XINJE PLC AC220V 18 DI 14 DO Transistor XCM-32T3-E XINJE 3 channels pulse output for motion control

Item

Specification

32 points

Program Operation Mode

Circulation scanning mode, timing scanning mode

Programming mode

Instructions and ladder chart

Processing speed

0.5us

Power-off retentive

FlashROM and Li battery

User program capacity

128KB

I/O

input 18 / output 14

coil (M)

8512 points

flow(S)

1024 points

timer (T)

points

640 points

spec

100mS timer: set time 0.1~3276.7 seconds

10mS timer: set time 0.01~327.67 seconds

1mS timer: set time 0.001~32.767 seconds

with interruption accuracy timer

counter(C)

points

640 points

spec

16 bits counter: Set value K0~32767

32 bits counter: Set value K0~2147483647

data register(D)

4512 words

FlashROM register(FD)

474 words

extension register(ED)

36864 words

high speed function

High speed counter, pulse output, external interruption

Timing Scanning Interval Setting

0~99mS

password protection

6-bit ASCII code

Self-diagnose Function

Power on self-diagnose, monitor timer, grammar check
