Xinje 750W 0.75KW Servo System (Motor + Drive) MS-90ST-M02430-20P7 + DS2-20P7-AS New

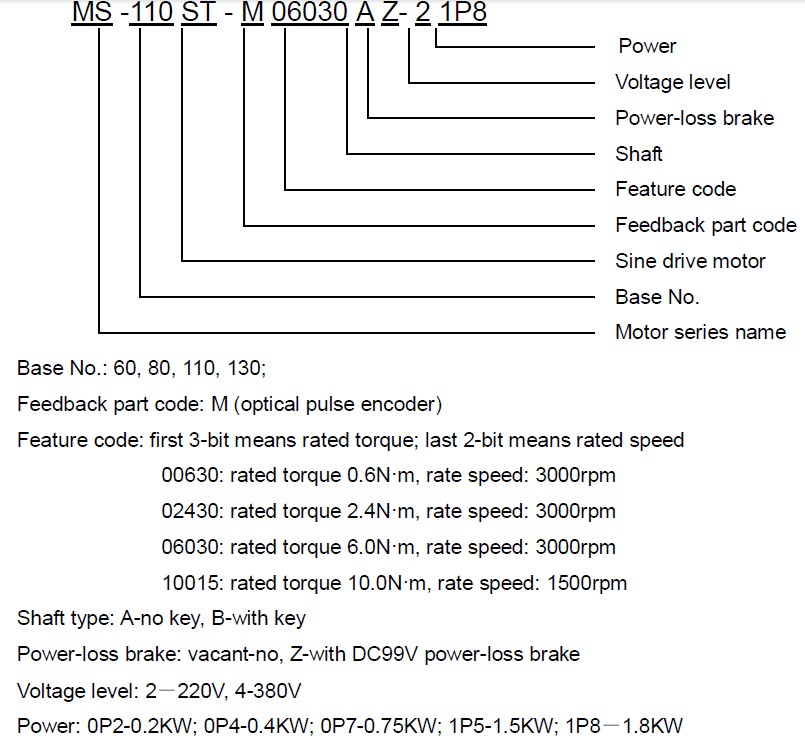

.jpg "SERVO MOTOR(9).jpg")

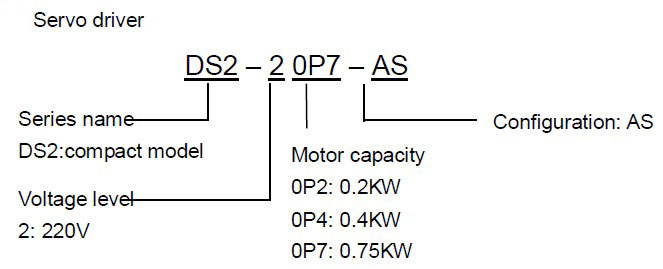

.jpg "DS2-AS(4).jpg")
Features:
Motor MS-90ST-M02430-20P7:
MS series servo motor
Match DS2 series single/3-phase 0.75kw servo drive
Encoder is 2500 ppr

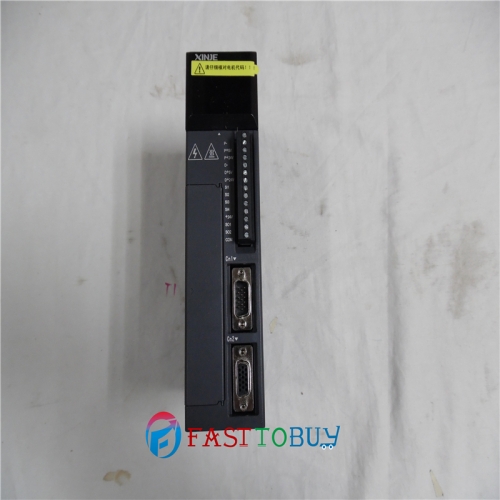

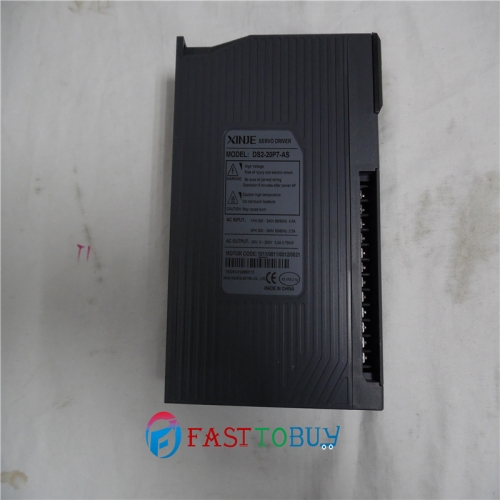

Drive DS2-20P7-AS:
Three control methods, seamless switching: position control, speed control, torque control
Up to 400Hz high speed response, max power 750W
2 channels pulse input, use 24VOC port
5 channels digital input, 3 channels digital output
Two communication ports: RS232, RS485
Perfect protection, safety and reliable

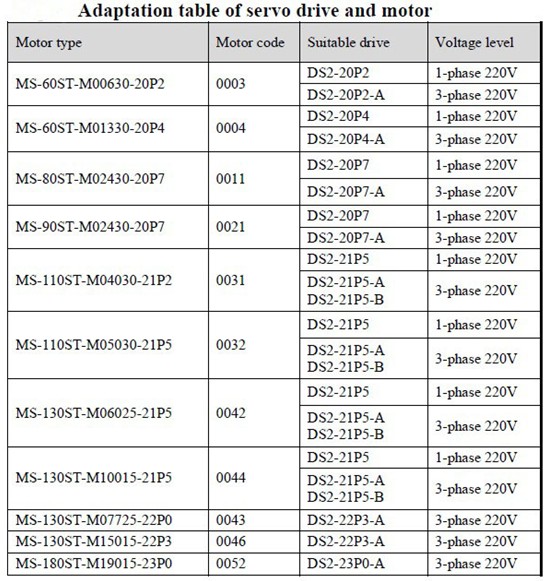

.jpg "servo combination of motor and drive(5).jpg")
Specifications:
|
Voltage level |
220V |
|
Motor type |
MS-90ST-M02430_ _-20P7 |
|
Rated power (KW) |
0.75 |
|
Rated current (A) |
3.0 |
|
Rated speed (rpm) |
3000 |
|
Rated torque (N·m) |
2.4 |
|
Peak torque (N·m) |
7.1 |
|
Back EMF constant (V/krpm) |
51 |
|
Torque coefficient (N·m/A) |
0.8 |
|
Rotor inertia (Kg·m2) |
0.24×10-4 |
|
Winding resistor (Ω) |
3.2 |
|
Winding inductance (mH) |
7.0 |
|
Electrical time constant (ms) |
2.2 |
|
Weight (Kg) |
3.4 |
|
Encoder ppr (PPR) |
2500 |
|
Pole pairs |
4 |
|
Motor insulation level |
Class B (130 °C) |
|
Protection level |
IP64 |
|
Ambient temperature |
0 °C~40 °C |
|
Ambient humidity |
Related humidity <90% (no condensation) |
|
servo type |
DS2-20P7-AS |
|
|
motor |
motor code |
0011(default), 0021 |
|
motor speed(rpm) |
rated 3000/max 4000 |
|
|
encoder type |
Incremental encoder, 2500 ppr |
|
|
max motor capacity [kW] |
0.75 |
|
|
continuous output current [Arms] |
3 |
|
|
max output current [Arms] |
9 |
|
|
allowable recurring frequency (time/min) |
31 |
|
|
input power |
single phase AC200~240V, 50/60Hz |
|
|
control mode |
Three phase full wave rectification IGBT PWM control, sine current drive mode |
|
|
using condition |
temperature |
0~+50 °C /-20~+85 °C |
|
humidity |
under 90% RH (no condensation) |
|
|
Vibration resistance/impact resistance |
4.9m/s2 / 19.6m/s2 |
|
|
structure |
Foundation installation |
|
