XD3-24RT-E XINJE PLC AC220V NPN 14 Relay 10 XD 2 COM 10 extension modules Original Brand New
Product description
14 points NPN input, 10 points Relay or Transistor or Relay and Transistor RT mixed output
AC220V (E) power supply
Can externally connect 10 extension modules and 3 BD boards
Higher processing speed
With clock and power off data maintained
Support basic logic control and data calculation
Support high-speed counting, pulse output, external interrupts, electronic cam, C language, I/O points switch, free form communication and MODBUS communication.
General Specifications
|
Item |
Specification |
|
Insulating voltage |
>DC 500V 2MΩ |
|
Anti-noise |
Noise Voltage 1000Vp-p 1uS pulse 1minute |
|
Air |
Non-corrosive and imflammable gas |
|
Environment temperature |
0?~60? |
|
Environment Humidity |
5%~95% (No condensation) |
|
COM 1 |
RS-232, Connecting PC, human machine interface programming or debugging |
|
COM 2 |
RS-232/RS-485,connecting smart meter and converters |
|
Installation |
M3 screws are available or installed directly on the Rails |
|
Earthing |
The third earthing(Cannot be combined with strong electric system common ground) |
Specification
|
Item |
Specification |
|
|
Program execution method |
Circular scanning mode |
|
|
programming way |
Instructions, ladder diagram |
|
|
0.05us |
||
|
Power-off keeping |
FlashROM and lithium battery |
|
|
User program capacity |
128KB |
|
|
I/O point |
Total points |
24 points |
|
Input points |
14 points (X0~X15) |
|
|
Output points |
10 points (Y0~Y11) |
|
|
Inside coil(X) |
1048 points: X0~X2027 |
|
|
Inside coil(Y) |
1048 points: Y0~Y1037 |
|
|
Inside coil (M, HM) |
11008 points |
|
|
Flow (S) |
1153 points |
|
|
Timer (T) |
Points |
640 points |
|
Specifications |
100mS timer: setting time 0.1~3276.7s |
|
|
Calculating (C) |
points |
672 points |
|
Specifications |
16 bit calculating: setting time K0~32,767 |
|
|
Data storage (D) |
11048 words |
|
|
FlashROM storage (FD) |
8144 words |
|
|
High-speed processing function |
High speed counting, pulse output, external interrupts |
|
|
6-bit length ASCII |
||
|
Power-on self-test, monitoring, timer, grammar check |
||

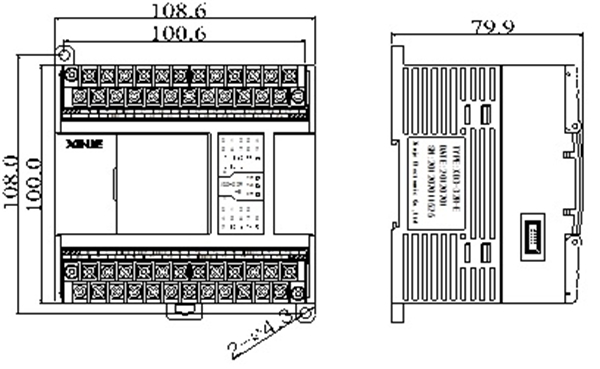

Product appearance and size chart
