XC-E4AD2DA-H XINJE 14Bit 4 AI 12Bit 2AO Module New

Item

Analog input(AD)

Analog output(DA)

Voltage input

Current input

Voltage output

Current output

Range of analog input

DC0~5V, 0~10V

DC0~20mA, 4~20mA

-

Range of max input

DC±15V

DC0~40mA

-

Range of analog output

-

DC0~5V, 0~10V

(External load resistance 2KΩ~1MΩ)

DC0~20m, 4~20mA (External load resistance is less than 500Ω)

Range of digital input

-

12 bits(0~4095)

Range of digital output

14 bits(0~16383)

-

Resolution

1/16383(14Bit); Converted data are stored in PLC in hex form (14Bit)

1/4095(12Bit); Converted data are stored in PLC in hex form (12Bit)

PID output value

0~K4095

-

Integrated accuracy

1%

Convert speed

20ms/1 channel

3ms/1 channel

Power for analog

DC24V±10%,100mA

Installation

Fixed with M3 screws or installed directly in DIN46277(35mm width) guide rail

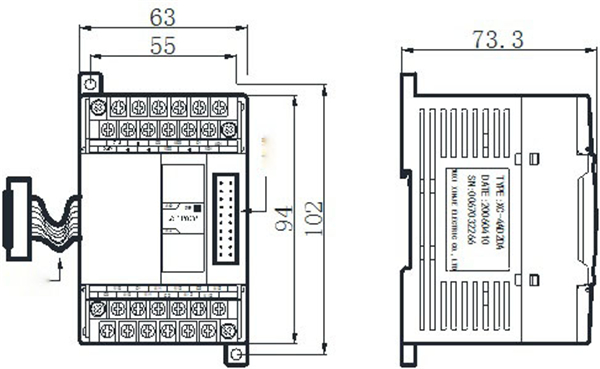

External dimension

63mm×102mm×73.3mm
