Wood Router Engraver CNC1419 110VAC-240AC Wood Engraving Machine for Wood/Acrylic/PCB

Wood Router Engraver CNC1419 110VAC-240AC Wood Engraving Machine for Wood/Acrylic/PCB

1.  Highly portable with compact size and light weight, very easy for you to carry everywhere

2.  Very strong & durable, can be used long, with aluminum frame and work-piece

3.  Very easy to use, even for DIY beginners with USB interface, GRBL control systems

4.  It can be used both for inscribing & laser cutting with multifunctional design for mounting laser head.

(Laser shall be bought, different power options are available)

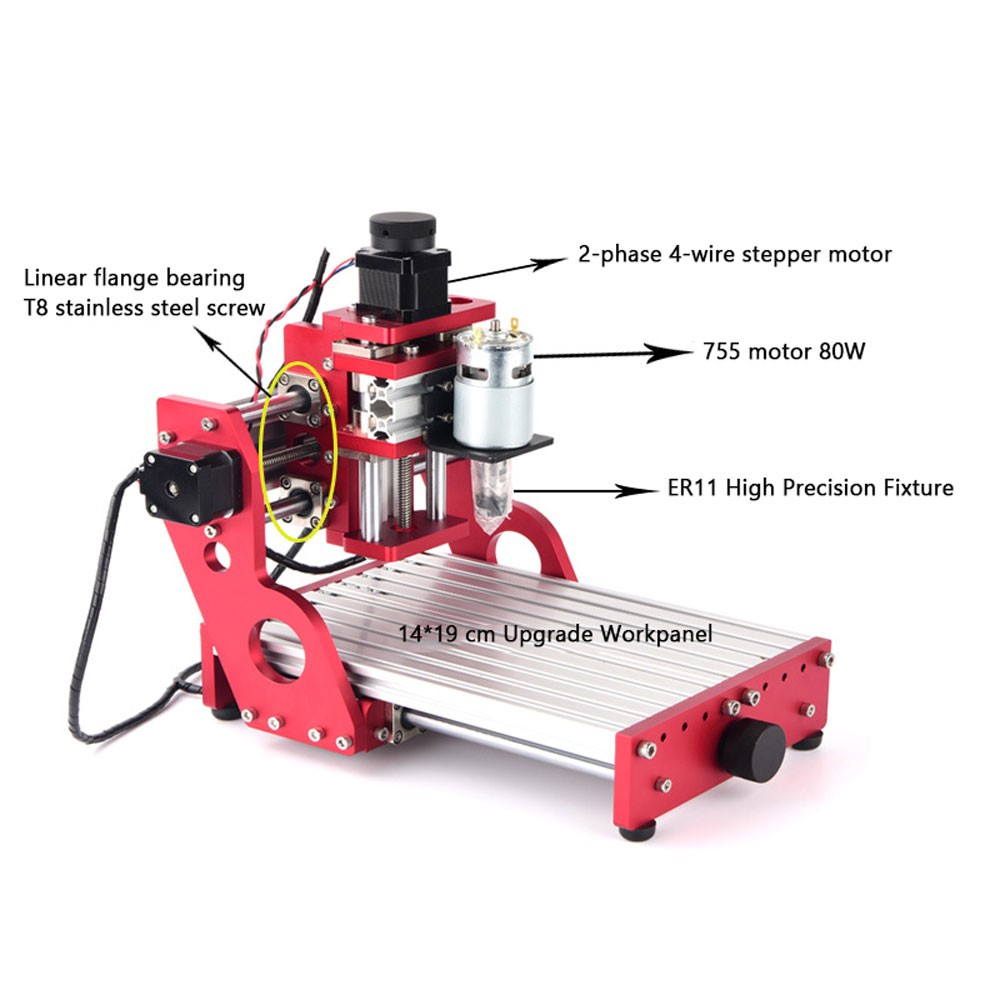

Control software: GRBL Control

Material: Aluminum

Scope of work: 140 *190* 40mm

Workbench size: 20 0*280mm

Frame size:343 *284* 322mm

Spindle: 775 spindle motor (12-36V) 24V: 7000r/min

Stepping motor: 2-phase 4-wire stepping motor. 1.3A 0.25NM

Screw rod: T8 screw rod

Adapter power supply: 110VAC-240VAC

Equipment needs power supply: 24VDC

Support System: Windows XP/Win 7/Win 8 / Win 10/Linux

Equipment can engrave plastics, wood, acrylic, PVC, PCB and other soft materials.

Can also be in copper, aluminum and other materials, the simple font for milling.

Note:Work-piece needs to be in standard shape, works best with cylindrical shape.

Curved surface and non-isotropic work-piece can ’t be engraved.

Equipped with laser head: cardboard, wood, acrylic, PVC, EVA and other materials.

With different laser power, the burning color & depth is different.

Basically larger power for deeper engraving.

Attention :

1.This machine does not work well on metal, only for simple font surface inscribing .

Mainly used to engrave wood. Please contact us for further information.

2.  Be careful when using laser, pls don’ t look directly at the laser. Protection glasses are suggested when using

3. Do not expose  human skin to the laser for a long time

Frequently Asked Questions:

Q: Whats the different between 500mw laser, 2500mw laser, 5500mw laser

A: All these lasers can not engrave/mark on any metal, they are mainly used on engraving wood.

2500mw laser can cut about 1mm normal wood.

5500mw laser can cut about 2mm normal wood, engrave on leather and soft plastic.

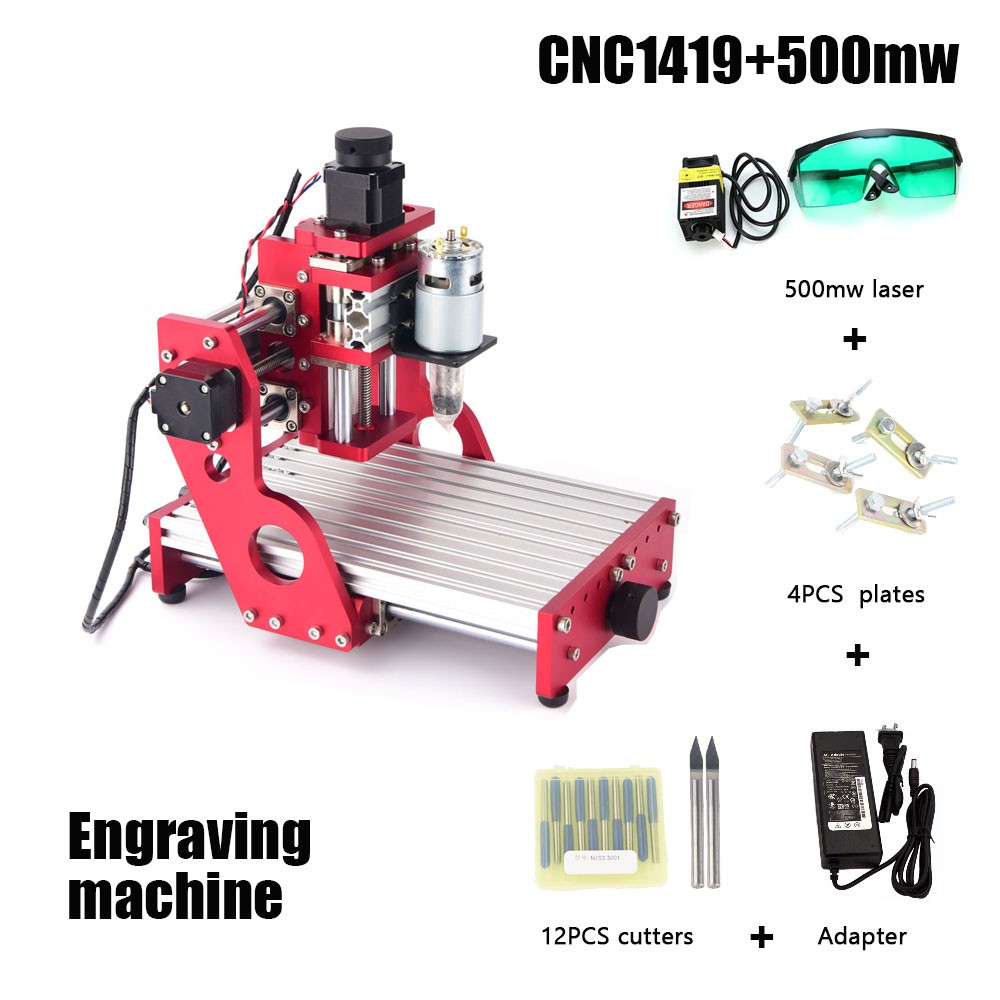

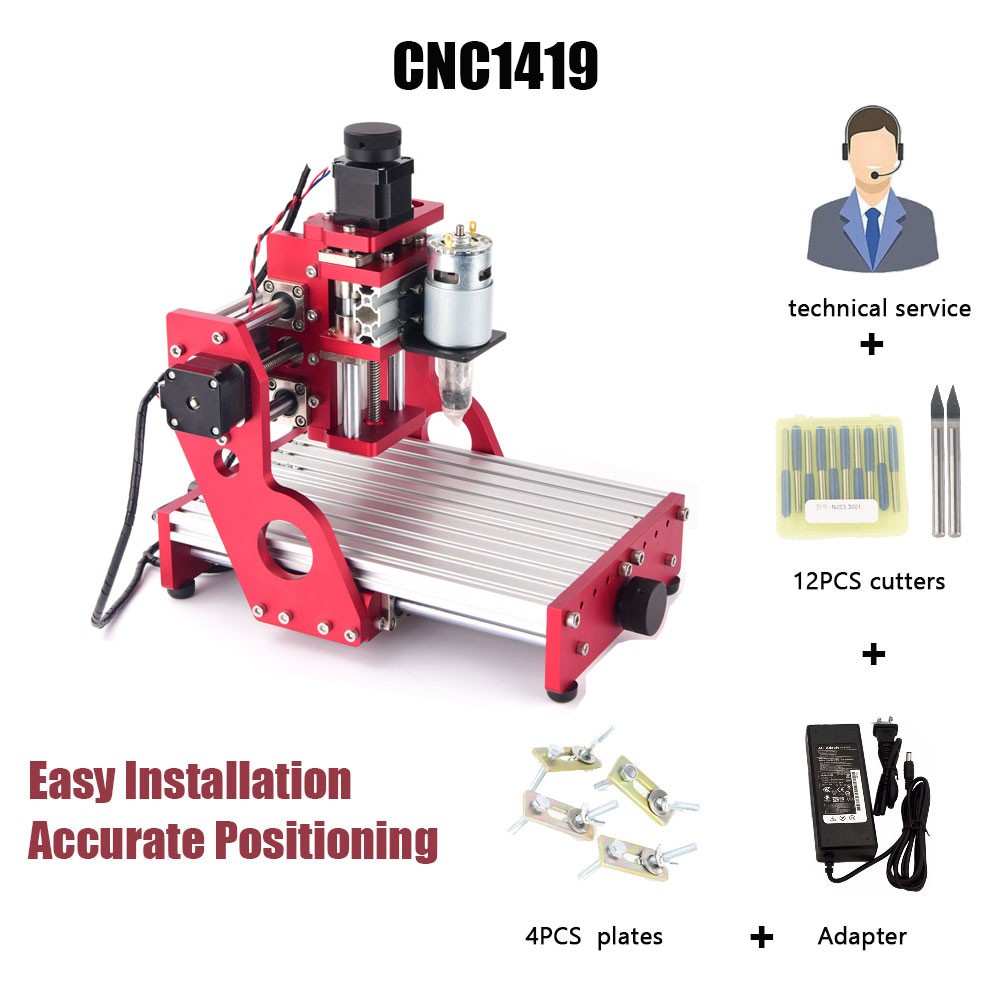

CNC1419-no laser Package : All parts of the machine+4pcs plates+  free 12 pcs pcb cutter+Adapter

Please note:

1. All products are shipped in bulk,Some core components have been assembled,

it can be easily assembled according to the installation instructions, you can use the rack

2. If you need laser engraving function, please select according to attributes.

3. ER11 chuck is not included, pls feel free to contact if you need it
