1. Shipping list
1PCS |
VFD |
1PCS |
2M extension cable for VFD keyboard |
2. VFD Parameters
Model |
V882S5R5GB |
|
Power |
5.5Kw |
|
Input Voltage |
1phase 190~250V |
|
Output Voltage/current |
3phase 0~220V /25A |
|
Frequency |
Input |
50/60Hz |
Output |
0~400Hz |
|

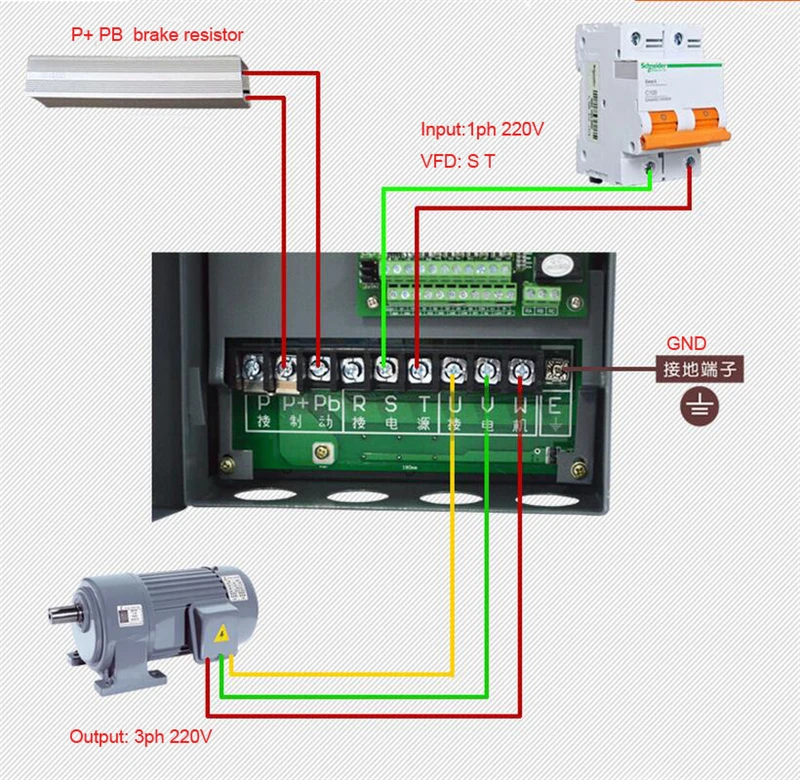

brake unit |
built-in |
|
Security |
Over-current / over-voltage/ under-voltage/ over-temperature/ open phase/overload protection; |
|
Working Temperature |
-10~40 degree centigrade |
|
Humidity |
0-95% Relative Humidity(without dew) |
|
Material |
Industrial flame retardant ABS plastics |
|
level of protection |
IP20 |
|
Warranty |
18 month |
|

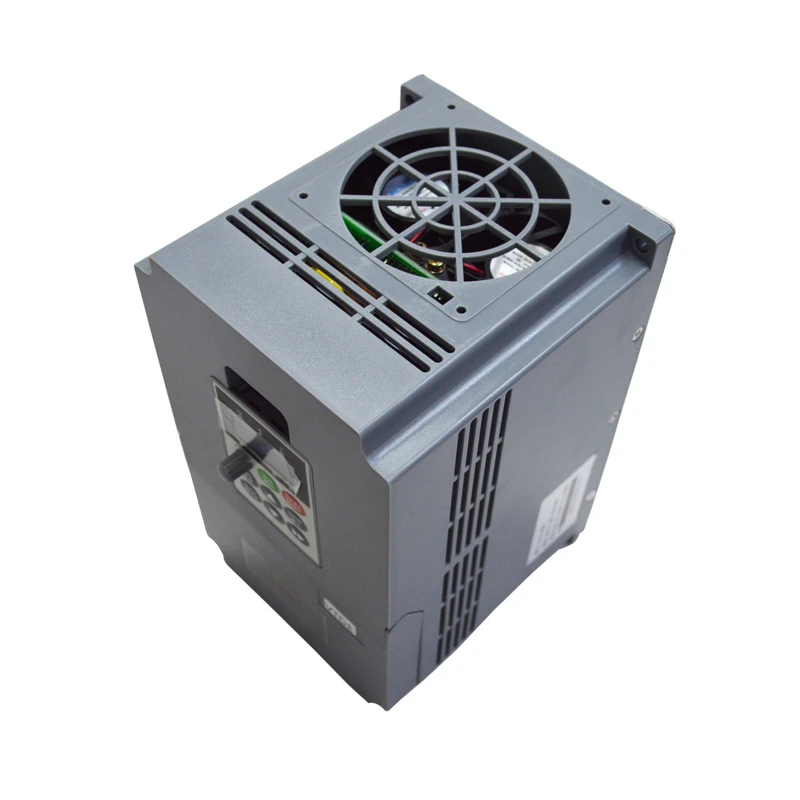

Cooling Type |
Air-cooled |
|
top quality |
CE certifications |
3. Advantage
Maximum frequency |
Vector control: 0–400 Hz V/F control: 0–600 Hz |
Carrier frequency |
0.5–16 kHz |
Frequency setting mode |
Digital Settings; Analog Settings; serial communication settings; PID settings |
Input frequency resolution |
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.025% |
Control mode |
Sensor less flux vector control (SFVC) Closed-loop vector control (CLVC) Voltage/Frequency (V/F) control |
Startup torque |
G type: 0.5 Hz/150% (SFVC); 0 Hz/180% (CLVC) P type: 0.5 Hz/100% |
Speed range |
1:100 (SFVC), 1:1000 (CLVC) |
Standard functions |
V/F curve; V/F separation |
Ramp mode; DC braking; JOG control |
|
simple PLC function; Onboard multiple preset speeds; |
|
Onboard PID; Auto voltage regulation (AVR) |
|
Individualized functions |
high-performance current vector control technology |
Power dip ride through |
|
Rapid current limit; Virtual I/Os; Timing control |
|
Multi-motor switchover; RS485 Modbus |
|
Motor overheat protection; Multiple encoder types |
4. More choices available(please leave a message)
Voltage |
Power(Kw) |
||||||||||||
220V |
0.75 |
1.5 |
2.2 |
4 |
5.5 |
||||||||
380V |
0.75 |
1.5 |
2.2 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |

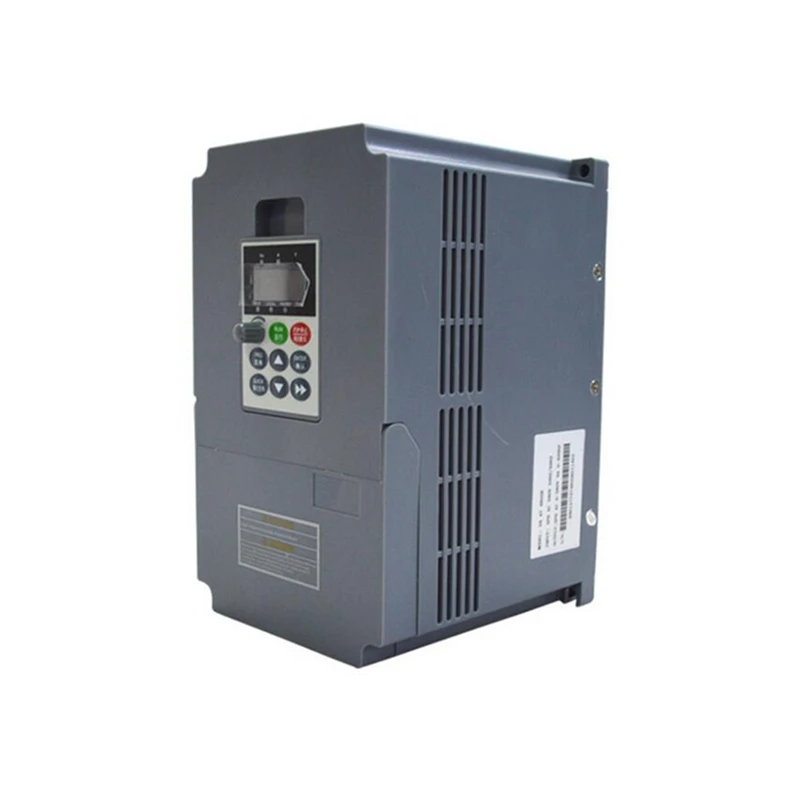

5.Photos Show
