Tri-proof IP67 LED Lighting CNC Bench Stand Work Lamp for Milling Lathe Machine 6-40W AC/DC110V-220V 24V-36V
1. Packing list
1PCS Tri-proof LED Lamp
2. Features
a) Adopting high brightness LED chip and high quality drive, low light failure, no frequency flash, and large margin.
b) The lifetime reach to 5000 hours.

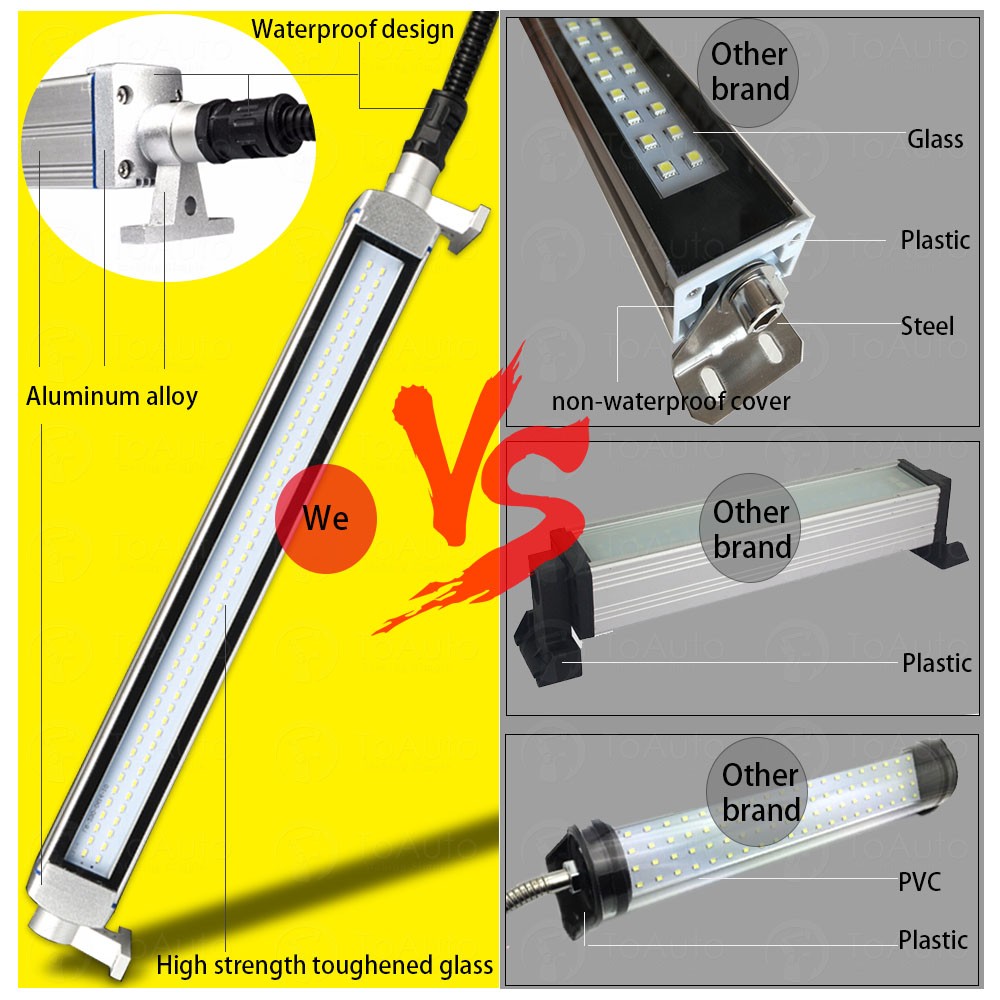

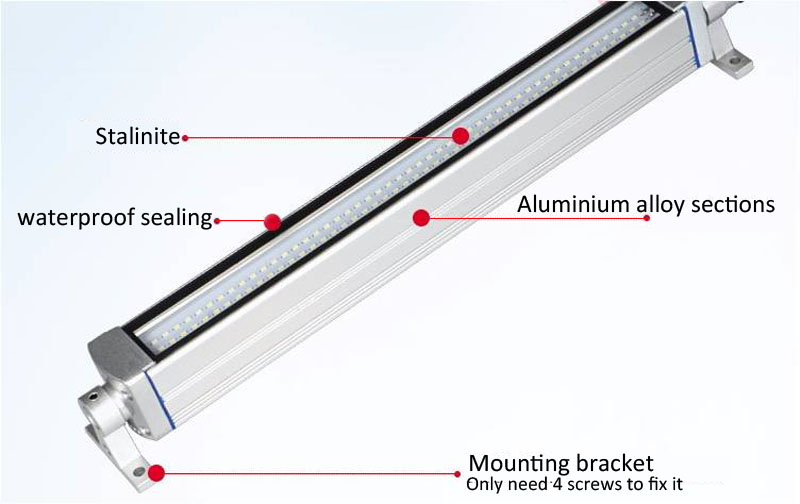

c) Integrated design, adopting aluminum alloy and high strength tempered glass, and with good heat dissipation.
d) Fine workmanship, the surface anodic oxidation treatment does not discoloration.

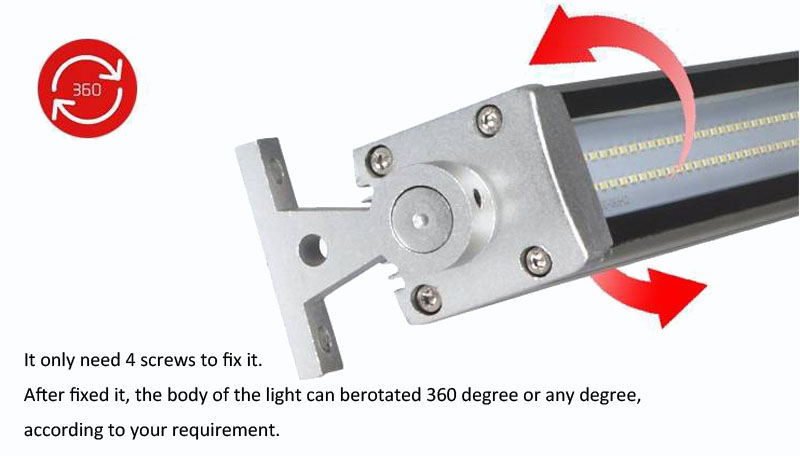

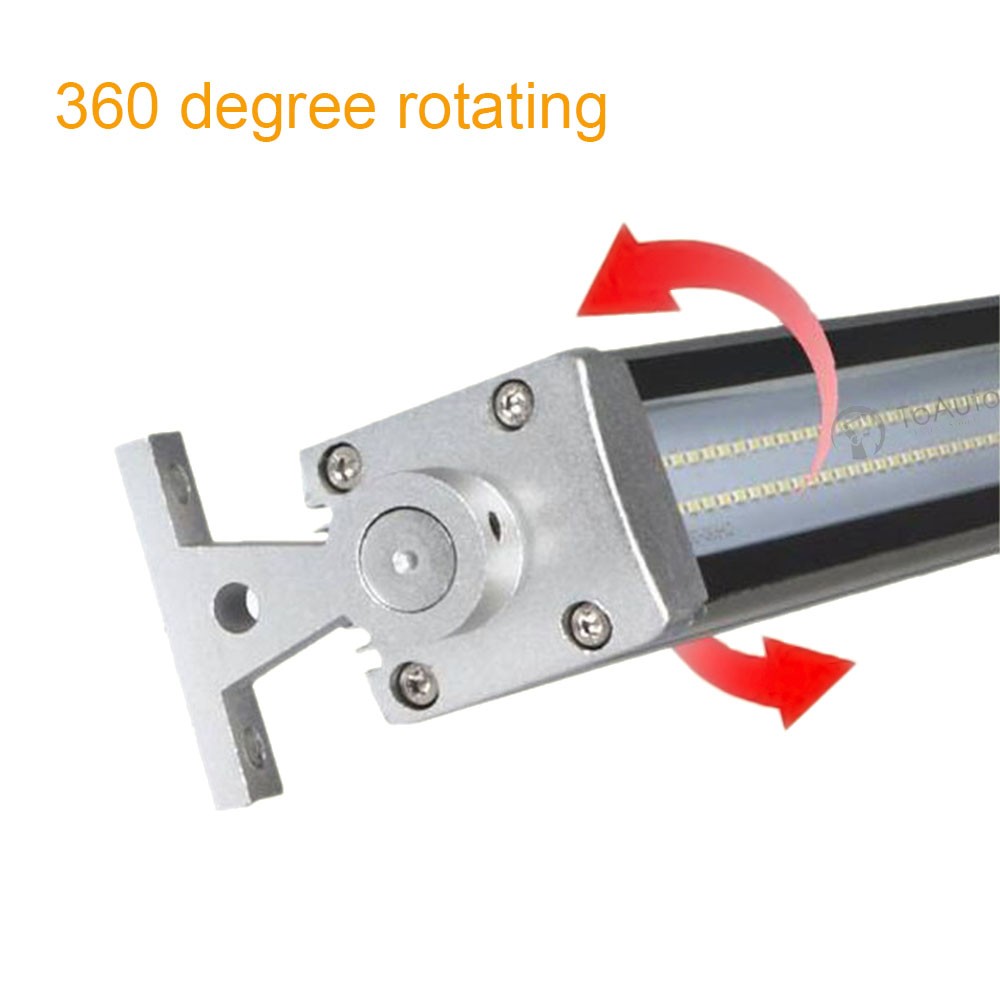

e) 360 degree rotating bracket design can be rotated to change the Angle of irradiation.
f) IP67 protection class and can be used in waterproof, dustproof and explosion-proof occasions, safe and easy to replace.
Parameters
Product type: LED waterproof oil proof and dustproof lamp.
Material: High quality aluminum and tempered glass.
Light source: LED
Light voltage: 24V-36V, 110V-220V (according to your choice)
Product power: 6/10/12/16/20/28/30/40W (according to your choice)
Protection class: IP67 (Waterproof, oilproof and dustproof)
Lifetime: 5000 hours
Colour temperature: white light 6000-6500K
Light brightness: 100-200LM/W
Surface temperature: Less than 50 Celsius degrees
Light angel: 120 degree
Wire length: about 70 cm
Install type: Screw mounting
Length: according to your choice. Different sizes may suitable for different mechanical occasions.

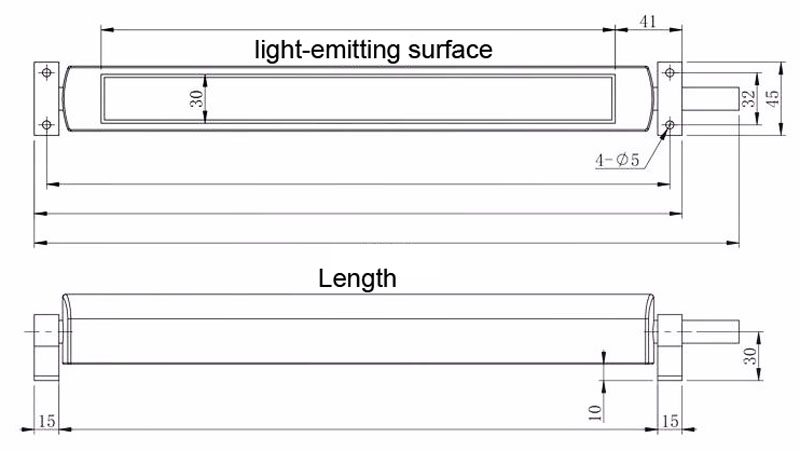

| No. | Model | Voltage | Power | L*W*H(mm) | Light surface(mm) | Install size |
| A1 | SFDX200-02WT | 24V | 6W | 280*45*53 | 180*30 | 233*32 (Φ5) |
| A2 | SFDX300-02WT | 10W | 380*45*53 | 280*30 | 333*32 (Φ5) | |
| A3 | SFDX400-02WT | 12W | 445*45*53 | 345*30 | 398*32 (Φ5) | |
| A4 | SFDX500-02WT | 16W | 580*45*53 | 500*30 | 533*32 (Φ5) | |
| A5 | SFDX600-02WT | 20W | 680*45*53 | 580*30 | 633*32 (Φ5) | |
| A6 | SFDX800-02WT | 28W | 860*45*53 | 803*30 | 833*32 (Φ5) | |
| A7 | SFDX900-02WT | 30W | 980*45*53 | 880*30 | 933*32 (Φ5) | |
| A8 | SFDX1200-02WT | 40W | 1250*45*53 | 1150*30 | 1203*32(Φ5) | |
| B1 | SFDX200-22WT | 220V | 6W | 280*45*53 | 180*30 | 233*32 (Φ5) |
| B2 | SFDX300-22WT | 10W | 380*45*53 | 280*30 | 333*32 (Φ5) | |
| B3 | SFDX400-22WT | 12W | 445*45*53 | 345*30 | 398*32 (Φ5) | |
| B4 | SFDX500-22WT | 16W | 580*45*53 | 500*30 | 533*32 (Φ5) | |
| B5 | SFDX600-22WT | 20W | 680*45*53 | 580*30 | 633*32 (Φ5) | |
| B6 | SFDX800-22WT | 28W | 860*45*53 | 803*30 | 833*32 (Φ5) | |
| B7 | SFDX900-22WT | 30W | 980*45*53 | 880*30 | 933*32 (Φ5) | |
| B8 | SFDX1200-22WT | 40W | 1250*45*53 | 1150*30 | 1203*32(Φ5) |
3. Applicances

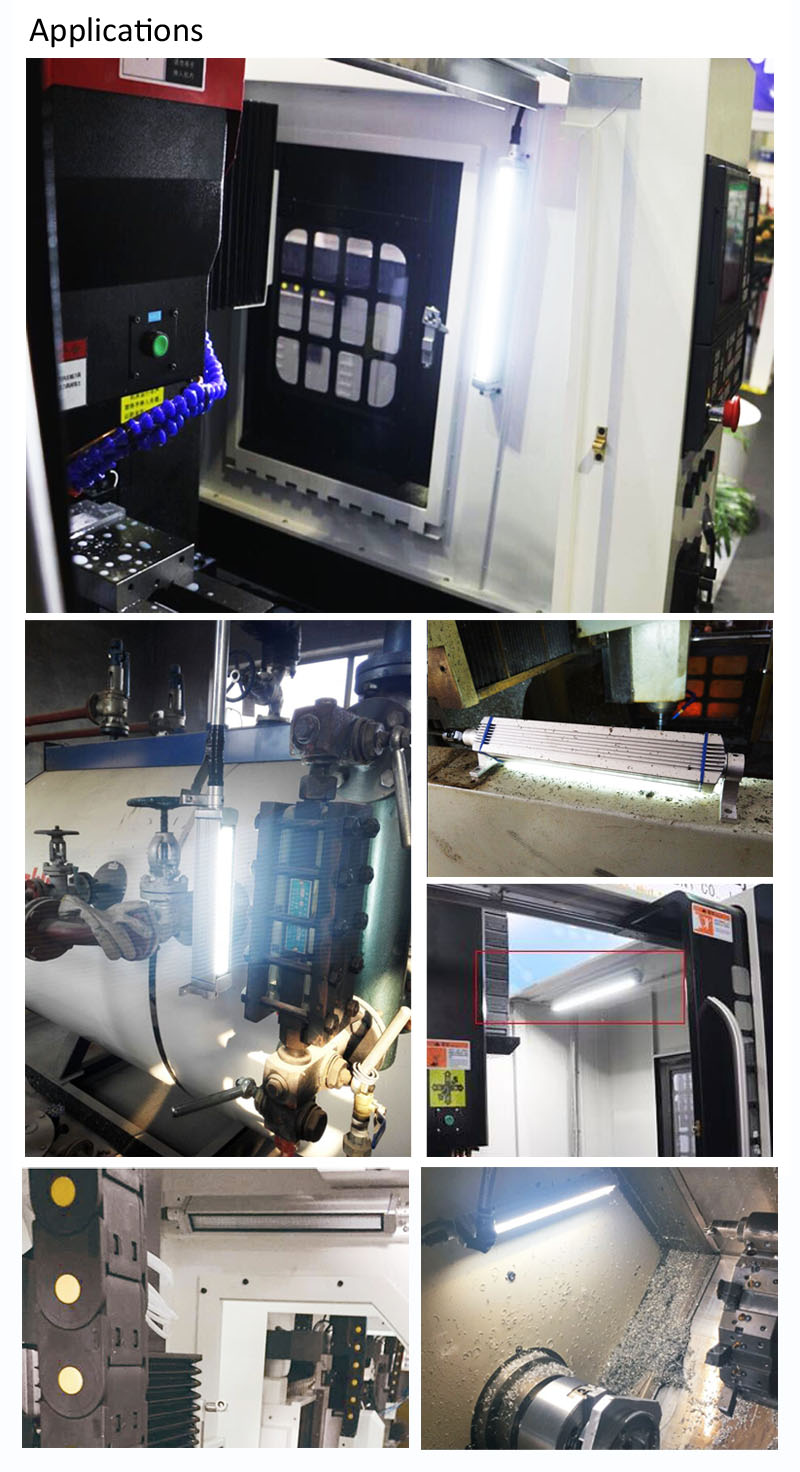

Various of CNC equipment, such as CNC processing center, precision carving machine, spark machine, laser welding machine, ceramic processing machinery, CNC machine tool, CNC milling machine and other industrial equipment lighting.
4. Pictures
.jpg "SFDX (3).jpg")
.jpg "SFDX (4).jpg")
.jpg "SFDX (2).jpg")
.jpg "SFDX (8).jpg")
