Ratio1:50 NEMA34 6A 6.5NM 929oz-in 98mm Gear Reduction Motor+Drive Packaging machinery 86HS9860A4G50+MA860H

item ID#: 86HS9860A4G50+MA860H
Item condition: New and Original
No reviews Write a review
Weight: 6 Kg(s)
100 available/ 0 sold
Start from: 1 Unit(s)
Manufactured by: Sumtor
Wholesale Price: 149.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

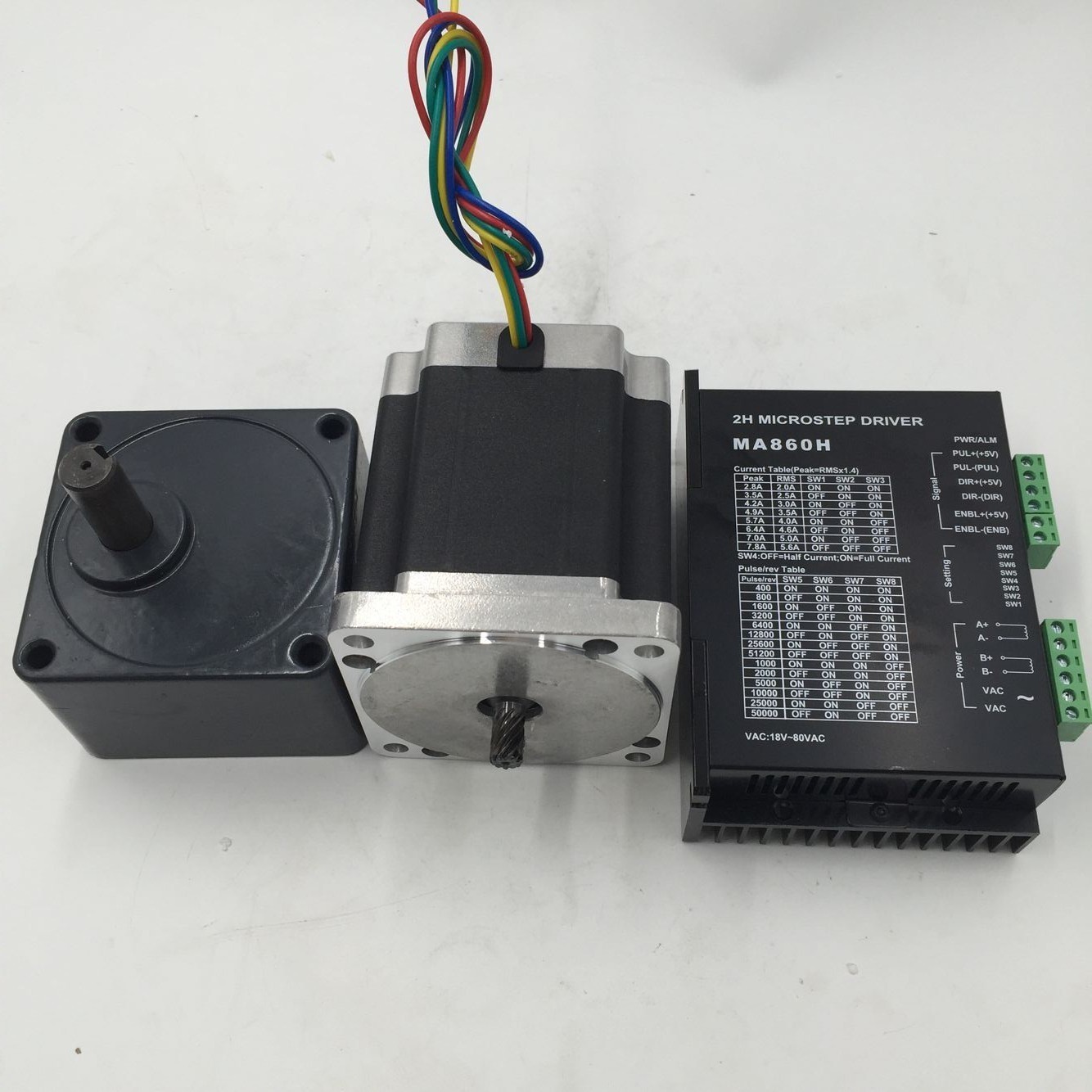

Ratio1:50 NEMA34 6A 6.5NM 929oz-in L 98mm Gear Reduction Motor+Drive Packaging machinery 86HS9860A4G50+MA860H




Appliaction:

Inject printers, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, engraving machine, packaging machinery, CNC numerically-controlled machine tool and transmission.

Motor Product Description:

Step Angle Accuracy: ±5%(full step, no load)

Resistance Accuracy: ±10%

Inductance Accuracy: ±20%

Temperature Rise: 80 Degrees Celsius Max.(rated current,2 phase on)

Ambient Temperature: -20°C-+50°C

Insulation Resistance: 100MΩ Min.500V DC

Dielectric Strength: 500V AC for one minute

There are multiple choice for 86BYG series geared motor. if you any other choice, please please do contact us for a better solution.

Motor Length: 66mm  80mm   98mm  114mm  126mm  156mm

Gear Ratio: 1:3   1:5  1:7.5  1:10   1:12.5   1:15   1:20   1:25   1:30  1:40   1:50   1:75   1:150   1:180

Reduction box: 90*90*45mm(Gear Ratio<20)

Reduction box: 90*90*60mm(Gear Ratio>=20)

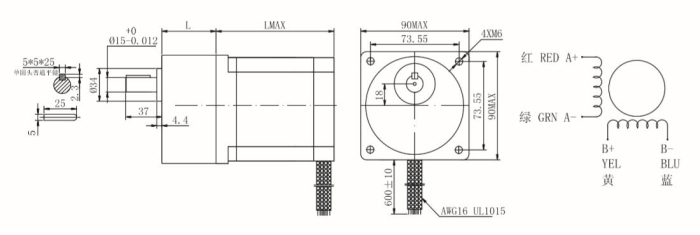

Gear Reduction Motor Specifications

Model

Step Angle

Rated Current (A)

Phase Resistance

(ohm)

Phase Inductance

(mH)

Holding Torque

(N*m)

Detent Torque

(N*cm)

Rotor Inertia

(g*cm2)

Motor Length

(mm)

86HS6640A4

1.8

4

0.6

1.6

3

5.5

850

66

86HS8040A4

1.8

4

0.75

5.6

4

6.5

1050

80

86HS9860A4

1.8

6

0.33

2.4

6.5

9.5

1550

98

86HS11460A4

1.8

6

0.5

2.1

8.2

12.5

1800

114

86HS12660A4

1.8

6

0.65

3.5

9.5

18.5

2200

126


Stepper Drive Specifications

Item

Min

Typical

Max

Unit

Power supply

24

-

110

VDC

18



80

VAC

Average output current

2

2.5

7.8

A

Logic input current

6

15

30

mA

Impulse response frequency

-

-

100

KHZ

Pulse low level

5

-

1

μS

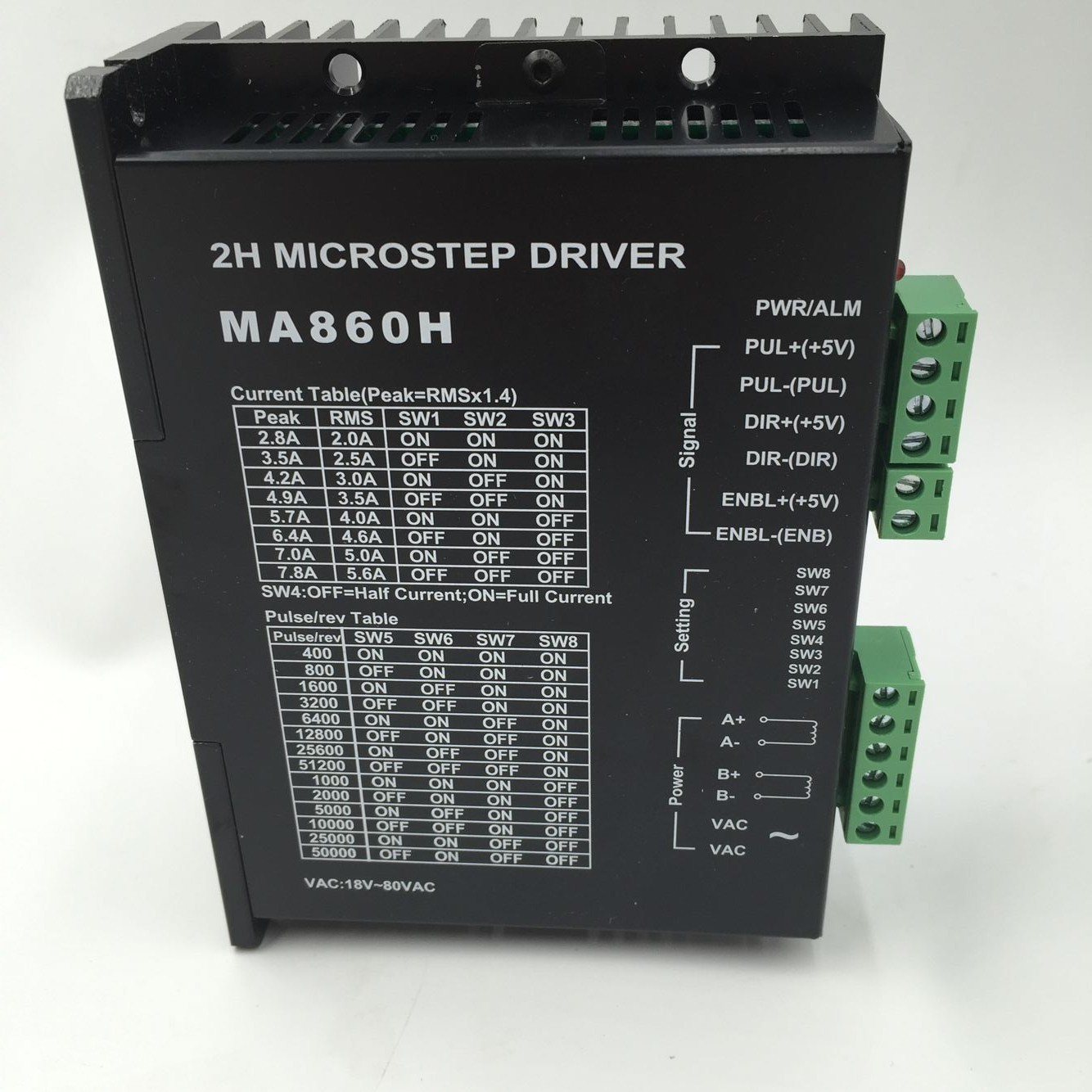

Drive Wiring Description

Signal

Function

PUL

Pulse signal: rising edge, the pulse from low to high is to go a step angle motor

DIR

Direction signal: TTL-level driver to change the direction

OPTO

Optocoupler drive power

ENA

Enable signal: block or allow the drive to work, low-level ban

GND

DC power supply ground

+V

DC power supply positive (typical 24VDC)

A+

Motor Phase A

A-

Motor Phase A

B+

Motor Phase B

B-

Motor Phase B
