Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear Reduction Motor+Drive CNC machining 86HS9850A4-G20+MA860H

item ID#: 86HS9850A4-G20+MA860H
Item condition: New and Original
No reviews Write a review
Weight: 7 Kg(s)
100 available/ 0 sold
Start from: 1 Unit(s)
Manufactured by: Sumtor
Wholesale Price: 171.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

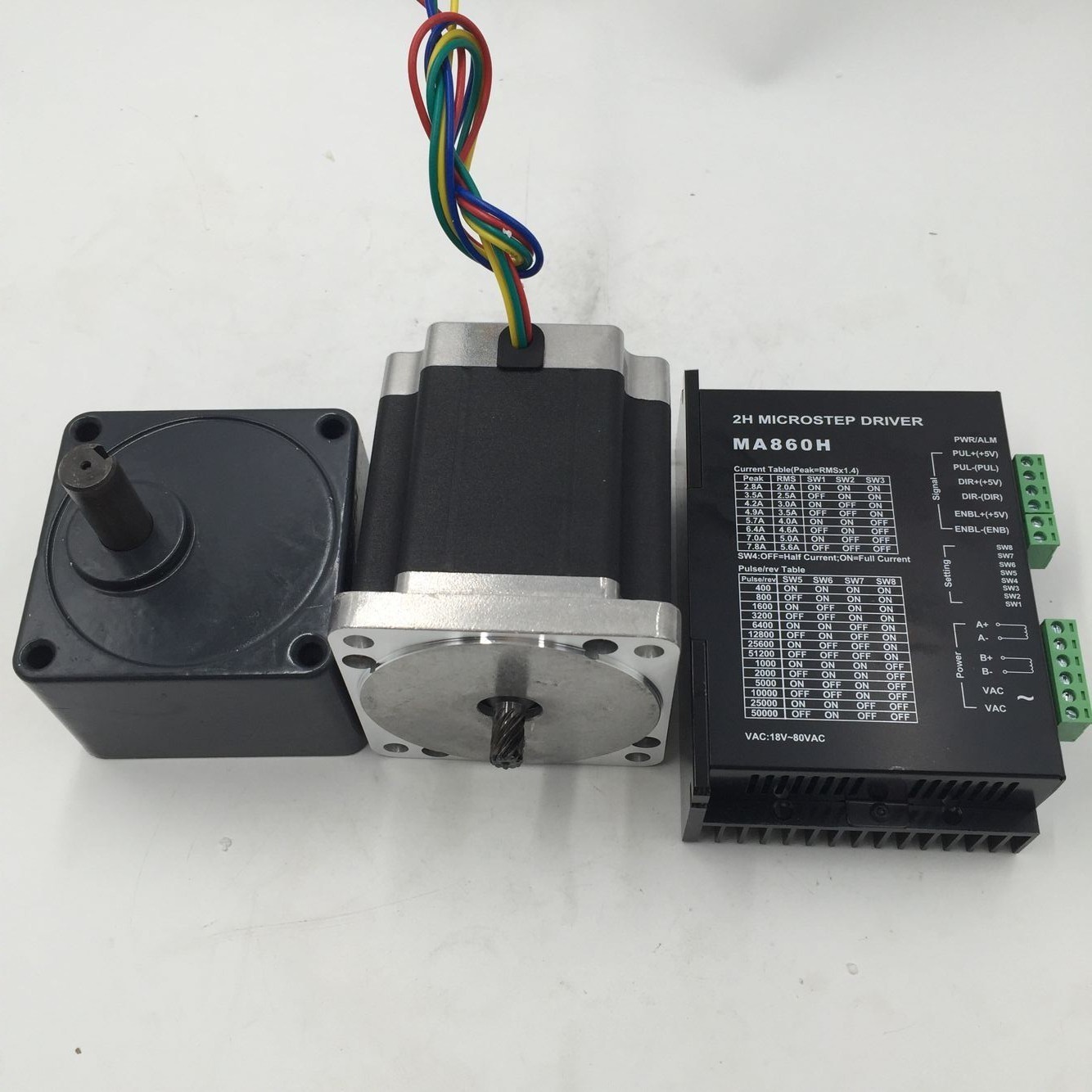

 Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear Reduction Motor+Drive CNC machining  86HS9850A4-G20+MA860H


Appliaction:

Inject printers, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, engraving machine, packaging machinery, CNC numerically-controlled machine tool and transmission.

Motor Product Description:

Step Angle Accuracy: ±5%(full step, no load)

Resistance Accuracy: ±10%

Inductance Accuracy: ±20%

Temperature Rise: 80 Degrees Celsius Max.(rated current,2 phase on)

Ambient Temperature: -20°C-+50°C

Insulation Resistance: 100MΩ Min.500V DC

Dielectric Strength: 500V AC for one minute

Gear Reduction Motor Specifications

Model

86HS9850A4

86HS11450A4

Step Angle

1.8

1.8

Rated Current

5A

5A

Holding Torque

6NM

8NM

Motor length

98mm

114mm

Reduction box

104*104*72mm

104*104*72mm

Gear Ratio

1:20

1:20

Output shaft diamete

15mm

15mm

Matching Drive

AC18-80V & DC24-110V  7.8A  Drive

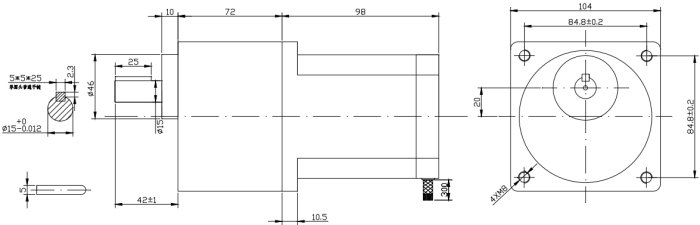

86HS9850A4 dimension:

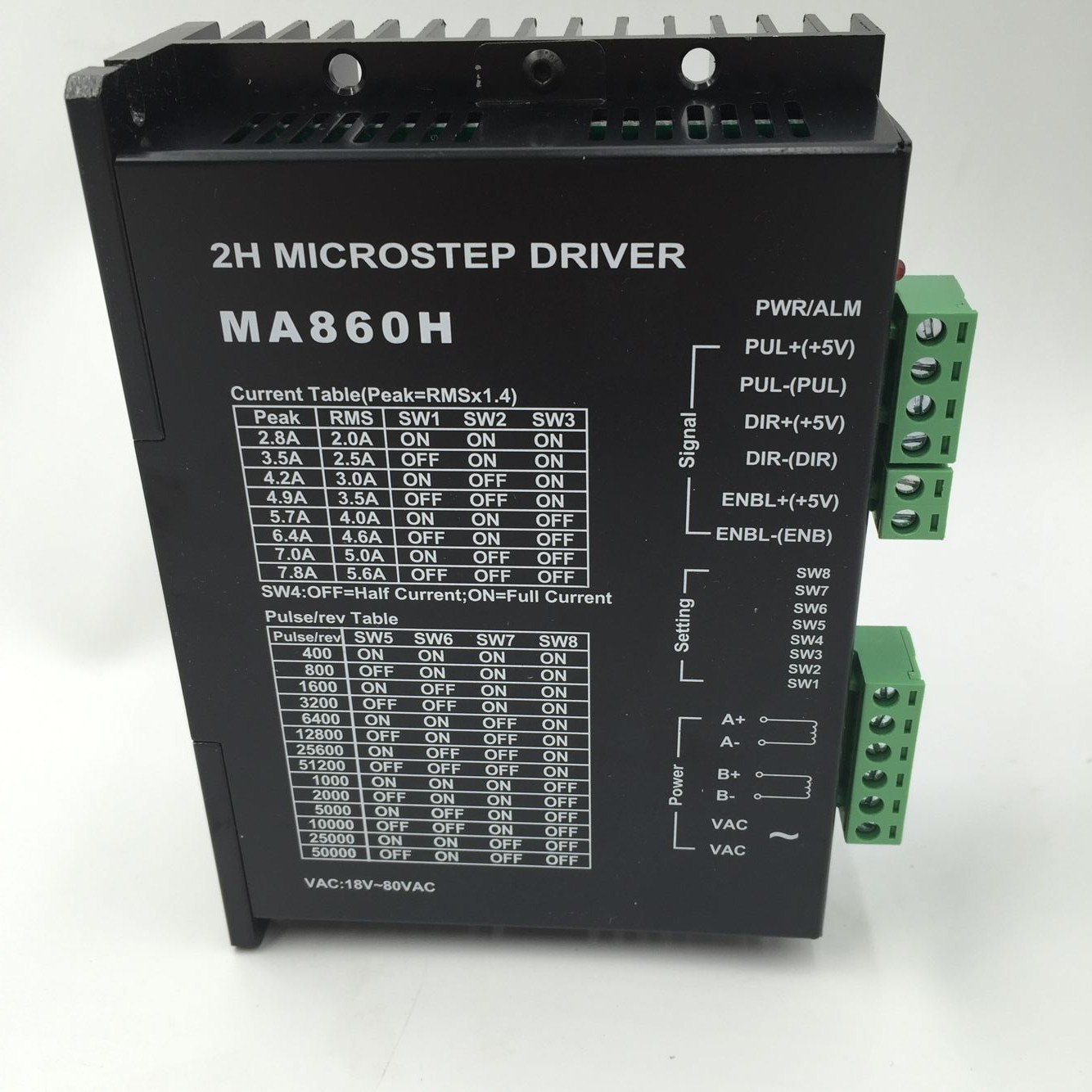

 Stepper Drive Specifications

Item

Min

Typical

Max

Unit

Power supply

24

-

110

VDC

18



80

VAC

Average output current

2

2.5

7.8

A

Logic input current

6

15

30

mA

Impulse response frequency

-

-

100

KHZ

Pulse low level

5

-

1

μS

Drive Wiring Description

Signal

Function

PUL

Pulse signal: rising edge, the pulse from low to high is to go a step angle motor

DIR

Direction signal: TTL-level driver to change the direction

OPTO

Optocoupler drive power

ENA

Enable signal: block or allow the drive to work, low-level ban

GND

DC power supply ground

+V

DC power supply positive (typical 24VDC)

A+

Motor Phase A

A-

Motor Phase A

B+

Motor Phase B

B-

Motor Phase B
