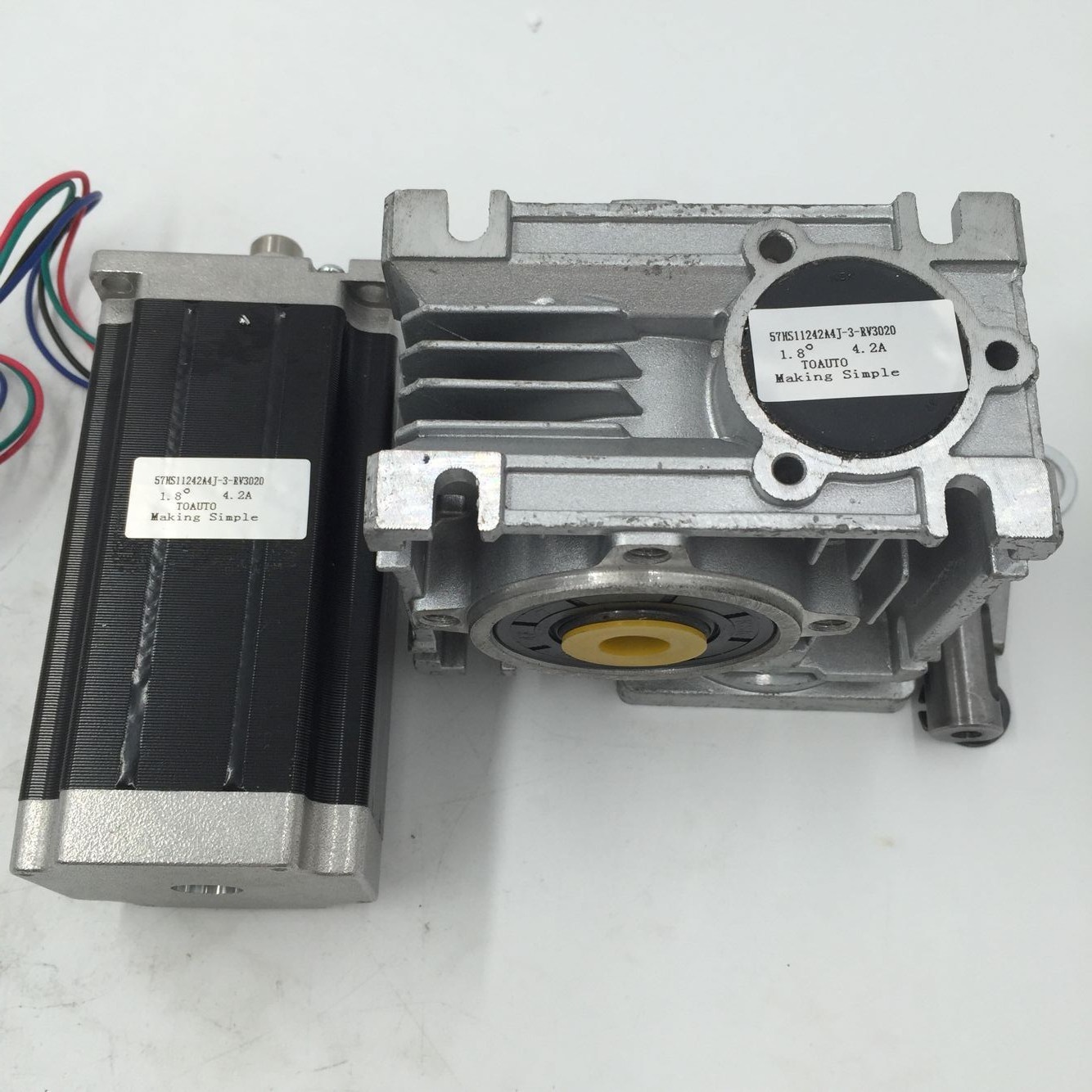

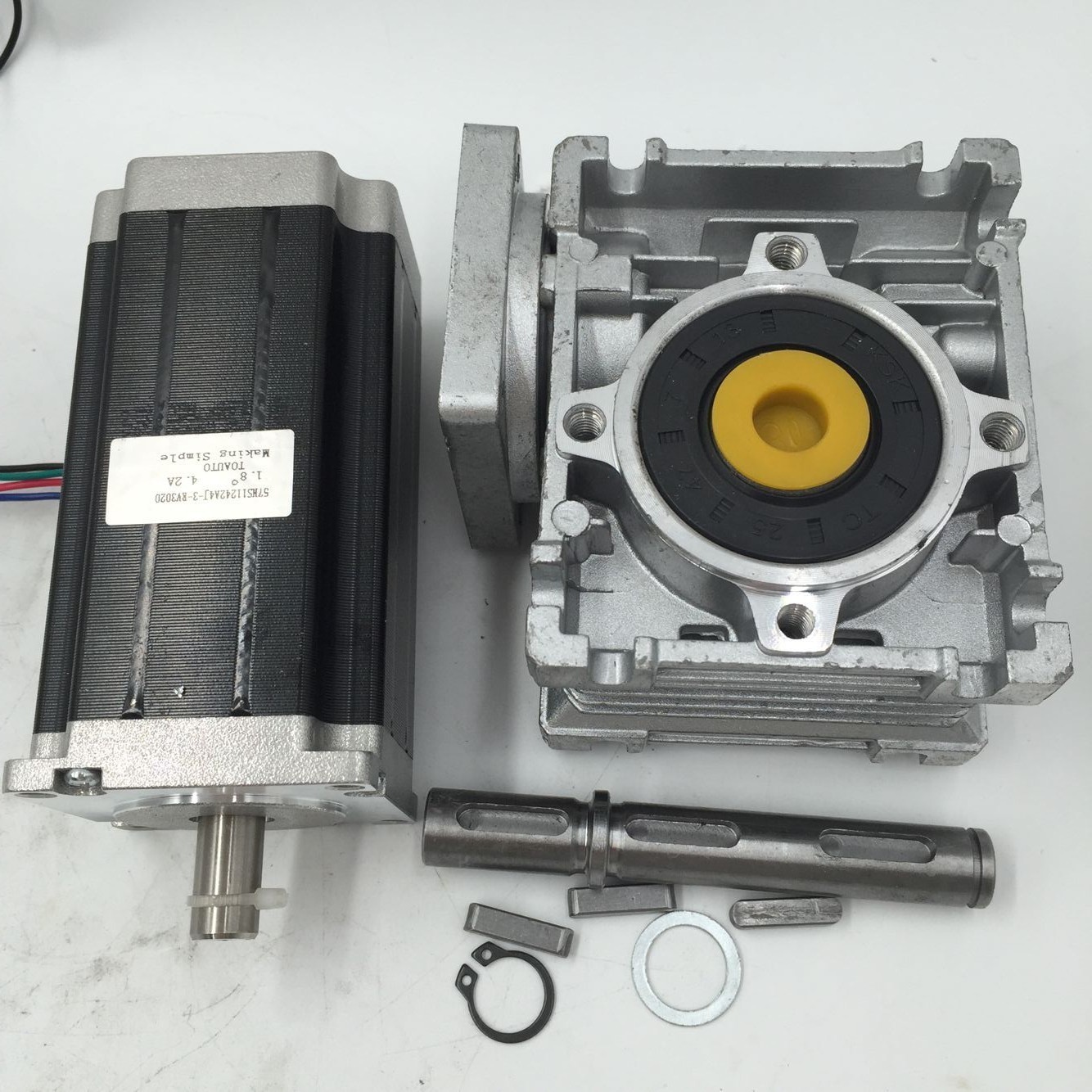

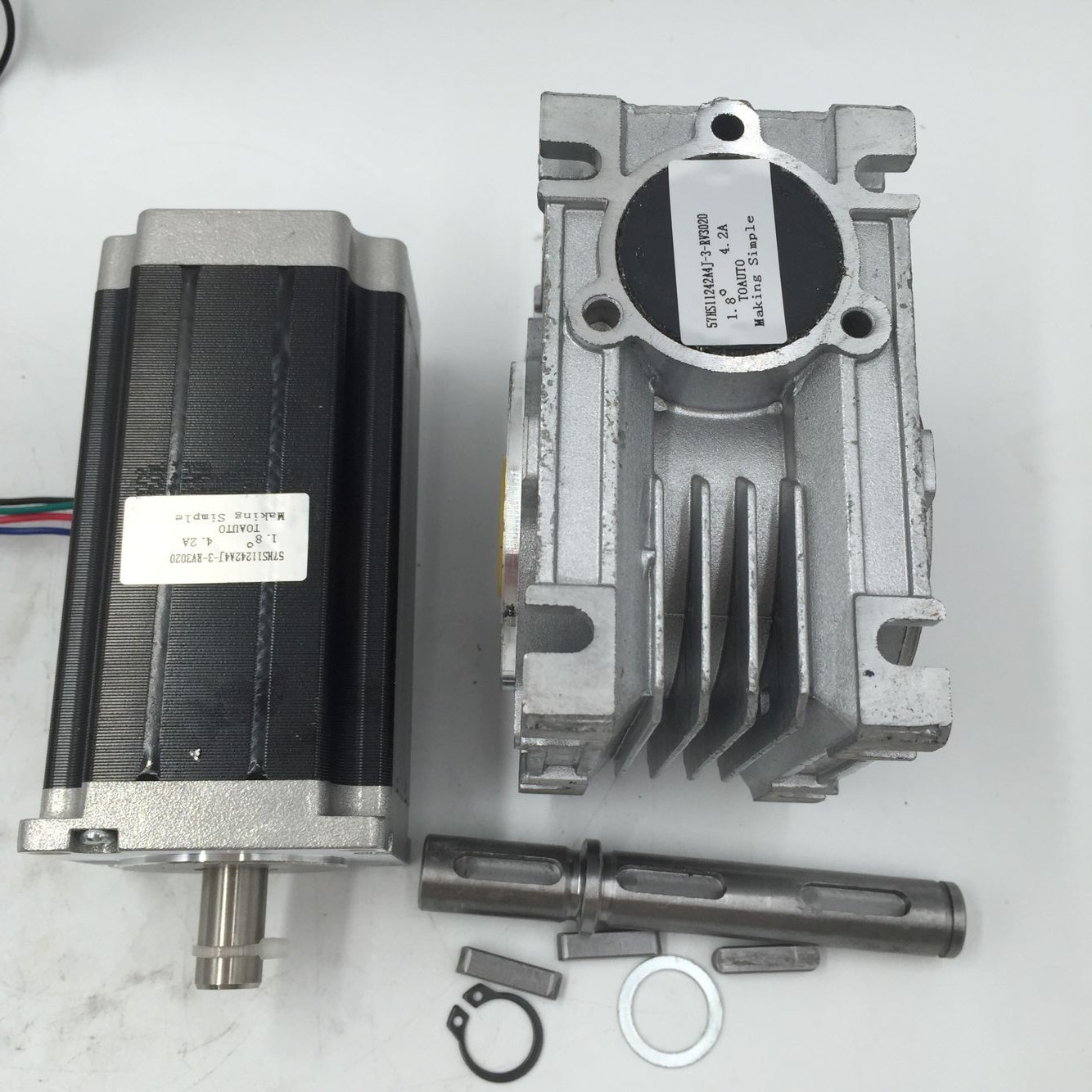

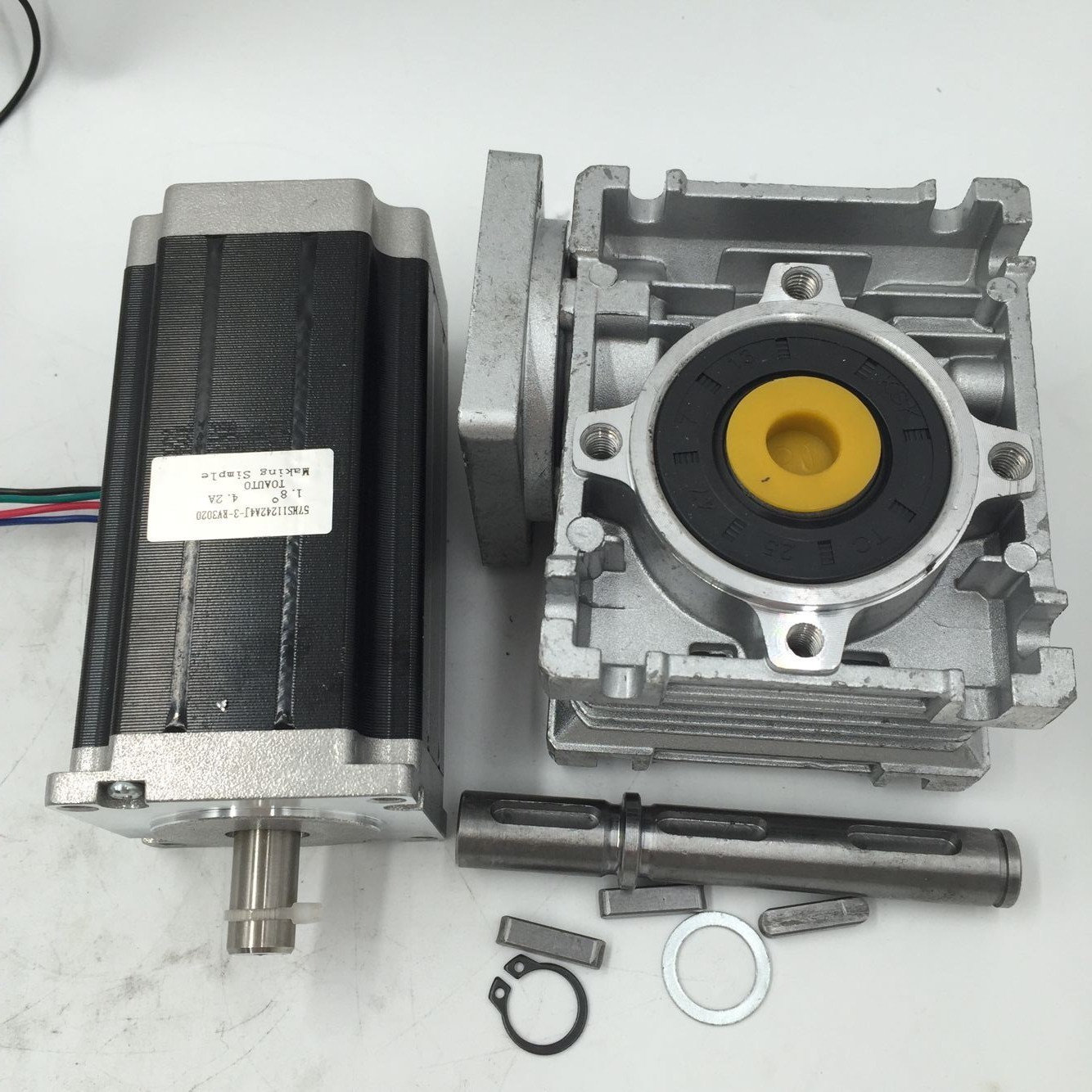

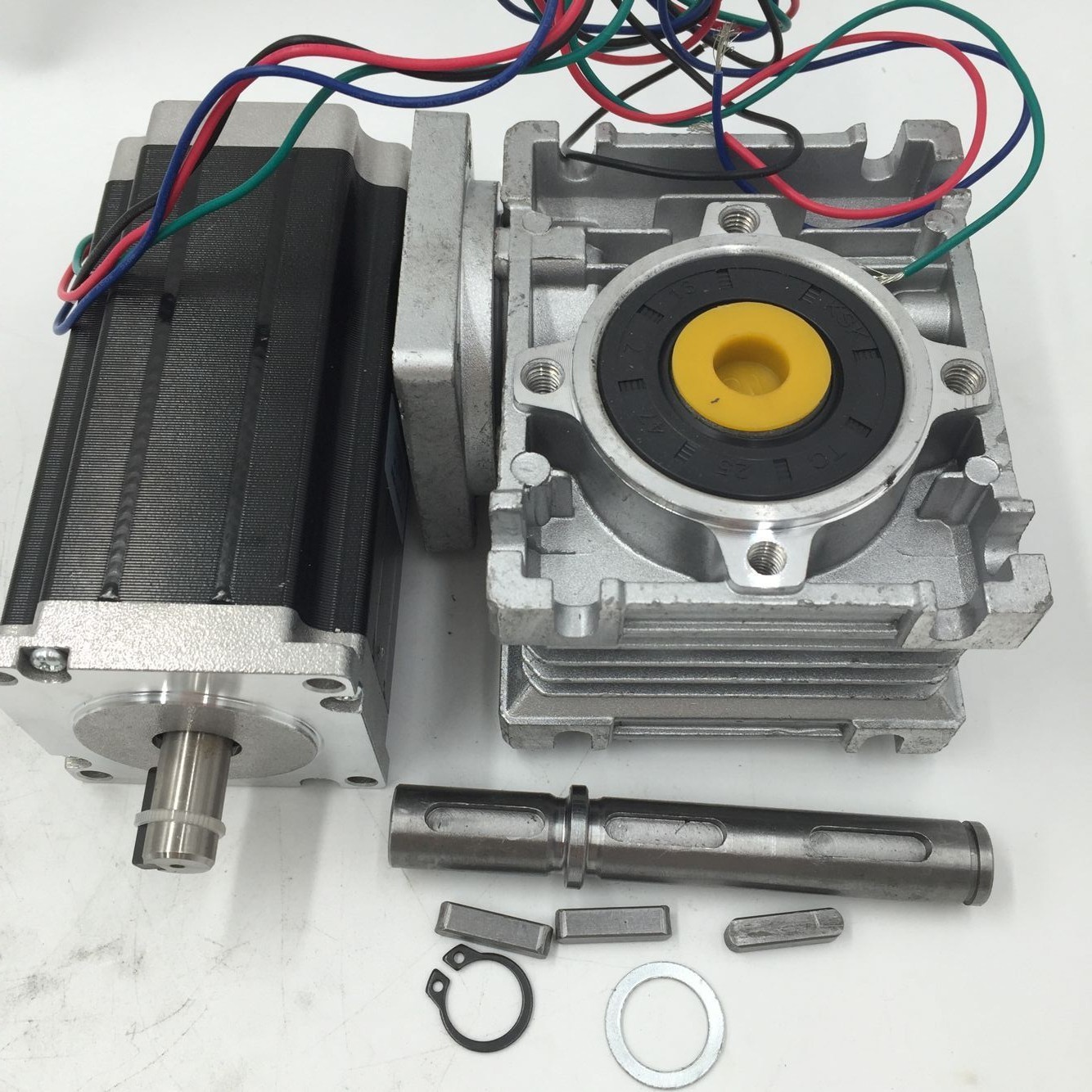

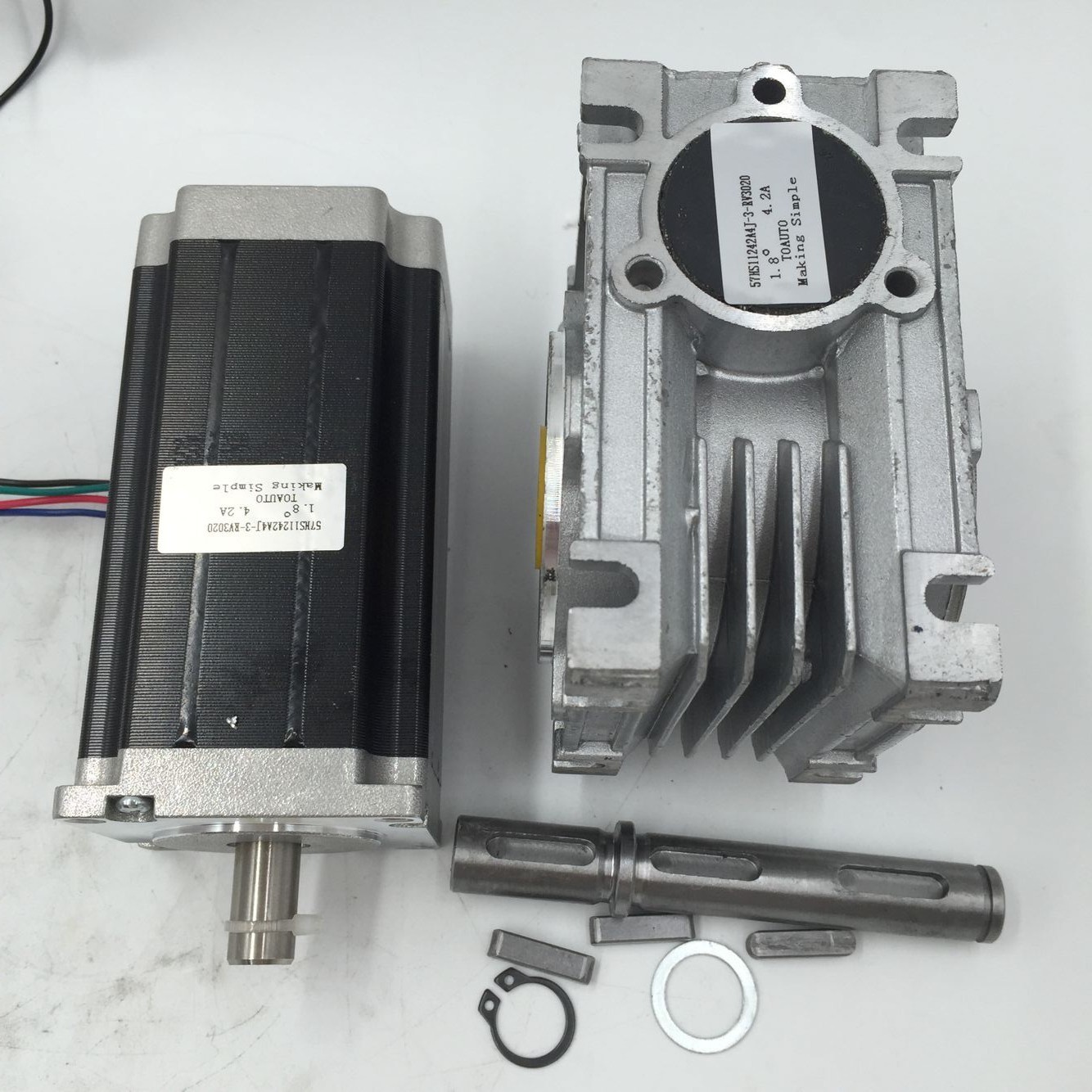

Ratio 20:1 self-lock High-Torque L112mm NEMA23 4.2A RV30 Turbine Worm Gearbox Geared Stepper Motor Decorating machine 57HS11242A4J-3-RV3020
Reduction Motor Specifications
|
Model |
Step Angle |
Rated Current (A) |
Phase Resistance (ohm) |
Phase Inductance (mH) |
Holding Torque (N*m) |
Detent Torque (N*cm) |
Rotor Inertia (g*cm2) |
Motor Length (mm) |
|
57HS5630A4 |
1.8 |
3 |
0.8 |
2.4 |
1.1 |
3.5 |
280 |
56 |
|
57HS7630A4 |
1.8 |
3 |
1 |
3.5 |
1.8 |
6 |
440 |
76 |
|
57HS11242A4 |
1.8 |
4.2 |
1.4 |
1.8 |
3 |
12 |
800 |
112 |
There are multiple choice for NEMA23 series motor. if you any other choice, please do contact us for a better solution.
Ratio: 1:7.5 1:10 1:15 1:20 1:25 1:30 1:50 1:60
IF you need the suitable drive to match the motor. please do contact us for a better solution and optimal price.

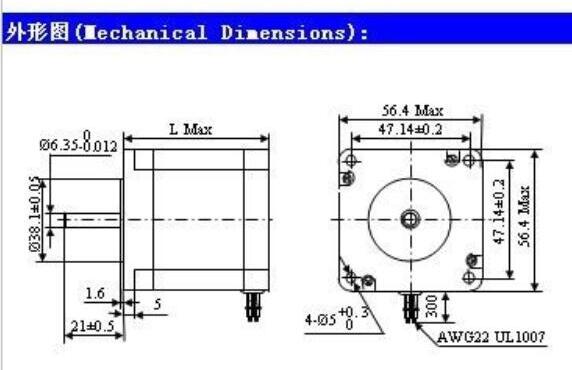

.png "57HS Series (29).png")

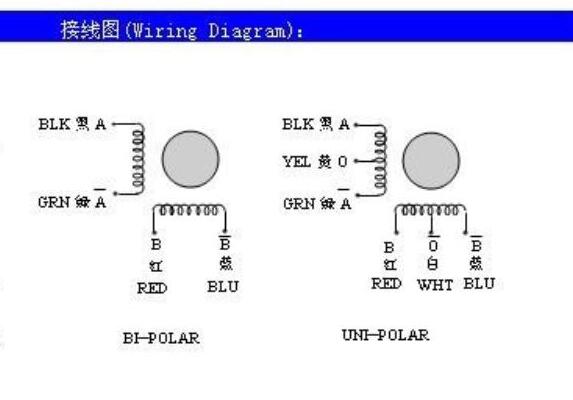

.png "57HS Series (30).png")

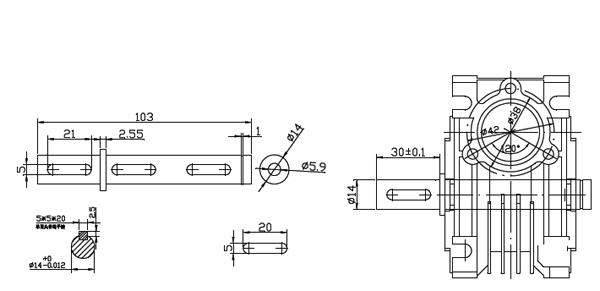

.png "57HS Series (31).png")

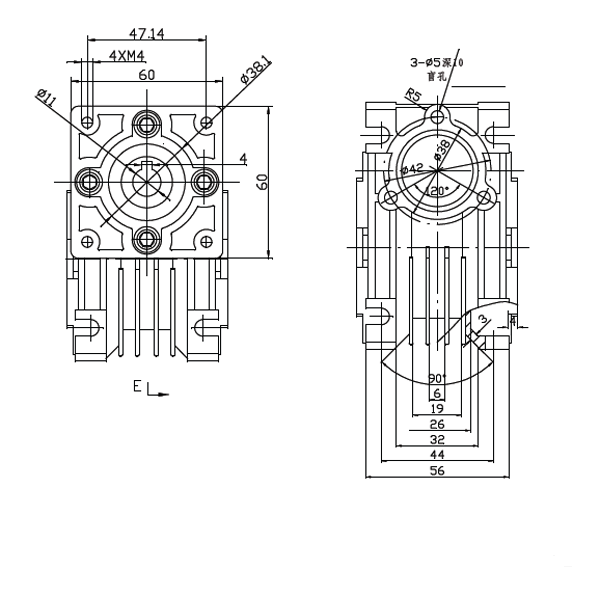

.png "57HS Series (32).png")

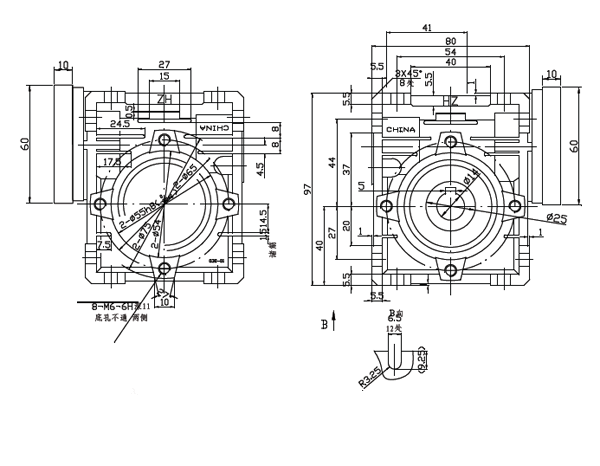

.png "57HS Series (33).png")
