Plasma Torch Height Controller 220V Automatic Arc and Cap Voltage For CNC Flame & Plasma Cutter Cutting Machine THC SH-HC31



Manual link: https://drive.google.com/open?id=1DPFCHsmBw-iD6B2aActHGYQwPGM7RWML


1. Main Technical Parameters

 Trade name

flame / plasma cutting torch height controller

Power Requirements

DC 24V ± 2 V 3 A

Applicable motor

17 / 23 Nema series of stepper motors

Manual adjustment range

0 ~ 100 mm

Automatic increase of control range

3 ~ 30 mm

Automatic increase of control

3000 mm / min (30 ° slope)

Control precision

±0.5 mm

Dimensions of box body

(155 × 87 × 71) mm

Operating temperature

-10 ~ 50 degree centigrade

Detection system

capacitance-type detector, arc voltage height detector


2. Technical Features

1

Stepper motor instead of the traditional DC motor

2

The height of cutting nozzle is displayed directly in the mode of
capacitance height control

3

Integration of mechanical lifting device and height controller

4

All Digital Technology

5

Simple and convenient linearization calibration

6

It can be used in tough environment

7

There are various interfaces that are easy to use

8

RS232 communication interface

3. Package list

quantity

Category

1

SH-BC31

1

Lift stepper

1

Detector ring

1

Detector ring holder

2

Cutting torch holder

1

Standard high frequency cable

1

Partial pressure box

1

Detector ring anti-impact device

1

CD

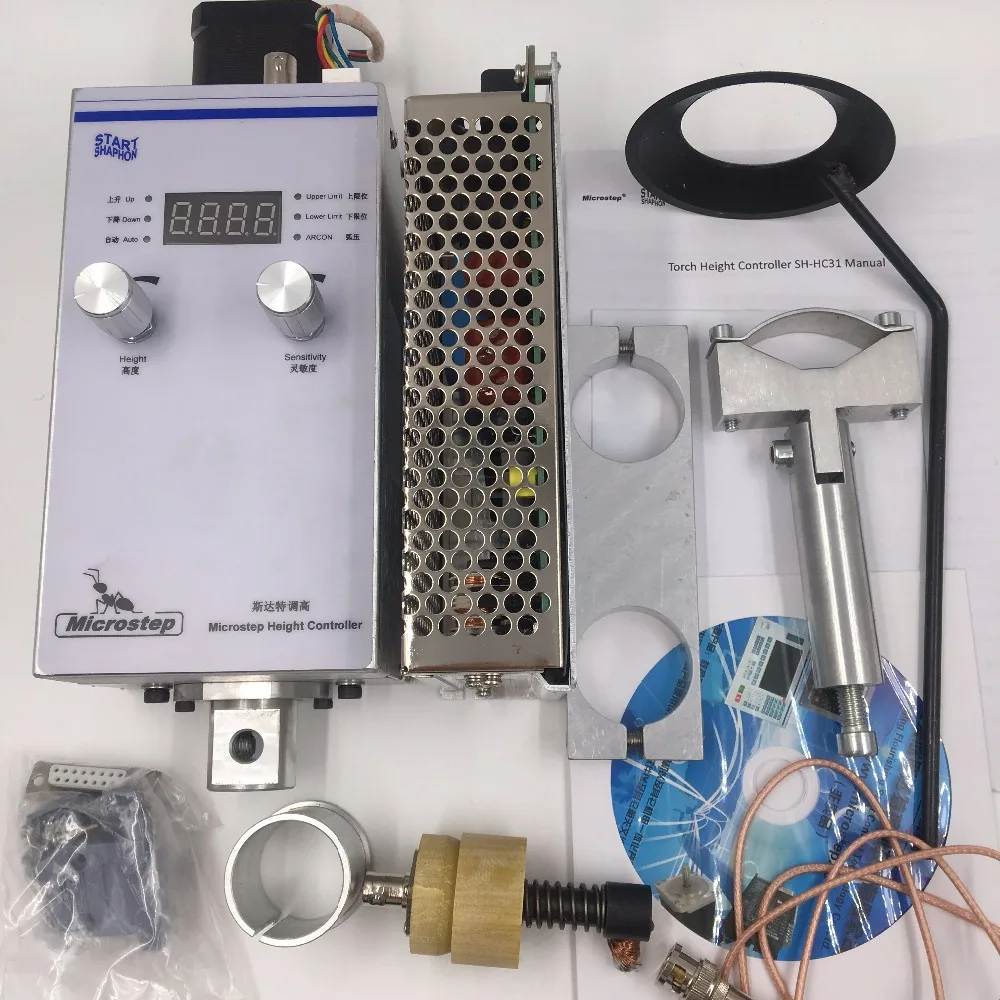

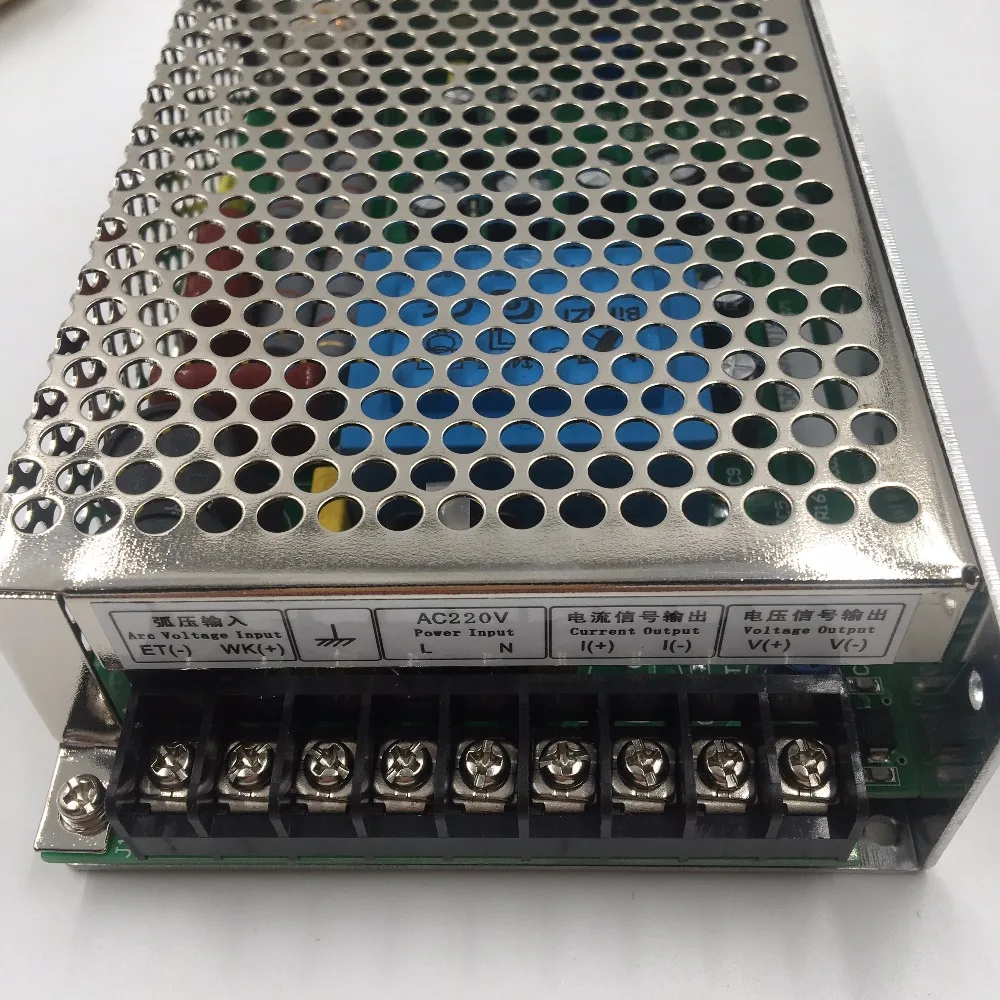

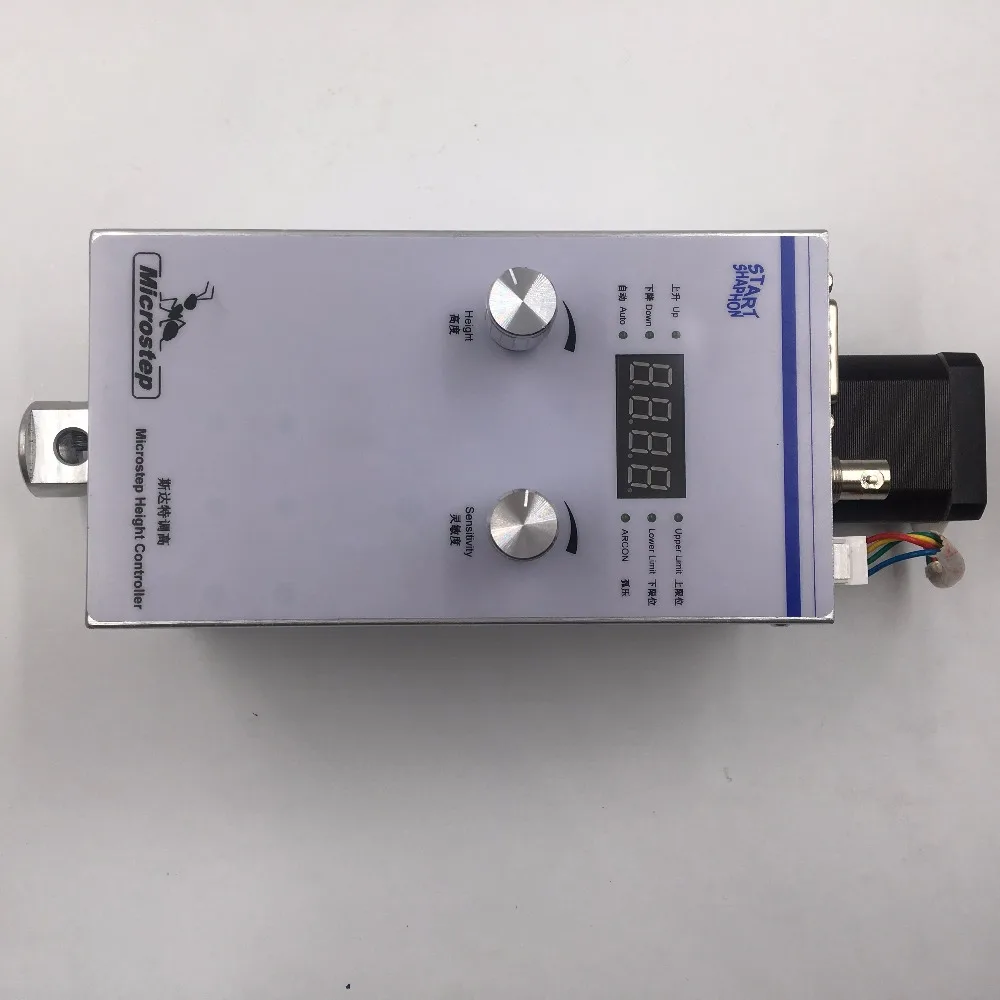

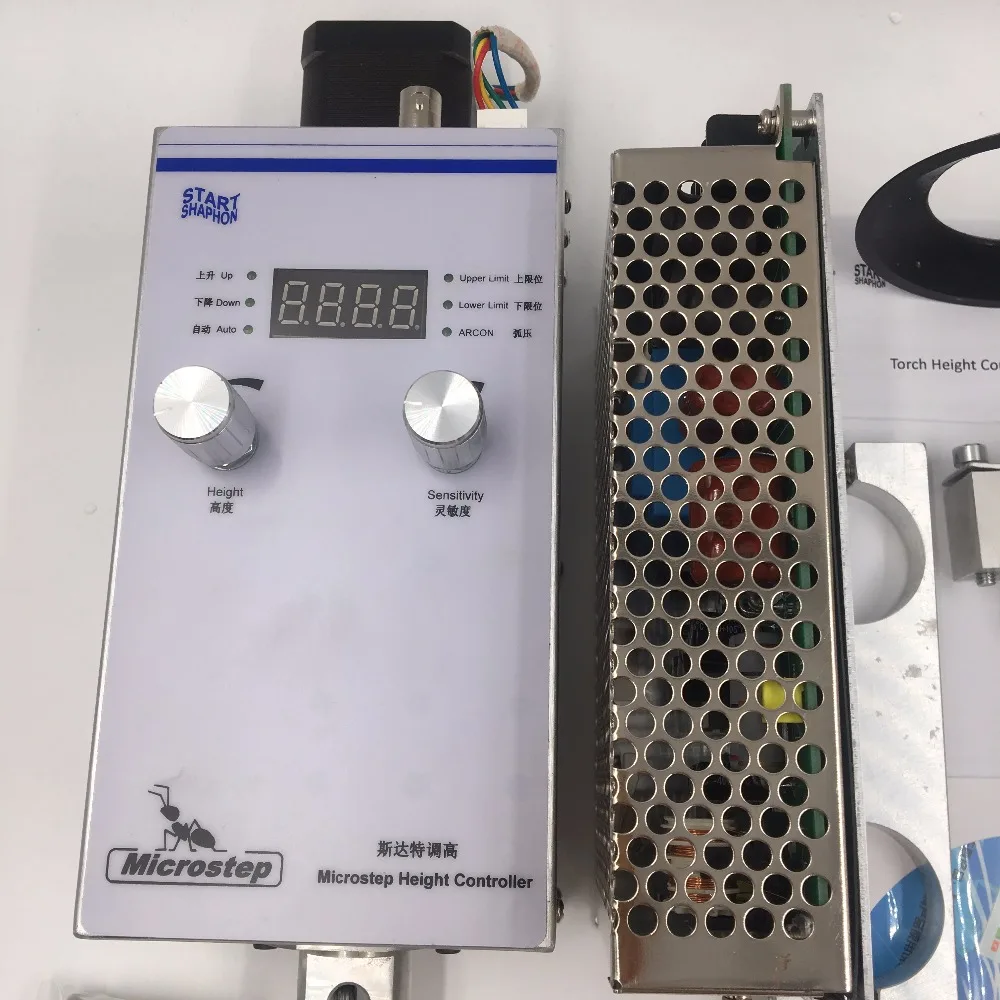

IMG_9530IMG_9531IMG_9537IMG_9538

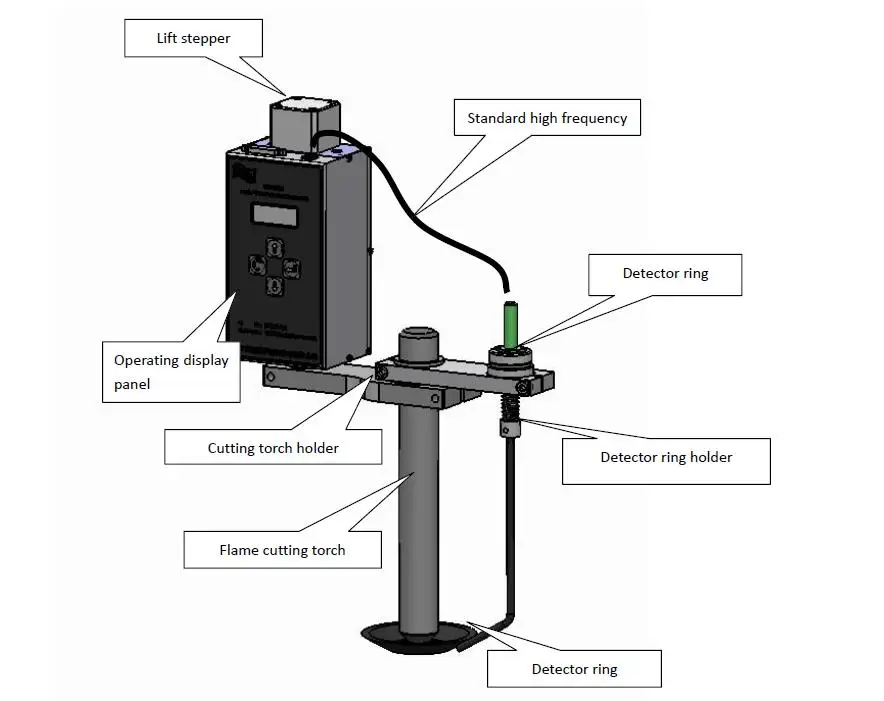

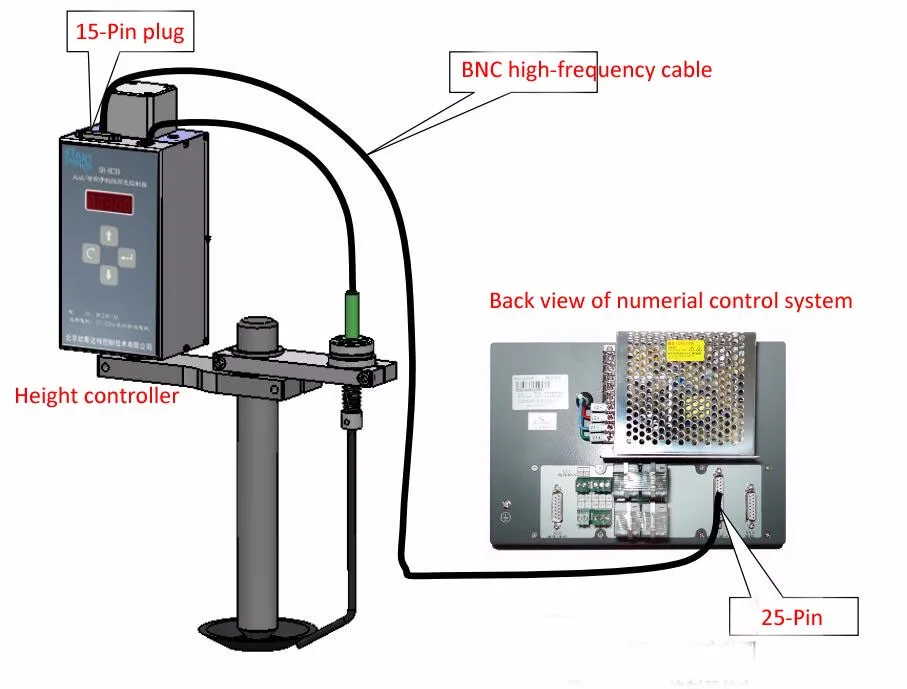

4. Mechanical Installation

5. Application

SH-HC31 is the automatic control module for cutting torch height with the integration of mechanical increase and electric control specially designed for portable flame and plasma cutting machine.
