1pc HGR25 L-1500mm linear guide rail
2pcs HGH25CA linear guide blocks
Kindly note: Linear rail guide length is optional, if any other size you need, please contact us directly, thank you!

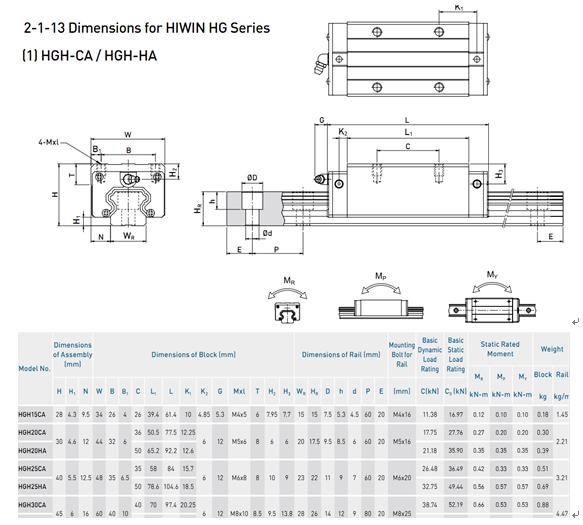

Model: HGR25R1500C + HGH25CAZAC *2
Rail type: interchangeable types
Block type: square Type
Load Type: Heavy Load
Block Mounting: Mounting from Top
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
Engraving machine, Machine centers, Machine tools, Precision machining machines, Heavy cutting machines, Punching machines, Marble cutting machines, Automatic equipment, Grinding machines, High speed transfer equipment, Injection molding machines, Measuring equipment.
