NEMA34 4NM Leadshine CNC Stepper Motor Driver Kits 86mm 2phase Closed Loop Control

NEMA34 4NM Leadshine CNC Stepper Motor Driver Kits 86mm 2phase Closed Loop Control

Contact US:

If you have any questions, please don't hesitate to contact us.

Email: service@fasttobuy.com
skype: fasttobuy02
our working time: EST 9:00AM ~ 6:00 PM

All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-send email and we will reply to you as soon as possible.

86HBM40-1000 is update to 86HSM45-E1

Hybrid Servo Drive HBS86

Descriptions

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Electrical Specifications

Applications

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.

Hybrid Servo Motor 86HSM45-E1

Genneral Introduction

Made of high quality cold roll sheet copper and anti-high temperature permanent magnet, Leadshine's stepper motors are highly reliable and generate low motor heating. Because of their nice internal damping characteristics, those stepping motors can run very smoothly and have no obvious resonance area within the whole speed ranges.

Eletric

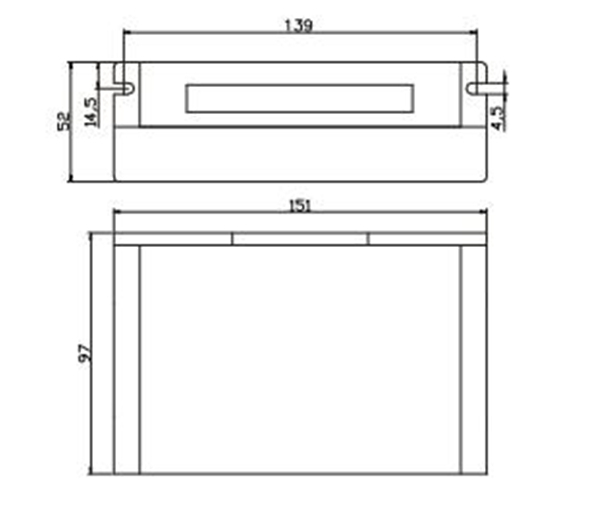

HBS86 Dimension

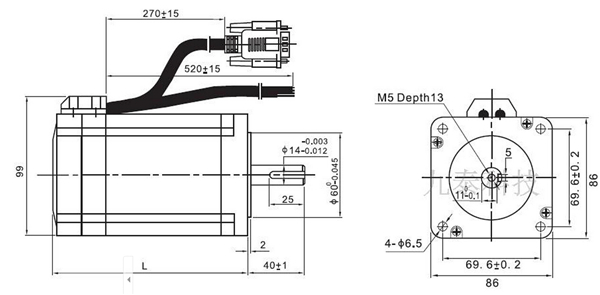

86HS40-EC-1000 Dimension

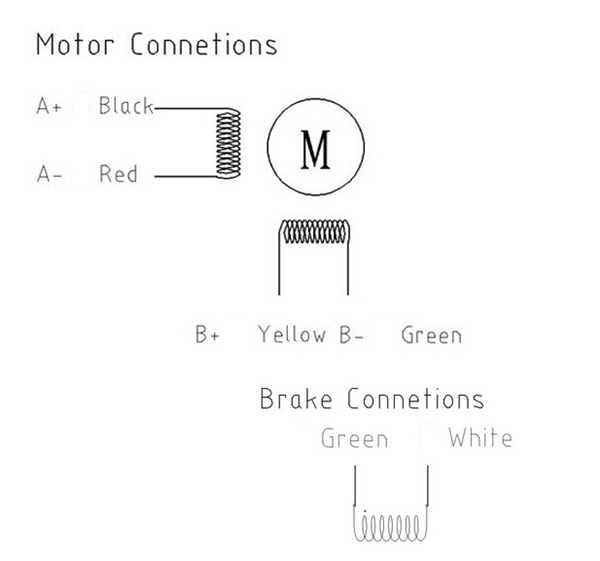

86 Series 2 Phase Electircal Connection
