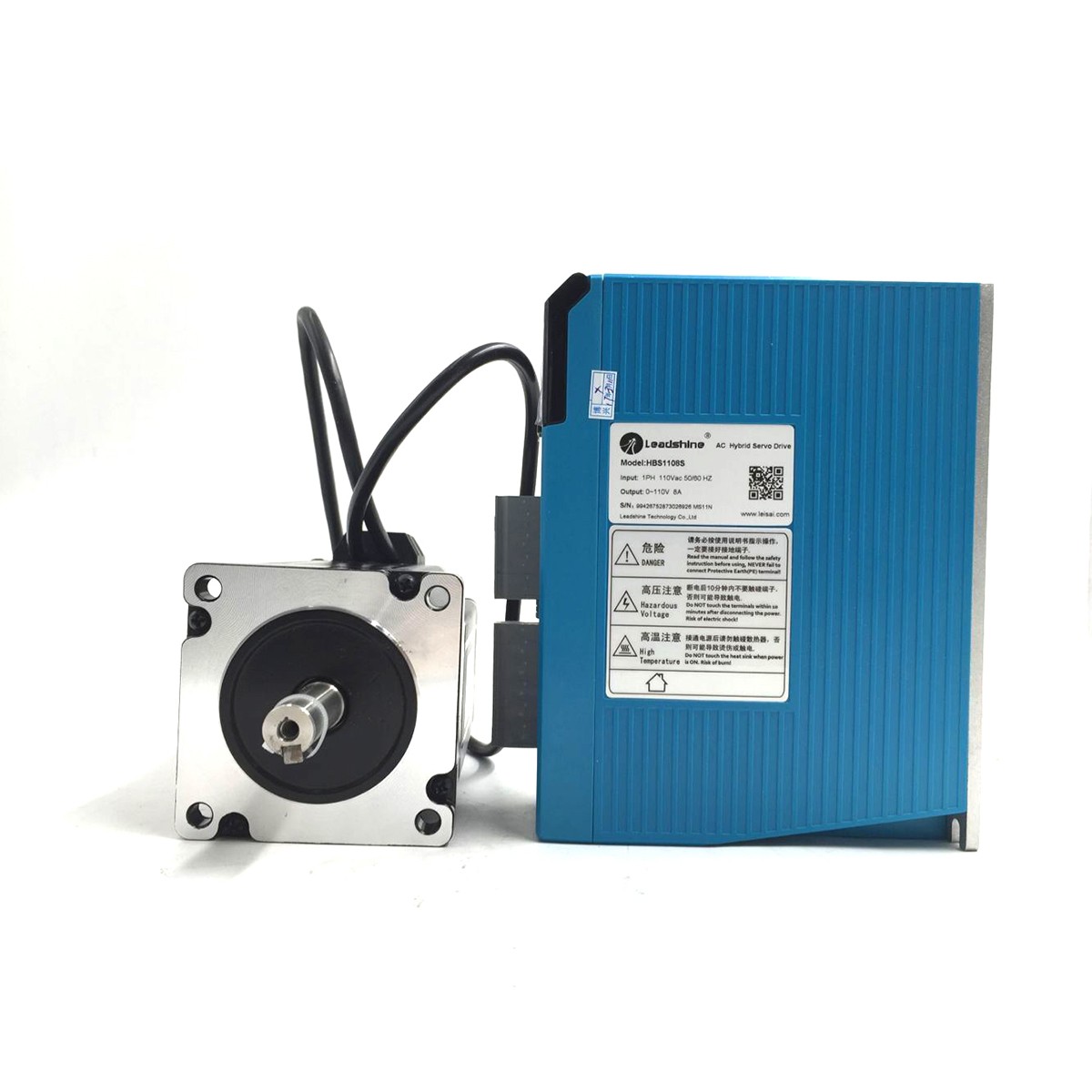

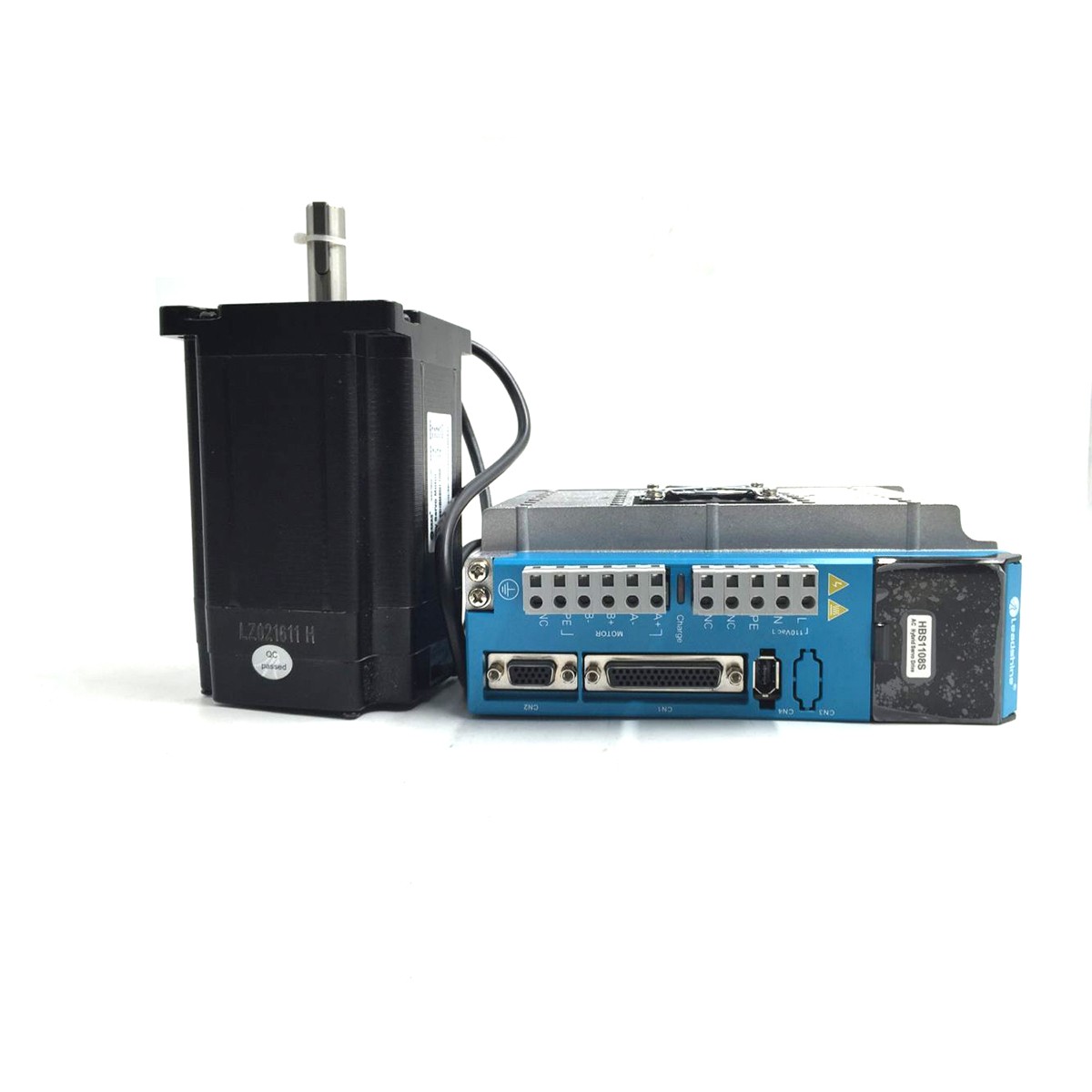

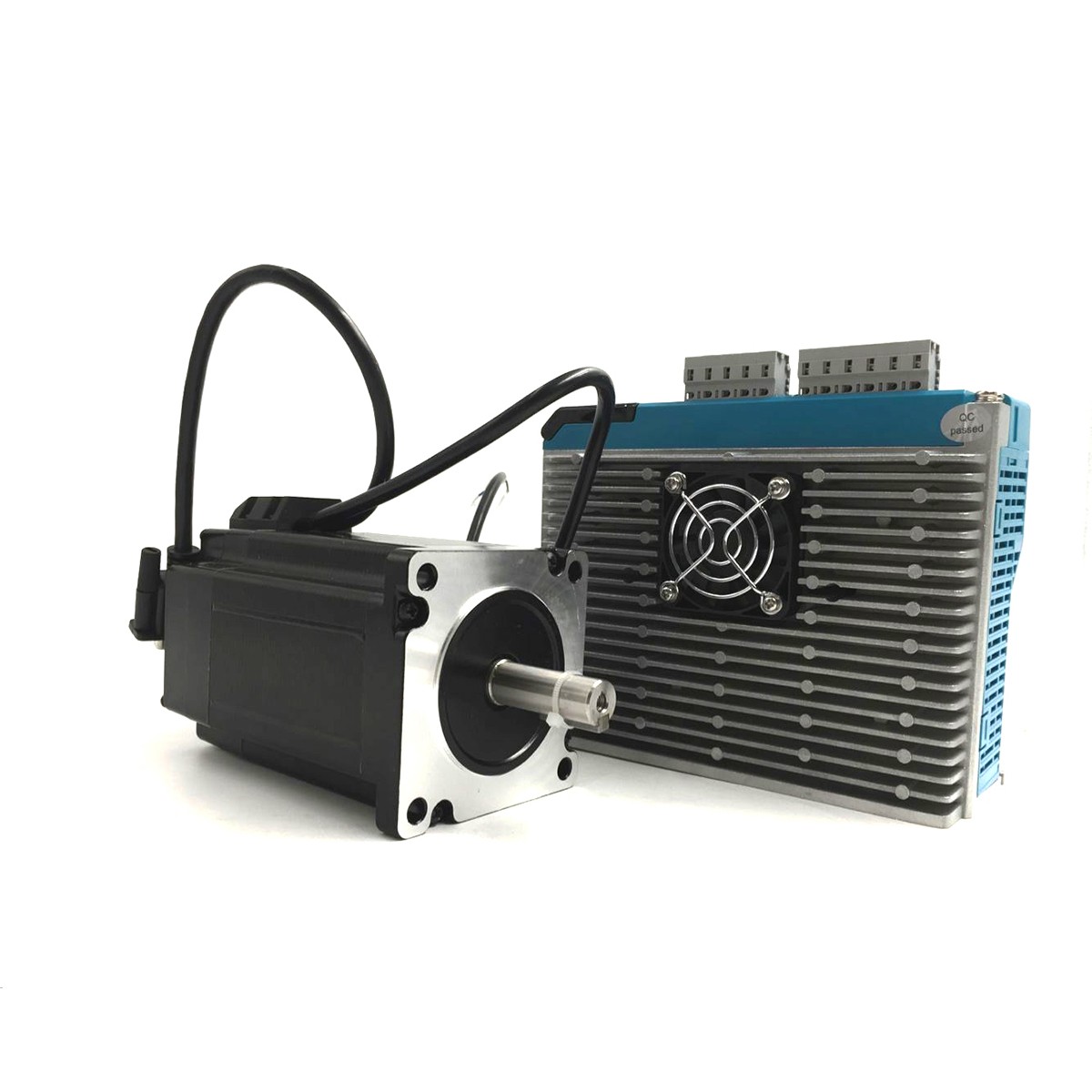

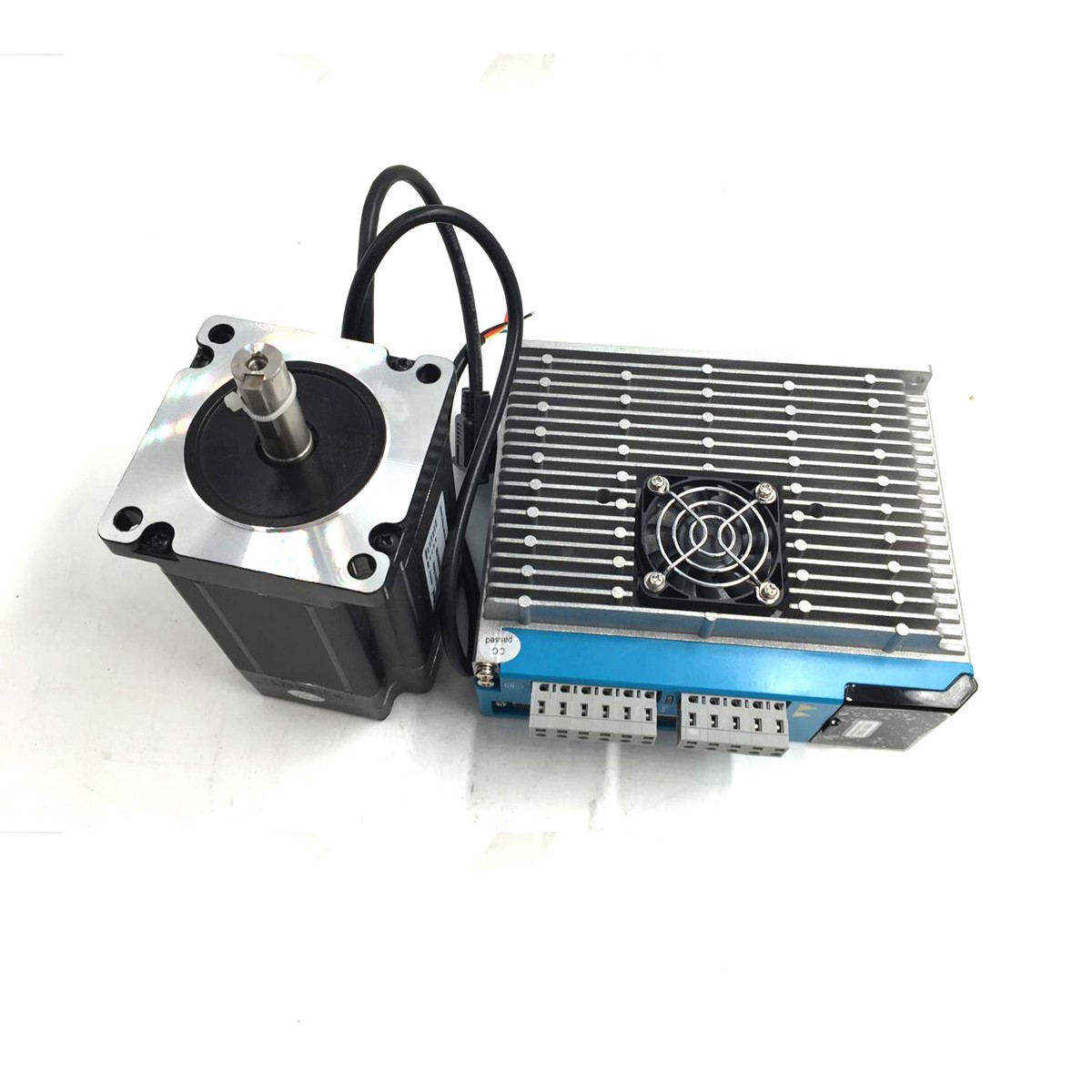

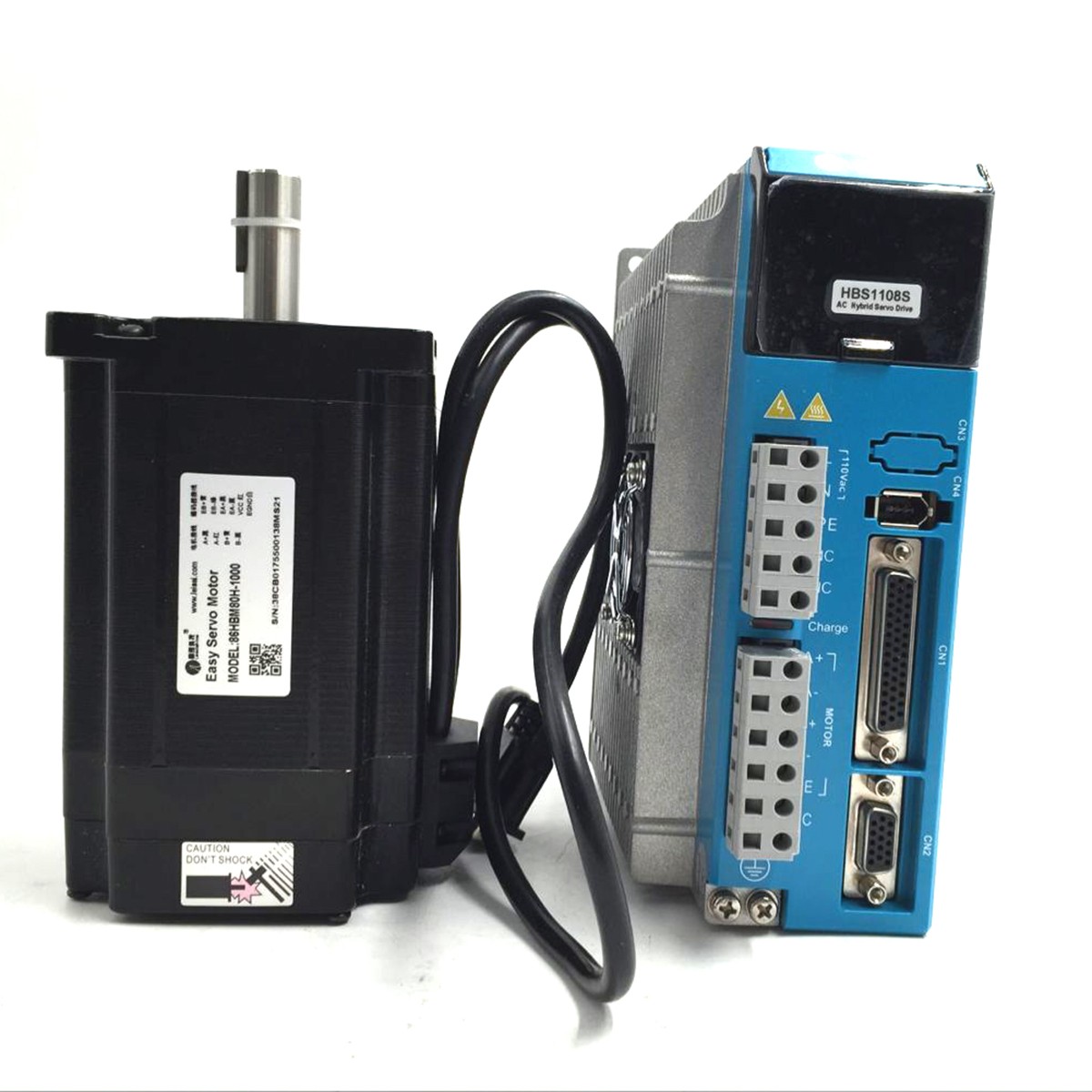

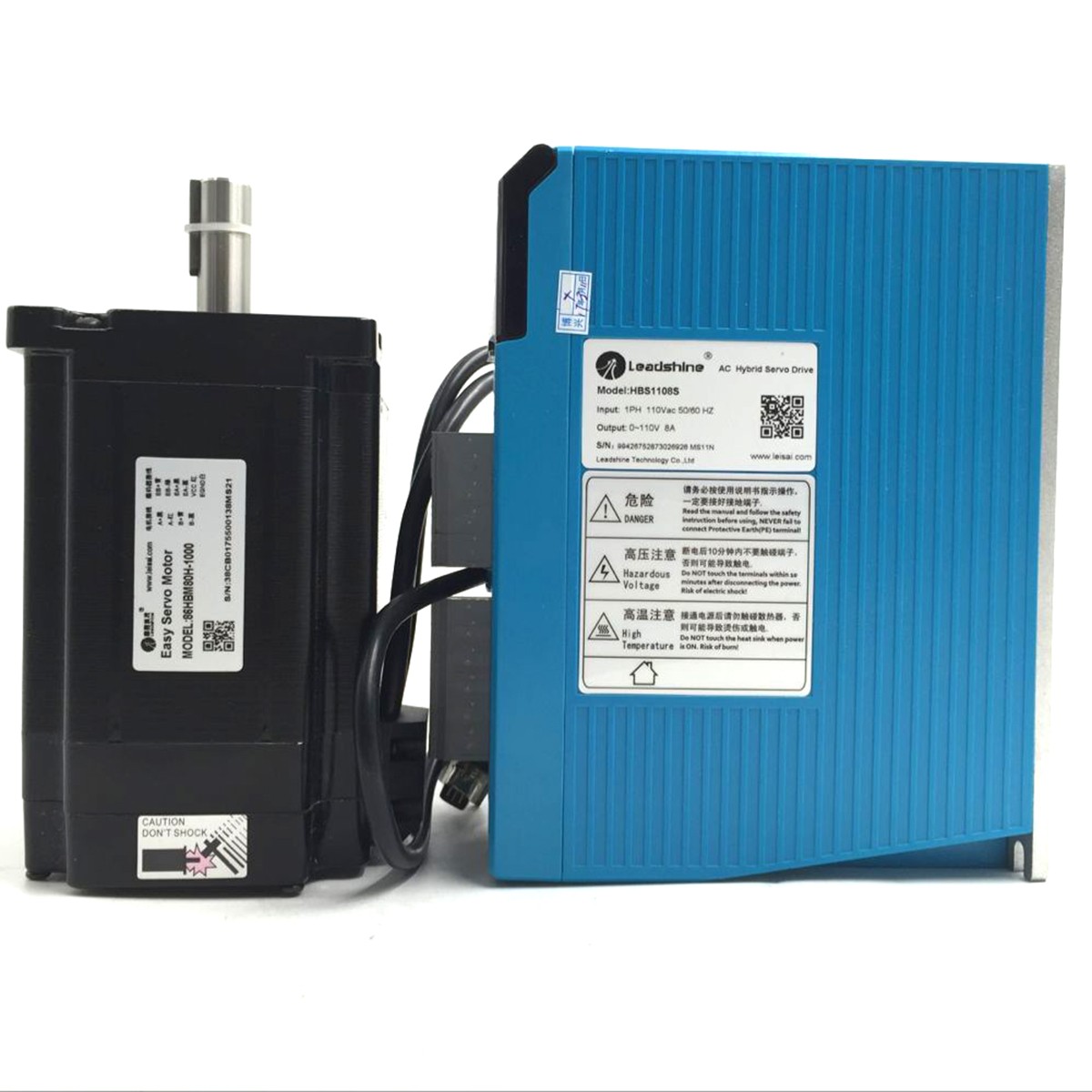

NEMA34 2phase Stepper 8NM 1143oz-in Leadshine Hybird Closed-Loop Stepper Motor and Driver kits
The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.
Electrical Specifications
Applications
The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.

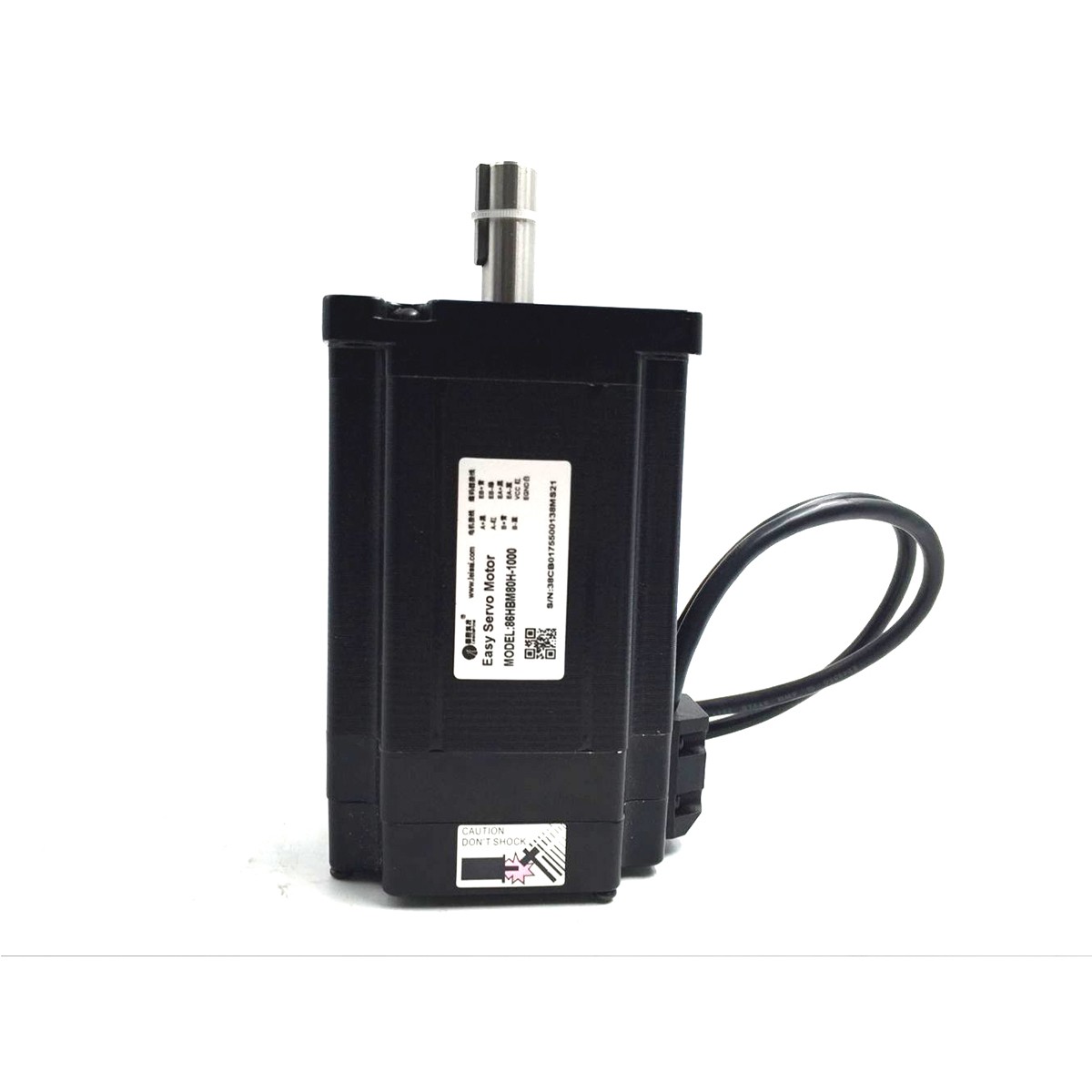

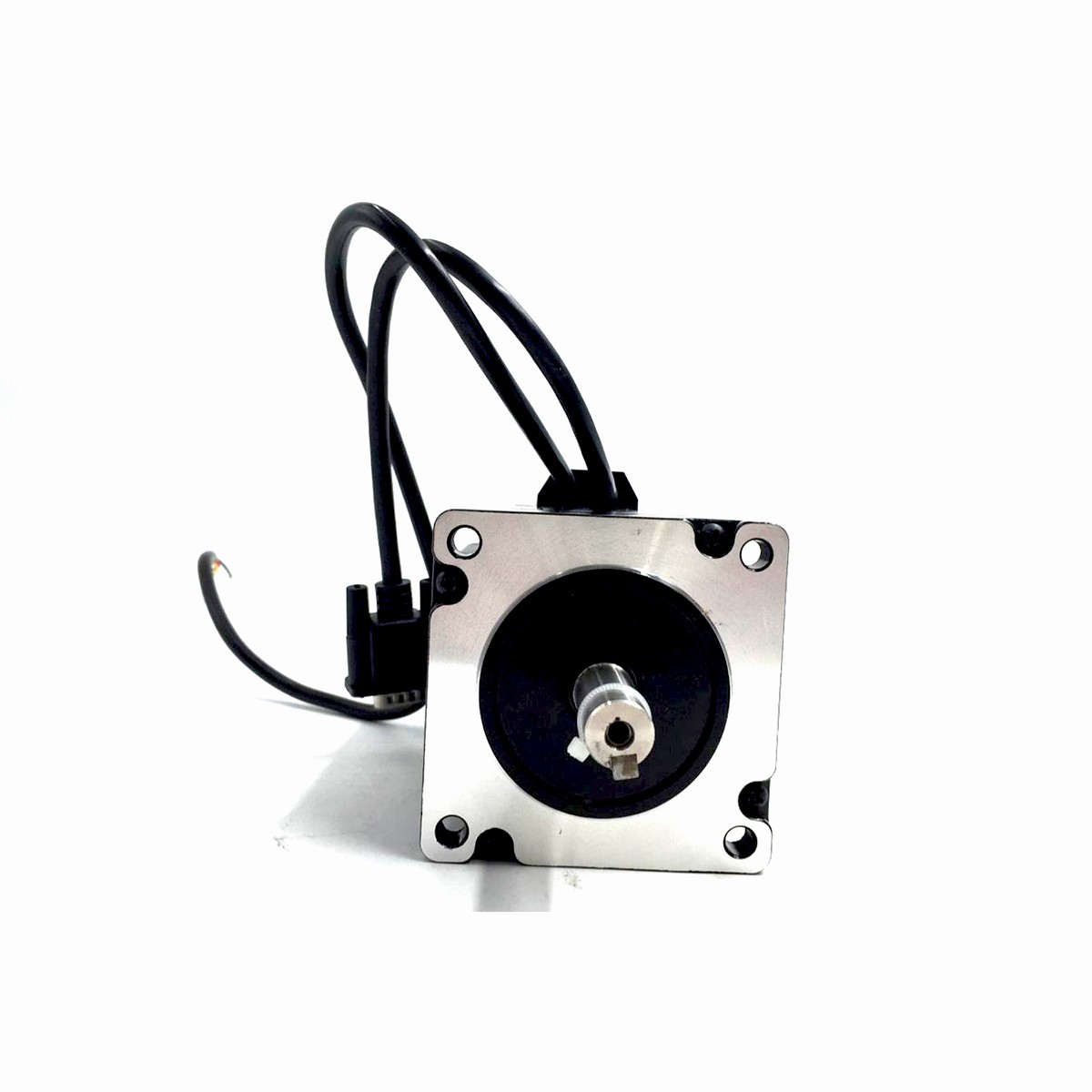

Hybrid Servo Motor 86HBM80H-1000
Genneral Introduction Made of high quality cold roll sheet copper and anti-high temperature permanent magnet, Leadshine's stepper motors are highly reliable and generate low motor heating. Because of their nice internal damping characteristics, those stepping motors can run very smoothly and have no obvious resonance area within the whole speed ranges.
Eletric

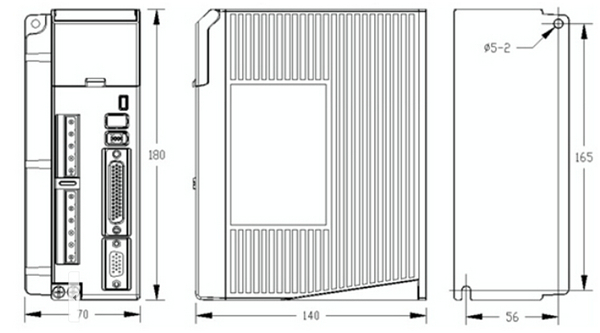

HBS1108 Dimension

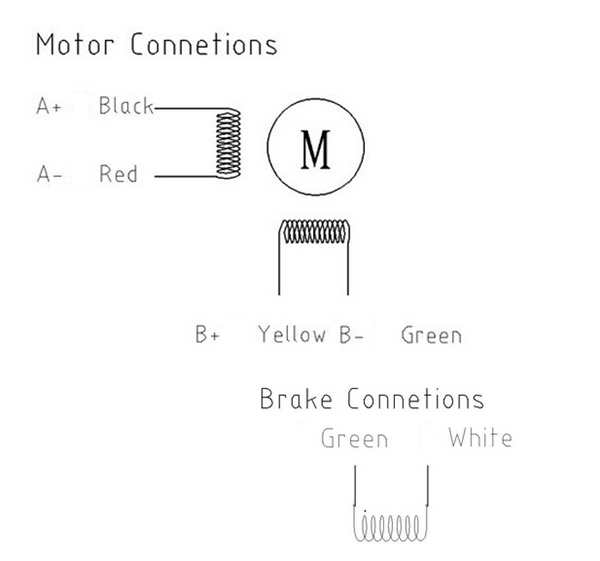

86 Series 2 Phase Electircal Connection
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
We also offer the following Leadshine Hybrid Servo Closed-Loop Stepper Motor Driver Kit , Please choose the correct model you need.
|
Model |
Motor Flange |
Phase |
Holding Torque (N.m) |
Motor Current |
Motor Length (mm) |
Step Angel (º) |
Driver Input Voltage |
Driver Output Current |
|
|
HBS507+573HBM20-1000 |
Nema23 |
3 |
2 |
5.2A |
97 |
1.8 |
DC18-48V |
0~7A |
|
|
86HSM85-E1+HBS86 |
Nema34 |
2 |
8 |
6A |
140 |
1.8 |
DC20~50V |
0~8A |
|
|
HBS1108S+86HSM85H-E1 |
Nema34 |
2 |
8 |
4.8A |
175 |
1.8 |
DC90~130V |
0~8A |
|
|
86HSM45-E1+HBS86 |
Nema34 |
2 |
4 |
6A |
102 |
1.8 |
DC20~50V |
0~8A |
|
|
86HSM45-E1+HBS86H |
Nema34 |
2 |
4 |
6A |
102 |
1.8 |
DC18~80V |
0~8A |
|
|
86HSM85-E1+HBS86H |
Nema34 |
2 |
8 |
6A |
140 |
1.8 |
DC18~80V |
0~8A |
|
|
H2-2206+863HSM100H-E1 |
Nema34 |
3 |
8 |
3A |
173 |
1.2 |
AC150~240V |
6A |
|
|
H2-2206+1103HSM200H-E1 |
Nema42 |
3 |
20 |
5.2A |
244 |
1.2 |
AC150~240V |
6A |
|
|
H2-2206+1103HSM120H-E1 |
Nema42 |
3 |
12 |
4.2A |
166 |
1.2 |
AC150~240V |
6A |
|
