Leadshine NEMA42 110mm 2857oz-in High Turque 20NM 6A 3phase Stepper motor DSP Closed-Loop Drive kits

Contact US:

If you have any questions, please don't hesitate to contact us.

Email: service@fasttobuy.com
skype: fasttobuy02
our working time: EST 9:00AM ~ 6:00 PM

NOTE:Leadshine HBS2206+1103HBM200H-1000 Upgrade to H2-2206+1103HSM200H-E1

Descriptions

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Electrical Specifications

Applications

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.

Hybrid Servo Motor 1103HBM200H-1000

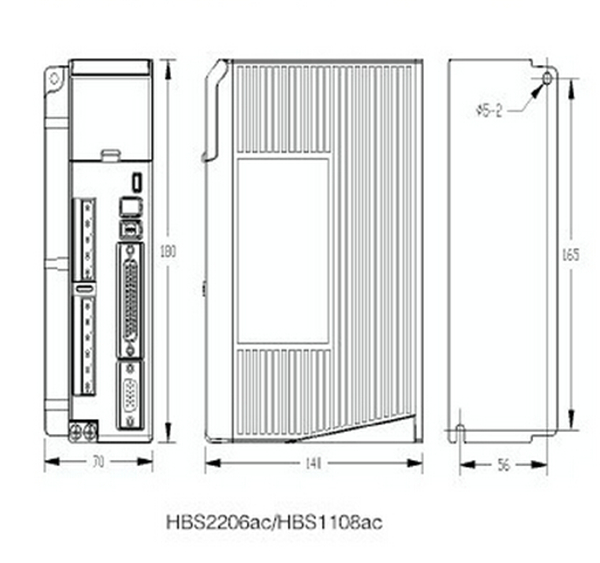

HBS2206 Dimension

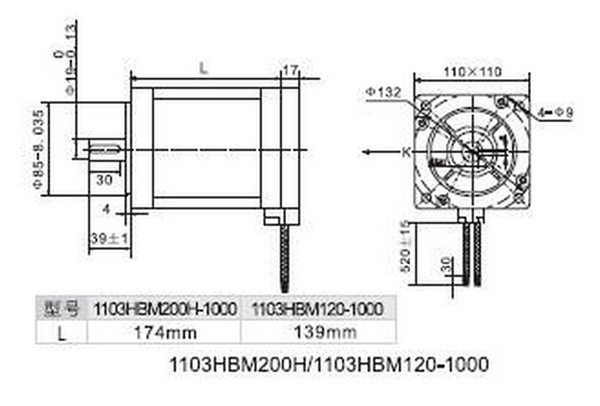

1103HBM200H-1000 Dimension

We also offer the following Leadshine Hybrid Servo Closed-Loop Stepper Motor Driver Kit , Please choose the correct model you need.
