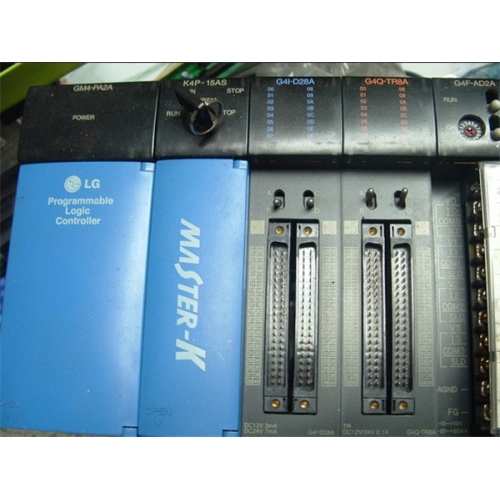

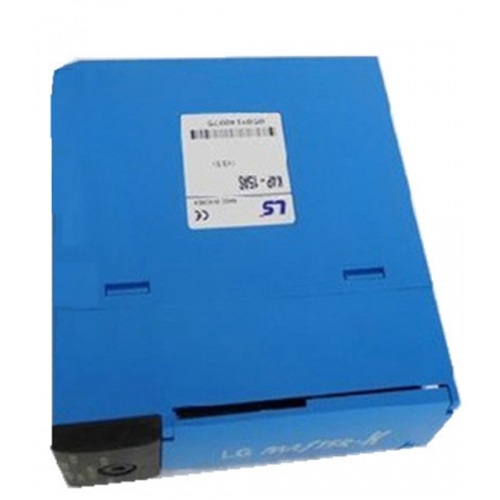

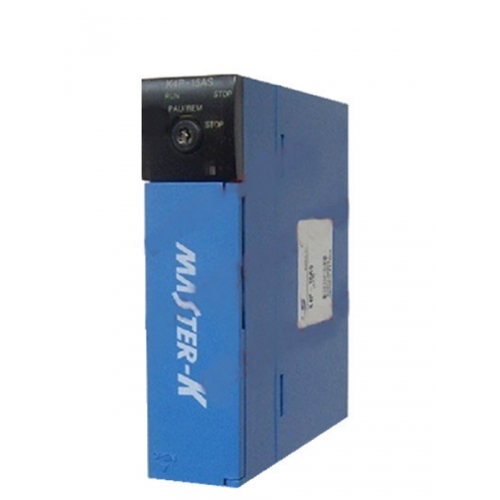

K4P-15AS LS PLC K300S Series CPU Module User Program Memory 15K Steps Max. I/O Points 512 New

Items

K4P-15AS

Operation method

Cyclic execution of stored program, Time-driven operation, Interrupt task execution

I/O control method

Scan synchronized batch processing method (Refresh method), Direct method by program

Number of

Instructions

Basic

30

Application

218

Processing speed

Basic instructions

0.2us/Step

Program memory capacity

15k steps

Max. II/O points 1

1024

Memory

device

P (I/O relay)

P0000~P063F (1,024 points)

M(Aux. relay)

M0000~M191F (3,072 points)

K(Keep relay)

K0000~K031F (512 points)

L (Link relay)

L0000~L063F (1,024 points)

F(Special relay)

F0000~F063F (1,024 points)

T(Timer)

100ms

T000~T191 (192 points): available to change by parameter

10ms

T192~T255 (64 points): available to change by parameter

C (Counter)

C000~C255 (256 points)

S (Step controller)

S00.00~S99.99 (100X100 step)

D (Data register)

D0000~D4999 (5,000 words)

Timer type

On-delay, Off-delay, Integration, Monostable, Retriggerable timer

Counter type

Up, Down, Up-down, Ring counter

Special functions

RTC, On-line editing, Change I/O value by force

Operating mode

Run, Stop, Pause, Debug

Max. expansion stage

3

Self-diagnostic functions

Watchdog timer, Memory error, I/O error, Battery error, Power supply error

Data retention at power failure

Latch area setting in parameter (Basic)

Base type

4/6/8/12 slot

Internal current consumption

130mA

Items

Module No.

Description

Remark

Main base boards

GM4-B04M

4 module



GM4-B06M

6 module



GM4-B08M

8 module



GM4-B12M

12 modules

No expansion

Expansion base boards

GM4-B04E

4 module



GM4-B06E

6 module



GM4-B08E

8 module



Power supply modules

GM4-PA1A

110VAC

5VDC:5A,24VDC:0.7A



GM4-PA2A

220VAC

GM4-PA1B

110VAC

5VDC:3A,24VDC:0.5A

GM4-PA2B

220VAC

GM4-PD3A

24VDC

5VDC:4A,24VDC:bypass
