HMI 10.1" 800*480 128MB RTC USB Port Ethernet ARM9 CPU 400MHZ XINJE TGA62-ET with programming Cable

HMI 10.1" 800*480 128MB RTC USB Port  Ethernet ARM9 CPU 400MHZ XINJE TGA62-ET with programming Cable

System: XINJE Unique System

Product description

16 million true color—with perfect image quality, which is on a par with liquid crystal display.

Downloading, starting and operating triune ultraspeed response.

Supporting C language scripting functionality, operating, free pact protocol agreement and painting. Advancing programming degrees.

Supporting BMP/JPG picture format
Rich solid 3D gallery making vivid scene
Flexible choices of parts, users-defined custom motion track design
Function of data acquisition and preservation, supporting multiple data management , such as time trend charts, XY trend chart etc
Storage and two-way delivery of formula data, which can raise work efficiency.


Product Features
1. ARM9 CPU, 400MHZdominant frequency, 128M of memory, 128M storage capacity

2. 10.1 inches, 16 million colors, TFT LCD, LED backlight,800*480 resolution
3. Two COM ports, independent communications, supporting 232, 485, 422 etc communicating ways, multi screens are available in using one HMI
4. Standard clock
5. USB-B port, realizing date transfer
6. With USB-A interfaces front and behind, as data back-up
7.Supporting multiple Ethernet communicating( supporting MODBUS TCP devices and Siemens S7-1200PLC )

Demonstration of the type
TGA62-MT: USB-B port
TGA62-ET: USB-B port, USB-A port, Ethernet port


Product Specifications

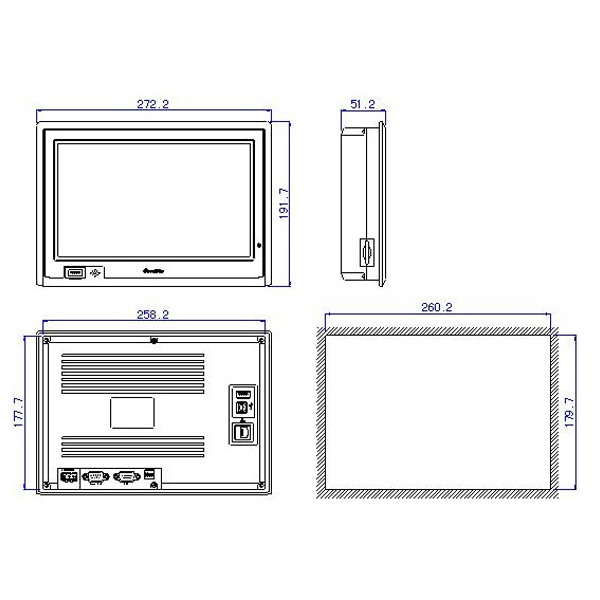

Size(mm)
Recommend 0.55mm more the size of Panel Cut Out.

Software:

Touch screen dedicated picture editing software: Twin V2.D.2k (suitable for TH/TG/TE touch screen and XMH all-in-one machine)

Chinese version: http://www.xinje.com/Ch/DownView.asp?ID=207&SortID=17

English version: http://www.xinje.co.kr/bbs/bbs/board.php?bo_table=bbs03_01&wr_id=19&page=2



Touch screen USB drivers and guide (suitable for TH/TG/TE touch screen and XMH all-in-one)(10-07-2013)

Chinese version: http://www.xinje.com/Ch/DownView.asp?ID=204&SortID=17



USB touch screen and USB drivers and guide win7-64 bits:

English version: http://www.xinje.co.kr/bbs/bbs/board.php?bo_table=bbs03_01&wr_id=22&page=1



USB touch screen drivers and guide win7-32 XP

English version: http://www.xinje.co.kr/bbs/bbs/board.php?bo_table=bbs03_01&wr_id=21&page=1

CE Certification SGS Certification
