High Performance 1~4 Axis Controller 16DI 8DO 3.5inch TFT Interface RS485 Servo Stepper CNC for Lathe Milling Machine
Description About TC55V Series Controller
TC55V is based on the new TC55 upgrade hardware and software introduced new products, 3.5-inch color display, support 485 communication, Chinese and English switch, PC download, the system has high reliability, high precision, low noise, simple operation and so on.
Technical Specifications
|
Min data unit |
0.001 mm |
|
Max data size |
± 99999.999mm |
|
Max Speed |
9000mm/min (pulse is 0.001mm) |
|
Max pulse output frequency |
150KHz |
|
Linkage axes |
X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation |
|
Electric Gear: numerator |
1-99999 denominator: 1-99999 |
|
System main functions |
automatic, manual, program editing, system parameters, self-check, settings, etc |
|
Other |

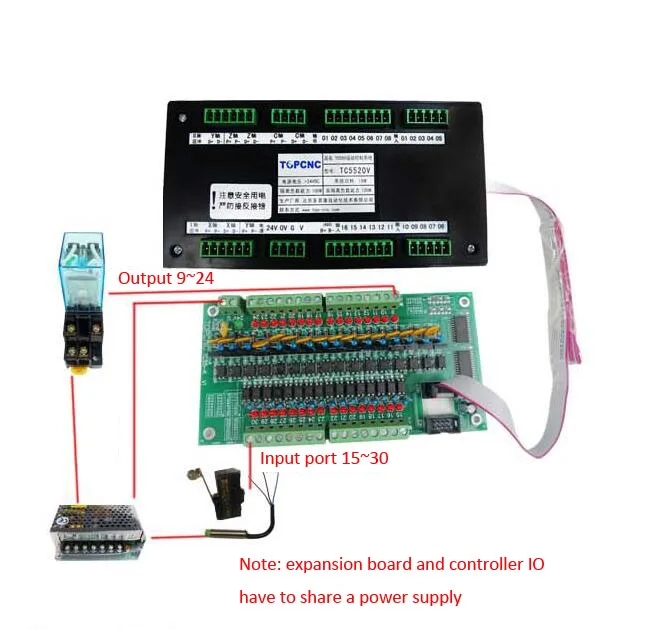

Maximum 480 commands each program Stop and Start of Spindle motor PLC Extension I/O Extension Isolated I/O port Self defining of I/O port English panel display Free boot picture setting |
|
Warranty |
One year |
Features About TC5510V Controller
|
Axis |
1~4 Axis |
|

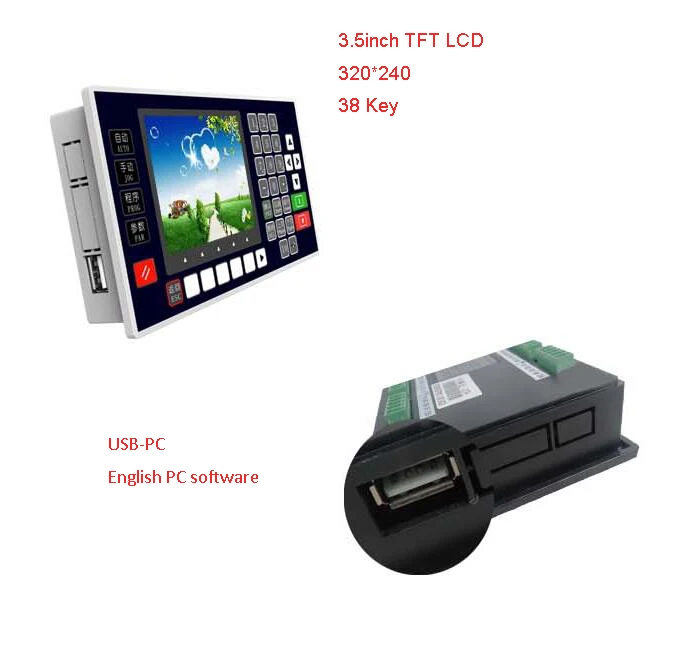

Display |
3.5 inch color screen |
|

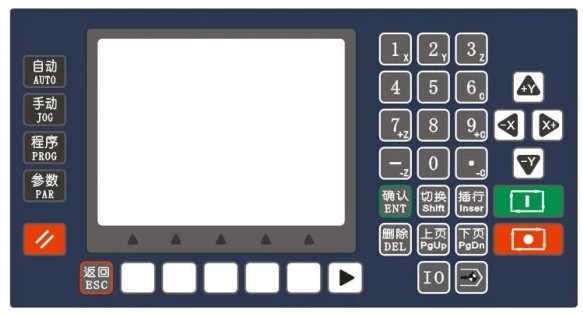

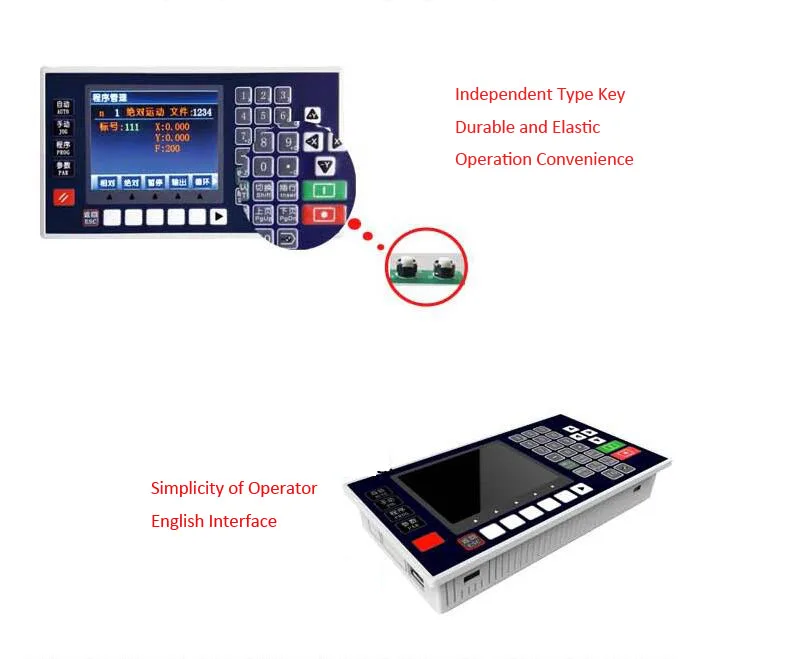

Contact key array |
38 Key |
|
Chip |
specifically for motion controller |
|

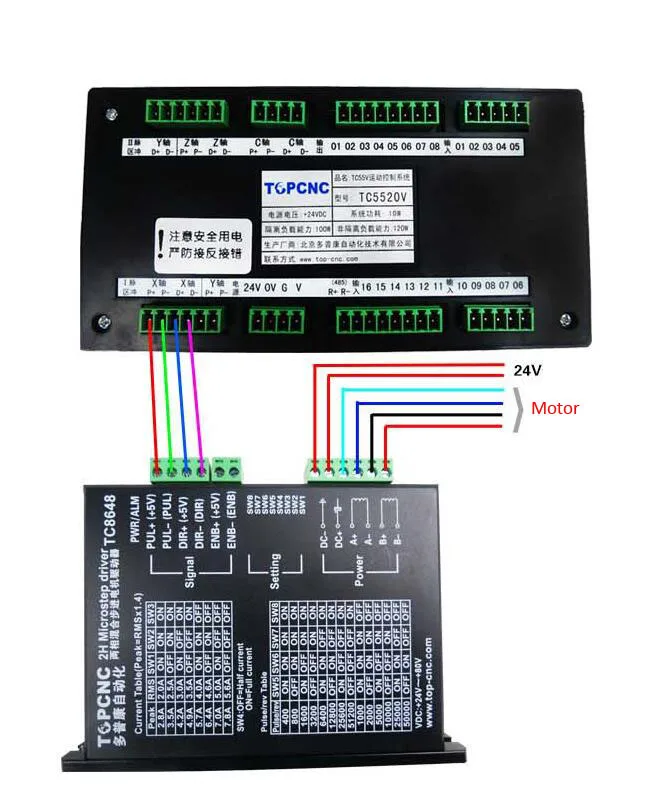

differential signal output |
±Pulse/±Dir |
|

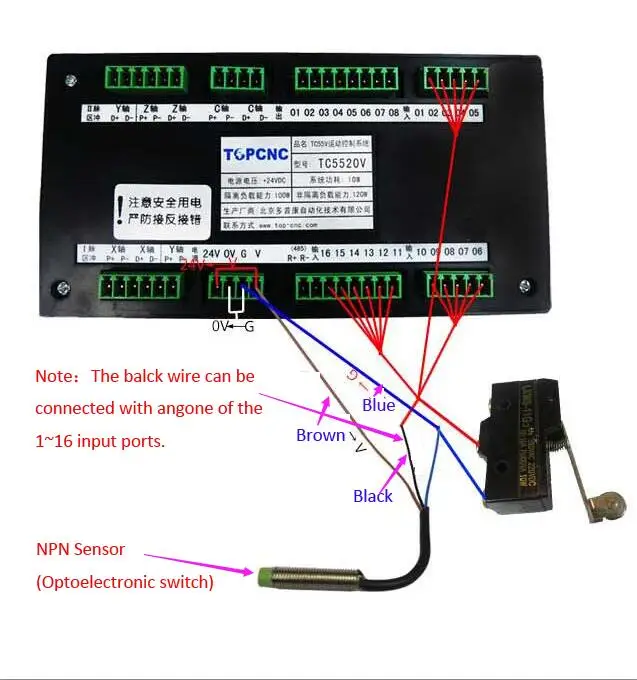

Input |
16 channel 24V(photoelectric isolating) |
|

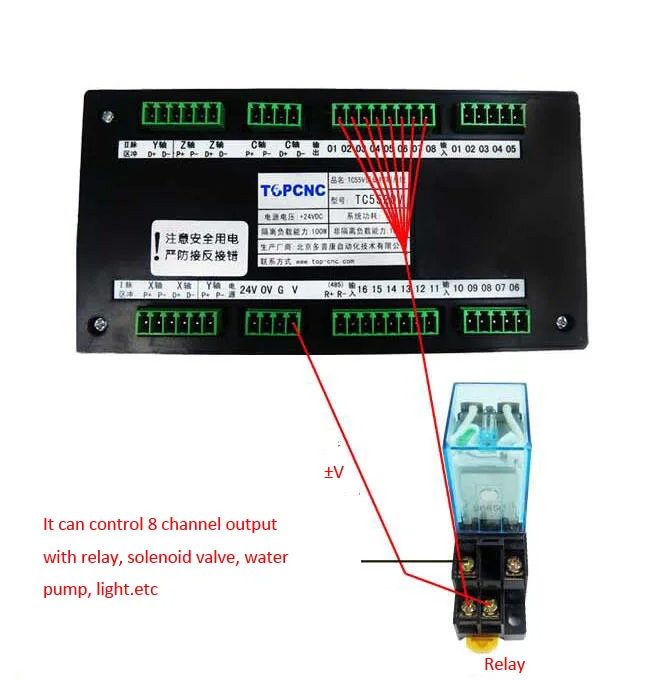

Output |
8 channel 24V(Single channel 500mA) |
|
Axis |
1 Axis |
|
Other |
RS 485 communication(mixed programming with PLC) Chinese/English Switch USB connection highly reliable, highly accurate, low noise and easy to use |
4. Application fields
Slid platform, milling machine, drilling machine, textile, weld, machine hand, robot, etc
5. Technical Support
(1) Products from the factory to provide one year free after sales warranty, life time free technical support.
(2) free English manual and Software can be available.
