HG-SR52J+MR-J4-60B 2.9A 500W 2.4NM 2000rpm Oil seal AC Servo Motor Drive Kit with 3M Cable New

Servo motor Model HG-SR_

52(B)

102(B)

152(B)

202(B)

352(B)

502(B)

702(B)

Power facility capacity [kVA]

1.0

1.7

2.5

3.5

5.5

7.5

10

Continuous running duty

Rated output [KW]

0.5

1.0

1.5

2.0

3.5

5.0

7.0

Rated torque [Nm]

2.4

4.8

7.2

9.5

16.7

23.9

33.4

Maximum torque [Nm]

7.2

14.3

21.5

28.6

50.1

71.6

1000

Rated rotation speed

2000[rpm]

Maximum rotation speed

3000[rpm]

Permissible instantaneous rotation speed

3450[rpm]

Rated current [A]

2.9

5.6

9.4

9.6

14

22

26

Maximum current [A]

9.0

17.4

29.1

30.7

44.8

70.4

83.2

Weight [kg]

4.8

6.2

7.3

11

16

20

27

Weight [kg]( With Brake)

6.7

8.2

9.3

17

22

26

33

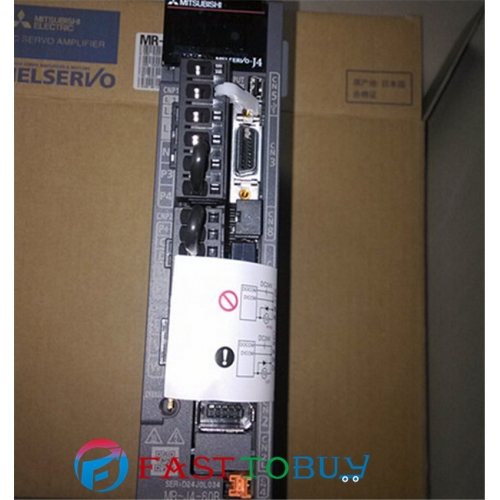

mode name

MR-J4-60B

Stocked Item

S

Output

Rated Voltage

3-phase 170 VAC

Rated Current (A)

3.2

Main Circuit

Power

Supply

Voltage/Frequency

3-phase or 1-phase 200 VAC to 240 VAC, 50/60 Hz

Rated Current (A)

3.2

Permissible Voltage Fluctuation

3-phase or 1-phase 170 VAC to 264 VAC

Permissible Frequency Fluctuation

±5% maximum

Control

Circuit

Power

Supply

Voltage/Frequency

1-phase 200 VAC to 240 VAC, 50/60 Hz

Rated Current (A)

0.2

Permissible Voltage Fluctuation

1-phase 170 VAC to 264 VAC

Permissible Frequency Fluctuation

±5% maximum

Power Consumption (W)

30

Interface Power Supply

24 VDC ±10% (required current capacity: 0.3 A (including CN8 connector signal))

Load-Side Encoder Interface

Mitsubishi high-speed serial communication

Tolerable Regenerative Power of the Built-in Regenerative Resistor(W)

10

Control Method

Sine-wave PWM control/current control method

Dynamic Brake

Built-in

Protective Functions

Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, under-voltage protection, instantaneous power failure protection, over-speed protection, error excessive protection, magnetic pole detection protection, linear servo control fault protection

Fully Closed Loop Control

Available in the future

Safety Function

STO (IEC/EN 61800-5-2)

Communication Function

USB: Connect a personal computer (MR Configurator2 compatible)

Structure (IP Rating)

Natural cooling, open (IP20)

Close Mounting

Possible

Weight (kg)

1.0
