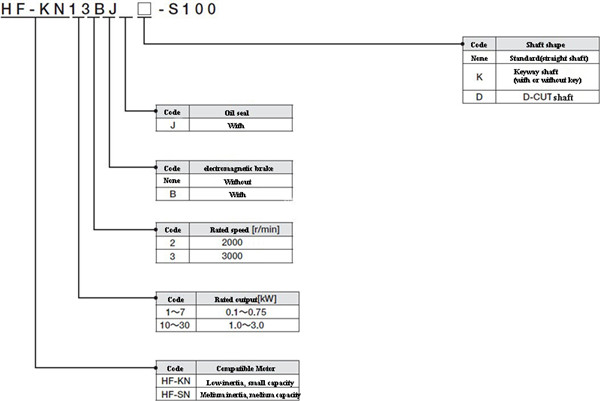

Servo Motor: HF-SN Series
.jpg "HF-KN series(5).jpg")
Features:
*Absolute high-resolution encoder as standard equipment
*Design achievement
*Medium inertia/capacity
Specifications:
|
Servo motor Item |
HF-SN series (3-phase 200 V AC compatible, medium inertia/capacity) |
||||
|
52(B)J-S100 |
102(B)J-S100 |
152(B)J-S100 |
202(B)J-S100 |
302(B)J-S100 |
|
|
Power facility capacity [kVA] |
1 |
1.7 |
2.5 |
3.5 |
4.8 |
|
Rated output |
0.5[KW] |
1.0[KW] |
1.5[KW] |
2.0[KW] |
3.0[KW] |
|
Rated torque |
2.39[Nm] |
4.77[Nm] |
7.16[Nm] |
9.55[Nm] |
14.3[Nm] |
|
Maximum torque |
7.16[Nm] |
14.3[Nm] |
21.5[Nm] |
28.6[Nm] |
42.9[Nm] |
|
Rated rotation speed |
2000[rpm] |
||||
|
Maximum rotation speed |
3000[rpm] |
2500[rpm] |
|||
|
Permissible instantaneous rotation speed |
3450 |
2875 |
|||
|
Rated current |
2.9[A] |
6.0[A] |
8.6[A] |
9.0[A] |
11[A] |
|
Maximum current |
8.7 [A] |
18 [A] |
26 [A] |
27 [A] |
33 [A] |
|
Weight |
4.8[kg] |
6.5[kg] |
8.3[kg] |
12[kg] |
15[kg] |
|
Weight (With brake) |
6.7[kg] |
8.5[kg] |
10.3[kg] |
18[kg] |
21[kg] |
Applications:
Conveyor machinery, Specialised machinery, Robots, Loaders and unloaders, Winders and tension devices, Turrets, X-Y tables, Test devices
