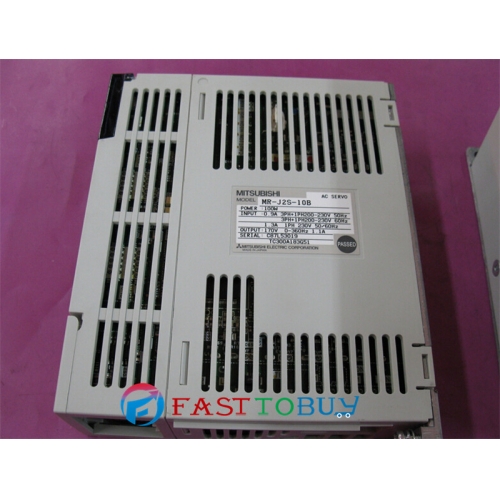

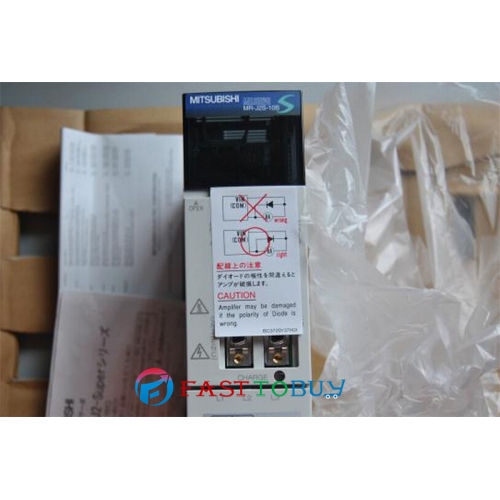

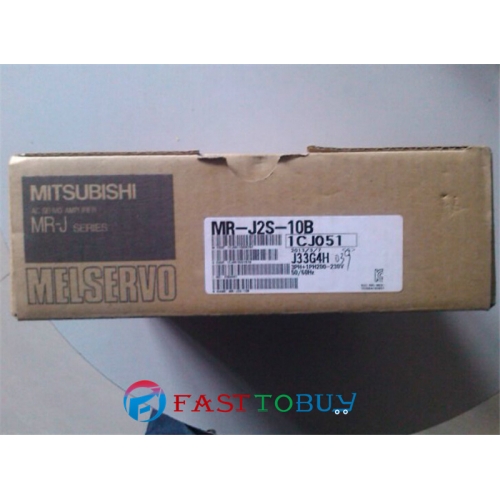

HC-KFS13B+MR-J2S-10B 200V 0.71A 100W 0.32NM 3000rpm Brake AC servo motor Drive Kit with 3M Cable New

Servo motor model

HC-KFS053 (B)

HC-KFS13 (B)

HC-KFS23 (B)

HC-KFS43 (B)

HC-KFS73 (B)

Servo amplifier model

MR-J2S-10A/B

MR-J2S-10A/B

MR-J2S-20A/B

MR-J2S-40A/B

MR-J2S-40A/B

Power facility capacity [kVA]

0.3

0.3

0.5

0.9

1.3

Continuous

characteristics

Rated output

50[W]

100[W]

200[W]

400[W]

750[W]

Rated torque

0.16[Nm]

0.32[Nm]

0.64[Nm]

1.3[Nm]

2.4[Nm]

Maximum torque

0.48[Nm]

0.95[Nm]

1.9[Nm]

3.8[Nm]

7.2[Nm]

Rated rotation speed [rpm]

3000

3000

3000

3000

3000

Maximum rotation speed

4500

4500

4500

4500

4500

Permissible instantaneous rotation speed

5175

[rpm]

5175

[rpm]

5175

[rpm]

5175

[rpm]

5175

[rpm]

Rated current

0.83[A]

0.71[A]

1.1[A]

2.3[A]

5.8[A]

Maximum current

2.5[A]

2.2[A]

3.4[A]

6.9[A]

18.6[A]

Weight [kg]

0.4

0.53

0.99

1.45

3

Common specifications MR-J2S-A/B

10A

10B

20A

20B

40A

40B

60A

60B

70A

70B

100A

100B

200A

200B

350A

350B

500A

500B

700A

700B

Power

supply

Voltage /

frequency

3-phase 200~230 V AC, 50/60 Hz;

1-phase 230 V AC, 50/60 Hz

3-phase 200 ~ 230 V AC, 50/60 Hz

Permissible voltage

fluctuation

3-phase 200~230 VAC: 170~253 VAC,

1-phase 230 V AC: 207 ~ 253 V AC

3-phase 170 ~ 253 V AC

Permissible frequency fluctuation

±5%

Control system

Sinusoidal PWM control / current control system

Dynamic brake

Built-in

Speed frequency response

550 Hz or more

Protective functions

Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servomotor overheat protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection.

Structure

Self-cooling, open (IP00)

Fan-cooling, open (IP00)

Environment

Ambient temperature

Operation: 0 ~ 55 centigrade degree (no freezing), storage: -20~65 centigrade degree (no freezing)

Ambient humidity

Operation: 90%RHmax. (no condensation), storage: 90%RHmax. (no condensation)

Atmosphere

Inside control panel; no corrossive gas, no flammable gas, no oil mist, no dust

Elevation

1000mor less above sea level

Oscillation

5.9m/s² (0.6 G)max.

Weight [kg]

0.7

0.7

1.1

1.1

1.7

1.7

2.0

2.0

4.9

7.2
