GYS401DC1-SA Servo Motor 3-phase 200V 0.4KW 400W 3000r/min New

item ID#: GYS401DC1-SA
Item condition:
No reviews Write a review
Weight: 1.8 Kg(s)
10 available/ 0 sold
Start from: 1 Unit(s)
Wholesale Price: 693.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

GYS401DC1-SA Servo Motor 3-phase 200V 0.4KW 400W 3000r/min New


If you need more than 10pcs and want to get better wholesale price, please feel free to contact Mr.Brook by following:
email:service@fasttobuy.com
Tel:0086-755-82546545
We will quote you our best price to you in 24hours.

Fasttobuy: GYS401DC1-SA Servo Motor 3-phase 200V 0.4KW 400W 3000r/min New

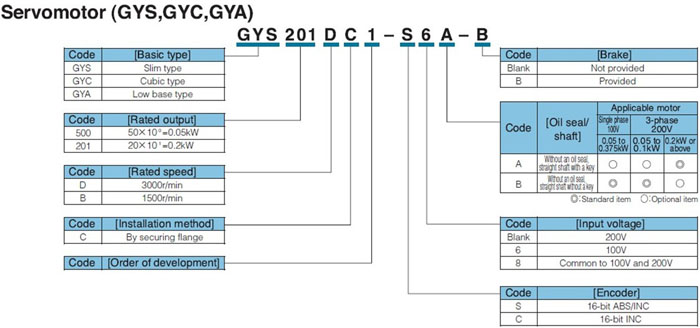

 FALDIC-a GYS(7).jpg

Features

FALDIC-a series,which cover the capacity range of 0.05kw to 15kw are equipped with a high-precision functions that would contribute to the betterment of performance of a variety of machines. They facilitate building optimal systems that meet you needs. The FALDIC-a will establish a new standard for servo systems and add much more value to you shop floor.

*Suppressing mechanical vibration to the maximum extent.

*Equipped with a notch filter and servo analysis function

*Design for high performance and high precision.

*Stable rotation at a low speed.

*Without spaces between servo amplifiers,you can save the space for the control panel.

*Supporting oversea standards

*Positioning control function build-in types

*Realizing optimal system configuration flexibly and easy

Specification

Standard specification

Motor type

GYS******-***

500DC1-*8B(*1)

101DC1-*6B

201DC1-*6B

371DC1-*6B

500DC1-*8B(*1)

101DC1-*B

201DC1-*A

401DC1-*A

751DC1-*A

Series

Single-phase 100V series

3-phase 200V series

Rated output [kW]

0.05

0.1

0.2

0.375

0.05

0.1

0.2

0.4

0.75

Rated torque [N.m]

0.159

0.318

0.637

1.19

0.159

0.318

0.637

1.27

2.39

Max. torque [N.m]

0.478

0.955

1.19

3.58

0.478

0.955

1.91

3.28

7.17

Rated speed [r/min]

3000

Max. speed [r/min]

5000

Moment of inertia [kg.m2]

0.0192*10-4

0.0371*10-4

0.135*10-4

0.246*10-4

0.0192*10-4

0.0371*10-4

0.135*10-4

0.246*10-4

0.853*10-4

Rated current [A]

0.85

1.5

2.7

4.8

0.85

0.85

1.5

2.7

4.8

Max. current [A]

2.55

4.5

8.1

14.4

2.55

2.55

4.5

8.1

14.4

Encoder

16-bit serial encoder(both ABS and INC only)

Vibration level

V5 or below

Mass [kg]

()indicates brake-in corporated type

0.45
(0.62)

0.55
(0.72)

1.2
(1.7)

1.8
(2.3)

0.45
(0.62)

0.55
(0.72)

1.2
(1.7)

1.8
(2.3)

3.4
(4.2)

Motor with a brake:

Motor type

GYS******-***

500DC1-*8B-B

101DC1-*6B-B

201DC1-*6B-B

371DC1-*6B-B

500DC1-*8B-B

101DC1-*B-B

201DC1-*A-B

401DC1-*A-B

751DC1-*A-B

series

Single-phase 100V series

3-phase 200V series

Static friction torque [N.m]

0.3

1.27

0.3

1.27

2.45

Rated voltage [V]

24V DC+/-10%

Attraction time [ms]

35

40

35

40

60

Release time [ms]

10

20

10

20

25

Power consuption [W]

6.1(at 20°C)

7.3(at 20°C)

6.1(at 20°C)

7.3(at 20°C)

8.5(at 20°C)



Combination of motor and amplifier

Model

type

Host interface

Power supply

capacity

Applicabale motor series

FALDIC-a

V type

Positon, speed

And torque control

DI/DO

Single – phase 100 to 115V

0.05 to 0.375 kW

GYS

3-phase 200 to 230V

0.05 to 5.0kW

GYS

SYC

SYA

SX bus

3-phase 200 to 230V

0.05 to 0.5.0kW

L type build-in linear positioning function

DI/DO SX bus
T-link RS-485

3-phase 200 to 230V

0.05 to 0.5.0kW

GYS
GYC

R type build-in rotation indexing function

DI/DO SX bus
T-link

3-phase 200 to 230V

0.05 to 0.5.0kW

GYS
GYC

GYS401DC1-SA Servo Motor 3-phase 200V 0.4KW 400W 3000r/min New
