GYS101DC2-T2A Servo Motor 200V 100W 0.1KW 3000r/min New

item ID#: GYS101DC2-T2A
Item condition:
No reviews Write a review
Weight: 2 Kg(s)
9 available/ 1 sold
Start from: 1 Unit(s)
Wholesale Price: 583.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

GYS101DC2-T2A Servo Motor 200V 100W 0.1KW 3000r/min New


If you need more than 10pcs and want to get better wholesale price, please feel free to contact Mr.Brook by following:
email:service@fasttobuy.com
Tel:0086-755-82546545
We will quote you our best price to you in 24hours.

Fasttobuy:GYS101DC2-T2A Servo Motor 200V 100W 0.1KW 3000r/min New

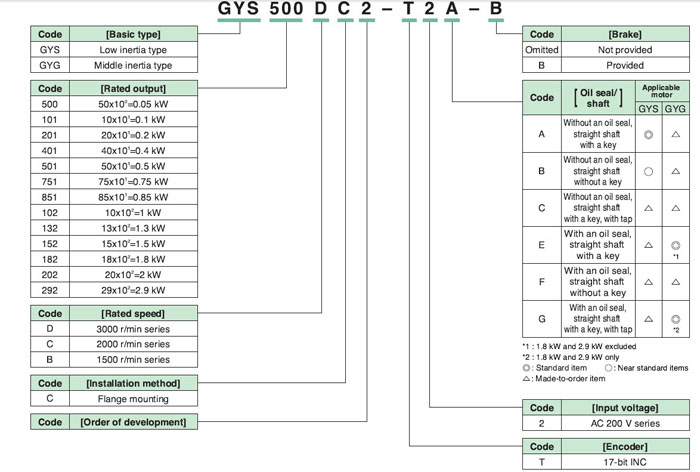

 FALDIC-W GYS.jpg

Features

The FALDIC-W-a brand new basic model of the FALDIC series now uses a RoHS compatible environmentally friendly servo system. Additionally, the range of application has increased with the new addition of 1.8 kw and 2.9kw rated output. The FALDIC series keeps evolving to meet all market requiments.

*Vibration Suppressing Control Function equipped as standard

Suppressing mechanical vibration to the limit.

*Two RS-485 ports as standard

Realizes the integral control of parameters

*Easy tuning

Simple optimum tuning between the machine and servomotor

*IP67(servomotor)

Water and dust proof sevomotor

*RoHS compatible

*Environmentlly friendly servo system

*High-resolution encoder

*Servo analysis function

*Monitor output function

*Side-by-side installation

*Globally compatible

*Test operation function

*Control power back-up function

Specification

Motor type

GYS500DC2

-T2*

GYS101DC2

-T2*

GYS201DC2

-T2*

GYS401DC2

-T2*

GYS751DC2

-T2*

Rated output [kW]

0.05

0.1

0.2

0.4

0.75

Rated torque [N.m]

0.159

0.318

0.637

1.27

2.39

Max. torque [N.m]

0.478

0.955

1.91

3.82

7.17

Rated speed [r/min]

3000

Max. speed [r/min]

5000

Moment of inertia [kg.m2]

0.0192*10-4

0.0371*10-4

0.135*10-4

0.246*10-4

0.853*10-4

Rated current [A]

0.85

0.85

1.5

2.7

4.8

Max. current [A]

2.55

2.55

4.5

8.1

14.4

Encoder

17-bit encoder

Vibration level

V5 or below

Mass [kg]

0.45

0.55

1.2

1.8

3.4

Motor with a brake:

Motor type

GYS500DC2

-T2*-B

GYS101DC2

-T2*-B

GYS201DC2

-T2*-B

GYS401DC2

-T2*-B

GYS751DC2

-T2*-B

Rated output [kW]

0.05

0.1

0.2

0.4

0.75

Rated torque [N.m]

0.159

0.318

0.637

1.27

2.39

Static friction torque [N.m]

0.34

1.27

2.45

Moment of inertia [kg.m2]

0.0223*10-4

0.0402*10-4

0.335*10-4

0.446*10-4

1.203*10-4

Rated DC voltage [V]

24V DC

Attraction time [ms]

35

40

60

Release time [ms]

10

20

25

Brake input [W]

6.1

7.3

8.5

Mass [kg]

0.6

0.7

1.7

2.3

4.2

Combination of motor and amplifier

Motor specification

Motor type

Applicable amplifier type

Rated speed

Brake

Rated output

3000r/min

Without a brake

0.05kW

GYS500DC2-T2A

RYC500D3-VVT2

0.1 kW

GYS101DC2-T2A

RYC101D3-VVT2

0.2 kW

GYS201DC2-T2A

RYC201D3-VVT2

0.4 kW

GYS401DC2-T2A

RYC401D3-VVT2

0.75 kW

GYS751DC2-T2A

RYC751D3-VVT2

With a brake

0.05 kW

GYS500DC2-T2A-B

RYC500D3-VVT2

0.1 kW

GYS101DC2-T2A-B

RYC101D3-VVT2

0.2 kW

GYS201DC2-T2A-B

RYC201D3-VVT2

0.4 kW

GYS401DC2-T2A-B

RYC401D3-VVT2

0.75 kW

GYS751DC2-T2A-B

RYC751D3-VVT2

2000r/min

Without a brake

0.5 kW

GYG501CC2-T2E

RYC501C3-VVT2

0.75 kW

GYG751CC2-T2E

RYC751C3-VVT2

1 kW

GYG102CC2-T2E

RYC102C3-VVT2

1.5 kW

GYG152CC2-T2E

RYC152C3-VVT2

2 kW

GYG202CC2-T2E

RYC202C3-VVT2

With a brake

0.5 kW

GYG501CC2-T2E-B

RYC501C3-VVT2

0.75 kW

GYG751CC2-T2E-B

RYC751C3-VVT2

1 kW

GYG102CC2-T2E-B

RYC102C3-VVT2

1.5 kW

GYG152CC2-T2E-B

RYC152C3-VVT2

2 kW

GYG202CC2-T2E-B

RYC202C3-VVT2

1500r/min

Without a brake

0.5 kW

GYG501BC2-T2E

RYC501B3-VVT2

0.85 kW

GYG851BC2-T2E

RYC851B3-VVT2

1.3 kW

GYG132BC2-T2E

RYC132B3-VVT2

1.8 kW

GYG182BC2-T2E

RYC182B3-VVT2

2.9 kW

GYG292BC2-T2E

RYC292B3-VVT2

With a brake

0.5 kW

GYG501BC2-T2E-B

RYC501B3-VVT2

0.85 kW

GYG851BC2-T2E-B

RYC851B3-VVT2

1.3 kW

GYG132BC2-T2E-B

RYC132B3-VVT2

1.8 kW

GYG182BC2-T2E-B

RYC182B3-VVT2

2.9 kW

GYG292BC2-T2E-B

RYC292B3-VVT2
