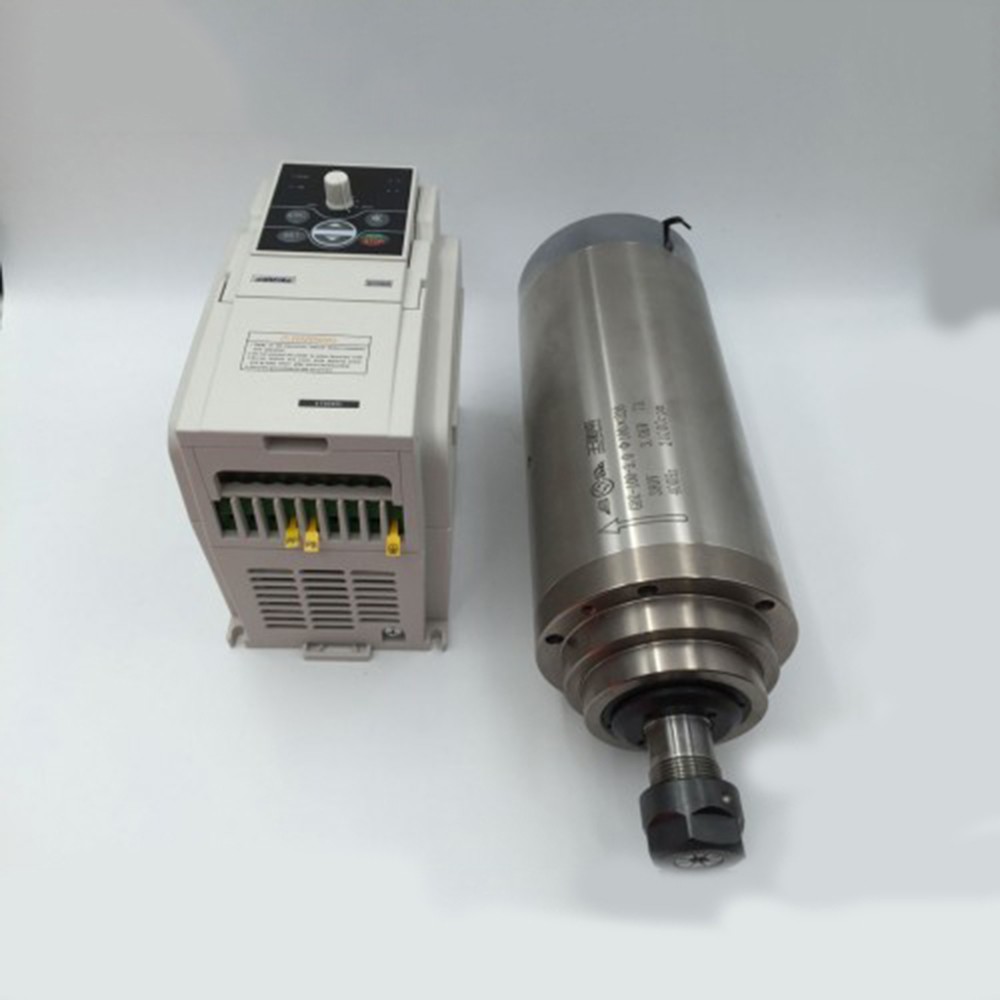

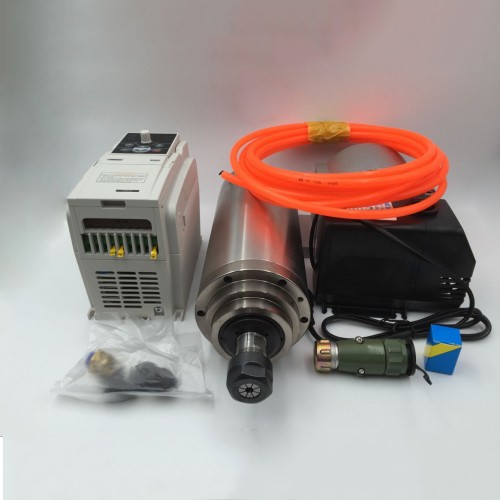

Package Content:
1*3KW Spindle Motor: GDZ100-3-380V
1*4KW sunfar VFD Variable Frequency Drive: E550-4t0040L
1*Cast Aluminium Bracket
1* Cooling Pump& Pipe

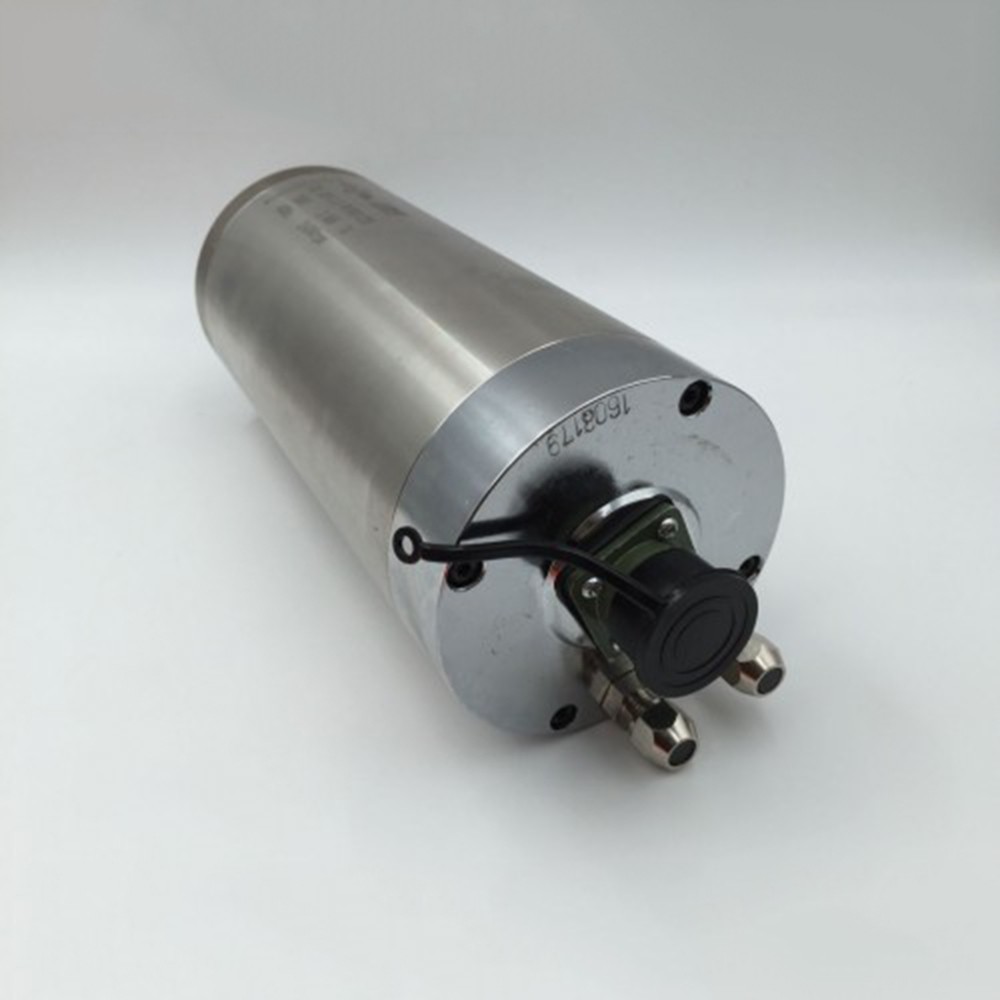

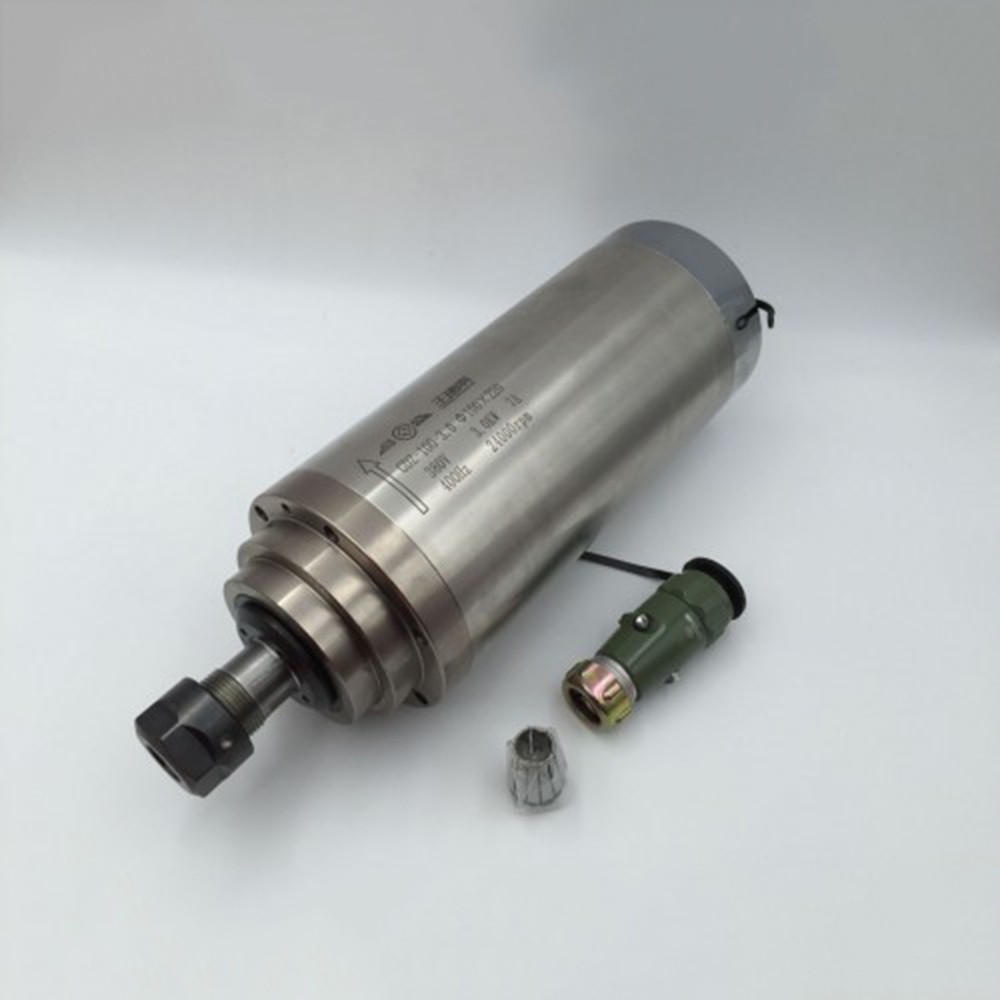

Spindle Motor Specification:
Providing the default Nut ER20 and Collet 6mm, if not please do contact us for a better solution.
Specifications
|
Model No. |
GDZ100-3 |
|
Product type |
High-Speed Constant Torque Motorized Spindle Motor for CNC engraving machines |
|
Pole number |
2 |
|
Rated power(KW) |
3KW |
|
Rated voltage(V) |
380V |
|
Rated speed(rpm) |
24000rpm |
|
Current(A) |
7A |
|
Frequency(Hz) |
400HZ |
|
Cooling |
water cooling |
|
Bearing type |
2×7005C P4 DT&1×7003C P4 |
|
Lubricate |
grease |
|
Collet(mm) |
ER20, 6mm default |
|
Repair time |
bearing(half year),spindle(one year) |
|
Diameter&Length |
100*260mm |
|
Brand |
Changsheng(Made in China) |
|
Certification |
ISO9001-2000 |

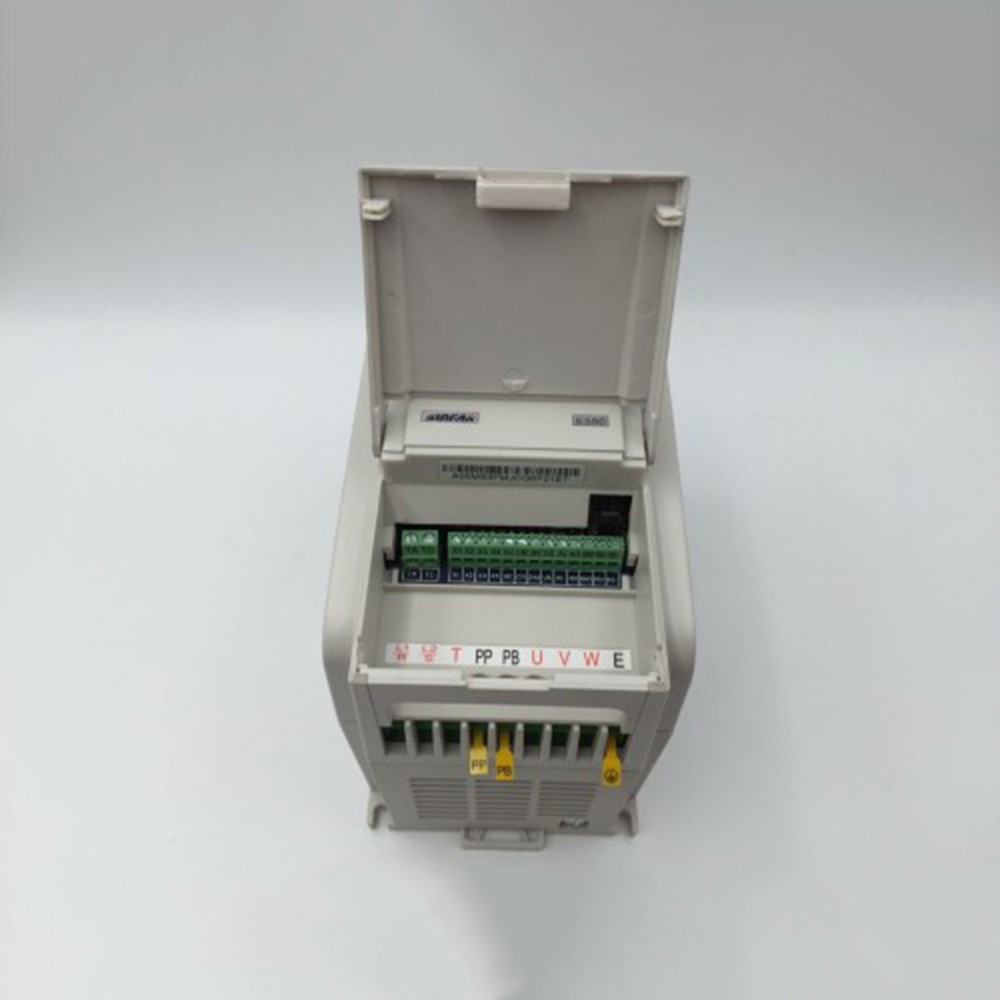

VFD Specification:
|
Model |
E550-4t0040L |
|
Power (KW) |
4KW |
|
Input Voltage(V) |
3-phase AC 380V ±20% 50/60Hz |
|
Output Voltage(V) |
0~380V |
|
Output Current(A) |
9.5A |
|
Output Frequency (Hz) |
0~1000Hz |
|
Origin& Warranty&brand |
China & One year&sunfar |
Bracket Specifications
|
Type |
Φ100mm Bracket |
|
Material & Origin |
Cast Aluminium& China |
Cooling Pump&5M Pipe Specifications
|
Model |
Cooling Pump |
|
Power |
75W |
|
Voltage(V) |
220~240V AC 50Hz |
|
Hmax |
3.2M |
|
Qmax |
3000L/H |
|
Pipe |
5m |
