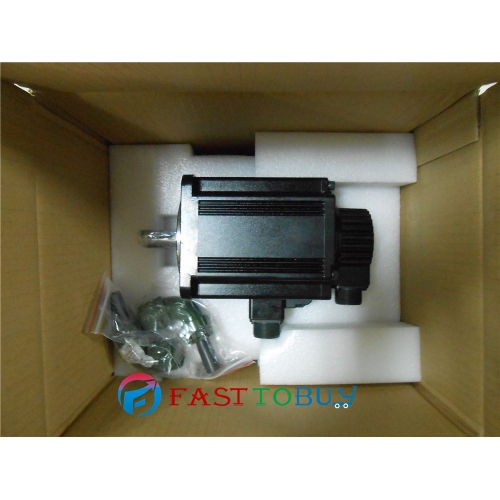

ECMA-EA1310RS Detla AC Servo Motor 220V 1KW 4.77NM 2000rpm 130mm with Keyway oil seal New CNC

Model

ECMA-EA1310RS

Product Name

Electronic Commutation Motor

Corresponding Servo Motor

ASD-A2-1021-L

ASD-A2-1021-M

ASD-A2-1021-U

ASD-B2-1021-B

ASD-A2-1021-E

Servo Type

AC Servo

Rated Voltage

220V

Encoder Type

Absolute type

Motor Frame Size

130 mm

Type of Shaft Diameter and Oil Seal

Keyway (with fixed screw holes), w/o brake, with oil seal

Standard Shaft Diameter

S=22mm

Rated Power Output

1.0 KW

Rated torque (N-m)

4.77

Max. torque (N-m)

14.3

Rated Speed (rpm)

2000

Max. speed (rpm)

3000

Rated current (A)

5.6

Max. instantaneous current (A)

16.8

Power rating (kW/s)

27.1

Rotor inertia (× 10-4kg.m²)

8.41

Mechanical constant (ms)

1.51

Torque constant-KT (N-m/A)

0.85

Voltage constant-KE (mV/(r/min))

31.9

Armature resistance (Ohm)

0.47

Armature inductance (mH)

5.99

Electric constant (ms)

12.88

Insulation class

Class A (UL), Class B (CE)

Insulation resistance

> 100 M ohm , DC 500 V

Insulation strength

1.8k Vac, 1 sec

Weight (kg) (without brake)

7.0Kg

Radial max. loading (N)

490

Axial max. loading (N)

98

Power rating (kW/s) (with brake)

24.9

Rotor inertia (× 10-4kg.m²) (with brake)

9.14

Mechanical constant (ms) (with brake)

1.64

Vibration grade (μm)

15

Operating temperature

0~40 degree centigrade

Storage temperature

-10~80 degree centigrade

Operating humidity

20~90% RH Non-condensate

Storage humidity

20~90% RH Non-condensate

Vibration capacity

2.5G

IP Rating

IP65

Approvals

CE UL
