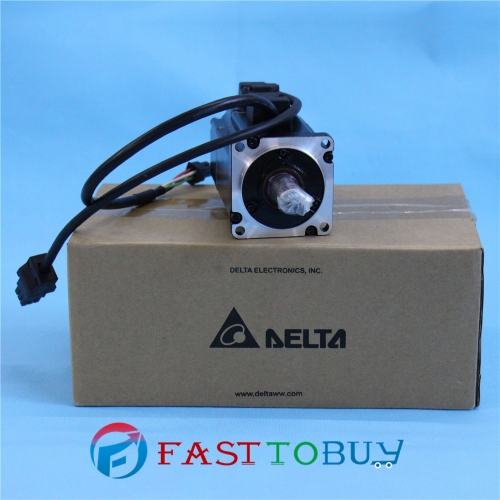

ECMA-CA0604SS Delta AC Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal brake New

Model

ECMA-CA0604SS

Product Name

Electronic Commutation Motor

Corresponding Servo Motor

ASD-A2-0421-L

ASD-A2-0421-M

ASD-A2-0421-U

ASD-A2-0421-E

Servo Type

AC Servo

Rated Voltage

220V

Encoder Type

Absolute type

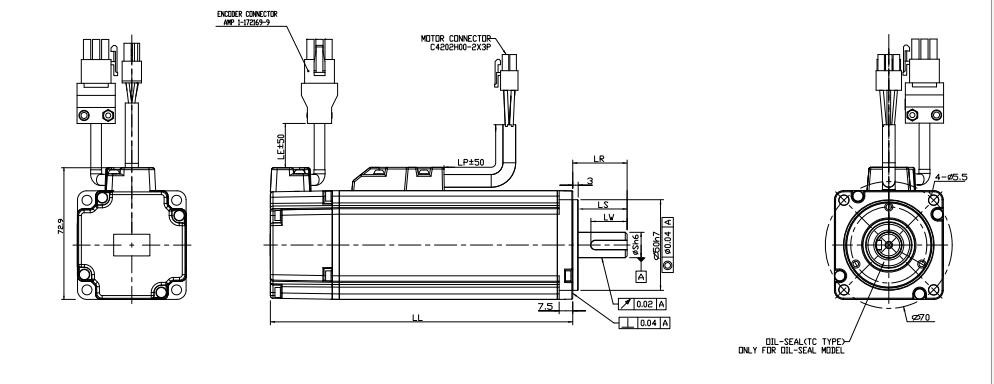

Motor Frame Size

60 mm

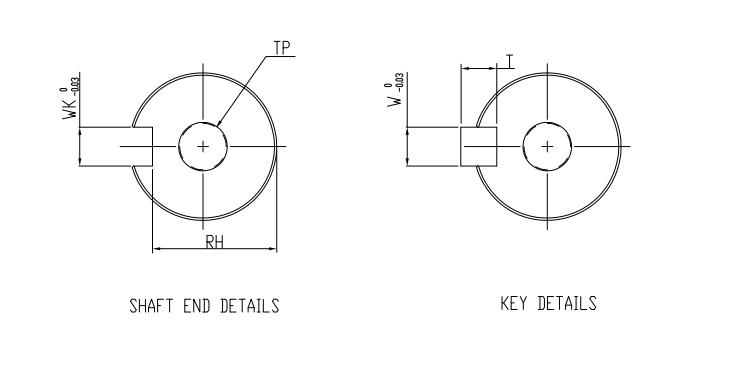

Type of Shaft Diameter and Oil Seal

Keyway (with fixed screw holes), with brake, with oil seal

Standard Shaft Diameter

S=14mm

Rated Power Output

400W

Rated torque (N-m)

0.64

Max. torque (N-m)

1.92

Rated Speed

3000 rpm

Max. speed

5000 rpm

Rated current (A)

1.55 A

Max. instantaneous current (A)

4.65 A

Power rating (kW/s)

22.4

Rotor inertia (× 10-4kg.m²)

0.19

Mechanical constant (ms)

0.75

Torque constant-KT (N-m/A)

0.41

Voltage constant-KE (mV/(r/min))

16.0

Armature resistance (Ohm)

2.79

Armature inductance (mH)

12.07

Electric constant (ms)

4.30

Insulation class

Class A (UL), Class B (CE)

Insulation resistance

> 100 M ohm , DC 500 V

Insulation strength

1.8k Vac, 1 sec

Weight (kg) (with brake)

2.0Kg

Radial max. loading (N)

196

Axial max. loading (N)

68

Power rating (kW/s) (with brake)

21.3

Rotor inertia (× 10-4kg.m²) (with brake)

0.19

Mechanical constant (ms) (with brake)

0.85

Brake holding torque Nt-m(min)]

1.3

Brake power consumption (at 20 °C) [W]

6.5

Brake release time [ms (Max)]

10

Brake pull-in time [ms (Max)]

70

Vibration grade (μm)

15

Operating temperature

0~40 degree centigrade

Storage temperature

-10~80 degree centigrade

Operating humidity

20~90% RH Non-condensate

Storage humidity

20~90% RH Non-condensate

Vibration capacity

2.5G

IP Rating

IP65

Approvals

CE UL
