Sensorless Open and Closed Loop Vector AC Drive. The VFD-B series represents Delta's NEMA1 general purpose AC drive. The VFD-B series drive is rated to provide constant torque, featuring open and closed loop vector control. Delta offers an optional 2000 Hz high speed output that can be factory programmed at the customer's request.
Specifications:
Output frequency 0.1 ~ 400 Hz
Adjustable V/f curve and vector control
Master/Auxiliary and 1st / 2nd frequency source selectable
16-step speed control and 15-step preset speed process control
Built-in PID feedback control
Auto torque boost & slip compensation
Built-in MODBUS communication, baud rate up to 38400 bps
Support communication module (DN-02, LN-01, PD-01)

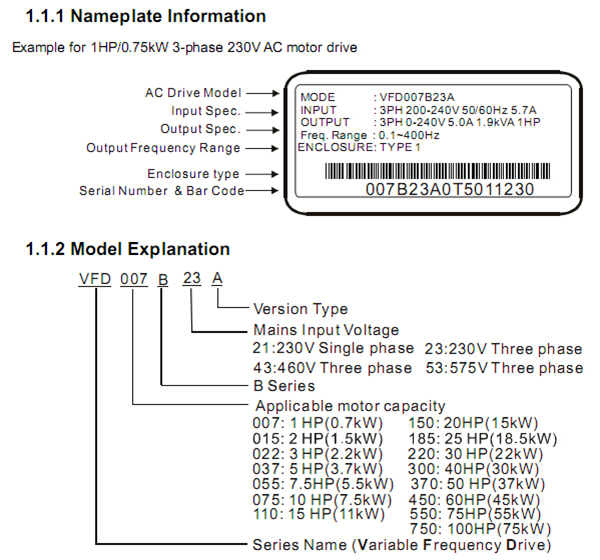

Standard Specifications
230V Series 1-phase/3-Phase
|
Model Number VFD-xxxB |
007 |
015 |
022 |
037 |
055 |
075 |
110 |
150 |
185 |
220 |
300 |
370 |
||
|
Max. Applicable Motor Output(kW) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
||
|
Max. Applicable Motor Output(HP) |
1.0 |
2.0 |
3.0 |
5.0 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
||
|
Output Rating |
Rated Output Capacity(kVA) |
1.9 |
2.5 |
4.2 |
6.5 |
9.5 |
12.5 |
18.3 |
24.7 |
28.6 |
34.3 |
45.7 |
55 |
|
|
Rated Output Current(A) |
5.0 |
7.0 |
11 |
17 |
25 |
33 |
49 |
65 |
75 |
90 |
120 |
145 |
||
|
Maximum Output Voltage(V) |
3-Phase Proportional to input voltage |
|||||||||||||
|
Output Frequency(Hz) |
0.1~400Hz |
|||||||||||||
|
Carrier Frequency(kHz) |
1-15 |
1-9 |
||||||||||||
|
Input Rating |
Rated Input Current(A) |
Single/3-Phase |
3-Phase |
|||||||||||
|
11.9/5.7 |
15.3/7.6 |
22/15.5 |
20.6 |
26 |
34 |
50 |
60 |
75 |
90 |
110 |
142 |
|||
|
Single(3-Phase Input Current) |
7.0 |
9.4 |
11.0 |
---- |
||||||||||
|
Rated Voltage, Frequency |
Single/3-Phase 200~240V, 50/60Hz |
3-phase 200~240V, 50/60Hz |
||||||||||||
|
Voltage Tolerance |
+-10% (180~264V) |
|||||||||||||
|
Frequency Tolerance |
+-5% (47~63Hz) |
|||||||||||||
|
Cooling Method |
Natural |
Fan cooled |
||||||||||||
|
Weight(kg) |
2.7 |
3.2 |
4.5 |
6.8 |
8 |
10 |
13 |
13 |
13 |
13 |
36 |
36 |
||
460V Series 3-Phase
|
Model Number VFD-xxxB |
007 |
015 |
022 |
037 |
055 |
075 |
110 |
150 |
185 |
220 |
300 |
370 |
450 |
550 |
750 |
|
|
Max. Applicable Motor Output(kW) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
|
|
Max. Applicable Motor Output(HP) |
1.0 |
2.0 |
3.0 |
5.0 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
75 |
100 |
|
|
Output Rating |
Rated Output Capacity(kVA) |
2.3 |
3.2 |
4.2 |
6.5 |
9.9 |
13.7 |
18.3 |
24.4 |
28.9 |
34.3 |
45.7 |
55.6 |
69.3 |
84 |
114 |
|
Rated Output Current(A) |
2.7 |
4.2 |
5.5 |
8.5 |
13 |
18 |
24 |
32 |
38 |
45 |
60 |
73 |
91 |
110 |
150 |
|
|
Maximum Output Voltage(V) |
3-Phase Proportional to input voltage |
|||||||||||||||
|
Output Frequency(Hz) |
0.1~400Hz |
|||||||||||||||
|
Carrier Frequency(kHz) |
1-15 |
1-9 |
1-6 |
|||||||||||||
|
Input Rating |
Rated Input Current(A) |
3-Phase |
||||||||||||||
|
3.2 |
4.3 |
5.9 |
11.2 |
14 |
19 |
25 |
32 |
39 |
49 |
60 |
63 |
90 |
130 |
160 |
||
|
Rated Voltage, Frequency |
3-phase 380~480V, 50/60Hz |
|||||||||||||||
|
Voltage Tolerance |
+-10% (342~528V) |
|||||||||||||||
|
Frequency Tolerance |
+-5% (47~63Hz) |
|||||||||||||||
|
Cooling Method |
Natural |
Fan cooled |
||||||||||||||
|
Weight(kg) |
2.7 |
3.2 |
4.5 |
2.7 |
3.2 |
4.5 |
6.8 |
8 |
10 |
13 |
13 |
13 |
13 |
36 |
36 |
|
575V Series 3-Phase
|
Model Number VFD-xxxB |
007 |
015 |
022 |
037 |
055 |
075 |
110 |
150 |
185 |
220 |
300 |
370 |
450 |
550 |
750 |
|
|
Max. Applicable Motor Output(kW) |
0.75 |
1.5 |
2.2 |
3.7 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
|
|
Max. Applicable Motor Output(HP) |
1.0 |
2.0 |
3.0 |
5.0 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
75 |
100 |
|
|
Output Rating |
Rated Output Capacity(kVA) |
1.7 |
3.5 |
4.5 |
7.5 |
10 |
13.4 |
18.9 |
21.9 |
26.9 |
33.9 |
40.8 |
51.8 |
61.7 |
79.7 |
99.6 |
|
Rated Output Current(A) |
1.7 |
3.5 |
4.5 |
7.5 |
10 |
13.5 |
19 |
22 |
27 |
34 |
41 |
52 |
62 |
80 |
100 |
|
|
Maximum Output Voltage(V) |
3-Phase Proportional to input voltage |
|||||||||||||||
|
Output Frequency(Hz) |
0.1~400Hz |
|||||||||||||||
|
Carrier Frequency(kHz) |
1-10 |
1-8 |
1-6 |
|||||||||||||
|
Input Rating |
Rated Input Current(A) |
3-Phase |
||||||||||||||
|
2.0 |
3.6 |
4.9 |
9.9 |
10.8 |
14.3 |
19.8 |
22 |
27.7 |
37 |
41 |
52 |
62 |
95 |
117 |
||
|
Rated Voltage, Frequency |
3-phase 500~600V, 50/60Hz |
|||||||||||||||
|
Voltage Tolerance |
-15%+10% (425~660V) |
|||||||||||||||
|
Frequency Tolerance |
+-5% (47~63Hz) |
|||||||||||||||
|
Cooling Method |
Natural |
Fan cooled |
||||||||||||||
|
Weight(kg) |
2.7 |
3.2 |
4.5 |
6.8 |
8 |
10 |
13 |
13 |
13 |
13 |
36 |
36 |
36 |
50 |
50 |
|
Applications
Air conditioners for large buildings; woodcarving machine; punching machine; wastewater treatment systems; crane drive and swivel; washing machine; vertical stamping machines; compressor; elevator; escalator; circular loom; flat knitting machine; pasta machine; four-sided woodworking planer, etc

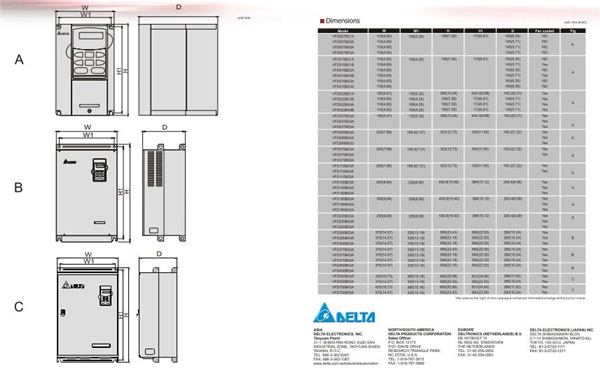

Dimensions
