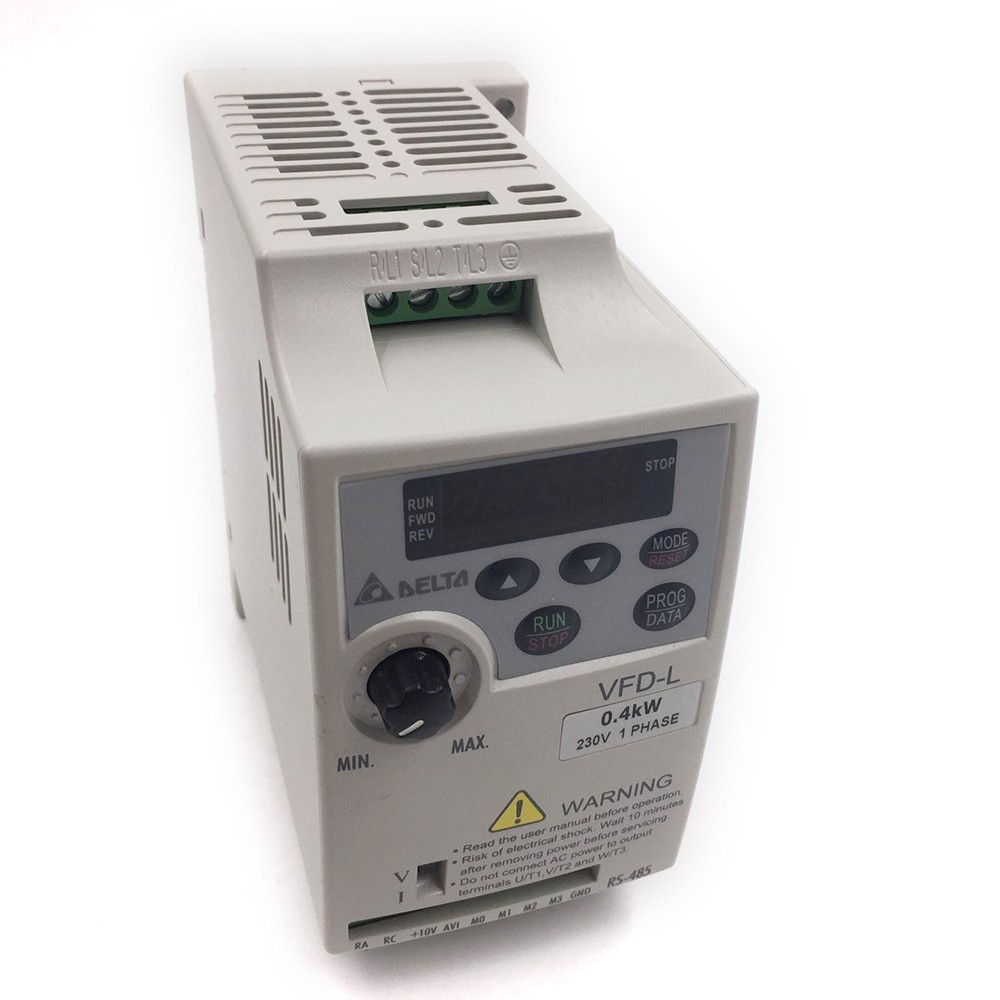

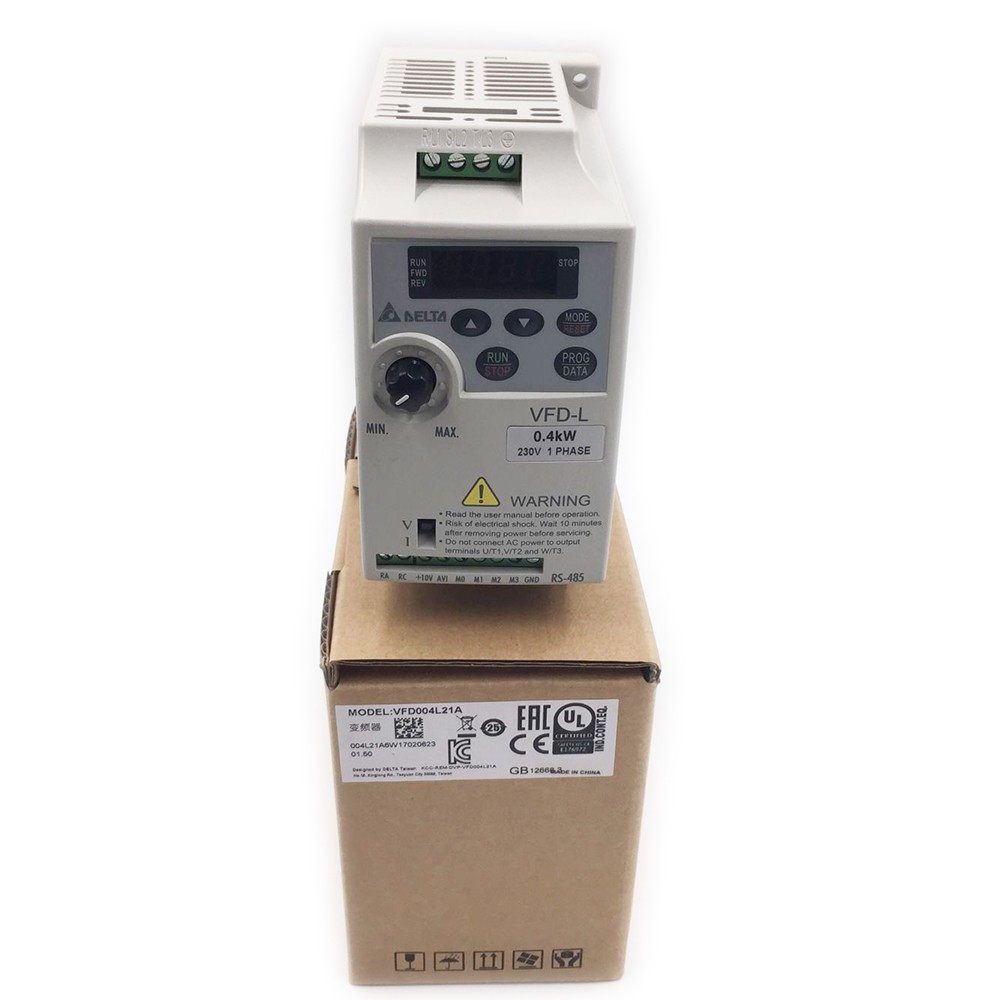

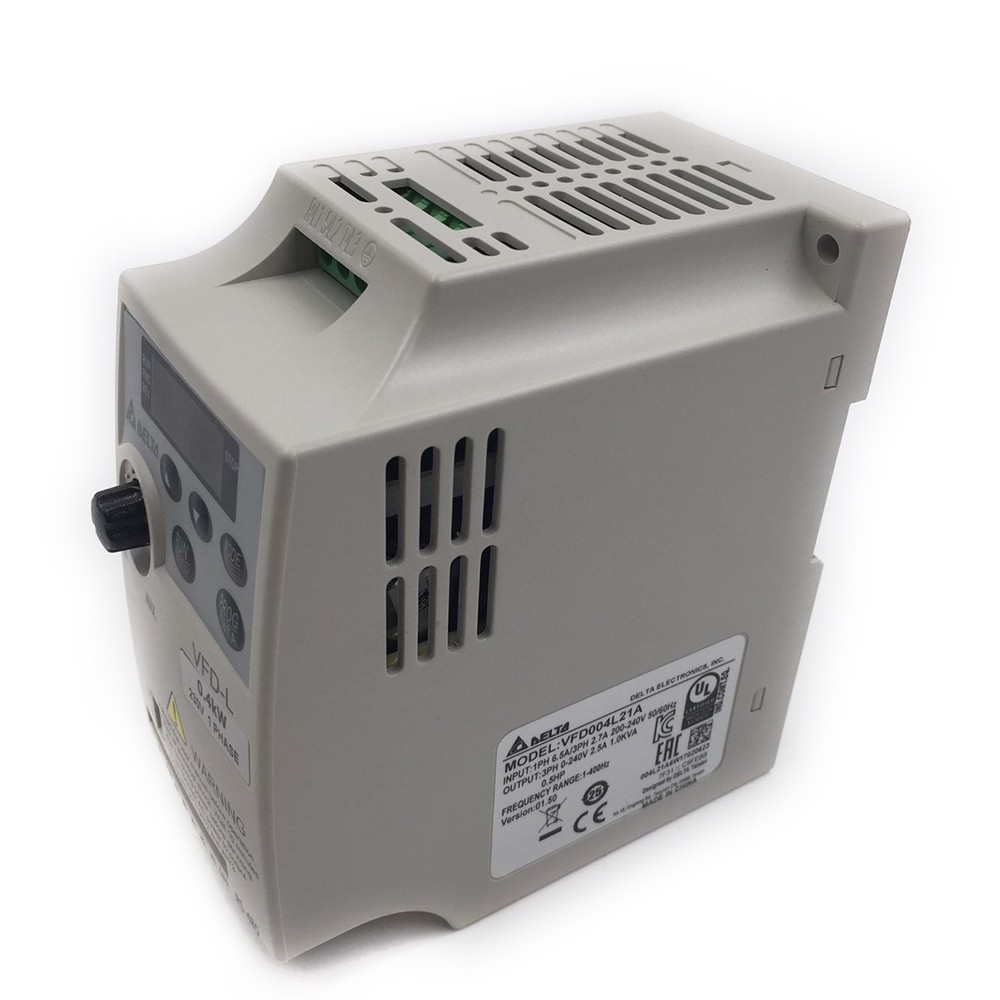

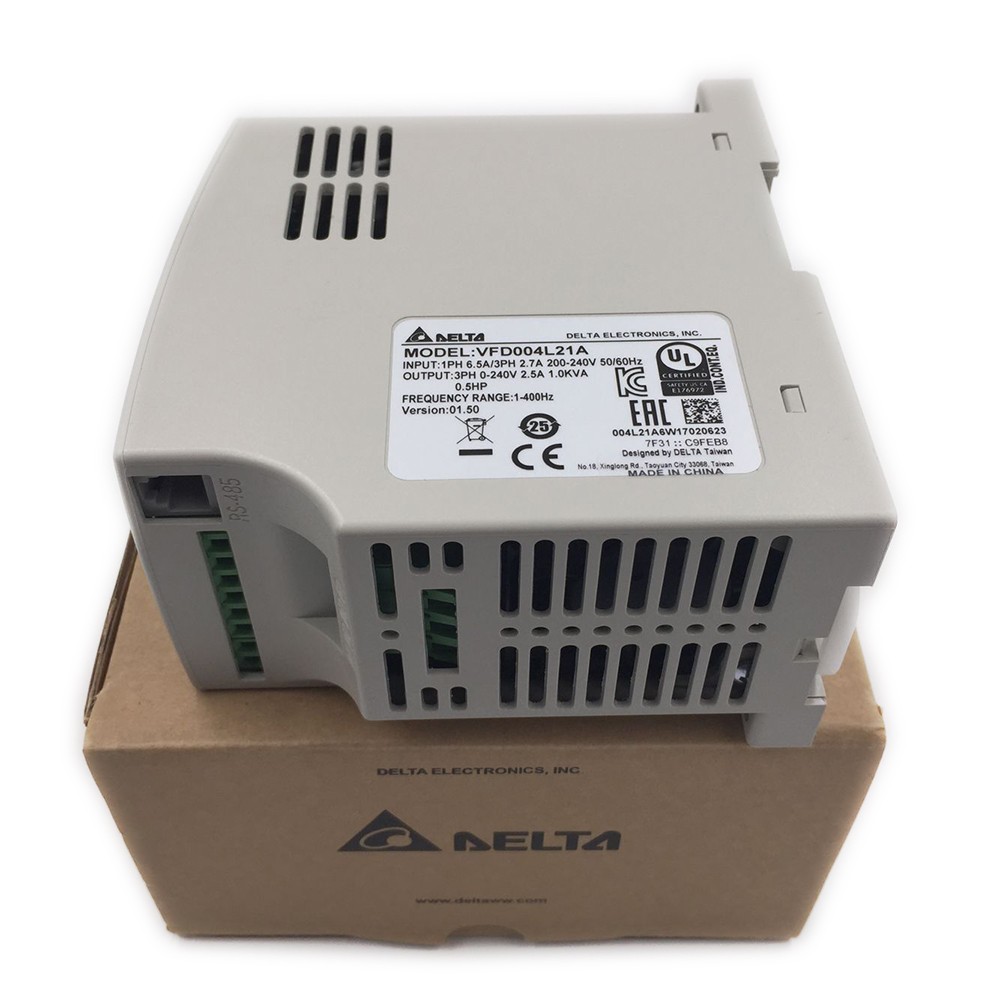

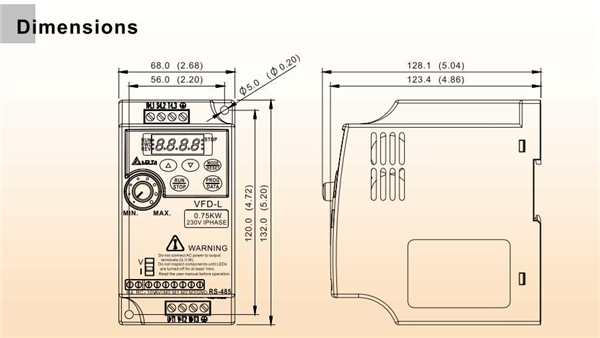

Delta Inverter VFD Drive VFD004L21A 1Phase 220V 0.4kW 0.5HP 1~400Hz Wood Cutting &Wire drawing VFD-L

Voltage Class

115V

230V

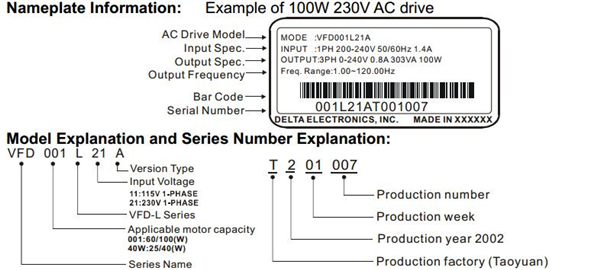

Model Name VFD-XXXLXXA/B

002

004

002

004

007

015

Applicable Motor Output(kW)

0.2

0.4

0.2

0.4

0.7

1.5

Output Rating

Rated Output Capacity(KVA)

0.6

1.0

0.6

1.0

1.6

2.7

Rated Output Current(A)

1.6

2.5

1.6

2.5

4.2

7.0

Max.Output Voltage(V)

3 Phase double the input

Proportional to input voltage

Rated Frequency(Hz)

1.0~400Hz

Power

Rated Input Current(A)

6

9

4.9/1.9

6.5/2.7

9.7/5.1

*/9

Input Voltage Tolerance

Single phase

100~120V 50/60Hz

Single/3-phase 200~240V 50/60Hz

3-phase

200~240V

50/60Hz

Frequency Tolerance

+-5%

Control characteristics

Control system

SVPWM(Space Vector Pulse Width Modulation, carrier frequency 3kHz~10kHz)

Output Frequency Resolution

0.1Hz

Torque Characteristics

Including auto-torque and auto-slip compensation, the starting torque is 150% at 5Hz

Overload Endurance

150% of rated current for 1 minute

Accel/Decel Time

0.1~600Sec. (can be set indiviadually)

V/F Pattern

Adjustable V/F curve

Stall Prevention Level

20~200% of rated output current

Operating Characteristics

Frequency

Setting

Keypad

Potentiometer-5K/0.5W, DC 0~+10V(input impedance 100K), 4~20mA(output Impedance 250 ohm), 3 multi-function inputs(3 preset speeds, JOG, UP/DOWN command), communication setting

External Signal

Operation Setting

Keypad

RUN/STOP keys

Signal

External Signal

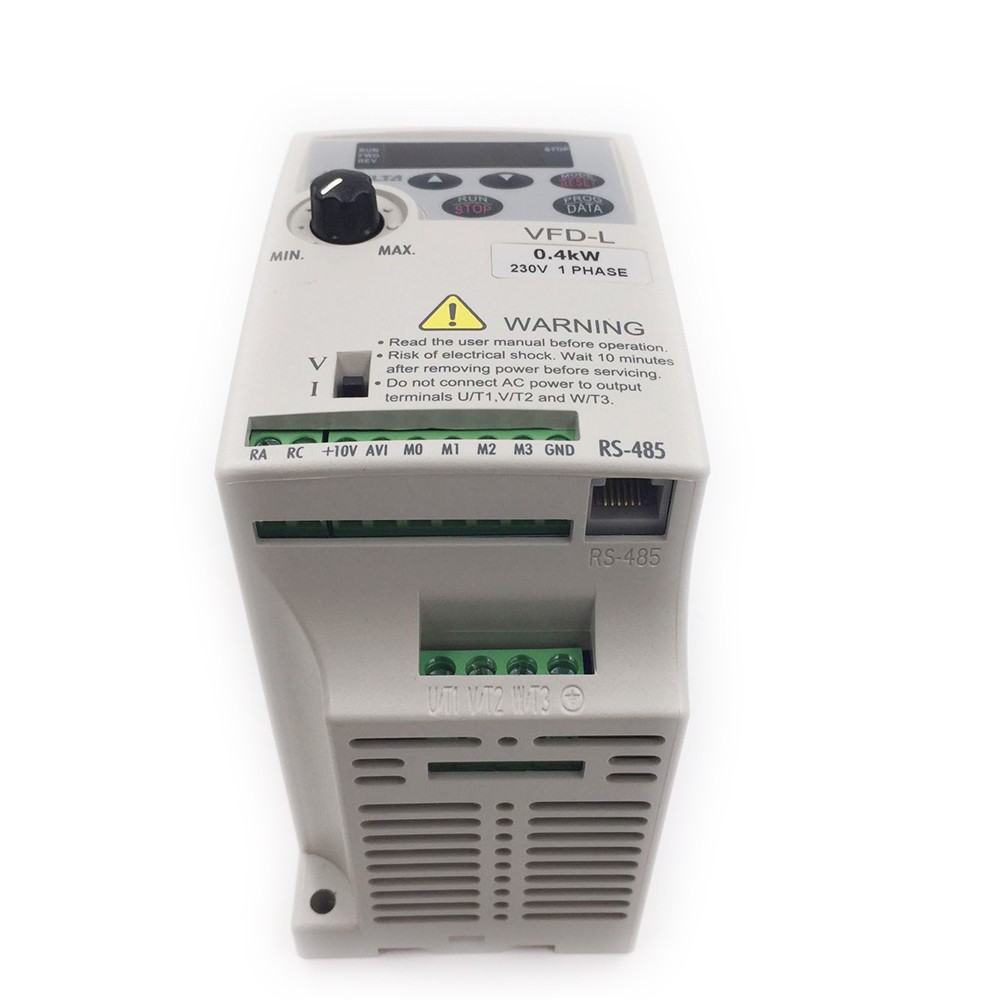

M0, M1,M2,M3 can be combined to offer varlous modes of operation, RS-485 communication port

Multi-function Input Signal

Multi-step speed selection 0~3, Jog, accel/decal inhibit, first/second accel/decal selector, counter, PLC operation, external base block(NC, NO) selection

Multi-function Output Signal

Ac Drive Operating, Frequency Attained, Non-zero speed, Base Block, Fault Indication, Local/Remote control indication, PLC Operation indication.

Other Function

AVR, S-curve, Over-Voltage Stall Prevention, DC Braking, Fault Records, Adjustable Carrier-Frequency, Over-Current Stall Prevention, Momentary Power Loss restart, Reverse inhibit, Frequency Limits, Patameter Lock/Reset.

Protection

Over Voltage, Over Current, Under Voltage, Overload, Overheating, Self-testing, Ground fault

Other

Built-in EMI Filter for Frame B(single phase)

cooling

Forced air-cooling

Environment

Installation Location

Altitude 1000 m or below, keep from corrosive gasses, liquid and dust

Ambient Temperature

-10⁰C to + 40⁰C(Non-Condensing and not frozen)

Storage Temperature

-20⁰C to + 60⁰C

Ambient Humidity

Below 90% RH(non-condensing)

Vibration

9.80665m/s²(1G) less than 20Hz,5.88m/s²(0.6Gat) 20 to 50Hz
