Features:

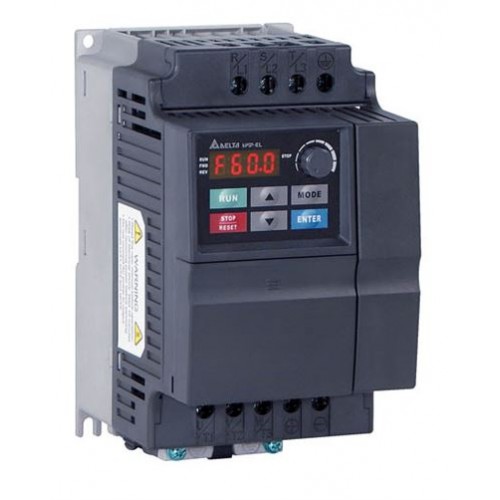

The VFD-EL series is multiple functions new generation micro type AC drives. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.
Specifications
Output frequency: 0.1 ~ 600Hz
3 points adjustable V/f curve
Built-in PID feedback control
RFI-switch for IT mains
Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
Use RS-485 communication interface (RJ-45) with Modbus protocol
Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
Complete protection function
Applications:
Small size pump & fan, blowing machine, conveyer belt, simple DIY processing equipment.
General Specifications:
Control characteristics |
Control System |
SPWM(Sinusoidal Pulse Width Modulation) control (V/F control) |
|
Frequency Setting Resolution |
0.01Hz |
||
Output Frequency Resolution |
0.01Hz |
||
Torque Characteristic |
Including the auto-torque/auto/slip compensation: starting torque can be 150% at 5.0Hz |
||
Overload Endurance |
150% of rated current for 1 minute |
||
Skip Frequency |
Three zones, setting range 0.1-600Hz |
||
Accel/Decel Time |
0.1 to 600 seconds(2 Independent settings for Accel/Decel time) |
||
Stall Prevention Level |
Setting 20 to 250% of rated current |
||
DC Braking |
Operation frequency 0.1-600.0Hz, output 0-100% rated current Starting time 0-60 seconds, stop time 0-60 seconds, stop time 0-60 seconds |
||
Regenerated Braking Torque |
Approx. 20% (up to 125% possible with optional brake resistor or externally mounted brake unit, 1-15hp(0.75-11kw)models have brake chopper built-in) |
||
V/F Pattern |
Adjustable V/f pattern |
||
Operating Characteristics |
Frequency Setting |
Keypad |
Setting by up and down |
External Signal |
Potentiometer-5K/0.5W, 0 to + 10VDC, 4 to 20mA, RS-485 interface; Multi-function Inputs 3 to 6(15 steps, Jog, up/down) |
||
Operation Setting Signal |
Keypad |
Set by RUN and STOP |
|
External Signal |
2 wires/3 wires(MI1, MI2,MI3), JOG operation, RS-485 serial interface(MODBUS), programmable logic controller |
||
Multi-function Input signal |
Multi-step selection 0 to 15, Jog, accel/decel inhibit, 2 accel/decel switches, counter, external Base Block, ACI/AVI selections, driver reset, Up/DOWN key setting, NPN/PNP input selection |
||
Multi-function Output Indication |
AC drive operation, frequency attained, counter attained, zero speed, Base Block, fault indication, overheat alarm, emergency stop and statues selections of input terminals |
||
Analog Output signal |
Output frequency/current |
||
Alarm Output Contact |
Contact will be ON when drive malfunctions (1 Form C/change-over contact or 1 open collector output) |
||
Operation Functions |
AVR, accel/decel S-Curve, over-voltage/over-current stall prevention, 5 fault records, reverse inhibition, momentary power loss restart, DC braking, auto torque/slip compensation, adjustable carrier frequency, output frequency limits, parameter lock/reset, PID control, external counter, MODBUS communication, abnormal reset, abnormal re-start, power-saving, fan control, sleep/wake frequency, 1st/2ne frequency source selections, 1st/2nd frequency source combination, NPN/PNP selection, constant pressure function |
||
Protection Functions |
Over voltage, over current, under voltage, external fault, overload, ground fault, overheating ,electronic thermal, IGBT short circuit, PTC |
||
Display Keypad |
6-key, 7-segment LED with 4-digit, 4 status LEDs, master frequency, output frequency, output current, custom units, parameter values for setup and lock, faults, RUN, STOP, RESET, FWD/REV |
||
Built-in EMI Filter |
For 230V 1-phase and 460V 3-phase models. |
||
Environmental Conditions |
Enclosure Rating |
IP20 |
|
Pollution Degree |
2 |
||
Installation Location |
Altitude 1000m or lower, keep from corrosive gasses, liquid and dust |
||
Ambient Temperature |
-100C to 500C(400C for side-by-side mounting) Non-condensing and not frozen |
||
Storage/Transportation Temperature |
-200C to 600C |
||
Ambient Temperature |
Below 90% RH(non-condensing) |
||
Vibration |
9.80665m/s2(1G) less than 20Hz, 5.88m/s2(0.6G) at 20 to 50Hz |
Precise Specifications
Diagram 1
Voltage Class |
115V |
|||
Model Number VFDxxxEL |
002 |
004 |
007 |
|
Max. Applicable Motor Output(kW) |
0.2 |
0.4 |
0.75 |
|
Max. Applicable Motor Output (HP) |
0.25 |
0.5 |
1.0 |
|
Output Rating |
Rated Output Capacity(kVA) |
0.6 |
1.0 |
1.6 |
Rated Output Current(A) |
1.6 |
2.5 |
4.2 |
|
Maximum Output Voltage(V) |
3-phase Proportional to Twice the Input Voltage |
|||
Output Frequency(Hz) |
0.1~600Hz |
|||
Carrier Frequency(kHz) |
2-12 |
|||
Input Rating |
Rated Input Current(A) |
Single-phase |
||
6.4 |
9 |
18 |
||
Rated Voltage/Frequency |
Single phase, 100-120V, 50/60Hz |
|||
Voltage Tolerance |
+-20%(90~132V) |
|||
Frequency Tolerance |
+-5%(47~63Hz) |
|||
Cooling Method |
Natural Cooling |
|||
Weight(kg) |
1.1 |
1.1 |
1.4 |
Diagram2
Voltage Class |
230V |
|||||||
Model Number VFDxxxEL |
002 |
004 |
007 |
015 |
022 |
037 |
||
Max. Applicable Motor Output(kW) |
0.2 |
0.4 |
0.7 |
1.5 |
2.2 |
3.7 |
||
Max. Applicable Motor Output (HP) |
0.25 |
0.5 |
1.0 |
2.0 |
3.0 |
5.0 |
||
Output Rating |
Rated Output Capacity(kVA) |
0.6 |
1.0 |
1.6 |
2.9 |
4.2 |
6.5 |
|
Rated Output Current(A) |
1.6 |
2.5 |
4.2 |
7.5 |
11.0 |
17.0 |
||
Maximum Output Voltage(V) |
3-phase Proportional to Input Voltage |
|||||||
Output Frequency(Hz) |
0.1~600Hz |
|||||||
Carrier Frequency(kHz) |
2-12 |
|||||||
XXXEL21A |
Rated Input Current(A) |
4.9 |
6.5 |
9.5 |
15.7 |
24 |
-- |
|
Rated Voltage/Frequency |
1-phase, 200-240V, 50/60Hz |
|||||||
XXXEL23A |
Rated Input Current(A) |
1.9 |
2.7 |
4.9 |
9 |
14 |
20.6 |
|
Rated Voltage/Frequency |
3-phase, 200-240V, 50/60Hz |
|||||||
Voltage Tolerance |
+-10%(180-264V) |
|||||||
Frequency Tolerance |
+-5%(47-63Hz) |
|||||||
Cooling Method |
Natural Cooling |
Fan cooling |
||||||
Weight(kg) |
1.2 |
1.2 |
.1.2 |
1.7 |
1.7 |
1.7 |
Diagram3
Voltage Class |
460V |
||||||||||
Model Number VFDxxxEL |
004 |
007 |
015 |
022 |
037 |
||||||
Max. Applicable Motor Output(kW) |
0.4 |
0.75 |
1.5 |
2.2 |
3.7 |
||||||
Max. Applicable Motor Output (HP) |
0.5 |
1.0 |
2.0 |
3.0 |
5.0 |
||||||
Output Rating |
Rated Output Capacity(kVA) |
1.2 |
2.0 |
3.3 |
4.4 |
6.8 |
|||||
Rated Output Current(A) |
1.5 |
2.5 |
4.2 |
5.5 |
8.2 |
||||||
Maximum Output Voltage(V) |
3-phase Proportional to Input Voltage |
||||||||||
Output Frequency(Hz) |
0.1~600Hz |
||||||||||
Carrier Frequency(kHz) |
2-12 |
||||||||||
Input Rating |
Rated Input Current(A) |
3-phase |
|||||||||
1.8 |
3.2 |
4.3 |
7.1 |
9.0 |
|||||||
Rated Voltage/Frequency |
3-phase, 380-480V, 50/60Hz |
||||||||||
Voltage Tolerance |
+-10%(180-264V) |
||||||||||
Frequency Tolerance |
+-5%(47-63Hz) |
||||||||||
Cooling Method |
Natural Cooling |
Fan cooling |
|||||||||
Weight(kg) |
1.2 |
1.2 |
.1.2 |
1.7 |
1.7 |
1.7 |
|||||
Dimensions
Standard wiring diagram
