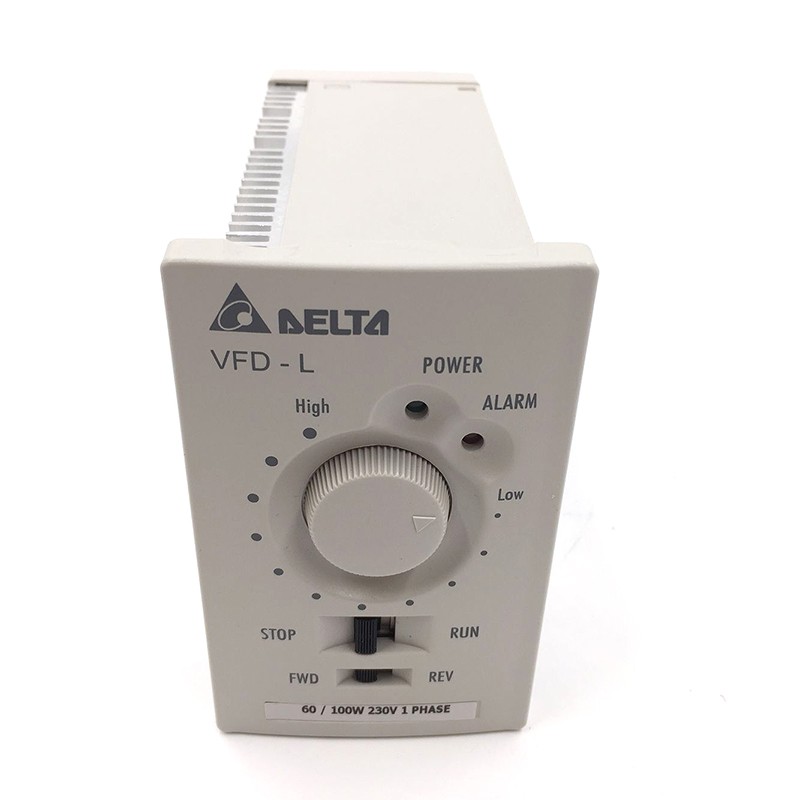

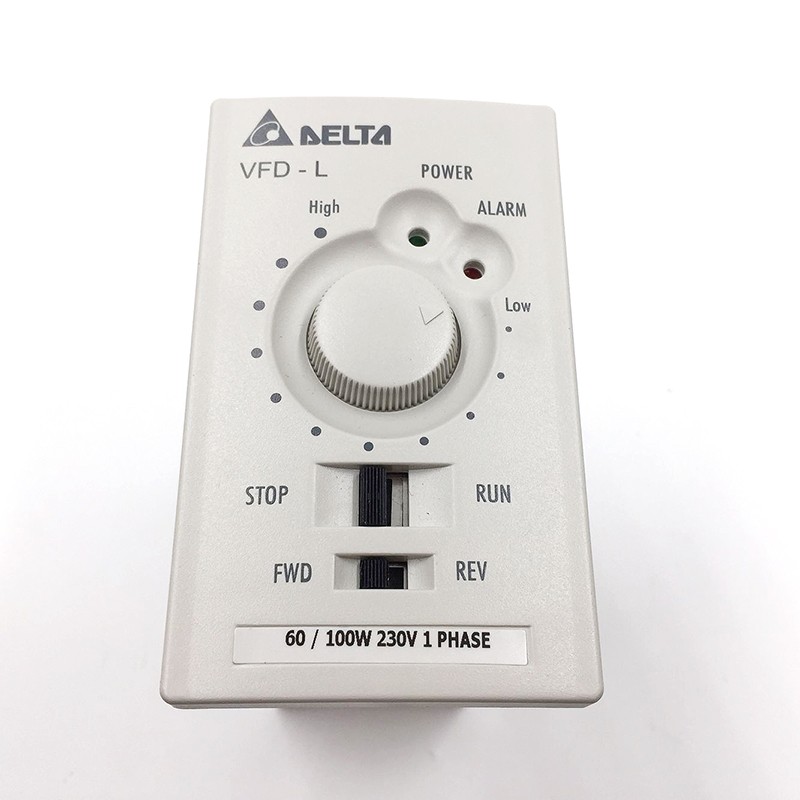

Sub-fractional low cost AC Drive. Specifically designed for low horsepower applications with built-in EMI filter to efficiently reduce electromagnetic interference and to conform to the CE EMI directive.
Specifications
1. 16-bit microprocessor controlled SVPWM output.
2. Low noise; carrier frequency up to 10kHz.
3. Controlled reversing.
4. 2 inputs and 1output terminal for external controls.
5. Adjustable V/F curve.
6. Adjustable accel/decal time
7. RS-485 communication (Baud rate 9600)
8. Option: Programmable Keypad (VFD-PU02)
Applications
Simple wood cutting, conveyer belt, wire drawing machine, etc

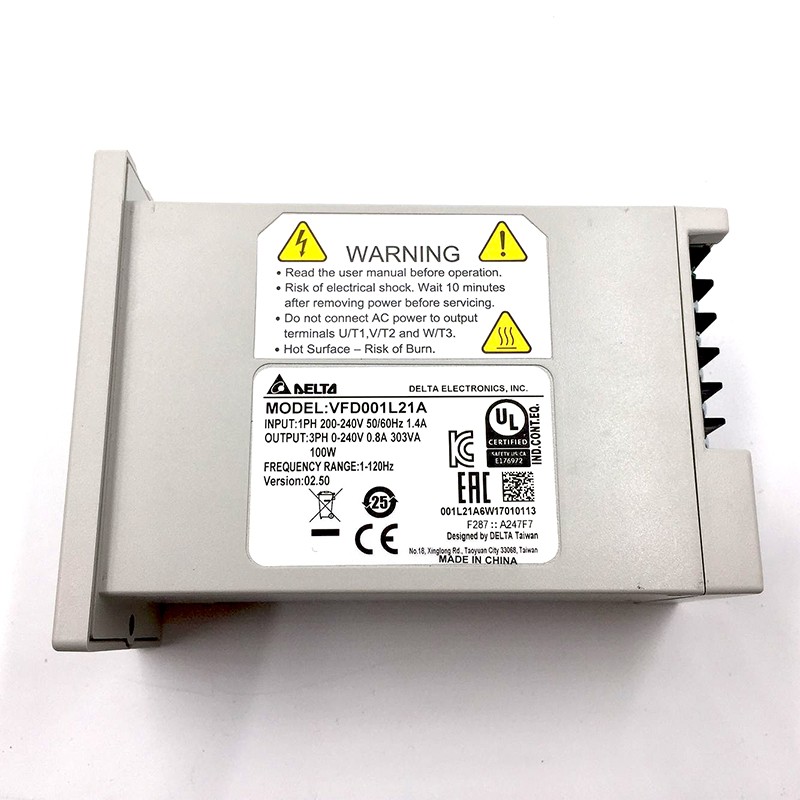

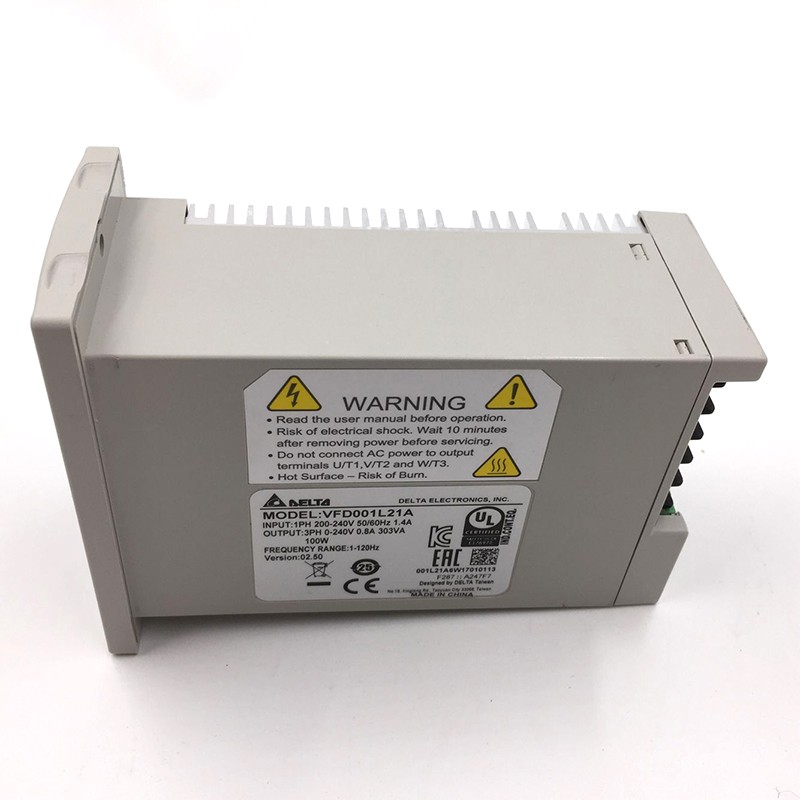

Standard Specifications:
|
Voltage Class |
115V Class |
230V Class |
||||||||
|
Model Number VFD-XXX L XXA/B |
40W |
001 |
40W |
001 |
||||||
|
Weight g (lb) A (standard) |
270 (0.60) |
440 (0.97) |
260 (0.57) |
430 (0.95) |
||||||
|
Weight g (lb) B (build-in EMI filter) |
350 (0.77) |
525 (1.16) |
340 (0.75) |
510 (1.12) |
||||||
|
Max. Applicable Motor Output (W) |
25/40 |
60/100 |
25/40 |
60/100 |
||||||
|
Output Rating |
Rated Output Capacity (VA) |
106/152 |
212/303 |
106/152 |
212/303 |
|||||
|
Rated Output Current (A) |
0.28/0.4 |
0.56/0.8 |
0.28/0.4 |
0.56/0.8 |
||||||
|
Maximum Output Voltage (V) |
Two times proportion to Input Voltage |
Proportional to Input Voltage |
||||||||
|
Rated Frequency (Hz) |
1.00 to 120.00 Hz |
|||||||||
|
Input Rating |
Rated Voltage/Frequency |
Single phase 100 to 120 VAC 50/60 Hz |
Single phase 200 to 240 VAC 50/60Hz |
|||||||
|
Voltage/Freq. Tolerance |
Voltage: ±10%, Frequency: ±5% |
|||||||||
|
Input Current (A) |
1.1A |
1.5A |
2.2A |
3.0A |
0.5A |
0.7A |
1.0A |
1.4A |
||
|
Control Characteristics |
Control Systems |
SVPWM (Space Vector Pulse Width Modulation, carrier frequency 10kHz) |
||||||||
|
Torque Setting |
High/Low, Switching |
|||||||||
|
Overload Endurance |
150% of rated current for 1 minute |
|||||||||
|
Accel/Decel Time |
0.05 to 30.0 seconds |
|||||||||
|
Torque Promotion |
Torque Boots: 0 or 8% |
|||||||||
|
Operation Characteristics |
Frequency Setting |
Potentiometer |
||||||||
|
Operation Setting Signal |
Panel |
RUN/STOP, FORWARD/REVERSE |
||||||||
|
Ext. Terminal |
RUN/STOP, FORWARD/REVERSE, RS-485 |
|||||||||
|
Output Indiction |
Panel |
Fault Indication (LED Flash) |
||||||||
|
Ext. Terminal |
Fault Indication (Open Collector) |
|||||||||
|
Protection |
Self-testing, Over Voltage, Over Current, Under Voltage, Overload, Overheating, Thermal. |
|||||||||
|
Cooling |
Natural air-cooling |
|||||||||
|
Environment |
Installation Location |
Altitude 1,000m or lower, keep from corrosive gasses, liquid and dust |
||||||||
|
Pollution Degree |
2 |
|||||||||
|
Ambient Temperature |
-10oC to 40oC (Non-Condensing and not frozen) |
|||||||||
|
Storage Temperature |
-20oC to 60oC |
|||||||||
|
Ambient Humidity |
Below 90% RH (non-condensing) |
|||||||||
|
Vibration |
9.80665m/s2 (1G) less than 20Hz, 5.88m/s2 (0.6G) at 20 to 50Hz |
|||||||||

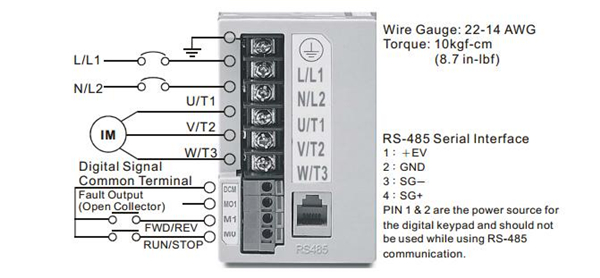

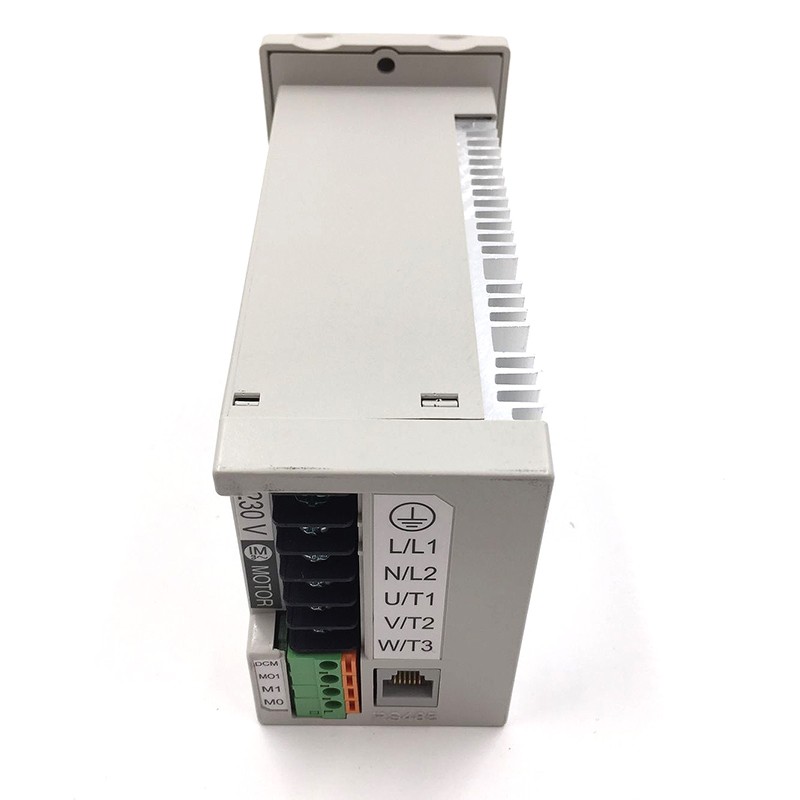

Basic Wiring Diagram:
Users must connect wiring according to the following circuit diagram shown below.

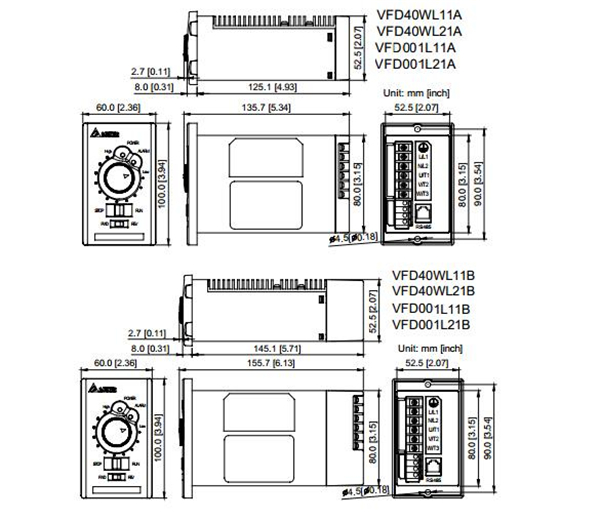

Installation Dimension:
Shipment:
