Delta Brand Servo Motor controller 400W 2.6A AC Servo Drive 1ph 220V CANopen E-CAM with Full-Closed Control New ASD-A2-0421-M
.jpg "fasttobuy logo(258).jpg")
Contact information:
Phone: +0086 13724354369 or +0086 755 82546545
email: service@fasttobuy.com skype: fasttobuy02
our working time: EST 9:00AM ~ 6:00 PM
AC Servo Drive ASD-A2-0421-M available, if need other choices, contact us directly, we can also supply ASD-A2-0421-F,ASD-A2-0421-L.

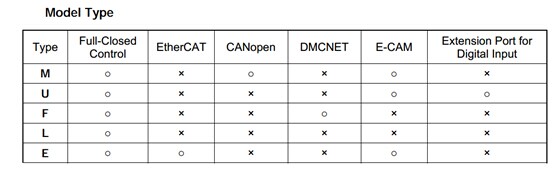

.jpg "MODEL TYPE(7).jpg")
Drive Specifications:
|
Model |
ASD-A2-0421-M |
|||
|
Product Name |
AC SERVO Drive |
|||
|
Series |
A2 |
|||
|
Corresponding Servo Motor |
ECMA-C10604RH ECMA-C10604RS ECMA-C10604SH ECMA-C10604SS ECMA-C10604SS ECMA-C10804S7 ECMA-C80604RS ECMA-CA0604RS ECMA-CA0604SS ECMA-E11305RS ECMA-EA1305SS ECMA-G11303RS |
|||
|
Model Type |
Full-Closed Control CANopen E-CAM |
|||
|
Rated Power |
400W |
|||
|
Power |
Phase / Voltage |
Single-phase 220 VAC |
||
|
Permissible Voltage |
Single-phase 200 ~ 230 VAC, -15% ~ 10% |
|||
|
Continuous Output Current |
2.6Arms |
|||
|
Cooling method |
Natural cooling |
|||
|
Encoder Resolution (Servo Drive Resolution) |
Incremental type: 20-bit (1280000 p/rev) ; Absolute type: 17-bit (1280000 p/rev) |
|||
|
Main Circuit Control |
SVPWM (Space Vector Pulse Width Modulation) Control |
|||
|
Control Mode |
Auto / Manual |
|||
|
Dynamic Brake |
None |
|||
|
Position Control Mode |
Max. Input Pulse Frequency |
Max. 500Kpps / 4Mpps (Line driver), Max. 200Kpps (Open collector) |
||
|
Pulse Type |
Pulse + Direction, A phase + B phase, CCW pulse + CW pulse |
|||
|
Command Source |
External pulse / Register |
|||
|
Smoothing Strategy |
Low-pass and P-curve filter |
|||
|
E-gear ratio |
E-gear ratio N/M multiple N: 1~32767, M: 1:32767 (1/50 < N/M < 25600) |
|||
|
Torque Limit |
Parameter settings |
|||
|
Feed Forward Compensation |
Parameters settings |
|||
|
Speed Control Mode |
Analog Command Input |
Voltage Range |
0 ~ ±10 VDC |
|
|
Input Resistance |
10 K ohm |
|||
|
Time Constant |
2.2 us |
|||
|
Speed Control Range |
1 : 5000 |
|||
|
Command Source |
External analog command / Register |
|||
|
Smoothing Strategy |
Low-pass and S-curve filter |
|||
|
Torque Limit |
Via parameter setting or analog input |
|||
|
Bandwidth |
Maximum 1 kHz |
|||
|
Speed Accuracy |
0.01% or less at 0 to 100% load fluctuation |
|||
|
0.01% or less at ±10% power fluctuation |
||||
|
0.01% or less at 0 to 50 degree centigrade ambient temperature fluctuation |
||||
|
Torque Control Mode |
Analog Command Input |
Voltage Range |
0 ~ ±10 VDC |
|
|
Input Resistance |
10 K ohm |
|||
|
Time Constant |
2.2 us |
|||
|
Command Source |
External analog command / Register |
|||
|
Smoothing Strategy |
Low-pass filter |
|||
|
Speed Limit |
Via parameter setting or analog input |
|||
|
Analog Monitor Output |
Monitor signal can set by parameters (Output voltage range: ±8 V) |
|||
|
Communication Interface |
RS-232 / RS-485 / USB |
|||

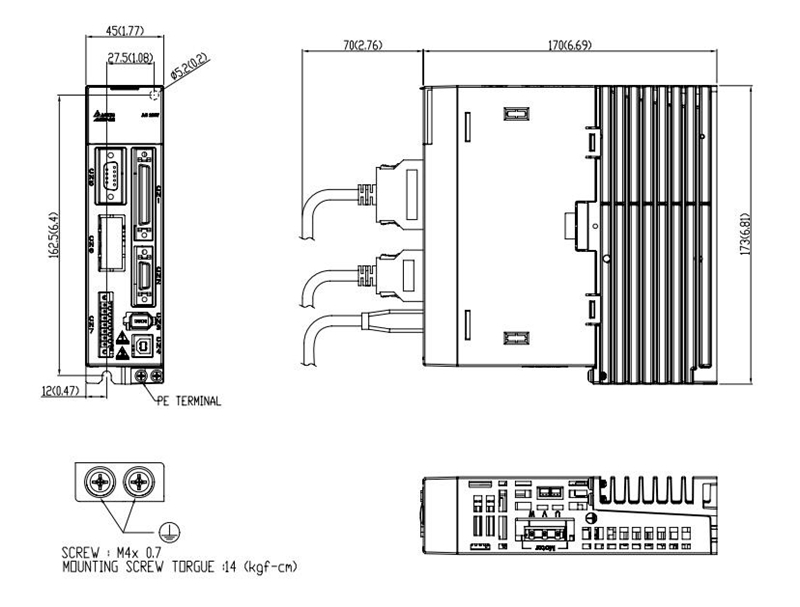

ASD-A2-0421-M external dimension (mm)
