US$

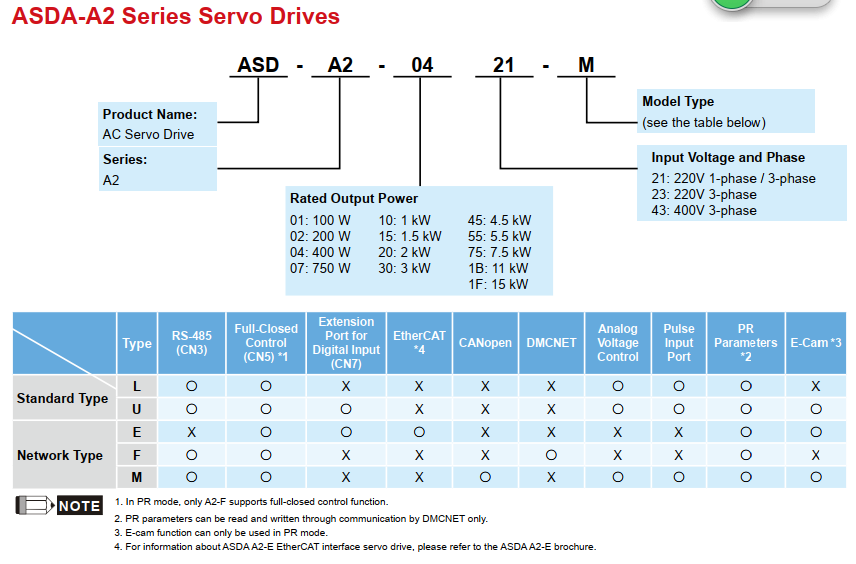

ASD-A2-7523-L, ASD-A2-5523-L, ASD-A2-4523-L, ASD-A2-3023-L, ASD-A2-2023-L, ASD-A2-1521-L, ASD-A2-1021-L, ASD-A2-0721-L, ASD-A2-0421-L, ASD-A2-0221-L, ASD-A2-0121-L
RS485 Full Colsed Control, Analog Voltage Control, Pulse Control
| Model | Power | Input |
| ASD-A2-0121-L | 100W | 1 phase 220V |
| ASD-A2-0221-L | 200W | 1 phase 220V |
| ASD-A2-0421-L | 400W | 1 phase 220V |
| ASD-A2-0721-L | 750W | 1 phase 220V |
| ASD-A2-1021-L | 1KW | 1 phase 220V |
| ASD-A2-1521-L | 1.5KW | 1 phase 220V |
| ASD-A2-2023-L | 2KW | 3 phase 220V |
| ASD-A2-3023-L | 3KW | 3 phase 220V |
| ASD-A2-4523-L | 4.5KW | 3 phase 220V |
| ASD-A2-5523-L | 5.5KW | 3 phase 220V |
| ASD-A2-7523-L | 7.5KW | 3 phase 220V |
â–º ASDA-Soft configuration software supported.
â–º New sub-modes supported, not traditional point-to-point control.
â–º 64 procedures can be applied.
â–º Motion profile can be changed instantaneously.
â–º 35 Homing modes / Jump mode / Write parameter mode /
Constant speed mode / Position control mode supported.
I
Introduction
Delta's new ASDA-A2 series is the ultimate servo system providing a total solution for a wide range of machine tools and industrial applications.
Specifications
|
ASDA-A2 Series 220V |
100W |
200W |
400W |
750W |
1KW |
1.5KW |
2KW |
3KW |
4.5KW |
5.5KW |
7.5KW |
||
|
01 |
02 |
04 |
07 |
10 |
15 |
20 |
30 |
45 |
55 |
75 |
|||
|
Power supply |
Phase / Voltage |
Three-phase / Single-phase 220VAC |
Three-phase 220VAC |
||||||||||
|
Permissible Voltage Range |
Three-phase / Single-phase 200 ~ 230VAC, -15% ~ 10% |
Three-phase 200 ~ 230VAC, -15% ~ 10% |
|||||||||||
|
Continuous Output Current |
0.9 Arms |
1.55 Arms |
2.6 Arms |
5.1 Arms |
7.3 Arms |
8.3 Arms |
13.4 Arms |
19.4 Arms |
32.5 Arms |
40 Arms |
47.5 Arms |
||
|
Cooling System |
Natural Air Circulation |
Fan Cooling |
|||||||||||
|
Encoder Resolution / Feedback Resolution |
20-bit (1280000 p/rev) |
||||||||||||
|
Control of Main Circuit |
SVPWM (Space Vector Pulse Width Modulation) Control |
||||||||||||
|
Tuning Modes |
Auto / Manual |
||||||||||||
|
Dynamic Brake |
None |
Built-in |
External |
||||||||||
|
Max. Input Pulse Frequency |
Max. 500Kpps / 4Mpps (Line driver), Max. 200Kpps (Open collector) |
||||||||||||
|
Speed Control Mode |
Analog Input Command |
Voltage Range |
0 ~ ±10 VDC |
||||||||||
|
Input Resistance |
10KΩ |
||||||||||||
|
Time Constant |
2.2μs |
||||||||||||
|
Speed Control Range |
1:5000 |
1:3000 |
|||||||||||
|
Torque Control Mode |
Analog Input Command |
Voltage Range |
0 ~ ±10 VDC |
||||||||||
|
Input Resistance |
10KΩ |
||||||||||||
|
Time Constant |
2.2μs |
||||||||||||
|
Communication Interface |
RS-232 / RS-485 / CANopen / USB |
||||||||||||
|
Environment |
Altitude |
Altitude 1000m or lower above sea level |
|||||||||||
|
Atmospheric pressure |
86kPa to 106kPa |
||||||||||||
|
Operating Temperature |
0?to 55? (If operating temperature is above 45 ?, forced cooling will be required) |
||||||||||||
|
Storage Temperature |
-20?to 65?(-4? to 149?) |
||||||||||||
|
Humidity |
0 to 90% (non-condensing) |
||||||||||||
|
IP Rating |
IP20 |
||||||||||||
|
Power System |
TN System |
||||||||||||
|
Approvals |
IEC/EN 61800-5-1, UL 508C, C-tick |
||||||||||||
Servo Drive and Servo Motor Combinations
|
Power |
Servo Drive |
Servo Motor |
|
100W |
ASD-A2-0121-_ |
ECMA-C10401_S (S=8mm) |
|
200W |
ASD-A2-0221-_ |
ECMA-C10602_S (S=14mm) |
|
400W |
ASD-A2-0421-_ |
ECMA-C10604_S (S=14mm) ECMA-C10804_7 (7=14mm) ECMA-E11305_S (S=22mm) ECMA-G11303_S (S=22mm) |
|
750W |
ASD-A2-0721-_ |
ECMA-C10807_S (S=19mm) ECMA-G11306_S (S=22mm) |
|
1000W |
ASD-A2-1021-_ |
ECMA-C11010_S (S=22mm) ECMA-E11310_S (S=22mm) ECMA-G11309_S (S=22mm) |
|
1500W |
ASD-A2-1521-_ |
ECMA-E11315_S (S=22mm) |
|
2000W |
ASD-A2-2023-_ |
ECMA-C11020_S (S=22mm) ECMA-E11320_S (S=22mm) ECMA-E11820_S (S=35mm) |
|
3000W |
ASD-A2-3023-_ |
ECMA-E11830_S (S=35mm) ECMA-F11830_S (S=35mm) |
|
4500W |
ASD-A2-4523-_ |
ECMA-F21845_S (S=35mm) |
|
5500W |
ASD-A2-5523-_ |
ECMA-F21855_3 (3=42mm) |
|
7500W |
ASD-A2-7523-_ |
ECMA-F21875_3 (3=42mm) |
Applications
Precise carving machine, precise lathe/milling machine, double column type machining center, TFT LCD cutting machine, robot arm, IC packaging machine, high-speed packaging machine, CNC processing equipment, injection processing equipment, label inserting machine, food packaging machine, printing
