D=100mm 5Kgf Hand-operated Rotation Stages for Microscope/Flaw Detector

item ID#: PT-R100
  • Item condition: New and Original
  • 100 available/ 0 sold
  • Start from: 1 Unit(s)
  • Weight: 1 Kg(s)
  • DHL Recommended Shipping
  • Stock Lead Time
Delivery:
3-7 Days Details
Payment:
Details
Guarantee:
1Year Quality Assurance Details
Returns:
7 days unconditional return, the buyer bear the return freight Details

Estimate Shipping Costs

Quantity: Unit(s)
US$152.00 + Shipping Cost
    • Description
    • Download
    • Product Reviews
    • Write a Review
     D=100mm 5Kgf Hand-operated Rotation Stages  for Microscope/Flaw Detector


    1. Specifications

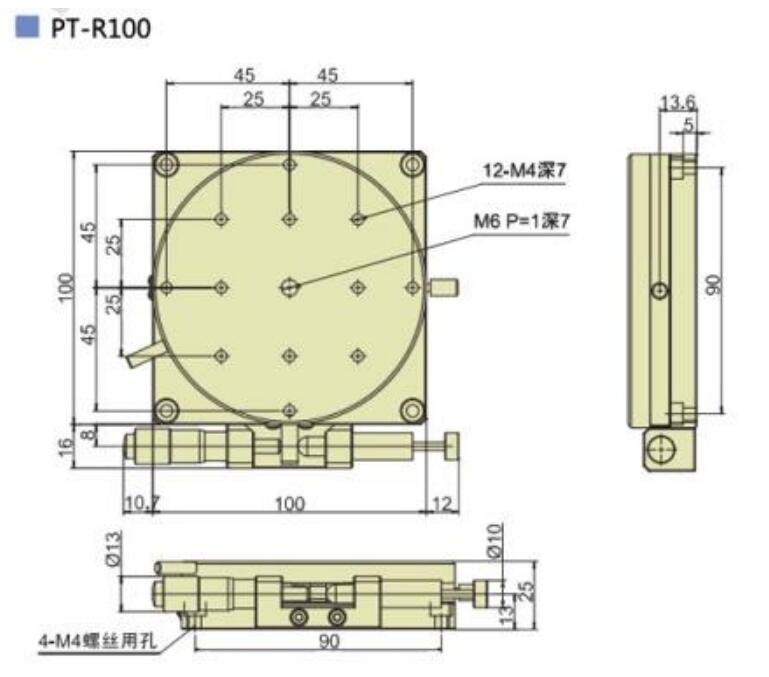

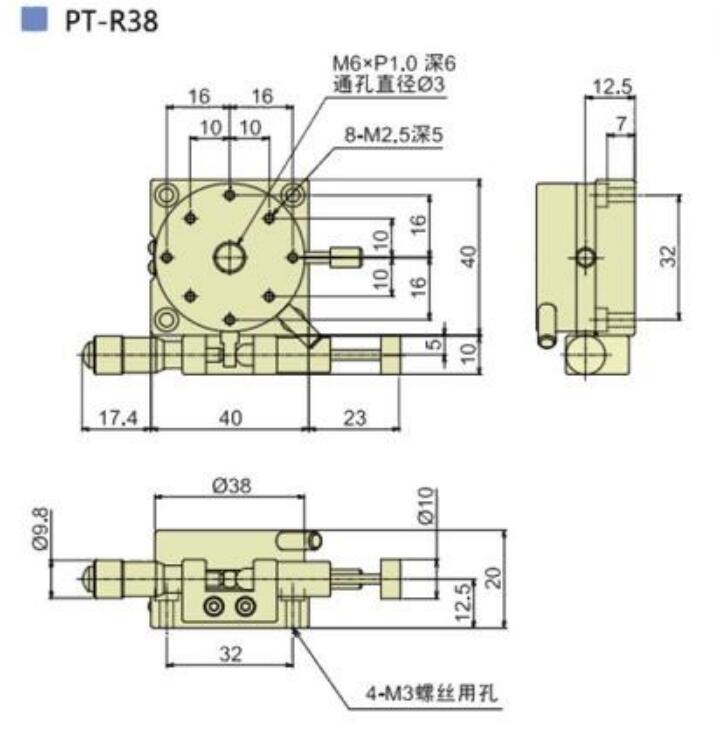

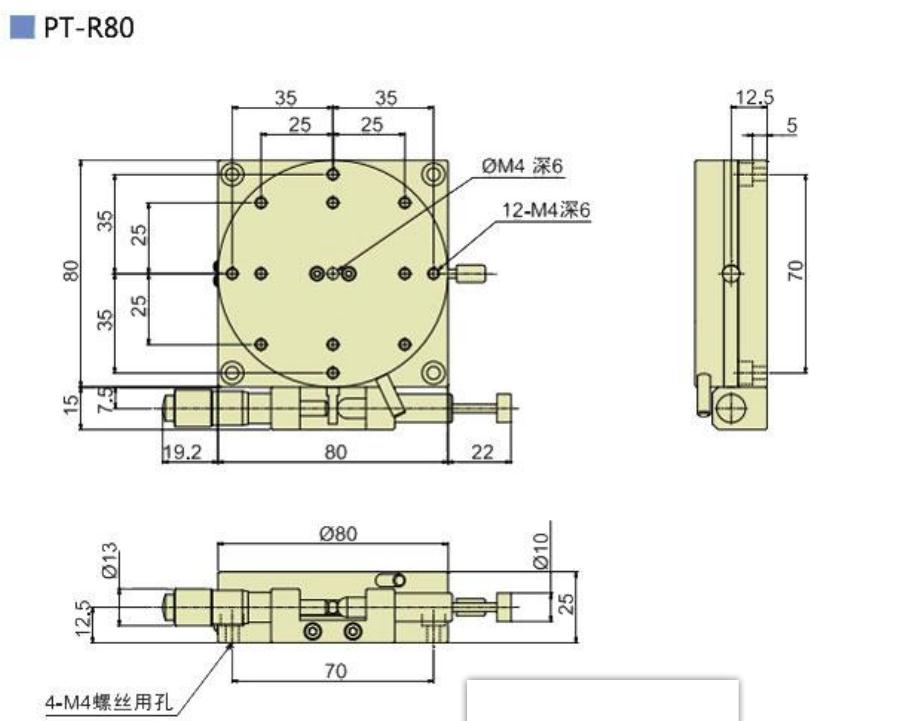

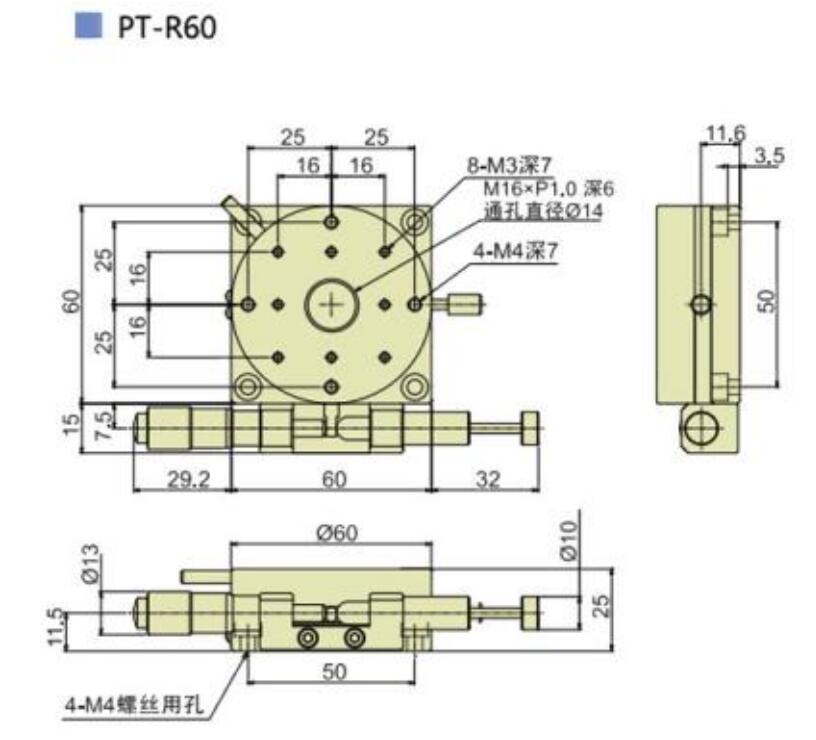

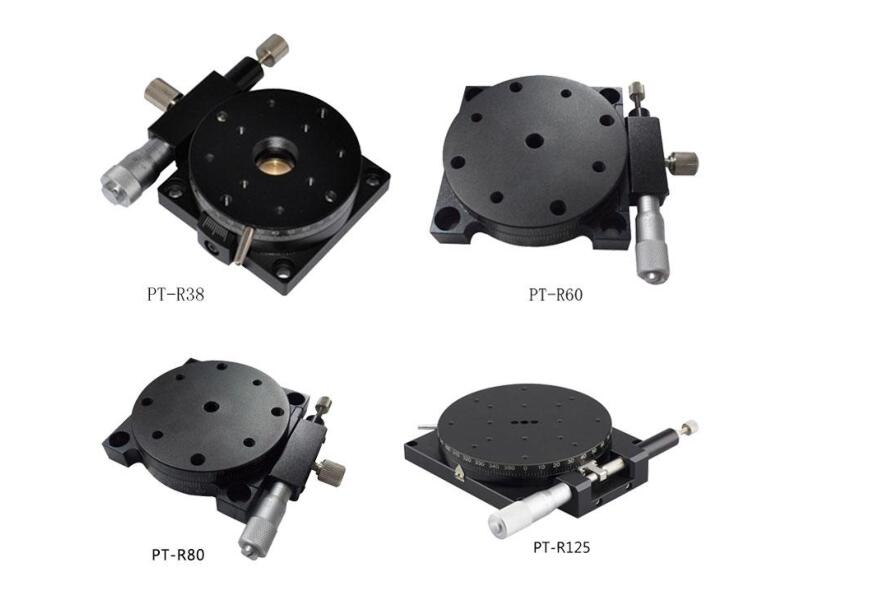

     PT-R100 (1).jpgPT-R100 (2).jpgPT-R100 (3).jpgPT-R100 (4).jpgPT-R100 (5).jpg

    Model Number

    PT-R38

    PT-R60

    PT-R80

    PT-R100

    PT-R125

    Platform Size

    Φ38

    Φ60

    Φ80

    Φ100

    Φ125

    Minimum Scale

    1′26″/circle

    55″/circle

    45″/circle

    34″/circle

    32″/circle

    Travel Range

    Coarse: 360°      Fine: ±5°

    Travel Guide

    Duplex Bearing

    Load Capacity

    1kgf(9.8N)

    3kgf(29.4N)

    4kgf(39.2N)

    5kgf(49N)

    5kgf(49N)

    Parallelism

    Eccentricity

    20μm

    50μm

    Net Weight

    0.09kg

    0.28kg

    0.48kg

    0.68kg

    0.85kg

    Surface Material

    Aluminum Alloy Black-Anodized



    2. Application

    Applications: Electronic equipment. Laser equipment. Automation equipment. CNC equipment. Laser equipment and other automation equipment.
