CNC Servo Motor Brand 220V Torque 1.27NM Delta AC Servo Motor 400W 3000rpm with Keyway Oil Seal ECMA-C10604RS
AC Servo Motor ECMA-C10604RS available, if need other choices, contact us directly. we can also supply ECMA-C10604SS.
1 Motor Specifications
|
Model |
ECMA-C10604RS |
|
Product Name |
Electronic Commutation Motor |
|
Servo Type |
AC Servo |
|
Corresponding Servo Motor |
ASD-A2-0421-L ASD-A2-0421-M ASD-A2-0421-U ASD-A2-0421-E |
|
Rated Voltage |
220V |
|
Encoder Type |
Incremental type, 20-bit |
|
Motor Frame Size |
60 mm |
|
Type of Shaft Diameter and Oil Seal |
Keyway (with fixed screw holes), w/o brake, with oil seal |
|
Standard Shaft Diameter |
S=14m |
|
Rated Power Output |
400W |
|
Rated torque (N-m) |
1.27 |
|
Max. torque (N-m) |
3.82 |
|
Rated Speed |
3000 rpm |
|
Max. speed |
5000 rpm |
|
Rated current (A) |
2.6 A |
|
Max. instantaneous current (A) |
7.8 A |
|
Power rating (kW/s) |
57.6 |
|
Rotor inertia (× 10-4kg.m2) |
0.277 |
|
Mechanical constant (ms) |
0.53 |
|
Torque constant-KT (N-m/A) |
0.49 |
|
Voltage constant-KE (mV/(r/min)) |
17.4 |
|
Armature resistance (Ohm) |
1.55 |
|
Armature inductance (mH) |
6.71 |
|
Electric constant (ms) |
4.30 |
|
Insulation class |
Class A (UL), Class B (CE) |
|
Insulation resistance |
> 100 M ohm , DC 500 V |
|
Insulation strength |
1.8k Vac, 1 sec |
|
Weight (kg) (without brake) |
1.6Kg |
|
Radial max. loading (N) |
196 |
|
Axial max. loading (N) |
68 |
|
Power rating (kW/s) (with brake) |
53.8 |
|
Rotor inertia (× 10-4kg.m2) (with brake) |
0.30 |
|
Mechanical constant (ms) (with brake) |
0.57 |
|
Vibration grade (μm) |
15 |
|
Operating temperature |
0~40 degree centigrade |
|
Storage temperature |
-10~80 degree centigrade |
|
Operating humidity |
20~90% RH Non-condensate |
|
Storage humidity |
20~90% RH Non-condensate |
|
Vibration capacity |
2.5G |
|
IP Rating |
IP65 |
|
Approvals |
CE UL |

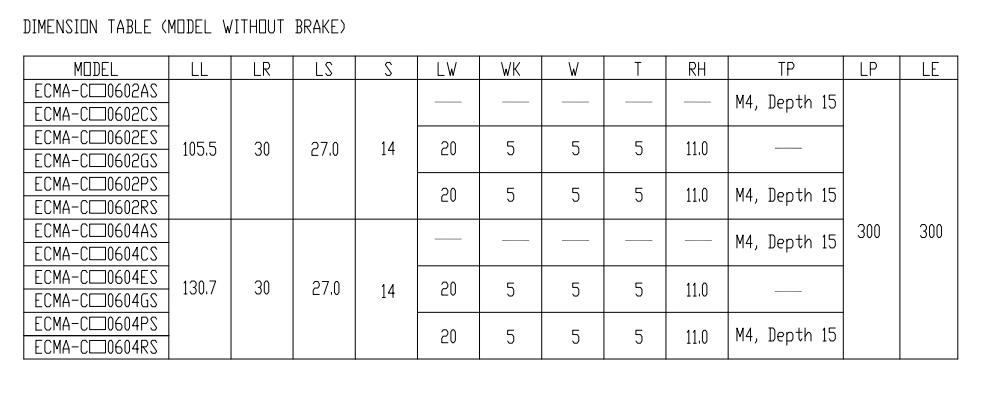

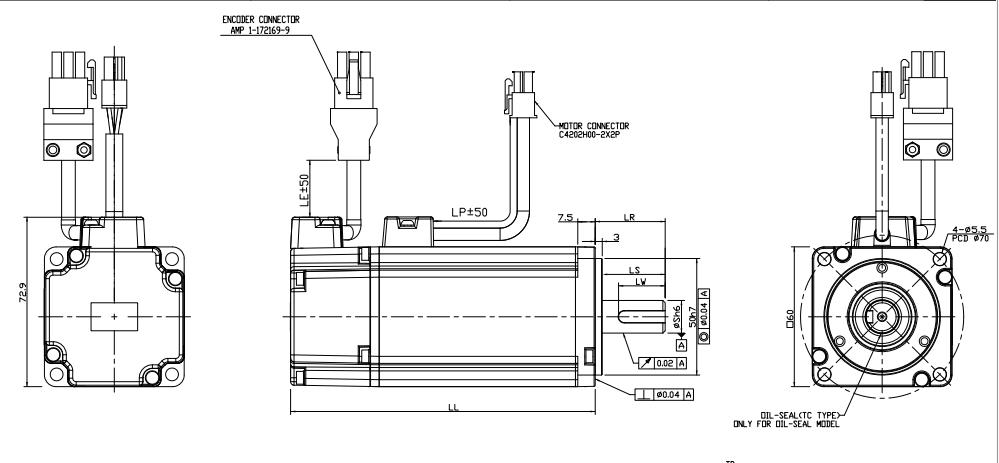

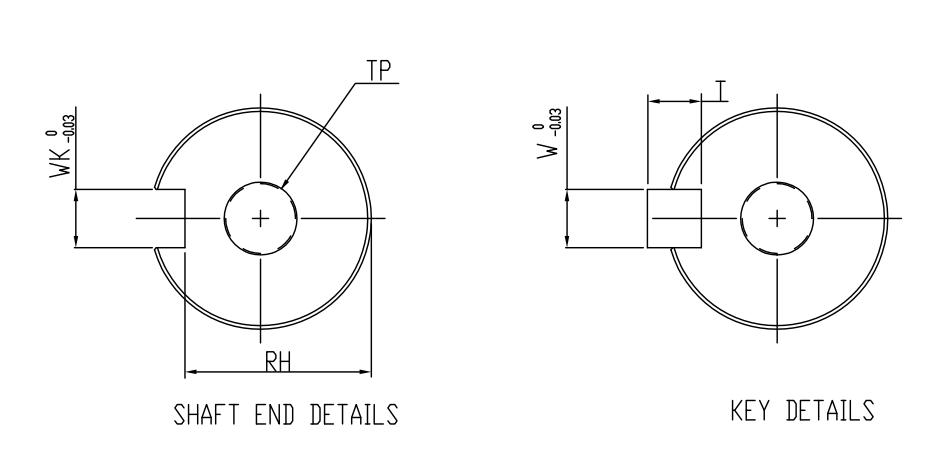

ECMA-C10604RS External Dimensions (mm)
