BS-1-200 CNC Precision Dividing Head with 200MM 3-Jaw Chuck with Dividing Plates

item ID#: BS-1-200
  • Item condition: New and Original
  • 100 available/ 0 sold
  • Start from: 1 Unit(s)
  • Weight: 38 Kg(s)
  • DHL Recommended Shipping
  • Stock Lead Time
Delivery:
3-7 Days Details
Payment:
Details
Guarantee:
1Year Quality Assurance Details
Returns:
7 days unconditional return, the buyer bear the return freight Details

Estimate Shipping Costs

Quantity: Unit(s)
US$538.00 + Shipping Cost
    • Description
    • Download
    • Product Reviews
    • Write a Review

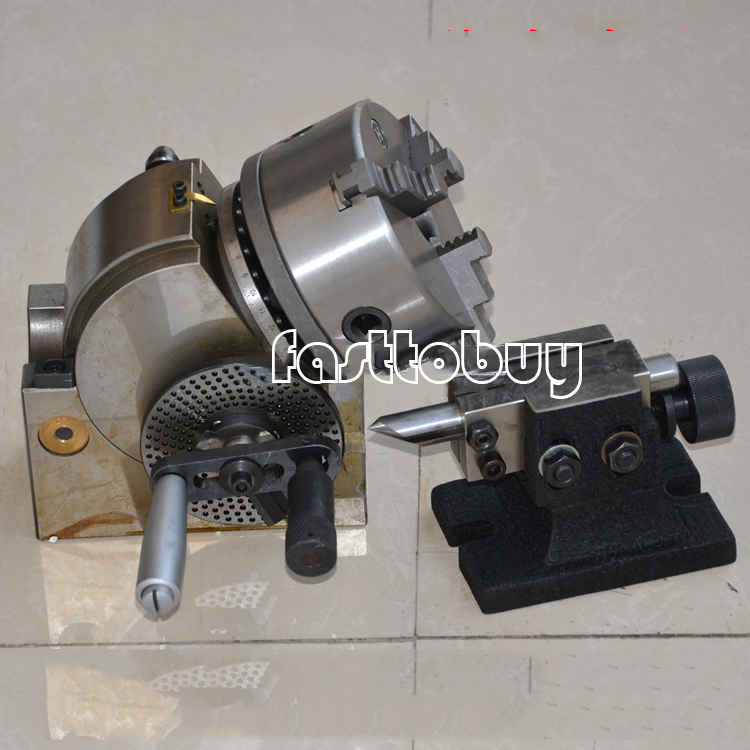

    BS-1-200 CNC Precision Dividing Head with 200MM 3-Jaw Chuck with Dividing Plates


    1. 1.      Include

    l  Head Stock* 1ps

    l  Tail Stock*1ps

    l  Dividing Plates A * 1ps

    l  Dividing Plates B * 1ps

    l  Dividing Plates C* 1ps

    l  200mm 3 Jaw Chuck* 1ps

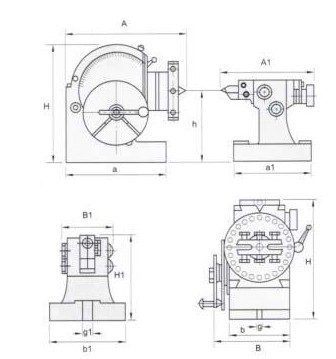

    1. 2.      Dimensions


    Model

    Unit

    A

    B

    H

    H

    a

    b

    g

    Center pin ejector

    Mandrel diameter

    BS-1

    Metric

    242

    168

    220

    128

    206

    113

    16

    MT3

    20

    Inch

    9.52

    6.61

    8.66

    5.04

    8.11

    4.45

    0.63

    B&SN0.9



    The size of the front of the dividing head

    The size of the tail of the dividing head

    Model

    Unit

    A1

    B1

    H1

    h

    a1

    b1

    g1

    BS-1

    Metric

    183

    87

    137

    128

    158

    110

    16

    Inch

    7.20

    3.42

    5.39

    5.04

    6.22

    4.33

    0.63

    Dividing Plates A,B,C

    The number of dividing plate’s bore (Helical gear reduction ratio 1:40)

    Dividing Plates A

    15

    16

    17

    18

    19

    20

    Dividing Plates B

    21

    23

    27

    29

    31

    33

    Dividing Plates C

    37

    39

    41

    43

    47

    49

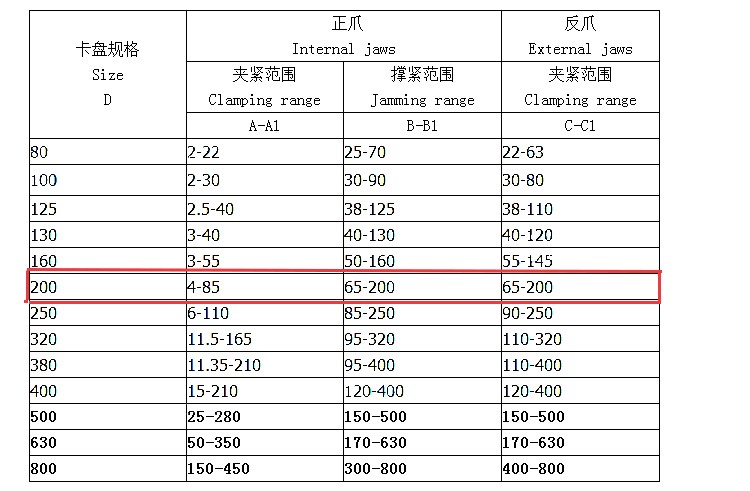

    3- Jaw chuck
