    BS-0-125 CNC Precision Dividing Head 125mm 3-Jaw Chuck Tailstock with Dividing Plates Milling Machine

    item ID#: BS-0-125
    Item condition: New and Original
    No reviews Write a review
    Weight: 23 Kg(s)
    20 available/ 0 sold
    Start from: 1 Unit(s)
    Manufactured by: ToAuto
    Wholesale Price:
    US$
    266.00
    Quantity: Unit(s)
    • DHL Recommended Shipping
    • 2-3 days Lead Time

    Estimate Shipping Costs

    • Description
    • Download
    • Reviews
    • Write a Review

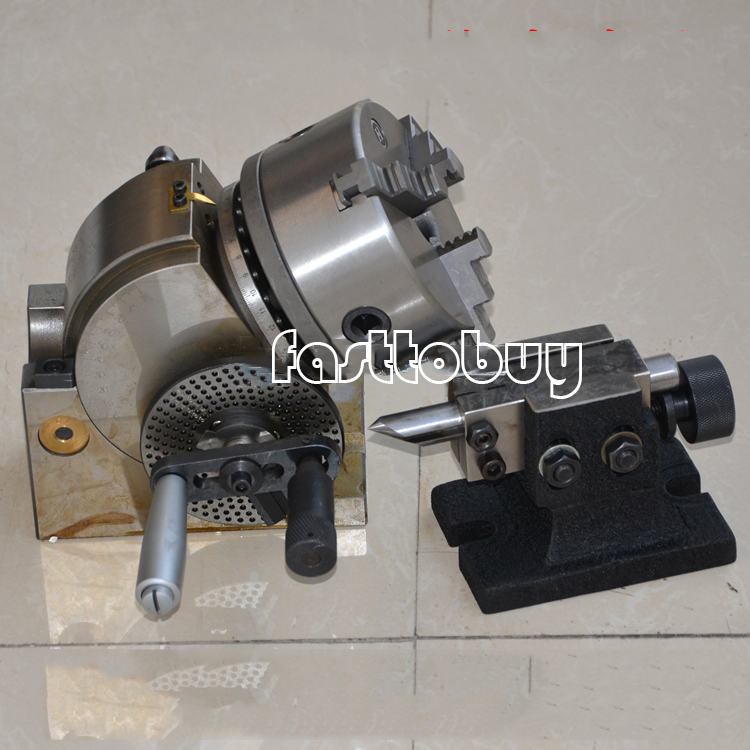

    BS-0-125 CNC Precision Dividing Head with 125MM 3-Jaw Chuck and Tailstock with Dividing Plates for Milling Machine

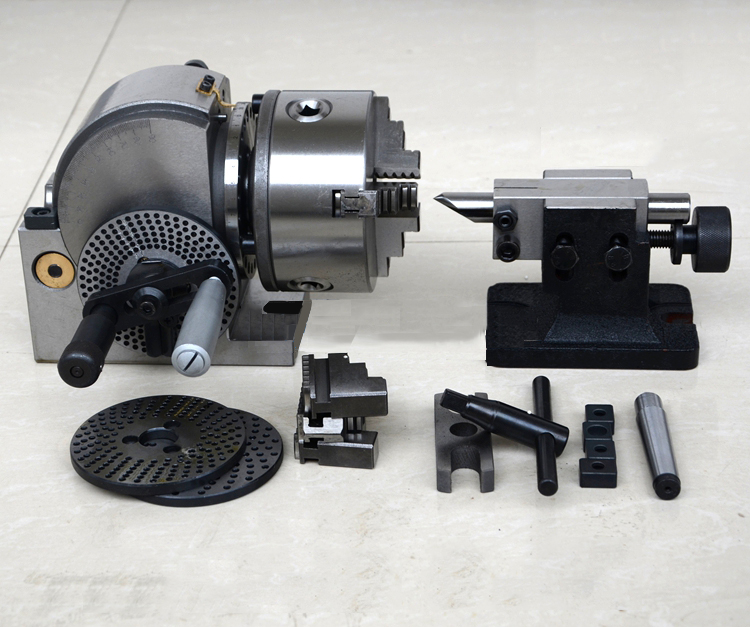

    Package include:

    1 x Head Stock
    1 x Tail Stock
    1 x Dividing Plates A
    1 x Dividing Plates B
    1 x Dividing Plates C
    1 x 3 Jaw Chuck

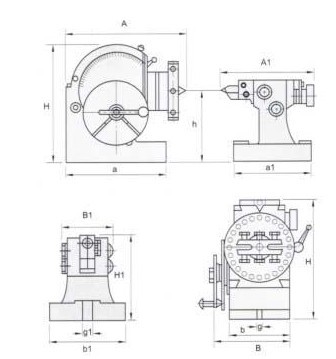

    Dimensions


    The size of the front of the dividing head

    Model

    Unit

    A

    B

    H

    H

    a

    b

    g

    Center pin ejector

    Mandrel diameter

    BS-0

    Metric

    193

    140

    173

    100

    166

    90

    16

    MT2

    18

    Inch

    7.59

    5.51

    6.81

    3.93

    6.53

    3.54

    0.63

    B&SN0.7









    The size of the tail of the dividing head

    Model

    Unit

    A1

    B1

    H1

    h

    a1

    b1

    g1

    BS-0

    Metric

    175

    87

    107

    100

    130

    92

    16

    Inch

    6.89

    3.42

    4.21

    3.93

    5.12

    3.62

    0.63

    Dividing Plates A,B,C

    The number of dividing plate’s bore (Helical gear reduction ratio 1:40)

    Dividing Plates A

    15

    16

    17

    18

    19

    20

    Dividing Plates B

    21

    23

    27

    29

    31

    33

    Dividing Plates C

    37

    39

    41

    43

    47

    49

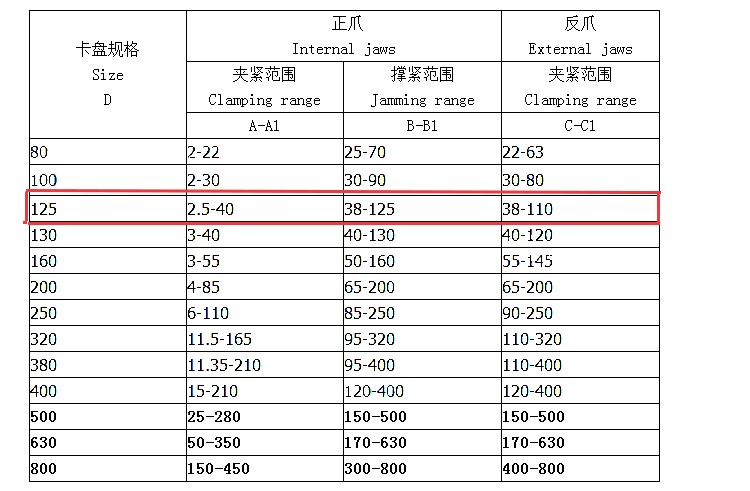

    3- Jaw chuck
