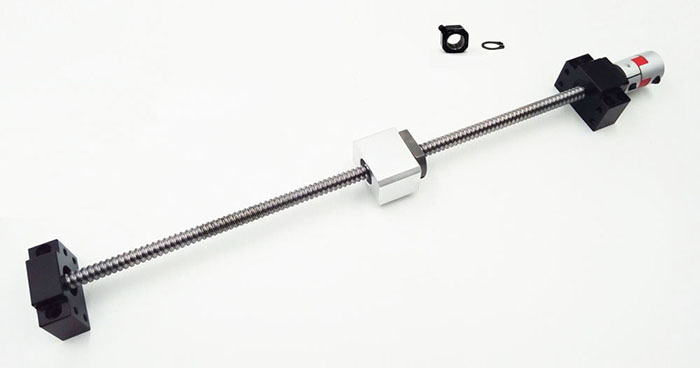

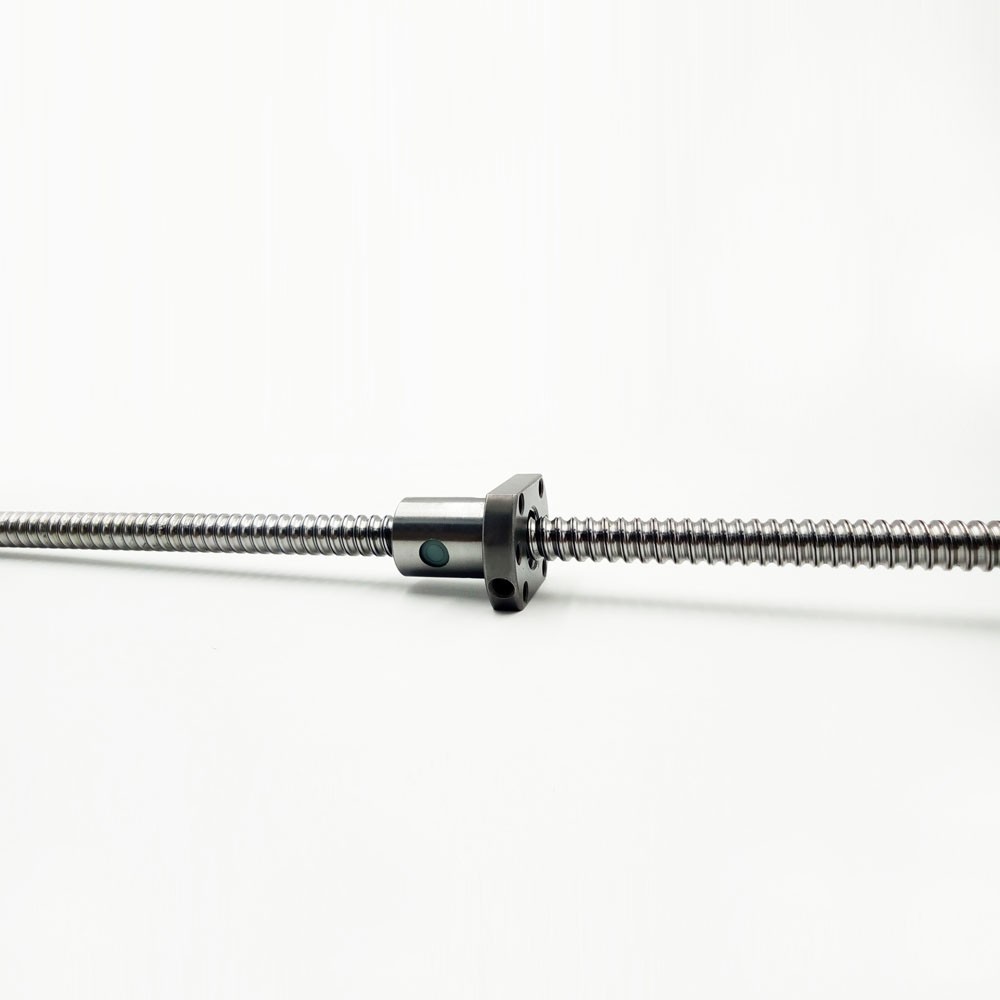

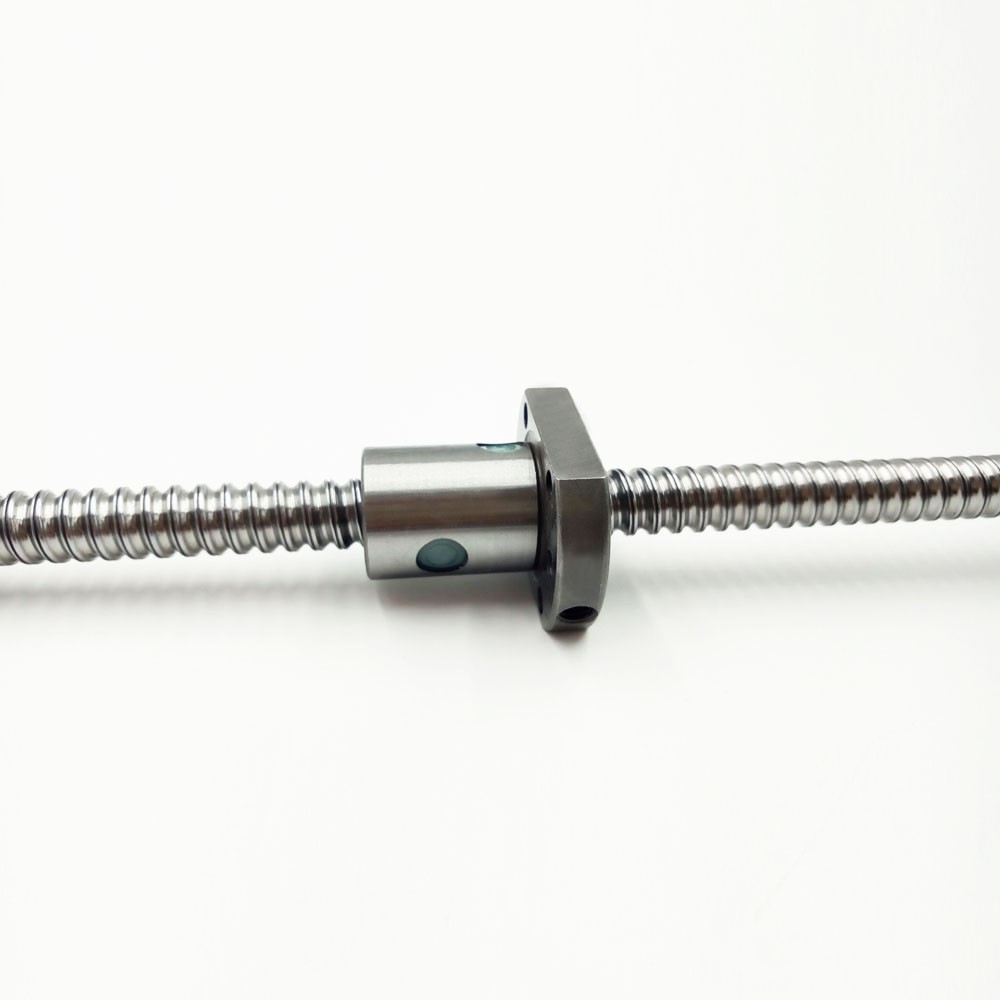

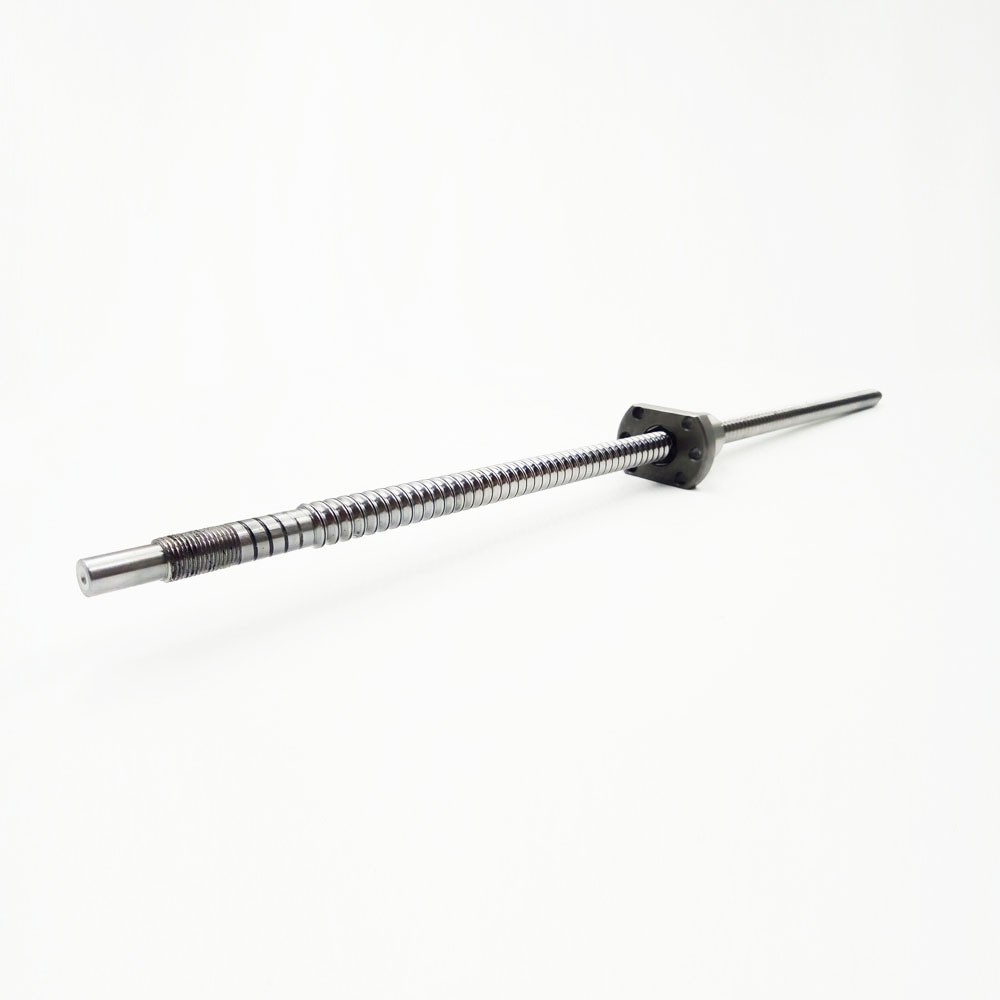

Ballscrew SFU1204 150mm-750mm BK/BF 10 End Machined C7 CNC lathe Parts

Package Included：

1PCx SFU1204 ball screw (the length according to your choice) with ball nut

Kindly note:

1. The length of ball screw is customizable, if any other size is needed, please contact us freely, overall length = length of both ends + nut length + effective stroke.
2. We also provide end support, shaft coupler and ball nut mount bracket for choice.

Balls crew Features :

1. Ball screw components are most commonly used on machine tools and precision machinery , and its main function is to convert rotary motion into linear motion , or to convert torque into axial forces repeatedly.

2. With the features of high-precision, reversibility and high efficiency.

3. Processed by high precision cold rolling

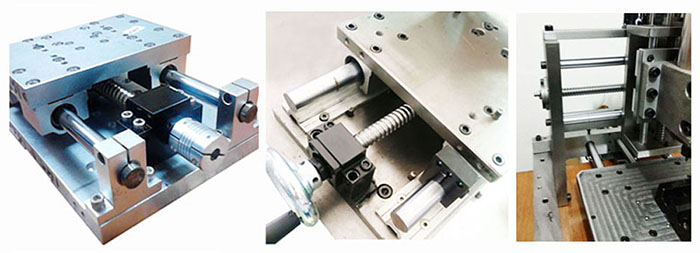

Ball screw Applications :

The ball screw can be widely used for desktop CNC, carving machine, woodworking machinery, automatic equipment, DIY slide, etc.

Ballscrew Parameters :

Model Number : SFU1204
Process: processed by high precision cold rolling.

Accuracy class: C7

Screw diameter: 12mm
Screw pitch (lead): 4mm
Screw effective length: 500mm
Nut: single nut SFU1204
Direction of helix: right screw
