Package Content:

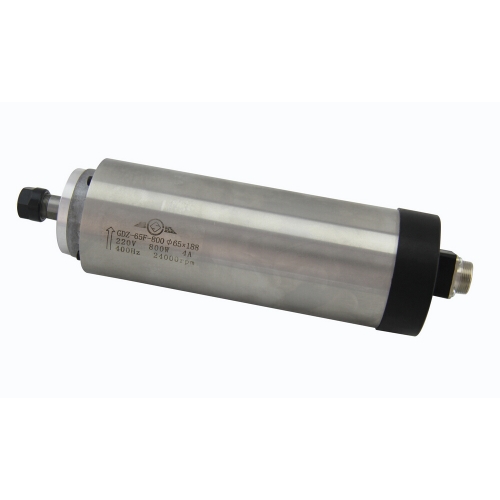

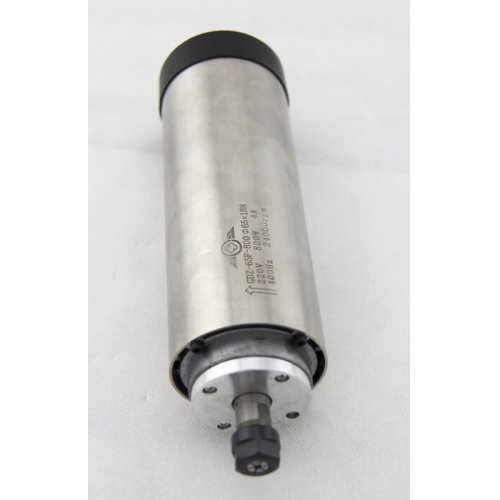

1*800W Spindle Motor: GDZ-65F-800

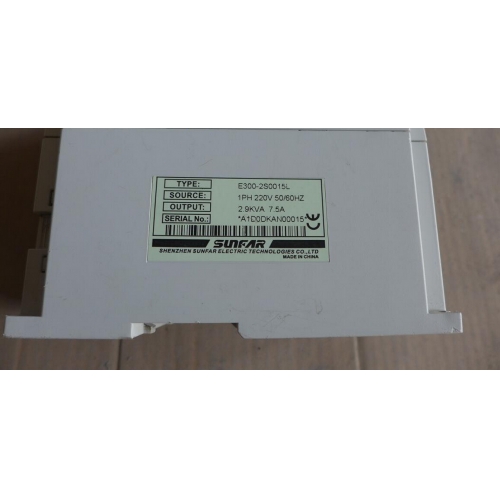

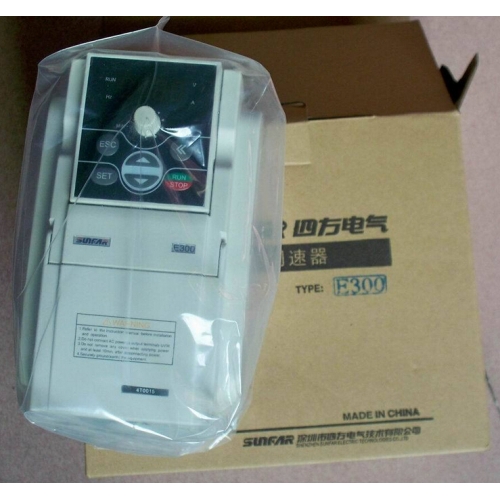

1*1.5KW sunfar VFD Variable Frequency Drive: E300-2S0015L
1*bracket
Spindle Motor Specification:
Providing the default Collet ER11 6mm, if not please do contact us for a better solution.
Specifications
|
Model No. |
GDZ65F-800 |
|
Brand |
Changsheng (China) |
|
Certification |
ISO9001-2000 |
|
Product type |
three-phase asynchronous Spindle Motor Constant Torque for CNC Engraving Machines |
|
Pole number |
2 |
|
Rated power(KW) |
0.8 |
|
Rated voltage(V) |
220 |
|
Rated speed(rpm) |
24000 |
|
Current(A) |
4 |
|
Frequency(Hz) |
400 |
|
Cooling |
Air-Cooled |
|
Bearing type |
2×7002C P4 DT&2×7000C P4 |
|
Length/width/hight(mm) |
220/65/65 |
|
Spindle head height(mm) |
22 |
|
Diameter&length |
65*188mm |
|
Lubricate |
grease |
|
Collet(mm) |
ER11 |
|
Collet(mm) |
6mm |
|
balance test result(ms*s) |
2.4rpm<5 |
|
Repair time |
bearing(half year),spindle(one year) |
|
Weight |
4KG |
VFD Specification:
|
Model |
E300-2S0015L |
|
Power (KW) |
1.5KW |
|
Input Voltage(V) |
1-phase AC 220V ±20% 50/60Hz |
|
Output Voltage(V) |
0~220V |
|
Output Current(A) |
7.5A |
|
Output Frequency (Hz) |
0~1000Hz |
|
Origin& Warranty&brand |
China & One year&sunfar |
Bracket Specifications
|
Type |
Φ65mm Bracket |
|
Material & Origin |
Cast Aluminium& China |
