600W Air-Cooled Spindle Motor+Power Governor ER16 Mach3 110V 220V 0.6NM CNC DIY PCB CNC Spindle Motor

item ID#: LD57GF-600W-ER16 Kit
  • Item condition: New and Original
  • 48 available/ 22 sold
  • Start from: 1 Unit(s)
  • Weight: 4.5 Kg(s)
  • Manufactured by: ToAuto
  • DHL Recommended Shipping
  • Stock Lead Time
Delivery:
3-7 Days Details
Payment:
Details
Guarantee:
1Year Quality Assurance Details
Returns:
7 days unconditional return, the buyer bear the return freight Details

Estimate Shipping Costs

Quantity: Unit(s)
US$156.00 + Shipping Cost
    • Description
    • Download
    • Product Reviews
    • Write a Review

    600W Air-Cooled Spindle Motor+Power Governor ER16 Mach3 100V DC 0.6NM CNC DIY PCB





    DC Spindle Motor specification:



    Type

    Air Cooling DC Spindle Motor



    Power Governor

    Input

    110V/220V AC

    Output

    0~110 VDC 6A



    Speed adjustment mode

    Support Mach3 software G code

    Manual speed control(potentiometer)

    0-5V/0-10V analogue

    Rated voltage

    110V DC

    rotate speed

    12000r/min

    Power

    600W

    Max current

    8A

    Torque

    600mN.m

    accuracy

    0.03mm

    Radial pulsation

    0.01-0.02

     Nut& Collet

    ER16 3.175mm   (default)

    Collet range

    1~10mm

    Carving object

    metal or nonmetal

    Carbon brush

    Extra position

    Advantage

    lower noise and large force

    Insulation Resistance

    greater than 2Mohm

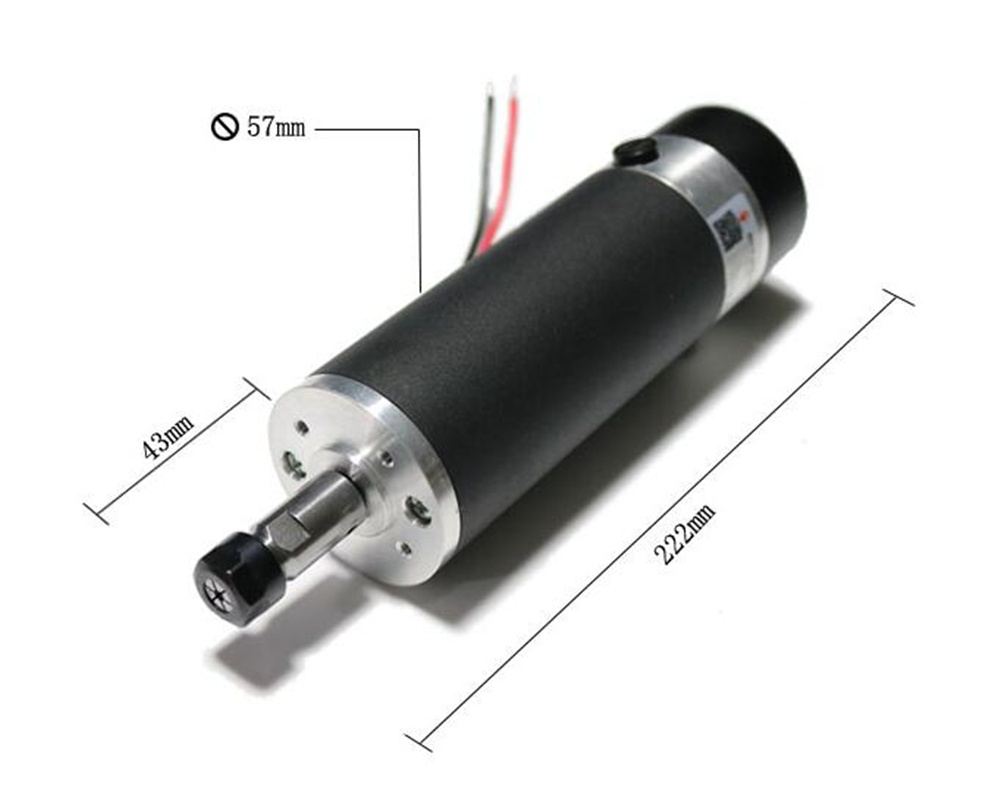

    Motor diameter&length

    57*222mm

    Motor carbon

    Changeable units



    Providing accessories(Leave a message):



    Collet

    1/2/3/3.175/4/5/6/6.35/7/8/9/10mm

    $1.2/PCS

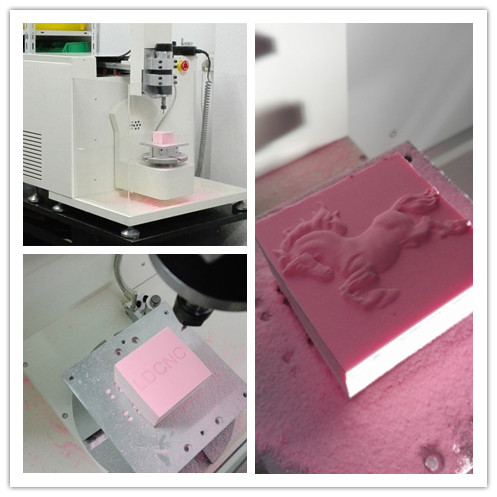

    Application Fields:
    CNC DIY Carving PCB, Acrylic, Drill Hole, tapping, metal or nonmetal material.



    Shipping list:



    1PCS

    600W DC Spindle Motor

    1PCS

    Power Governor

    1PCS

    57D Mount bracket

    4PCS

    Mounting screw

    1 PCS

    Motor carbon



    LD57GF-600W (4).jpg



    LD57GF-600W (5).jpg
