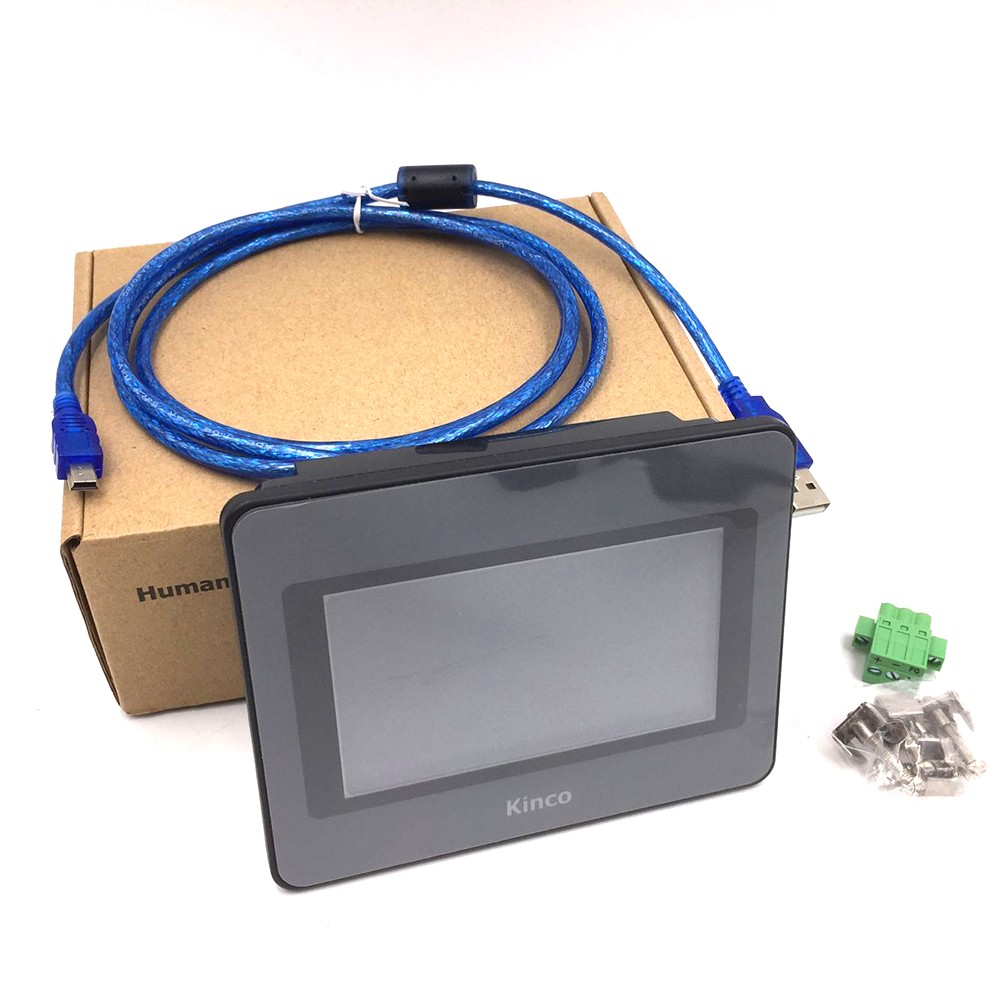

4.3 Inch Kinco MT4230TE HMI Touch Screen Operator Panel With Programming Cable

item ID#: MT4230TE

Item condition: New and Original

No reviews Write a review

Weight: 1.5 Kg(s)

3 available/ 17 sold

Start from: 1 Unit(s)

Wholesale Price:

US$

135.00

Quantity: Unit(s)

DHL Recommended Shipping
Stock Lead Time

Estimate Shipping Costs

Product QTY:

Country / Region:

Description
Download
Reviews
Write a Review

4.3 Inch Kinco MT4230TE HMI Touch Screen Operator Panel With Programming Cable

Kinco MT4230TE HMI

Delicate:thin and light body, the thickness of only 33mm, perfectly adapted to the requirement of a small space for installation.
Mainstream Performance:streamlining LINUX kernel, high-speed CPU, communications faster, program running more smoothly.
Stable and reliable:power isolation design, utmost to eliminate the failure,freezen and extra service cost caused by interference.
Powerful software:Kinco HMIware, free configuration software, easy to use, full-featured.

Model	MT4230TE
Performance specification
Display	4.3" TFT
Resolution	480*272
Color	65536
Backlight	LED
Brightness	250cd/m2
Backlight life	50000 hours
Touch Panel	4-wire precision resistance network
Processor	32-bit 400MHz RISC	32-bit 800MHz RISC
Memory	128M FLASH + 64M SDRAM
U Disk	None	1USB host
SD Card	None	1 SD card
Recipe memory & RTC	512KB + RTC
Printer port	Serial port	Serial port/USB port
Ethernet	None	Support
Program download	USB SLAVE/Serial port	USB SLAVE/Serial port/Ethernet port
COM port	COM0:RS232/RS485-2/RS485-4,COM2:RS232
Function Key	None
Software	EV5000 V1.6
Electrical specification
Rated power	3.5W
Rated voltage	DC24V
Input range	12~28VDC
Power down allowed	<3ms
Insulation resistance	Greater than 50MΩ@ 500V DC
Dielectric strength test	500 VAC 1 minute
Structure specification
Shell color	Black
Shell material	ABS
Dimensions(mm)	132×102×33mm
Cutout size(mm)	119×93mm
Weight	0.21 Kg
Environment specification
Operating temperature	0?50?
Operating humidity	10~90% non-condensing
Storage temperature	-10?60?
Storage humidity	10~90% non-condensing
Shockproof test	10~25Hz (X, Y, Z direction, 2G, 30 minutes)
Cooling method	Natural air cooling
Certification
Degree of protection	IP65 (front panel)
CE certification	Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards
FCC compatibility	Complies with FCC Class A

All Kinco series products use HMI configuration editing software (official version): _Kinco HMI software_V2.2_Build131108 (Automatically install driver)
