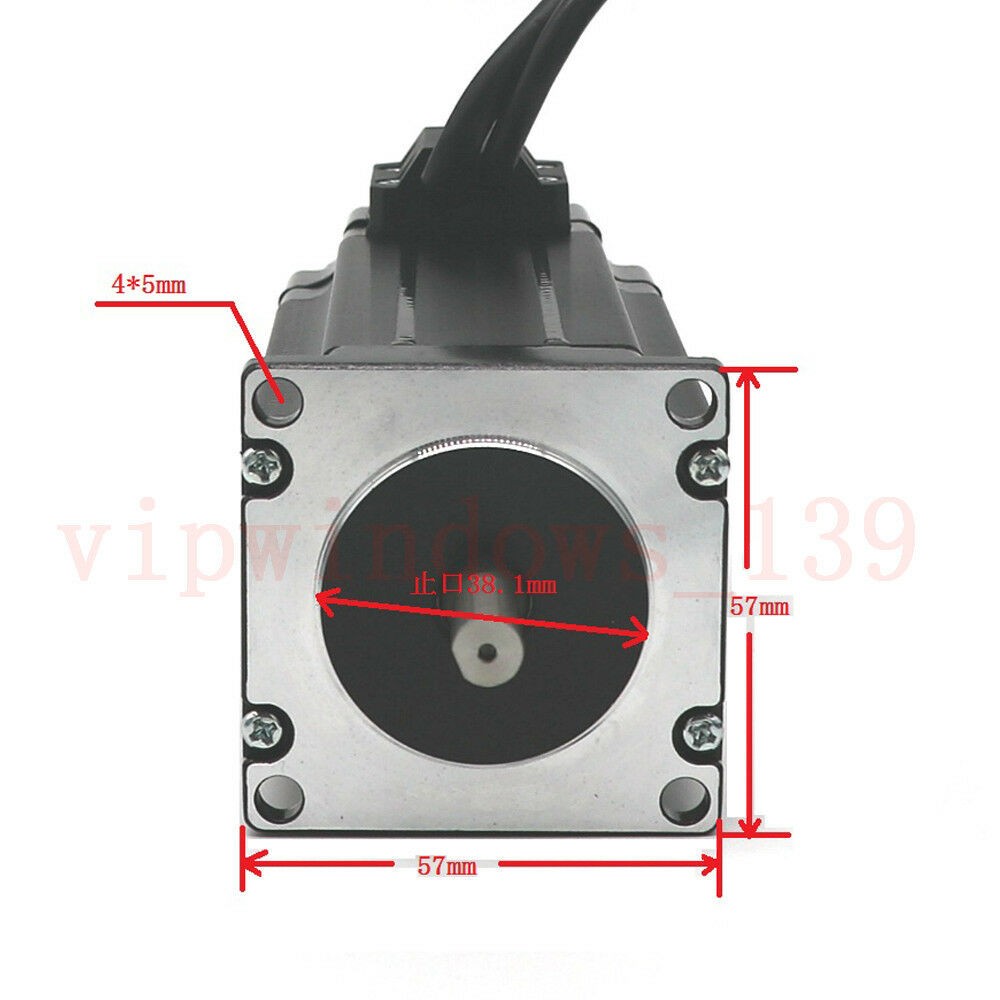

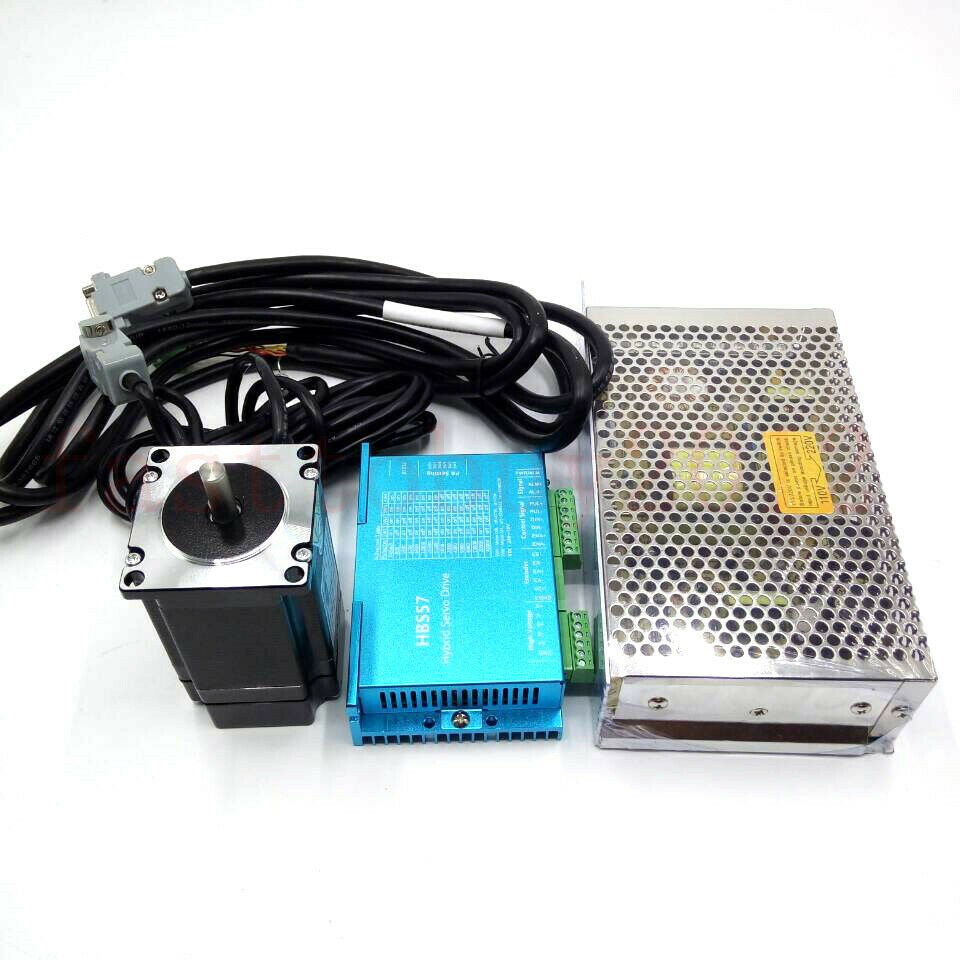

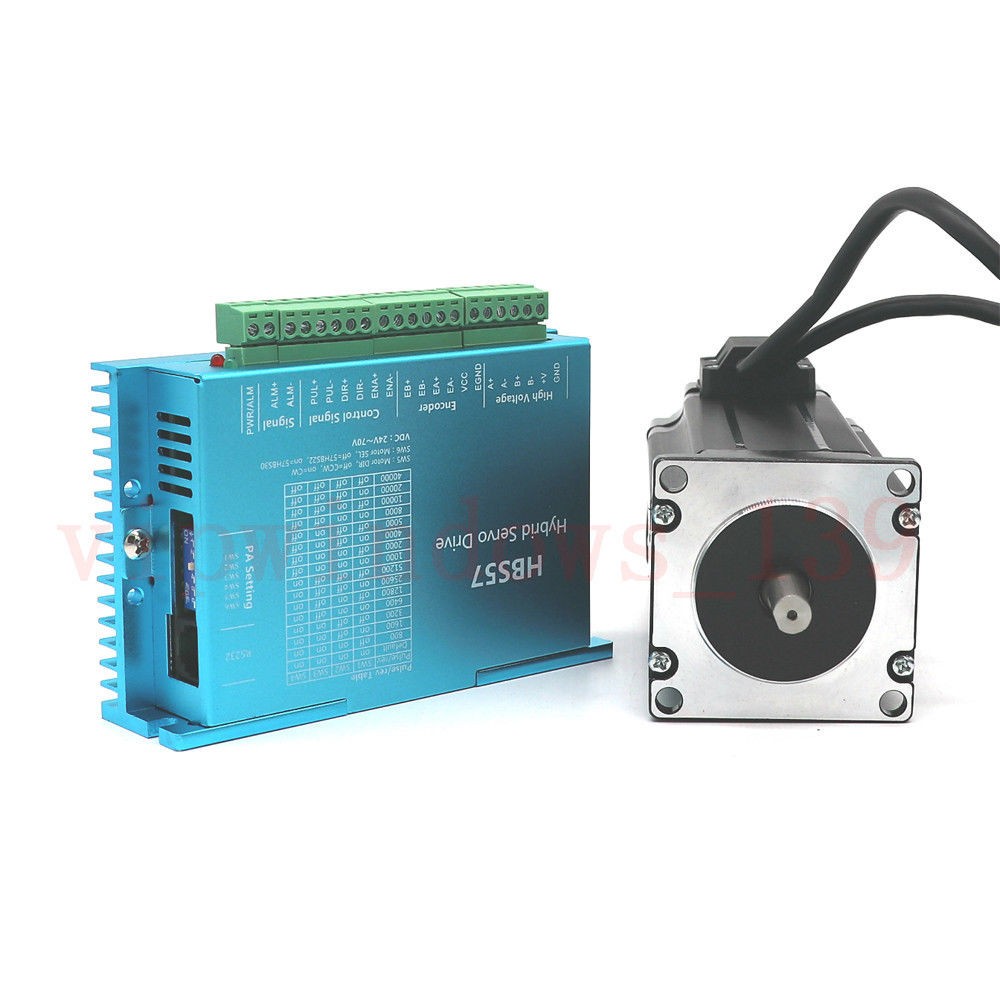

423Oz-in 3Nm Nema23 Closed-loop Stepper Motor Hybrid Servo Driver & 200W Power Supply Kit for CNC machine

Type

DSP Closed loop vector control stepper drive

maximum peak current

5A

Impulse response frequency

200Khz

Micro-stepping driver

200~51200ppr

Voltage

DC24-60V

Protective function

Over voltage, over current, tracking error, overproof

Signal input

Support PUL/DIR and CW/CCW modes (difference)

Compatible 5~24V signal (Don't need a resistor)

Continuous overload

Output an alarm signal

Type of cooling

Air-cooling

Environment

Keep away from dust, oil, corrosive gas, high humidity and high vibration

Application temperature

0~50 degree centigrade

Humidity

40-90%RH

Shake

10~55Hz/0.15mm

Min

Typical

Max

Unit

Output Current

-

-

5

A

Input Voltage

24

36

60

VDC

Logic Signal Current

7

10

16

mA

Pulse input frequency

-

200

-

kHz

Isolation Voltage

500

-

-

Mohm
