300w Water Cooling Spindle Motor High-speed 48mm 60000rpm Engraving Spindle Motor for CNC Router

item ID#: GDS300
Item condition: New and Original
No reviews Write a review
Weight: 4 Kg(s)
9 available/ 1 sold
Start from: 1 Unit(s)
Wholesale Price: 163.00
Quantity: Unit(s)
  • DHL Recommended Shipping
  • Stock Lead Time

Estimate Shipping Costs

  • Description
  • Download
  • Reviews
  • Write a Review

48mm 0.3KW 60000rpm 75V 3.7A Water Cooling High-speed Spindle Motor for Engraving Machine GDS300 Xingchen


Specifications:

Type

GDZ95

GDS300

GDZ400

Technical date

Speed(r/min)

20000-60000rpm

20000-60000rpm

10000-40000rpm

Rated power(KW)

0.095KW

0.3KW

0.4KW

Voltage(V)

36V

75V

110V

Current(A)

2.1

3.7

1.4

Frequency(Hz)

333-1000Hz

333-1000Hz

167-667Hz

Lubrication

grease

Cool

nature cooling

water cooling

nature cooling

Bearings type

1*C36100

1*C36018

1*7001CP5

1*C36018

1*7002CP5

1*7001CP5

Weight(kg)

2.5

3

Dimension

D

48

58

D1

40

42

48

Joint of nose

3.175 engraving small collect

3.175 engraving small collect

ER11-3.175-6

L

114

124

172

L1

6

L2

23

18

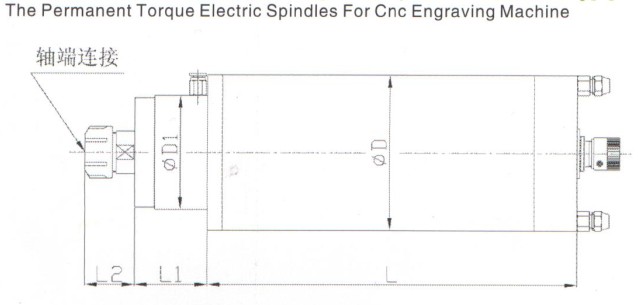

Dimensions:



GDS300 dimension.jpg

NOTE

1.The electric spindle must be matched with the frequency converter. Frequency converter selection must be matched with the power,

voltage, current, frequency and other parameters of the electric spindle. The use of electric spindle must first set the benchmark frequency

of the inverter. The reference frequency of the frequency converter is set according to the highest frequency of the electric spindle.

Inverter reference frequency conversion factory default settings 50hz. If the base frequency of the inverter is not set before

the spindle motor is used, the spindle motor can be burnt down.



2.Before use, you should use the hand to turn the spindle motor, and confirm that it can rotate smoothly.



3.When in use, you must first connect to the spindle motor cooling water pipes, water pipes to ensure. Water flow is not less than 5L/min



4.If the electric spindle needs to be replaced with a new bearing,Should be replaced by a certain professional and technical personnel.

Supporting special tools. The spindle motor should be fully cleaned, the stator coil does not need to be removed.



Shipment:

1. Usually we will ship the items within 3 working days after the payment is reached.
2. DHL, UPS, Fedex, or EMS is available for shipping.
3. Delivery time:DHL, UPS, Fedex, EMS express shipping usually take 3-10 working days depends on the country delivered to.
4. Please check out your ADDRESS carefully when processing order.
5. Buyers please note: Accessories tariffs must be buyers to pay.The buyer can choose EMS express to avoid tariffs.
6. Any accidents, delays or other issues are the responsibility of the shipping service.
