2.2KW Spindle Motor ER25 Air-cooled 220V With 3.7KW VFD Inverter Driver Kit CNC Woodworking Spindle Milling Drilling

item ID#: GDZ93x82-2.2-220V+E550-2S0037L
  • Item condition: New and Original
  • 10 available/ 0 sold
  • Start from: 1 Unit(s)
  • Weight: 11 Kg(s)
  • Manufactured by: Made in China
  • DHL Recommended Shipping
  • Stock Lead Time
Delivery:
3-7 Days Details
Payment:
Details
Guarantee:
1Year Quality Assurance Details
Returns:
7 days unconditional return, the buyer bear the return freight Details

Estimate Shipping Costs

Quantity: Unit(s)
US$575.00 + Shipping Cost
    • Description
    • Download
    • Product Reviews
    • Write a Review

    2.2KW Spindle Motor ER25 Air-cooled 220V 18000RPM + 3.7KW VFD Inverter Driver Kit CNC Woodworking Spindle Milling Drilling


    Package Included :

    1 x 2.2KW Spindle Motor

    1 x 3.7KW VFD Inverter Driver

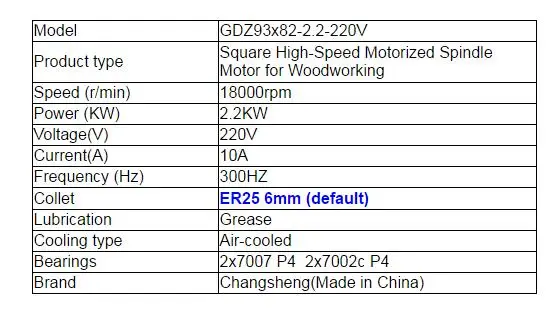

    Spindle Motor Specifciaitons :

    spindle

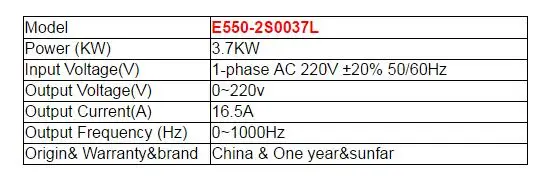

    VFD Inverter Specifications :

    VFD
    Spindle Motor Dimension :


    QQ20171019100913
    Kindly Note :

    Motorized spindle motors are matched with inverters, choosing inverters should be according to the current, voltage, and frequency of motorized spindle motors.

    Setting the inverter must firstly set up the basal frequency, its basal frequency is based on the highest frequency of motorized spindle motor, if not setting the basal frequency (the factory setting is 50Hz),the motorized spindle motor would burn out once start running;

    The highest frequency, break frequency and the corresponding voltage also should be set according to the curve on the operating instruction; setting the current of the inverters is also based on the rated current of motorized spindle motor;

    The overcurrent is 120% of rated current; overload tripping is 100%, time is 5s;
    Carrier frequency is set by the power of spindle motor,8kHz for less than 10KW motorized spindle motor, 5kHz is for more than 10KW spindle motor;

    The acceleration time and deceleration time are 10s and 20s respectively, if starting current exceed the rated current and need protection, it should extend the acceleration time.

    I/O lack-phase protection also should be set above the function of protecting inverters and motorized spindle motors.

    Connecting the inverter and the three-phase power of spindle motor, solder the inverter three-phase power cord on the plug 1(U1),2(V1),3(W1), plug 4 is ground wire. Then the inverter is connected with the external power supply and start work, then to check whether the rotation direction of spindle motor is consistent with its indication direction, if inconsistent, immediately shut down and change two wire on the three-phase power supply of connecting inverter and motorized spindle motor. The motorized spindle motor is prohibited running in the wrong rotation direction.

    Power lines should be taken waterproof and shielding measures. The connection between motorized spindle motor and inverter should not exceed 25m. When the power cord of the water-cooled spindle motor connects the terminal block, it must be bent into U shape and fixed on the bottom of the terminal block and then connect, so that can protect the condensed water of the power cord into the terminal block.

    Another, use shielding power lines to prevent its interference to inverter.
